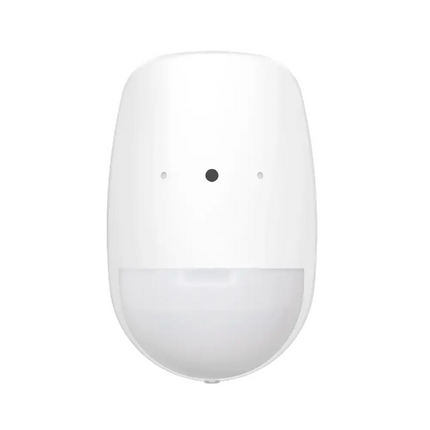

Hikvision AX Hybrid Pro
DS-PDPG12P-EG2 PIR Glass-Break Detector
The Hikvision DS-PDPG12P-EG2 combines a 12-metre PIR motion sensor with dedicated glass-break detection in a single wired device for the AX Hybrid Pro intrusion system. One detector covers both an intruder walking through the room and the sound of a window being smashed.
With up to 30kg pet immunity and selectable end-of-line resistors, it drops cleanly into most control panels while ignoring household pets.
Dual Detection12m / 85.9° PIR plus 8m / 120° glass-break in one unit
Pet ImmunityIgnores pets up to 30kg to cut false alarms
Selectable EOLSelectable end-of-line resistors suit most panels
Wide Voltage9-16 VDC with reverse-polarity protection
Specifications
| Model |
DS-PDPG12P-EG2 |
| PIR Detection Range |
12m / 85.9° |
| Glass-Break Range |
8m / 120° |
| Pet Immunity |
Up to 30kg |
| EOL Resistors |
Selectable |
| Power |
9-16 VDC, reverse-polarity protected |
| System |
Hikvision AX Hybrid Pro (wired) |
Does it detect both motion and glass breaking?Yes. It pairs a 12m PIR motion sensor with an 8m acoustic glass-break sensor, so a single device protects the room and the windows.
Will my pets set it off?No. The detector offers pet immunity for animals up to 30kg when mounted correctly.
Which system is it for?It is a wired detector for the Hikvision AX Hybrid Pro control panel and supports selectable EOL resistors for most panels.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
Add the DS-PDPG12P-EG2 to your Hikvision AX Hybrid Pro system for combined motion and glass-break protection backed by a 3-Year Australian warranty and local support.
