Bosch PIR Sensors

HIKVISION AX PRO SERIES Advanced Interior Motion Security with Zero False Alarms The DS-PDP15P-EG2-WB(B) is a fully supervised, two-way wireless PIR detector designed for seamless integration into Hikvision AX PRO alarm systems. Delivering high-precision detection across a 15-metre range with an 85.9° field of view, this interior sensor utilizes Smart Environmental Control (SEC) and 3D sealed optics to eliminate false triggers caused by pets, drafts, or temperature shifts. Built for residential and commercial security deployments, it ensures immediate intrusion detection while maintaining multi-year maintenance-free operation. Detection Coverage 15m / 85.9° Wide Angle Pet Immunity Up to 30 kg Wireless Protocol Tri-X 433 MHz / 1.2km Battery Lifespan Up to 5 Years (1x CR123A) Enterprise Tri-X Wireless Architecture & Smart Analytics Powered by Hikvision's proprietary Tri-X wireless communication, the DS-PDP15P-EG2-WB(B) PIR detector transmits data securely over a 433 MHz frequency with AES-128 encryption and dynamic frequency hopping to prevent signal jamming. Featuring 52 detection zones and full remote configuration via the Hik-Connect application, security teams and homeowners can adjust sensor sensitivity, perform signal strength testing, and manage firmware updates wirelessly without unmounting the physical device. Smart Environmental Control (SEC) Integrates 3D sealed optics and digital signal processing to filter out non-human motion, minimizing false alarms caused by temperature fluctuations or pets up to 30 kg. Anti-Sabotage & Tamper Protection Includes front and rear tamper switches that immediately notify the central monitoring station or mobile app if the housing is opened or forcibly detached from the wall. Technical Specification Matrix Camera / Detector Model DS-PDP15P-EG2-WB(B) Detection Method Passive Infrared (PIR) Detection Range & Angle 15 metres / 85.9° coverage angle Pet Immunity Limit Up to 30 kg Wireless Frequency & Range 433 MHz Tri-X Wireless (1.2 km open space) Wireless Security AES-128 Encryption & Frequency Hopping Battery Type & Lifespan 1x CR123A 3V Battery (Up to 5 Years Standby) Operating Temperature -10°C to 55°C (14°F to 131°F) Mounting Height & Scenarios 1.8m to 2.4m wall mounting / Indoor How does the pet immunity feature work on the DS-PDP15P-EG2-WB(B)? The detector uses Smart Environmental Control (SEC) combined with 3D optics to evaluate shape and motion signature, effectively ignoring pets weighing up to 30 kg while triggering instantly for human movement. How long does the battery last and is it user-replaceable? The unit operates on a standard CR123A 3V lithium battery, providing up to 5 years of operation under typical standby conditions. The battery compartment is PCB-protected for quick and easy replacement. How do I connect this PIR detector to my AX PRO control panel? Enrollment is simple and flexible—you can pair it via the Hik-Connect mobile application by scanning the QR code, using remote ID enrollment, or simply powering up the device near the hub. Is the wireless communication secured against intrusion attempt or jamming? Yes, the detector communicates via Tri-X wireless protocol using multi-channel frequency hopping and AES-128 bit encryption to prevent radio interference or signal manipulation. Technical Datasheet Quick Start Guide Installation Manual Official HIKVISION Stock Commercial Warranty Aust-Wide Delivery

Read more less

Dahua · DHI-ARD1233-W2 · PIR Motion Detector · Pet Immunity PIR Detector Dahua DHI-ARD1233-W2 Wireless PIR Motion Detector The Dahua ARD1233-W2 is a wireless PIR motion detector providing reliable indoor motion detection without extra cabling. It covers up to 12m across a 90° field of view with pet immunity up to 18kg, AES128 encrypted two-way RF and 3-level adjustable sensitivity. It pairs with Dahua wireless alarm hubs (ARC series) and is managed in the DMSS app — ideal for homes, offices, shops and small commercial sites. Specifications — DHI-ARD1233-W2 Type Wireless PIR motion detector Sensor Dual-element low-noise PIR Detection Range 12m, 90° at 2.2m installation height Detection Speed 0.3m/s–3m/s Pet Immunity Up to 18kg Sensitivity 3 levels adjustable, with temperature compensation Communication Two-way RF, frequency hopping, AES128 encryption Alerts Tamper alarm · low-battery alarm Battery 1 × CR123A, up to 4 years (Dahua test conditions) Mounting Indoor wall mount Compatibility Dahua ARC wireless alarm hubs · DMSS app Warranty (Australia) 3 years · CCTV Guru Australia DHI-ARD1233-W2 Datasheet 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Blue Line Gen2 · Hardwired PIR / TriTech · 12x12m · Pet-Friendly OptionsBlue Line Gen2 PIRISC-BPR2-W12 Hardwired PIR Motion Sensor — Australian Stock & 3-Year Warranty The Bosch ISC-BPR2-W12 is a professional Blue Line Gen2 hardwired PIR motion detector delivering reliable 12m x 12m indoor coverage with First Step Processing and Dynamic Temperature Compensation for strong catch performance and low false alarms. This page also lets you select pet-friendly PIR (ISC-BPR2-WP12), TriTech PIR + microwave (ISC-BDL2-W12G) and pet-friendly TriTech (ISC-BDL2-WP12G) variants, so you can match the exact detector to homes, offices, shops and complete Bosch alarm kits. Every unit ships from Australian stock and is backed by a 3-year Australian warranty. Coverage 12m x 12m Detection PIR / TriTech Output N/C Relay + Tamper Power 9-15 VDC Blue Line Gen2 Performance First Step Processing and Dynamic Temperature Compensation deliver dependable catch performance across changing indoor conditions. Choose PIR or TriTech Standard PIR for cost-effective indoor rooms, or TriTech (PIR + microwave Doppler radar) for tougher spaces needing extra false-alarm immunity. Pet-Friendly Options Select pet-immune PIR up to 20kg or pet-immune TriTech up to 45kg, keeping detection reliable in homes with pets. Fast, Flexible Install Flexible 2.2m to 2.75m mounting height needs no field adjustment, with wall, corner and optional ceiling mounting. Technical Specifications Model / SKU ISC-BPR2-W12 (Blue Line Gen2) Sensor Type PIR (TriTech PIR + microwave variants available) Coverage 12m x 12m Pet Immunity Up to 20kg (PIR) / up to 45kg (TriTech) on pet variants Alarm / Tamper Output Supervised N/C relay + N/C tamper Operating Voltage 9 - 15 VDC Mounting Height 2.2m - 2.75m (no adjustment required) Compatibility Bosch Solution 2000 / 3000 / 6000 & Vision panels Warranty 3 Years (Australia) Downloads ISC-BPR2-W12 DatasheetBosch PIR Motion Sensor Quick Start GuideBosch PIR Motion Sensor User Manual Frequently Asked Questions What mounting height suits the ISC-BPR2-W12?Mount between 2.2m and 2.75m. No field adjustment is required within this range, which simplifies installation and preserves the 12m x 12m coverage pattern. Which variant should I choose if I have pets?Choose ISC-BPR2-WP12 for pet-immune PIR up to 20kg, or ISC-BDL2-WP12G for pet-immune TriTech up to 45kg in premium residential or commercial installs. What voltage and wiring does it need?It operates on 9-15 VDC and connects via a supervised N/C relay output plus an N/C tamper, wiring straight into standard hardwired alarm zone inputs. Which Bosch panels is it compatible with?It suits Bosch Solution 2000, Solution 3000, Solution 6000 and Vision series panels using standard wired zones. What is the difference between PIR and TriTech?PIR uses passive infrared only, while TriTech (ISC-BDL2 variants) adds microwave Doppler radar for higher detection confidence and better false-alarm immunity in challenging spaces. What coverage area does it protect?All variants provide 12m x 12m detection, ideal for standard indoor rooms, offices, shops and warehouses. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Dahua · DHI-ARD324-W2(S) · Door Detector · Shock + Tilt Door Detector Dahua DHI-ARD324-W2(S) Wireless Door Detector (Shock & Tilt) The Dahua ARD324-W2(S) goes beyond standard open/close detection by adding built-in shock and tilt sensing — helping detect forced entry before a door is opened. Encrypted AES128 two-way RF reaches up to 1,200m in open space, and the tilt sensor makes it well suited to roller and garage doors. It pairs with Dahua wireless alarm hubs (ARC series) and is managed in the DMSS app, ideal for homes, retail, offices and warehouses. Specifications — DHI-ARD324-W2(S) Type Wireless door detector with shock & tilt detection Functions Door open/close, shock and tilt detection Communication Two-way RF, frequency hopping, AES128 encryption Range Up to 1,200m in open space Alerts Tamper alarm · low-battery alarm Remote Update Cloud update supported Battery Monitoring Battery level display in app Compatibility Dahua ARC wireless alarm hubs · DMSS app Warranty (Australia) 3 years · CCTV Guru Australia DHI-ARD324-W2(S) Datasheet 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

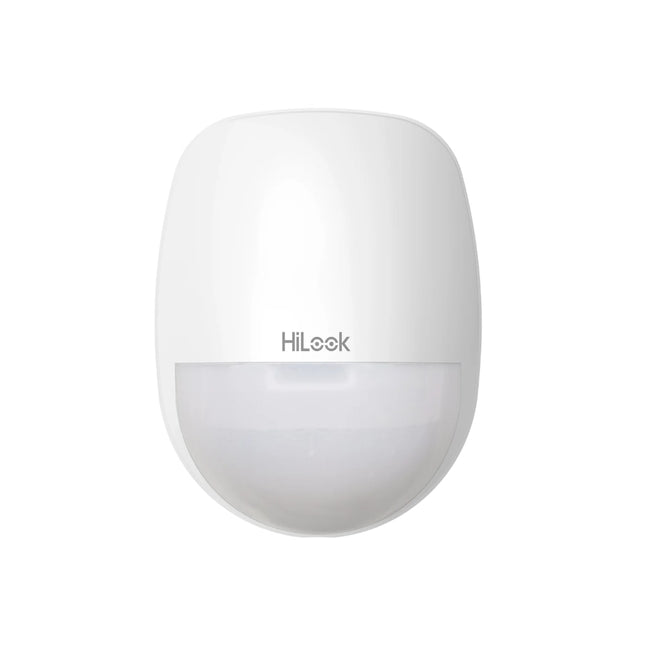

AX Hybrid Pro · 18 m PIR · 85.9° · 3D Optics · Pet Immunity 18 m PIR Detector HiLook HA-ALARM-PIR1 Wired PIR Detector — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-PIR1 is a wired indoor PIR motion detector for the HiLook AX Hybrid Pro alarm system, delivering up to 18 m of volumetric coverage at an 85.9° angle — enough to protect a large lounge, office or open-plan space from a single corner. Advanced 3D optics focus the infrared signal precisely onto the sensor, while digital temperature compensation keeps detection reliable even when the room temperature is close to body heat. Designed to cut false alarms, the PIR1 offers selectable pet immunity up to 10 kg (auto setting), creep-zone protection for the blind spot directly below it, anti-insect sealing and IFT technology that shifts its trip thresholds before electrical interference can cause a nuisance trip. Selectable EOL resistors and 9–16 V wide-voltage input with reverse-polarity protection make it easy to wire to almost any panel, and it reports through the HiLook hub to the Hik-Connect app. Backed by genuine Australian stock and a 3-year warranty. Detection Range 18 m · 85.9° Pet Immunity Up to 10 kg Reliable Motion Detection, Fewer False Alarms 18 m of Coverage Up to 18 m of volumetric detection at 85.9° lets a single detector watch over a large room or open space, mounted between 1.8 m and 2.4 m high. 3D Optics & Temp Compensation Precision 3D optics focus the infrared signal onto the sensor, and digital temperature compensation maintains the rated range even when the background temperature is near body heat. Pet Immunity to 10 kg Selectable pet immunity ignores animals up to 10 kg (auto setting; up to 15 kg low), so the family dog or cat won't set off the alarm. Anti False-Alarm Design Creep-zone protection, anti-insect sealing and IFT technology work together to shift alarm thresholds before interference or insects can trigger a nuisance alert. Technical Specifications Detection Model / SKU HA-ALARM-PIR1 Detection Method Passive infrared (PIR), NC output Detection Range 18 m Detection Angle 85.9° Detection Velocity 0.3–2 m/s Pet Immunity 5 kg (high) / 10 kg (auto) / 15 kg (low) Optics 3D optics, digital temperature compensation, creep-zone protection Electrical & Build Power 12 VDC standard (9–16 VDC), reverse-polarity protected Current Consumption 12 mA max EOL Resistors Alarm 1K / 2K2 / 4K7 / 5K6 / 8K2 · Tamper 1K / 2K2 / 4K7 / 5K6 Indicator Blue LED (alarm) · front tamper Mounting Height 1.8–2.4 m (wall; optional ceiling bracket) App / Management Hik-Connect (via panel) Dimensions 65.4 × 86.8 × 45.5 mm · approx. 68 g Operating Temp. −10 °C to 55 °C Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-PIR1 Datasheet Frequently Asked Questions How far does it detect movement?Up to 18 m of volumetric coverage at an 85.9° angle, ideal for large rooms and open-plan spaces. Will my pet trigger it?No — selectable pet immunity ignores animals up to 10 kg on the auto setting (up to 15 kg on low). How high should I mount it?Between 1.8 m and 2.4 m on a wall. An optional ceiling-mount bracket is available if needed. Which panels does it work with?It pairs with the HiLook AX Hybrid Pro panel and, thanks to selectable EOL resistors, most wired control panels on the market. How does it avoid false alarms?Through 3D optics, digital temperature compensation, creep-zone protection, anti-insect sealing and IFT interference handling. What power does it need?12 VDC standard (9–16 VDC range) with reverse-polarity protection, drawing just 12 mA. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Dahua · DHI-ARD2231-W2 · Dual-Tech Detector · Pet Immunity Dual-Tech Detector Dahua DHI-ARD2231-W2 Wireless Dual-Tech Detector The Dahua DHI-ARD2231-W2 is an intelligent wireless motion detector that combines PIR and microwave sensing, requiring both technologies to trigger for far fewer false alarms in challenging environments. With pet immunity, automatic temperature compensation and 3-level sensitivity, it pairs with Dahua wireless alarm hubs (ARC series) and is managed in the DMSS app for reliable residential and commercial protection. PIR + Microwave Dual detection requires both sensors to confirm motion, dramatically reducing false alarms. Pet Immunity Ignores small pets while still detecting people moving through the protected area. Temperature Compensation Auto temperature compensation keeps detection stable as ambient conditions change. Secure Two-Way RF Frequency hopping, anti-jamming and AES128 data encryption keep communication stable. Specifications — DHI-ARD2231-W2 Type Wireless dual-tech (PIR + microwave) detector Detection PIR and microwave motion detection Pet Immunity Supported Sensitivity 3 levels adjustable Temperature Compensation Automatic, with overheating alarm Communication Two-way RF, frequency hopping, AES128, anti-jamming Remote Update Cloud update with automatic recovery Compatibility Dahua ARC wireless alarm hubs · DMSS app Warranty (Australia) 3 years · CCTV Guru Australia DHI-ARD2231-W2 Datasheet 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Hikvision AX Hybrid Pro DS-PDPC12P-EG-WB Wireless PIR-Camera Detector The Hikvision DS-PDPC12P-EG-WB is a wireless PIR detector with a built-in camera for the AX Hybrid Pro intrusion system. On alarm it captures imagery so each event can be visually verified, turning a simple motion trigger into a confirmed alert. SEC (Smart Environmental Control) signal processing and 3D optics keep detection accurate across its 12-metre range, while a polarising IR lens improves night-time image quality. Image CaptureBuilt-in camera verifies each alarm event 12m Range12m / 85.9° detection with 30kg pet immunity Better Night ShotsPolarising IR lens for uniform night illumination App ConfigurableFully remote setup via Hik-Connect Specifications Model DS-PDPC12P-EG-WB Detection Range 12m / 85.9° Pet Immunity Up to 30kg Signal Processing SEC with 3D optics Imaging Polarising IR lens, integrated memory buffer Configuration Hik-Connect app System Hikvision AX Hybrid Pro Does it capture images on alarm?Yes. The built-in camera captures imagery when triggered and stores it in an integrated memory buffer for visual verification. Will my pets set it off?No. It offers pet immunity for animals up to 30kg when correctly installed. How is it configured?It is fully configurable through the Hik-Connect app for the Hikvision AX Hybrid Pro system. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support The DS-PDPC12P-EG-WB adds visual alarm verification to your Hikvision AX Hybrid Pro system, backed by a 3-Year Australian warranty and local tech support.

Read more less

Pro Series · TriTech MW+PIR · Pet-Friendly · Hardwired Pro TriTech PIR ISC-PDL1-W18G Pro Series TriTech Pet-Friendly PIR — Australian Stock & 3-Year Warranty The Bosch ISC-PDL1-W18G is a hardwired Pro Series TriTech motion detector that combines microwave (10.525 GHz) and passive infrared sensing with Tri-focus optics for exceptional false-alarm immunity. Both detection technologies must agree before an alarm is triggered, making it far more resistant to drafts, heat and stray movement than a standard PIR. It reliably ignores pets up to 4.5 kg and offers field-selectable coverage of 18 x 25 m or a focused 8 x 10 m short range. Ideal for Bosch Solution 2000, 3000 and 6000 systems, it ships with a 3-year Australian warranty. Coverage 18 x 25m Technology MW + PIR Pet Immunity Up to 4.5kg Power 9-15VDC Dual-Tech Verification Microwave (10.525 GHz) and PIR sensing must both agree before an alarm is raised, dramatically reducing false alarms in demanding environments. Tri-Focus Optics Three-zone optical system with Sensor Data Fusion delivers sharp, dependable catch performance across the full field of view. True Pet Immunity Reliably ignores pets up to 4.5 kg so cats and small dogs can move freely without triggering the alarm. Selectable Coverage Choose a wide 18 x 25 m pattern or a focused 8 x 10 m short range to match the protected space. Technical Specifications Model / SKU Bosch ISC-PDL1-W18G Series Pro Series Sensor Type TriTech (Microwave + PIR), Tri-Focus optics Microwave Frequency 10.525 GHz Pet Immunity Up to 4.5 kg Coverage 18 x 25 m, or 8 x 10 m field selectable Outputs 1x N/C alarm output (dry), tamper N/C Power Supply 9-15 VDC Mount Height 2 m - 3 m Housing Plastic, wall mount Ingress / Impact IP41 / IK04 Dimensions (H x W x D) 136 x 69 x 58 mm Warranty 3 Years (Australia) Downloads ISC-PDL1-W18G Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual Frequently Asked Questions What is the difference between a PIR and a TriTech detector?A standard PIR uses infrared only. The TriTech ISC-PDL1-W18G adds microwave sensing (10.525 GHz); both technologies must agree before an alarm triggers, giving much stronger false-alarm immunity. Will it ignore my pets?Yes. It offers reliable pet immunity for animals up to 4.5 kg, so cats and small dogs won't trigger false alarms while genuine intruders are still detected. What height should it be mounted at?Install the detector on a wall between 2 m and 3 m high for correct coverage and pet immunity. How is it wired and powered?It is hardwired and runs on 9-15 VDC, providing one N/C dry alarm output plus an N/C tamper contact for connection to your panel's zone inputs. Which alarm panels is it compatible with?It works with any conventional hardwired panel and pairs perfectly with Bosch Solution 2000, 3000 and 6000 control panels. What area does it cover?Coverage is field-selectable between a wide 18 x 25 m pattern and a focused 8 x 10 m short range. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Hikvision AX PRO DS-PDTT15AM-LM-WB Wireless Outdoor Tri-Tech Detector The Hikvision DS-PDTT15AM-LM-WB is a wireless outdoor triple-signal detector (NS3) for the AX PRO intrusion system. Built to an IP65 weather-resistant rating, it triggers early perimeter alerts outside the building while standing up to wind, rain and temperature swings. Active IR anti-masking detects attempts to block or cover the sensor, and frequency hopping keeps the wireless link reliable against jamming. IP65 OutdoorWeather-resistant for exterior perimeter use Tri-Tech SignalTriple-signal detection for high reliability Active IR Anti-MaskDetects attempts to cover or block the sensor Anti-JammingFrequency hopping for reliable transmission Specifications Model DS-PDTT15AM-LM-WB Detection Triple-signal (Tri-Tech) NS3 Coverage 90° @ 180° adjustable Weather Rating IP65 Anti-Masking Active IR Wireless Frequency hopping (anti-jamming) System Hikvision AX PRO Downloads & Resources DS-PDTT15AM-LM-WB Datasheet (PDF) Quick Start Guide (PDF) User Manual (PDF) Can it be used outdoors?Yes. It carries an IP65 weather-resistant rating and is designed specifically for outdoor perimeter detection. What is anti-masking?Active IR anti-masking detects when someone tries to cover or block the detector, alerting you to tampering before an intrusion. Which system is it for?It is a wireless detector for the Hikvision AX PRO hub with frequency hopping to resist jamming. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support The DS-PDTT15AM-LM-WB extends your Hikvision AX PRO system to the outdoor perimeter with reliable, tamper-aware detection, backed by a 3-Year Australian warranty and local support.

Read more less

Hikvision AX PRO DS-PDD12P-EG2-WB Wireless Dual-Tech Detector The Hikvision DS-PDD12P-EG2-WB is a wireless dual-technology detector for the AX PRO intrusion system. It combines a Passive Infrared (PIR) sensor with a 24GHz microwave sensor, and both must trigger together before an alarm is raised — delivering excellent false-alarm immunity in tricky indoor environments. This makes it ideal for rooms with large windows, air-conditioning vents or heaters, where heat changes can fool a standard PIR-only sensor. Dual-TechPIR + 24GHz microwave for low false alarms 12m Coverage12m / 85.9° with creep-zone protection Pet ImmunityIgnores pets up to 30kg Tri-X WirelessTwo-way link, frequency hopping, AES-128 Specifications Model DS-PDD12P-EG2-WB Detection Technology PIR + 24GHz Microwave Detection Range 12m / 85.9° Pet Immunity Up to 30kg Wireless Tri-X (two-way) Transmission Range Up to 1.2km (open space) Battery 2x CR123A (included) Dimensions 65.5 × 103 × 48.5mm Downloads & Resources DS-PDD12P-EG2-WB Datasheet (PDF) Why choose a dual-tech detector?Both the PIR and 24GHz microwave sensors must trigger together to raise an alarm, so heat changes from vents, heaters or sunlit windows are far less likely to cause false alarms. Will pets trigger it?No. It provides pet immunity for animals up to 30kg when correctly installed. How is it set up?It is designed for the Hikvision AX PRO hub and is fully configurable through the Hik-Connect app. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support The DS-PDD12P-EG2-WB brings stable, dual-verified motion detection to your Hikvision AX PRO system, backed by a 3-Year Australian warranty and local tech support.

Read more less

RADION · Wireless · Pet-Friendly · 433MHz Wireless Pet PIR Bosch RFPR-12 RADION Wireless Pet PIR — Australian Stock & 3-Year Warranty The Bosch RFPR-12 (BOSRFPR-12 / F.01U.389.907) is a RADION 433 MHz wireless pet-friendly PIR that adds cable-free motion detection to your Bosch alarm. Covering a 12 x 12 m area with pet immunity, it lets you protect a room without triggering false alarms from a household pet. Fully supervised for low-battery, cover-tamper and removal conditions, it runs up to five years on a single user-replaceable CR123A battery. The RFPR-12 requires a Bosch B810 RADION receiver (or RFRC-STR2) on the alarm panel. Backed by a 3-year Australian warranty. Coverage 12 x 12 m Signal 433.42 MHz Battery CR123A, ~5yr Pet Immunity Yes Pet-Friendly Pet immunity ignores a household pet while still detecting human intruders across the room. Fully Wireless RADION 433 MHz communication means no cabling — ideal for retrofits and hard-to-wire rooms. Up to 5-Year Battery Runs up to five years on one user-replaceable CR123A lithium battery. Supervised Security Monitored for low battery, cover tamper and removal from the mounting surface. Technical Specifications Model / SKU Bosch RFPR-12 (BOSRFPR-12) Product No. F.01U.389.907 Series RADION (wireless) Detection Pattern 12 x 12 m, pet-friendly Wireless Frequency 433.42 MHz Battery 1x CR123A lithium (3.3 V) Battery Life Up to 5 years Supervision Low battery, cover & removal tamper Receiver Required Bosch B810 / RFRC-STR2 Operating Temperature -10 – 40 °C Dimensions (H x W x D) 111 x 60 x 43 mm Warranty 3 Years (Australia) Downloads RFPR-12 Datasheet Bosch RADION PIR Quick Start Guide Bosch RADION PIR User Manual Frequently Asked Questions What receiver does the RFPR-12 need?It requires a Bosch B810 RADION receiver (or RFRC-STR2) connected to your Solution 2000/3000/6000 or compatible panel. How does pet immunity work?The optics and processing are tuned to ignore a typical household pet at floor level while still detecting a standing person. What battery does it use and how long does it last?One user-replaceable CR123A lithium battery, lasting up to five years. Is it wired or wireless?Fully wireless — it communicates on 433.42 MHz RADION with no cabling to the panel. What is in the box?The detector, a CR123A battery, an installation guide and a hardware pack. Is tamper protection included?Yes — it is supervised for low battery, cover tamper and removal from its mounting surface. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Hikvision AX Hybrid Pro DS-PDD12P-EG2 Wired Dual-Tech Detector The Hikvision DS-PDD12P-EG2 is a wired dual-technology detector for the AX Hybrid Pro intrusion system. It combines a PIR sensor with a 24GHz microwave sensor for stable, false-alarm-resistant detection across a 12-metre range. With 52 zones of 3D optics including creep-zone protection, it delivers full coverage without dead angles, while selectable EOL resistors and reverse-polarity protection make it easy to wire into most panels. Dual-TechPIR + 24GHz microwave for fewer false alarms 12m / 52 Zones3D optics with creep-zone protection, no dead angle Pet ImmunityIgnores pets up to 30kg Selectable EOLAlarm + tamper resistor options for most panels Specifications Model DS-PDD12P-EG2 Detection Technology PIR + 24GHz Microwave Detection Range 12m / 85.9° Detection Zones 52 zones, 3D optics Pet Immunity Up to 30kg EOL Resistors Selectable (alarm + tamper) Power 9-16V, reverse-polarity protected System Hikvision AX Hybrid Pro (wired) Downloads & Resources DS-PDD12P-EG2 Datasheet (PDF) DS-PDD12P-EG2 User Manual (PDF) Why dual-technology?Combining PIR and 24GHz microwave detection requires both to confirm an intrusion, sharply reducing false alarms from heat or air movement. Will pets trigger it?No. It provides pet immunity for animals up to 30kg when correctly installed. Is it wired?Yes. It is a wired detector for the Hikvision AX Hybrid Pro panel with selectable EOL resistors for compatibility. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support The DS-PDD12P-EG2 brings reliable dual-verified motion detection to your Hikvision AX Hybrid Pro system, backed by a 3-Year Australian warranty and local tech support.

Read more less

Hikvision AX Hybrid Pro DS-PDP18-EG2 Wired PIR Detector The Hikvision DS-PDP18-EG2 is a sleek wired indoor PIR detector for the AX Hybrid Pro intrusion system. With up to 18 metres of volumetric coverage, it suits small to large indoor rooms while its compact, unobtrusive design blends into any space. Digital temperature compensation and automatic sensitivity keep catch performance stable as conditions change, while 3D optics and creep-zone protection close off blind spots. 18m RangeVolumetric coverage for small to large rooms Pet ImmuneFilters out small animals to cut false alarms Stable DetectionTemperature compensation + automatic sensitivity Selectable EOLResistor options suit most control panels Specifications Model DS-PDP18-EG2 Detection Range Up to 18m volumetric Optics 3D optics with creep-zone protection Sensitivity Automatic, digital temperature compensation EOL Resistors Selectable (alarm + tamper) Power 9-16V, reverse-polarity protected Mounting Wall or ceiling, 1.8m to 2.4m System Hikvision AX Hybrid Pro (wired) Downloads & Resources DS-PDP18-EG2 Datasheet (PDF) DS-PDP18-EG2 User Manual (PDF) How far does it detect?Up to 18 metres of volumetric coverage, making it suitable for both small and large indoor rooms. Is it wired or wireless?It is a wired detector for the Hikvision AX Hybrid Pro system, with selectable EOL resistors for most control panels. Will it false alarm in changing conditions?Digital temperature compensation and automatic sensitivity keep performance stable, and IFT technology helps prevent false trips from interference. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support The DS-PDP18-EG2 delivers wide, stable indoor motion detection for your Hikvision AX Hybrid Pro system, backed by a 3-Year Australian warranty and local support.

Read more less

Classic Series · Outdoor · TriTech · IP54 Outdoor TriTech PIR OD850-F1 Outdoor TriTech PIR — Australian Stock & 3-Year Warranty The Bosch OD850-F1 is a Classic Series outdoor TriTech motion detector built for reliable perimeter and exterior protection. Combining a dual-element passive infrared sensor with Linear Travel Distance (LTD) microwave processing and Motion Analyzer II, it delivers accurate 15×15m detection while resisting false triggers from drafts and insects. Rated IP54 for outdoor use, it offers both N/C and SPDT outputs, two sensitivity levels, selectable AND/OR mode and a timed relay adjustable from 2 seconds to 10 minutes. Perfect for yards, driveways and building exteriors. Backed by our 3-year Australian warranty. Coverage 15 × 15 m Rating IP54 Outdoor Power 10–15 VDC Microwave 10.525 GHz Built for Outdoors IP54-rated housing with draft and insect immunity keeps the OD850-F1 dependable across yards, driveways and building exteriors. TriTech Dual Technology Dual-element PIR with Motion Analyzer II plus LTD microwave signal processing ensures accurate catch performance and strong false alarm rejection. Flexible Detection Two sensitivity levels and selectable AND/OR mode let you tune the detector to the site, from busy perimeters to sensitive zones. Versatile Outputs Both N/C and SPDT relay outputs plus a timed relay adjustable from 2 seconds to 10 minutes suit alarm panels and automation triggers. Technical Specifications Model / SKU Bosch OD850-F1 Series Classic Series Detection Technology TriTech (Microwave + dual-element PIR) with Fresnel optics Detection Area 15 × 15 m Ingress Protection IP54 (outdoor rated) Alarm Outputs 1 × N/C + 1 × SPDT (NC/NO) Tamper Relay NC Timed Relay Output Adjustable 2 sec – 10 min Operating Voltage 10 – 15 VDC Microwave Frequency 10.525 GHz Installation Height 2.1 – 2.7 m Operating Temperature -35 – 54 °C Dimensions (H×W×D) 165 × 82.5 × 63.5 mm Warranty 3 Years (Australia) Downloads OD850-F1 Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual Frequently Asked Questions Can the OD850-F1 be used outdoors?Yes. It is IP54-rated for outdoor use, with draft and insect immunity, making it suited to yards, driveways and building exteriors. What mounting height does it need?Mount it to a plastic wall bracket at a height of 2.1 m to 2.7 m for the correct 15×15m detection pattern. How large an area does it cover?It provides a 15 × 15 m detection area, ideal for perimeters, side passages and exterior zones. How is it wired and powered?It is hardwired on 10–15 VDC and provides both an N/C output and an SPDT output, plus a timed relay adjustable from 2 seconds to 10 minutes. How is TriTech different from a standard PIR?TriTech combines dual-element PIR with microwave detection and requires both to agree before triggering, giving much better false alarm immunity outdoors. Which Bosch panels does it suit?It works with Bosch Solution 2000, 3000 and 6000 intrusion panels and other conventional zone inputs supporting N/C or SPDT wiring. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

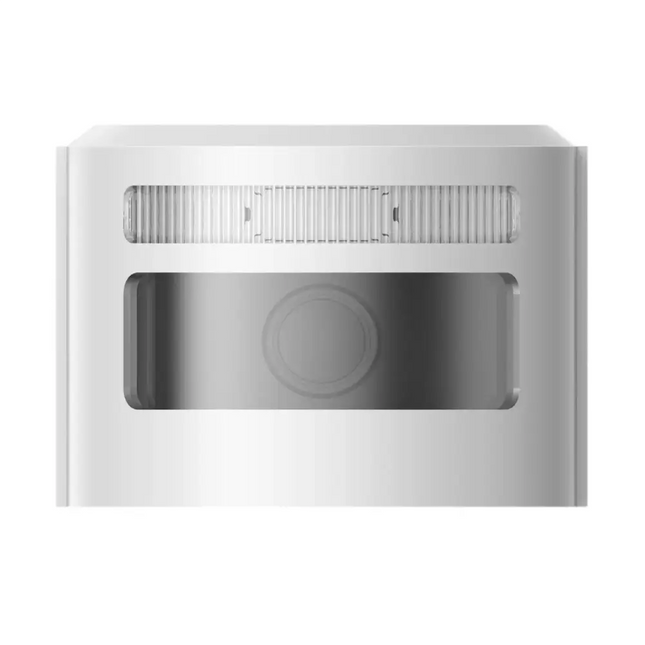

Hikvision AX PRO DS-PDCM15PF-IR Wireless Outdoor Camera Module The Hikvision DS-PDCM15PF-IR is a wireless outdoor camera module that pairs with the AX PRO outdoor Tri-Tech detector to add visual verification to perimeter alarms. When the detector triggers, the module captures imagery so you can confirm the cause before responding. With an IP66 rating and an angle that adjusts to match the detector's field of view, it is built to sit outdoors alongside the Tri-Tech sensor. IP66 OutdoorWeatherproof for exterior installation 1/2.7" CMOSProgressive-scan sensor with 2.0mm fixed lens 3D DNRDigital noise reduction for cleaner images Adjustable AngleAligns to the Tri-Tech detector's coverage Specifications Model DS-PDCM15PF-IR Image Sensor 1/2.7" Progressive Scan CMOS Lens 2.0mm fixed Noise Reduction 3D Digital Noise Reduction Weather Rating IP66 Pairs With AX PRO Tri-Tech detector System Hikvision AX PRO Downloads & Resources DS-PDCM15PF-IR Datasheet (PDF) Quick Start Guide (PDF) User Manual (PDF) What does this module do?It adds visual verification to the AX PRO outdoor Tri-Tech detector, capturing imagery when the detector triggers so you can confirm the cause. Can it be installed outdoors?Yes. It is rated IP66 and designed to mount outdoors alongside the Tri-Tech detector. Does the camera angle match the detector?Yes. Its angle adjusts to align with the Tri-Tech detector's field of view. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support The DS-PDCM15PF-IR brings camera verification to your Hikvision AX PRO outdoor detection, backed by a 3-Year Australian warranty and local tech support.

Read more less

HIKVISION AX PRO SERIES Instant Visual Intrusion Verification for Commercial & Residential Security The DS-PDPC12PF-EG2-WB(B) is a state-of-the-art wireless PIR-camera detector (PIRCAM) engineered for the Hikvision AX PRO alarm ecosystem. Designed for modern commercial premises, retail spaces, office buildings, and high-end residential interiors, this dual-function sensor eliminates false alarms by instantly capturing JPEG photo sequences upon motion detection. Featuring Smart Environmental Control (SEC) signal processing and integrated 24/7 colorful imaging, it provides immediate visual evidence direct to your smartphone or central monitoring station. Detection Coverage 12m / 90° Wide Angle Visual Verification 24/7 Full-Colour Snapshots Wireless Protocol CAM-X 433MHz (800m) Pet Immunity & Power 30kg Immunity / 6-Yr Battery Advanced CAM-X Wireless Infrastructure & Smart Signal Optics Engineered for secure, high-speed data transmission, the Hikvision DS-PDPC12PF-EG2-WB(B) utilizes CAM-X wireless technology backed by AES-128 encryption and frequency hopping to prevent signal jamming. Upon a intrusion trigger, the onboard optical camera captures high-resolution JPEG images (up to 640x480) and transfers them via two-way RF across distances up to 800 metres in open space. Integrated white-light fill illumination guarantees vivid visual verification even in pitch-black conditions, while Smart Environmental Control (SEC) digital processing actively filters out environmental interference, HVAC airflow, and domestic pets weighing up to 30kg. Smart Environmental Control (SEC) & 3D Optics Combining advanced digital signal processing with precision 3D optics, SEC technology continuously analyzes target movement and environmental conditions to eliminate false alarms caused by sunlight, thermal shifts, or small animals while ensuring instantaneous detection of actual human intrusion. Seamless App Management & Rapid Enrollment Deployment is simplified via the Hik-Connect and Hik-ProConnect apps. Supporting QR-code pairing, remote parameter configuration, signal strength checks, and battery health diagnostics, installers can set up and maintain whole-property security networks in minutes. Technical Specification Matrix Camera Model DS-PDPC12PF-EG2-WB(B) Detection Method & Range Passive Infrared (PIR) with Video Verification | 12 metres / 90° angle Image Resolution & Type JPEG | 640×480, 320×240, 160×120 Fill Light & Night Range White Light Fill (24/7 Colour Imaging) | Up to 12m range Pet Immunity & Target Speed Up to 30 kg | Detectable speed: 0.3 to 2.0 m/s Wireless Frequency & Security 433 MHz CAM-X Two-Way Wireless | AES-128 Encryption (800m range) Power Supply & Battery Life 3× CR123A Batteries (Included) | Up to 6 years operational life Dimensions & Weight 72.2 mm × 120.5 mm × 56.7 mm | 220 g (Indoor Wall Mount) How does video verification work with the AX PRO system? When motion triggers the detector, the built-in camera takes a series of high-resolution images and transmits them via CAM-X wireless protocol to the AX PRO control panel. The photos are instantly sent to your Hik-Connect mobile app or central monitoring station as an animated image clip for instant validation. Does the camera capture clear colour photos in complete darkness? Yes. The DS-PDPC12PF-EG2-WB(B) is equipped with an integrated white-light fill light that automatically activates upon detection in low-light conditions, providing full-colour visual snapshot evidence up to 12 metres in total darkness. How long do the batteries last under normal operation? Powered by three CR123A lithium batteries, the detector achieves a standard battery lifespan of up to 6 years based on regular daily standby and occasional trigger events. Battery status can be monitored remotely via the Hik-Connect app. Will household pets trigger false alarms? No. Featuring intelligent pet immunity up to 30kg along with 3D optics and SEC processing, the sensor effectively ignores domestic pets moving across the floor while maintaining maximum sensitivity for human intruders. Official HIKVISION Stock Commercial Warranty Aust-Wide Delivery

Read more less

Hikvision AX Hybrid Pro DS-PDPG12P-EG2 PIR Glass-Break Detector The Hikvision DS-PDPG12P-EG2 combines a 12-metre PIR motion sensor with dedicated glass-break detection in a single wired device for the AX Hybrid Pro intrusion system. One detector covers both an intruder walking through the room and the sound of a window being smashed. With up to 30kg pet immunity and selectable end-of-line resistors, it drops cleanly into most control panels while ignoring household pets. Dual Detection12m / 85.9° PIR plus 8m / 120° glass-break in one unit Pet ImmunityIgnores pets up to 30kg to cut false alarms Selectable EOLSelectable end-of-line resistors suit most panels Wide Voltage9-16 VDC with reverse-polarity protection Specifications Model DS-PDPG12P-EG2 PIR Detection Range 12m / 85.9° Glass-Break Range 8m / 120° Pet Immunity Up to 30kg EOL Resistors Selectable Power 9-16 VDC, reverse-polarity protected System Hikvision AX Hybrid Pro (wired) Downloads & Resources DS-PDPG12P-EG2 Datasheet (PDF) DS-PDPG12P-EG2 User Manual (PDF) Does it detect both motion and glass breaking?Yes. It pairs a 12m PIR motion sensor with an 8m acoustic glass-break sensor, so a single device protects the room and the windows. Will my pets set it off?No. The detector offers pet immunity for animals up to 30kg when mounted correctly. Which system is it for?It is a wired detector for the Hikvision AX Hybrid Pro control panel and supports selectable EOL resistors for most panels. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support Add the DS-PDPG12P-EG2 to your Hikvision AX Hybrid Pro system for combined motion and glass-break protection backed by a 3-Year Australian warranty and local support.

Read more less

Blue Line Gen2 · Hardwired Quad PIR · 12x12m · Dynamic Temp CompensationBlue Line Gen2 Quad PIRISC-BPQ2-W12 Hardwired Quad PIR Sensor — Australian Stock & 3-Year Warranty The Bosch ISC-BPQ2-W12 is a Blue Line Gen2 hardwired quad PIR motion detector engineered for dependable 12m x 12m wall-to-wall indoor coverage. Its four-element quad sensing plus Dynamic Temperature Compensation delivers superior catch performance in changing conditions, while flexible mounting height with no adjustments and a self-locking enclosure with integrated bubble level cut installation time. Ideal for homes, offices, shops and warehouses running Bosch Solution alarm systems, every unit ships from Australian stock with a 3-year Australian warranty. Coverage 12m x 12m Detection Quad PIR Output N/C Relay + Tamper Power 9-15 VDC, 10mA Quad Element Sensing Four-element quad PIR delivers wall-to-wall catch performance and dependable detection across the full 12m x 12m field. Dynamic Temp Compensation Automatically adapts to ambient temperature changes so catch performance stays strong in any environment. Faster Installation Self-locking enclosure with integrated bubble level and flexible mount height without adjustments reduces install time and false alarms. Bosch Solution Ready Supervised N/C relay and tamper outputs wire straight into Bosch Solution 2000/3000/6000 hardwired zones. Technical Specifications Model / SKU ISC-BPQ2-W12 (Blue Line Gen2) Sensor Type Quad PIR Detection Radius 12m (12m x 12m area) Alarm Relay N/C Tamper Relay N/C Current Consumption 10 mA Operating Temperature -30°C to 55°C Dimensions (H x W x D) 105 x 61 x 44 mm Warranty 3 Years (Australia) Downloads ISC-BPQ2-W12 DatasheetBosch Quad PIR Sensor Quick Start GuideBosch Quad PIR Sensor User Manual Frequently Asked Questions What is a quad PIR sensor?A quad PIR uses four sensing elements instead of two, improving catch performance and consistency across the detection field while helping reject nuisance triggers. What coverage does the ISC-BPQ2-W12 provide?It provides 12m x 12m wall-to-wall coverage, suiting standard rooms, offices, retail and warehouse zones. What voltage and current does it need?It runs on 9-15 VDC and draws around 10 mA, with N/C alarm and N/C tamper relay outputs for standard wired zones. What mounting height is recommended?It offers flexible mounting height with no adjustments required, and the integrated bubble level helps you level it quickly during install. Which Bosch panels does it work with?It suits Bosch Solution 2000, Solution 3000 and Solution 6000 panels using standard hardwired alarm inputs. Is it pet-friendly?The ISC-BPQ2-W12 is a standard quad PIR. For pet immunity choose a Bosch pet-friendly model such as the ISC-BPR2-WP12. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Commercial Series · TriTech+ · Hardwired · 15×15m TriTech+ PIR Sensor ISC-CDL1-W15G TriTech+ PIR Sensor — Australian Stock & 3-Year Warranty The Bosch ISC-CDL1-W15G is a Commercial Series TriTech+ motion detector that pairs passive infrared with microwave Doppler radar and precision Fresnel optics to deliver dependable catch performance and excellent false alarm immunity. Covering a 15×15m area with a single N/C output, this hardwired white detector runs on 9–15 VDC and mounts to a plastic wall bracket at 2.3–2.75m. It's the ideal choice for commercial and residential intrusion systems that need reliable dual-technology detection without anti-mask. Backed by our 3-year Australian warranty. Coverage 15 × 15 m Detection TriTech+ MW+PIR Power 9–15 VDC Microwave 10.525 GHz TriTech+ Dual Technology Passive infrared combined with microwave Doppler radar demands agreement from both sensors before triggering, for strong false alarm immunity. Precision Fresnel Optics Engineered Fresnel lens delivers a well-defined 15×15m detection pattern with dependable catch performance across the coverage zone. Simple Hardwired Install Single N/C output, 9–15 VDC operation and a plastic wall mount make wiring to Bosch and conventional panels quick and straightforward. Commercial-Grade Reliability Built to Bosch Commercial Series standards for consistent, long-term performance in busy commercial and residential environments. Technical Specifications Model / SKU Bosch ISC-CDL1-W15G Series Commercial Series Detection Technology TriTech+ (Microwave + PIR) with Fresnel optics Detection Area 15 × 15 m Alarm Output 1 × N/C Operating Voltage 9 – 15 VDC Microwave Frequency 10.525 GHz Mounting Plastic wall mount Installation Height 2.3 – 2.75 m Colour White Warranty 3 Years (Australia) Downloads ISC-CDL1-W15G Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual Frequently Asked Questions What mounting height suits the ISC-CDL1-W15G?Install it on a plastic wall mount at a height of 2.3 m to 2.75 m for the correct 15×15m coverage pattern. How large an area does it cover?It provides a 15 × 15 m detection area, ideal for large commercial rooms and open living areas. How is it wired and powered?It is a hardwired detector with a single N/C alarm output running on 9–15 VDC, easily connected to conventional zone inputs. Does this model include anti-mask?No. This is the standard TriTech+ version; if you need active anti-mask and C2DT for high-security sites, choose the ISC-CDL1-WA15G. How is TriTech+ better than a plain PIR?TriTech+ needs both passive infrared and microwave Doppler radar to agree before triggering, greatly reducing false alarms versus a single-technology PIR. Which Bosch panels does it suit?It works with Bosch Solution 2000, 3000 and 6000 intrusion panels and other conventional NC/EOL zone inputs. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

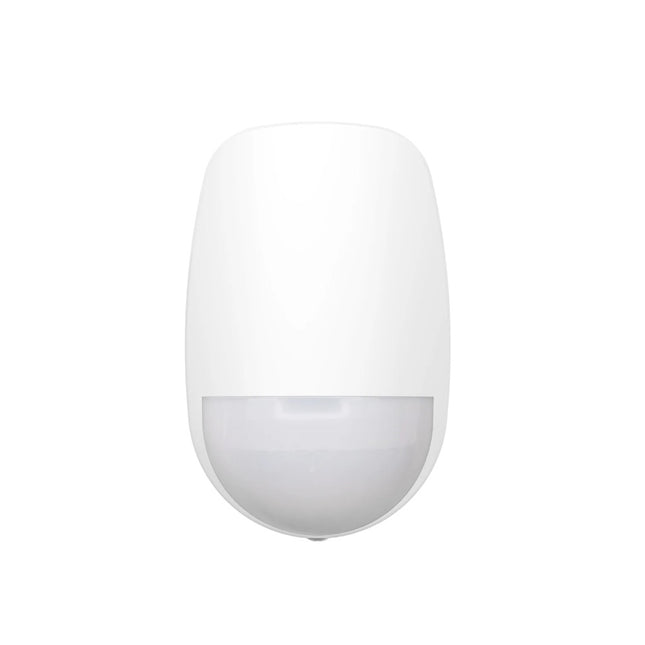

AX Hybrid Pro · Dual-Tech PIR + 24 GHz MW · 12 m · 30 kg Pet Immunity Dual-Tech Detector HiLook HA-ALARM-PIR2 Dual-Tech Detector — Australian Stock & 3-Year Warranty The HiLook HA-ALARM-PIR2 is a wired dual-technology motion detector that combines a passive infrared (PIR) sensor with a 24 GHz K-band microwave sensor. A target must be confirmed by both technologies before the detector alarms, which dramatically reduces false triggers from heat, draughts and reflections — making it the smart choice for tricky rooms where a standard PIR struggles. It covers up to 12 m at 85.9° across a 52-zone 3D optics array with no dead angle. Built for demanding environments, the PIR2 offers pet immunity up to 30 kg, automatic sensitivity, digital temperature compensation, sealed optics against insects and IFT technology to head off interference-driven false alarms. Selectable EOL resistors and 9–16 V wide-voltage input with reverse-polarity protection make wiring straightforward on the HiLook AX Hybrid Pro panel, reporting through the hub to the Hik-Connect app. Backed by genuine Australian stock and a 3-year warranty. Detection Range 12 m · 85.9° Pet Immunity Up to 30 kg Two Technologies, One Confident Alarm PIR + 24 GHz Microwave Dual-tech detection requires both the infrared and K-band microwave sensors to agree before alarming — virtually eliminating false trips from heating vents, sunlight and air movement. 52-Zone 3D Optics A 52-zone 3D Fresnel lens array delivers full coverage with no dead angle, including creep-zone protection for the area directly beneath the detector. Pet Immunity to 30 kg Ignores larger animals up to 30 kg, so even big dogs won't trigger the alarm — ideal for homes and yards with sizeable pets. Stable in Harsh Rooms Automatic sensitivity, digital temperature compensation, sealed anti-insect optics and IFT interference handling keep performance steady where ordinary PIRs false-alarm. Technical Specifications Detection Model / SKU HA-ALARM-PIR2 Detection Method Dual-tech: PIR + 24 GHz K-band microwave, NC output Microwave Band 24.15–24.25 GHz Detection Range 12 m Detection Angle 85.9° Detection Zones 52 zones (3D optics, no dead angle) Detection Velocity 0.3–2 m/s Pet Immunity Up to 30 kg Electrical & Build Power 12 VDC typical (9–16 VDC), reverse-polarity protected Current Consumption 17 mA @ 12 VDC EOL Resistors Selectable (alarm & tamper) Indicators PIR (green), microwave (orange), alarm (blue) · front tamper Mounting Height 1.8–2.4 m (optional wall/ceiling bracket) App / Management Hik-Connect (via panel) Dimensions 65.7 × 103.8 × 45.5 mm Operating Temp. −10 °C to 55 °C Warranty 3-Year Australian Warranty Downloads & Documentation HA-ALARM-PIR2 Datasheet Frequently Asked Questions What does "dual-tech" mean?The detector uses both a PIR and a 24 GHz microwave sensor, and only alarms when both confirm a target — greatly reducing false alarms. How far does it detect?Up to 12 m at 85.9°, across a 52-zone 3D optics array with no dead angle. Will my dog set it off?No — it offers pet immunity up to 30 kg, so even large dogs won't trigger the alarm. When should I choose this over the PIR1?Choose the PIR2 for rooms prone to false alarms — near heaters, large windows or draughts — where dual-tech confirmation adds stability. Which panel does it work with?It pairs with the HiLook AX Hybrid Pro panel, with selectable EOL resistors for compatibility with most wired panels. How high should I mount it?Between 1.8 m and 2.4 m. Optional wall and ceiling brackets are available separately. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Pro Series · Anti-Mask · TriTech+ MW+PIR · Pet-Friendly Anti-Mask TriTech+ ISC-PDL1-WA18G Pro Series Anti-Mask TriTech+ PIR — Australian Stock & 3-Year Warranty The Bosch ISC-PDL1-WA18G is a hardwired Pro Series TriTech+ motion detector that pairs microwave (10.525 GHz) and PIR sensing with Tri-focus optics and, crucially, active infrared anti-mask detection. The anti-mask feature detects any attempt to obscure, spray or block the detector, making it ideal for higher-security and commercial applications where tampering is a risk. Dual-technology verification and reliable pet immunity up to 4.5 kg keep false alarms to a minimum, with field-selectable coverage of 18 x 25 m or 8 x 10 m. Perfect for Bosch Solution 2000, 3000 and 6000 systems, backed by a 3-year Australian warranty. Security Anti-Mask Technology MW + PIR Pet Immunity Up to 4.5kg Coverage 18 x 25m Active Anti-Mask Infrared anti-mask technology detects any attempt to spray, cover or block the detector, providing an extra layer of protection against deliberate tampering. Dual-Tech Verification Microwave (10.525 GHz) and PIR sensing must both agree before an alarm is raised, dramatically reducing false alarms. True Pet Immunity Reliably ignores pets up to 4.5 kg so cats and small dogs can move freely without triggering the alarm. Selectable Coverage Choose a wide 18 x 25 m pattern or a focused 8 x 10 m short range to match the protected space. Technical Specifications Model / SKU Bosch ISC-PDL1-WA18G Series Pro Series Sensor Type TriTech+ (Microwave + PIR) with Anti-Mask, Tri-Focus optics Anti-Mask Active infrared anti-mask detection Microwave Frequency 10.525 GHz Pet Immunity Up to 4.5 kg Coverage 18 x 25 m, or 8 x 10 m field selectable Outputs 1x N/C alarm output (dry), tamper N/C Power Supply 9-15 VDC Mount Height 2 m - 3 m Housing Plastic, wall mount Ingress / Impact IP41 / IK04 Warranty 3 Years (Australia) Downloads ISC-PDL1-WA18G Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual Frequently Asked Questions What does anti-mask do?Active infrared anti-mask detection senses any attempt to spray, cover or block the detector's lens and signals a trouble/tamper condition, protecting against deliberate sabotage. How does it differ from the ISC-PDL1-W18G?Both are TriTech (MW+PIR) pet-friendly detectors. The WA18G adds active anti-mask detection, making it the better choice for higher-security or commercial sites. Will it ignore my pets?Yes. It offers reliable pet immunity for animals up to 4.5 kg, so cats and small dogs won't cause false alarms while intruders are still detected. How is it wired and powered?It is hardwired and runs on 9-15 VDC, providing one N/C dry alarm output plus an N/C tamper contact for connection to your panel's zone inputs. Which alarm panels is it compatible with?It works with any conventional hardwired panel and pairs perfectly with Bosch Solution 2000, 3000 and 6000 control panels. What height should it be mounted at, and what area does it cover?Mount it on a wall 2 m to 3 m high. Coverage is field-selectable between a wide 18 x 25 m pattern and a focused 8 x 10 m short range. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Request-to-Exit · Timer + Sounder REX PIR + Sounder Bosch DS160 Request-to-Exit PIR — Australian Stock & 3-Year Warranty The Bosch DS160 (BOSDS160) is a Classic Series request-to-exit (REX) PIR with a built-in sounder for access-controlled doors. Mounted above a doorway, it detects a person leaving and momentarily releases the electric lock — no card or button required — while the integrated sounder provides an audible exit or door-ajar warning. With an adjustable timer, dual SPDT relays and selectable fail-safe / fail-secure modes, it handles single or double-door installs. Wrap-around coverage and internal vertical pointability make aiming easy. Backed by a 3-year Australian warranty. Function REX + Sounder Timer Adjustable Output 2x SPDT Power 12–30V AC/DC Touchless Exit Automatically releases the door when someone approaches to leave — no card, code or push button. Built-in Sounder The integrated sounder gives an audible exit or door-held-open warning for added control. Adjustable Timer & Relays Set the relay hold time and choose fail-safe or fail-secure to suit your lock hardware. Single or Double Doors Wrap-around coverage and vertical pointability suit one or two doors from a wide mounting range. Technical Specifications Model / SKU Bosch DS160 (BOSDS160) Series Classic Series Function Request-to-Exit (REX) PIR with sounder Detection Pattern 2.4 x 3 m Alarm Output 2x SPDT relay Timer Adjustable relay hold time Sounder Built-in Mounting Wall Installation Height 0.75 – 4.6 m Operating Voltage 12 – 30 V AC/DC Colour Grey Warranty 3 Years (Australia) Downloads DS160 Datasheet Bosch Request-to-Exit PIR Quick Start Guide Bosch Request-to-Exit PIR User Manual Frequently Asked Questions What is the difference between the DS160 and DS150i?Both are request-to-exit PIRs with an adjustable timer; the DS160 adds a built-in sounder and a wider 12–30 V supply, while the DS150i is timer-only. What is the sounder used for?It provides an audible exit tone or a door-held-open / ajar warning, useful for controlled entry points. What lock types does it support?Dual SPDT relays with selectable fail-safe / fail-secure modes suit mag locks, strikes and most electric door hardware. Is it wired or wireless?Hardwired, powered by 12–30 V AC or DC. Where should it be mounted?Above the doorway on the wall, between 0.75 m and 4.6 m, aimed at the exit approach. Can I use it on double doors?Yes — the wrap-around coverage pattern and dual relays suit single or double-door installations. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Hardwired · 360° Ceiling · 21m Range 360° Ceiling PIR Bosch DS939 360° Ceiling PIR — Australian Stock & 3-Year Warranty The Bosch DS939 (BOSDS939) is a hardwired Classic Series 360° ceiling PIR built for large, high-ceiling spaces. It delivers a wide 360° x 21 m detection area from mounting heights up to 6.1 m, making it ideal for warehouses, showrooms, foyers and open-plan commercial areas. Fully adjustable optics, a hinged chassis and base plate, and a high-efficiency LED with light-pipe for easy walk-testing streamline installation, while Bosch First Step Processing (FSP) keeps detection accurate and false alarms low. Backed by a 3-year Australian warranty. Coverage 360° x 21m Mount Height 3–7.6 m Output SPDT (NC/NO) Power 9–15 VDC High-Ceiling Coverage A wide 360° x 21 m pattern from mounting heights up to 6.1 m suits large open commercial spaces. Fully Adjustable Optics Fine-tune the coverage pattern for full integrity and to match the exact room layout. Fast Installation Hinged chassis and base plate plus a bright walk-test LED and light-pipe speed up commissioning. First Step Processing Bosch FSP analyses the first movement instantly for reliable, false-alarm-resistant detection. Technical Specifications Model / SKU Bosch DS939 (BOSDS939) Series Classic Series Detection Pattern 360° x 21 m (10.5 m radius) Mounting Ceiling Installation Height 3 – 7.6 m (up to 6.1 m recommended) Alarm Output SPDT (NC/NO) Tamper N/C Input Voltage 9 – 15 VDC Current Consumption 12 – 39 mA Operating Temperature -40 – 49 °C Dimensions (Ø x H) 178 mm x 89 mm Warranty 3 Years (Australia) Downloads DS939 Datasheet Bosch PIR Detector Quick Start Guide Bosch PIR Detector User Manual Frequently Asked Questions Which alarm panels work with the DS939?Its SPDT (NC/NO) output suits any Bosch Solution 2000/3000/6000 or G-Series panel and virtually any conventional hardwired zone. How high can it be mounted?From 3 m up to 7.6 m, with 6.1 m recommended for the full 360° x 21 m pattern. Is it wired or wireless?The DS939 is hardwired and powered by 9–15 VDC from the panel. Can I adjust the coverage pattern?Yes — the fully adjustable optics let you shape and aim the detection area to match the room. How do I walk-test it?A high-efficiency LED and light-pipe make the walk-test indicator clearly visible across large spaces. Is the DS939 pet-friendly?No, it is a standard commercial PIR; for pet immunity choose a Bosch Pro Series or RADION pet-immune detector. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Hardwired · 360° TriTech · Ceiling 360° TriTech PIR Bosch DS9370 360° TriTech Ceiling PIR — Australian Stock & 3-Year Warranty The Bosch DS9370 (BOSDS9370) is a hardwired Classic Series 360° ceiling detector that combines passive infrared with 10.525 GHz microwave (TriTech / dual technology) so an alarm is only triggered when both sensors agree. This dramatically reduces false alarms in busy commercial areas. Covering a 360° x 14 m area from the ceiling, it features fully adjustable optics, a hinged chassis and base plate for quick fitting, and a high-efficiency walk-test LED. Backed by a 3-year Australian warranty. Coverage 360° x 14m Technology PIR + Microwave Output SPDT (NC/NO) Power 9–15 VDC TriTech Dual Technology PIR and 10.525 GHz microwave must both agree before alarming, cutting false triggers in demanding sites. Full 360° Coverage Ceiling mounting delivers all-round detection across a 14 m diameter with no wall blind spots. Adjustable Optics Shape the coverage pattern precisely to the room layout for maximum integrity. Easy Commissioning Hinged chassis, base plate and a bright walk-test LED with light-pipe speed up install and testing. Technical Specifications Model / SKU Bosch DS9370 (BOSDS9370) Series Classic Series Technology TriTech (PIR + Microwave) Detection Pattern 360° x 14 m Microwave Frequency 10.525 GHz Mounting Ceiling (up to ~5.2 m) Installation Height 3 – 7.6 m Alarm Output SPDT (NC/NO) Tamper N/C Input Voltage 9 – 15 VDC Current Consumption 19 – 39 mA Operating Temperature -40 – 49 °C Warranty 3 Years (Australia) Downloads DS9370 Datasheet Bosch TriTech PIR Quick Start Guide Bosch TriTech PIR User Manual Frequently Asked Questions What does TriTech mean?It combines PIR and 10.525 GHz microwave sensing; both must detect motion before an alarm is raised, greatly reducing false alarms. Which panels is it compatible with?The SPDT output works with any Bosch Solution 2000/3000/6000 or G-Series panel and standard hardwired zones. Is it wired or wireless?Hardwired, powered by 9–15 VDC from the alarm panel. Where should it be mounted?On the ceiling, ideally around 5.2 m height, within the 3–7.6 m installation range for the full 360° x 14 m pattern. Why choose TriTech over a standard PIR?In environments with heating, air-conditioning or moving objects, dual-technology detection is far more resistant to false alarms. Is it pet-friendly?The DS9370 is a commercial dual-tech detector without pet immunity; use a Bosch Pro Series or RADION pet-immune model for homes with pets. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Commercial Series · TriTech+ · Anti-Mask · 15×15m TriTech+ Anti-Mask PIR ISC-CDL1-WA15G TriTech+ Anti-Mask PIR — Australian Stock & 3-Year Warranty The Bosch ISC-CDL1-WA15G is a Commercial Series TriTech+ motion detector that combines passive infrared and microwave Doppler radar with First Step Processing for superior catch performance and best-in-class false alarm immunity. Active infrared anti-mask detects any attempt to obscure the field of view, while Cloak and Camouflage Detection Technology (C2DT) and Microwave Noise Adaptive processing keep coverage reliable across a 15×15m area. Flexible mounting height with no adjustments and integrated EOL resistors cut install time. Ideal for commercial and high-security premises. Backed by our 3-year Australian warranty. Coverage 15 × 15 m Detection TriTech+ Anti-Mask Power 9–15 VDC Microwave 10.525 GHz TriTech+ Dual Technology Passive infrared plus microwave Doppler radar with First Step Processing delivers superior catch performance and best-in-class false alarm immunity. Active Anti-Mask Active infrared anti-mask instantly detects any attempt to spray, block or obscure the detector's field of view for high-security assurance. Cloak & Camouflage Detection C2DT technology identifies intruders using masking or camouflage tactics, and Microwave Noise Adaptive processing suppresses false alarms. Fast, Flexible Install Flexible mounting height with no adjustments plus integrated EOL resistors reduce installation time, complexity and callbacks. Technical Specifications Model / SKU Bosch ISC-CDL1-WA15G Series Commercial Series Detection Technology TriTech+ (PIR + Microwave) with Anti-Mask Detection Area 15 × 15 m (15 m radius) Alarm / Tamper / Trouble Relay NC / NC / NC Current Consumption 15 – 35 mA Operating Voltage 9 – 15 VDC Microwave Frequency 10.525 GHz Installation Height 2.30 – 2.75 m Operating Temperature -30 – 55 °C Dimensions (H×W×D) 120 × 70 × 55 mm Warranty 3 Years (Australia) Downloads ISC-CDL1-WA15G Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual Frequently Asked Questions What mounting height does the ISC-CDL1-WA15G need?Mount the detector between 2.30 m and 2.75 m. Thanks to flexible mounting height with no adjustments, coverage stays consistent across that range. How large an area does it cover?It provides a 15 × 15 m detection area (15 m radius), suited to large commercial rooms and open-plan spaces. How is it wired and powered?It is a hardwired detector running on 9–15 VDC with NC alarm, tamper and trouble relays and integrated EOL resistors to simplify installation. What does the anti-mask feature do?Active infrared anti-mask detects attempts to spray, cover or obscure the detector's field of view and, combined with C2DT, defeats cloak and camouflage tactics. How is TriTech+ different from a standard PIR?TriTech+ requires both passive infrared and microwave Doppler radar to agree before triggering, giving far better false alarm immunity than a single-technology PIR. Which Bosch panels does it suit?It works with Bosch Solution 2000, 3000 and 6000 intrusion panels and other conventional zone inputs supporting NC/EOL wiring. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Hardwired · 360° Ceiling · Mirror Optics 360° Ceiling PIR Bosch DS938Z 360° Mirror-Optic Ceiling PIR — Australian Stock & 3-Year Warranty The Bosch DS938Z (BOSDS938Z) is a hardwired Classic Series 360° ceiling PIR that uses precision mirror optics to deliver a wide 360° x 18 m detection area with sharp, uniform sensitivity. As a pure passive-infrared detector it is a cost-effective choice for covering large open rooms, retail floors and corridors from a single ceiling point. It mounts at 2.5–6 m, provides an SPDT alarm output and accepts a wide 6–15 VDC supply. Backed by a 3-year Australian warranty. Coverage 360° x 18m Mount Height 2.5–6 m Output SPDT Power 6–15 VDC Wide 360° Coverage A single ceiling detector covers a large 360° x 18 m area with no wall PIR blind spots. Mirror Optics Precision mirror focusing keeps sensitivity sharp and even across the full pattern. Cost-Effective PIR Pure passive-infrared detection is an economical way to protect large open areas. Flexible Install Mounts from 2.5–6 m and runs on a wide 6–15 VDC supply for broad panel compatibility. Technical Specifications Model / SKU Bosch DS938Z (BOSDS938Z) Series Classic Series Technology PIR (passive infrared) Optics Mirror lens Detection Pattern 360° x 18 m Mounting Ceiling Installation Height 2.5 – 6 m Alarm Output 1x SPDT Colour White Input Voltage 6 – 15 VDC (multi-voltage) Warranty 3 Years (Australia) Downloads DS938Z Datasheet Bosch PIR Detector Quick Start Guide Bosch PIR Detector User Manual Frequently Asked Questions How does the DS938Z differ from the DS9360?Both are 360° x 18 m mirror-optic ceiling detectors; the DS938Z is a pure PIR, while the DS9360 adds microwave for TriTech dual-technology detection. Which panels is it compatible with?The SPDT output works with any Bosch Solution 2000/3000/6000 or G-Series panel and standard hardwired alarm zones. Is it wired or wireless?Hardwired, powered by a wide 6–15 VDC input from the panel. What mounting height should I use?Mount on the ceiling between 2.5 m and 6 m for the full 360° x 18 m coverage. Does it have a tamper switch?Yes — a tamper contact is included to detect cover removal. Is it pet-friendly?No, the DS938Z is a standard PIR; use a Bosch Pro Series or RADION pet-immune detector for homes with pets. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Request-to-Exit · PIR + Timer Request-to-Exit PIR Bosch DS150i Request-to-Exit PIR — Australian Stock & 3-Year Warranty The Bosch DS150i (BOSDS150i) is a Classic Series request-to-exit (REX) PIR designed for access-controlled doors. Mounted above a doorway, it detects a person approaching from inside and momentarily releases the electric lock so they can exit without a card or code. With an adjustable relay timer, dual SPDT outputs and selectable fail-safe / fail-secure and latching modes, it suits single or double-door installs. A wrap-around coverage pattern and internal vertical pointability make aiming simple. Backed by a 3-year Australian warranty. Function Request-to-Exit Timer Adjustable Output 2x SPDT Power 12/24V AC/DC Touchless Exit Detects people leaving and releases the door automatically — no button, card or code needed. Adjustable Timer Set how long the relay holds the lock released to suit door hardware and traffic. Flexible Relay Modes Selectable trigger mode plus fail-safe or fail-secure operation for different lock types. Single or Double Doors Wrap-around coverage and vertical pointability suit one or two doors, wall or ceiling mounted. Technical Specifications Model / SKU Bosch DS150i (BOSDS150i) Series Classic Series Function Request-to-Exit (REX) PIR Detection Pattern 2.4 x 3 m (3 m radius) Alarm Output 2x SPDT relay (NC/NO) Timer Adjustable relay hold time Relay Modes Selectable trigger; fail-safe / fail-secure Mounting Wall or ceiling Installation Height 1.5 – 4.5 m Operating Voltage 12 / 24 V AC/DC Dimensions (H x W x D) 38 x 159 x 38 mm Warranty 3 Years (Australia) Downloads DS150i Datasheet Bosch Request-to-Exit PIR Quick Start Guide Bosch Request-to-Exit PIR User Manual Frequently Asked Questions What is a request-to-exit PIR?It is a motion detector mounted above a door that automatically releases the electric lock when someone approaches to exit, so no button or card is needed to leave. What lock types does it support?Its dual SPDT relays and selectable fail-safe / fail-secure modes work with mag locks, strikes and most electric door hardware. Can I adjust how long the door stays released?Yes — the built-in timer lets you set the relay hold time to suit the door and traffic flow. Is it wired or wireless?Hardwired, powered by 12 or 24 V AC or DC. Where should it be mounted?Above the doorway on the wall or ceiling, between 1.5 m and 4.5 m, aimed at the exit approach using the vertical pointability. Does it have a built-in sounder?No — the DS150i is timer-only; if you need an integrated exit sounder, choose the Bosch DS160. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

RADION · Wireless · TriTech · Pet-Friendly Wireless TriTech PIR Bosch RFDL-11 RADION Wireless TriTech PIR — Australian Stock & 3-Year Warranty The Bosch RFDL-11 (BOSRFDL-11) is a RADION 433 MHz wireless pet-friendly TriTech detector that combines passive infrared with microwave sensing for the highest false-alarm immunity in a wireless motion sensor. Both technologies must agree before an alarm is raised, and pet immunity tolerates animals up to 45 kg — ideal for homes with large dogs. Covering an 11 x 11 m area with no cabling, it requires a Bosch B810 RADION receiver (or RFRC-STR2) on the panel. Backed by a 3-year Australian warranty. Coverage 11 x 11 m Technology PIR + Microwave Pet Immunity Up to 45 kg Battery 4x AA (6V) TriTech Accuracy PIR and microwave must both detect motion before alarming — the most reliable wireless detection. Large-Pet Immunity Tolerates pets up to 45 kg, so even big dogs won’t trigger false alarms. Fully Wireless RADION 433 MHz communication with no cabling makes retrofits and awkward rooms simple. Supervised & Secure Monitored for battery, tamper and removal for dependable protection. Technical Specifications Model / SKU Bosch RFDL-11 (BOSRFDL-11) Series RADION (wireless) Technology TriTech (PIR + Microwave) Detection Pattern 11 x 11 m Pet Immunity Up to 45 kg Wireless Frequency 433 MHz Battery 4x AA (6 V) Mounting Wall Installation Height 2 – 2.4 m Receiver Required Bosch B810 / RFRC-STR2 Colour White Warranty 3 Years (Australia) Downloads RFDL-11 Datasheet Bosch RADION TriTech PIR Quick Start Guide Bosch RADION TriTech PIR User Manual Frequently Asked Questions What receiver does the RFDL-11 need?It requires a Bosch B810 RADION receiver (or RFRC-STR2) connected to your Solution 2000/3000/6000 or compatible panel. What is the difference between RFDL-11 and RFPR-12?The RFDL-11 is a TriTech (PIR + microwave) detector with pet immunity up to 45 kg, while the RFPR-12 is a standard PIR — the RFDL-11 offers superior false-alarm immunity. How big a pet can it tolerate?Pets up to 45 kg, making it suitable for homes with large dogs. What batteries does it use?Four AA batteries providing a 6 V supply. Is it wired or wireless?Fully wireless on 433 MHz RADION — no cabling to the panel. Where should it be mounted?On a wall at 2 – 2.4 m, aimed across the room for the 11 x 11 m coverage pattern. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Hardwired · 360° TriTech · Mirror Optics 360° TriTech PIR Bosch DS9360 360° TriTech Ceiling PIR — Australian Stock & 3-Year Warranty The Bosch DS9360 (BOSDS9360) is a hardwired Classic Series 360° ceiling detector that pairs passive infrared with microwave (TriTech / dual technology) and precision mirror optics for a long-range 360° x 18 m detection area. Mirror-based focusing delivers sharp, uniform sensitivity right to the edge of the pattern, making it ideal for large rooms, atriums and high-value commercial spaces where reliability matters. It mounts on the ceiling at 2.4–5.5 m and provides an SPDT alarm output. Backed by a 3-year Australian warranty. Coverage 360° x 18m Technology PIR + Microwave Output SPDT Power 6–15 VDC Long-Range 360° A wide 360° x 18 m ceiling pattern covers large open areas from a single detector. Mirror Optics Precision mirror focusing delivers sharp, even sensitivity across the whole detection area. TriTech Reliability PIR and microwave must both agree before alarming, cutting nuisance false alarms. Flexible Power Wide 6–15 VDC input suits a broad range of Bosch and third-party alarm panels. Technical Specifications Model / SKU Bosch DS9360 (BOSDS9360) Series Classic Series Technology TriTech (PIR + Microwave) Optics Mirror lens Detection Pattern 360° x 18 m Mounting Ceiling Installation Height 2.4 – 5.5 m Alarm Output 1x SPDT Colour White Input Voltage 6 – 15 VDC (multi-voltage) Warranty 3 Years (Australia) Downloads DS9360 Datasheet Bosch TriTech PIR Quick Start Guide Bosch TriTech PIR User Manual Frequently Asked Questions What is the difference between the DS9360 and DS9370?The DS9360 uses mirror optics for a longer 18 m 360° range, while the DS9370 uses Fresnel optics with a 14 m pattern. Both are TriTech ceiling detectors. Which panels is it compatible with?The SPDT output works with any Bosch Solution 2000/3000/6000 or G-Series panel and standard hardwired alarm zones. Is it wired or wireless?Hardwired, powered by a wide 6–15 VDC input from the panel. What mounting height should I use?Mount on the ceiling between 2.4 m and 5.5 m for the full 360° x 18 m coverage. Why mirror optics?Mirror focusing gives sharper, more uniform sensitivity to the edge of the pattern than standard Fresnel lenses. Is it pet-friendly?No, the DS9360 is a commercial dual-tech detector; choose a Bosch Pro Series or RADION pet-immune model for homes with pets. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Pro Series · Pet-Friendly · Tri-Focus · Hardwired Pro Series PIR ISC-PPR1-W16 Pro Series Pet-Friendly PIR — Australian Stock & 3-Year Warranty The Bosch ISC-PPR1-W16 is a hardwired Pro Series passive infrared (PIR) motion detector built for homes and businesses with pets. Its Tri-focus optics and Sensor Data Fusion technology deliver reliable catch performance while ignoring animals up to 4.5 kg, virtually eliminating false alarms. Coverage is field-selectable between a wide 18 x 25 m pattern and a focused 8 x 10 m short range, with active white-light suppression and dynamic temperature compensation for stable detection year-round. Ideal for pairing with Bosch Solution 2000, 3000 and 6000 panels, it is backed by a 3-year Australian warranty. Coverage 18 x 25m Pet Immunity Up to 4.5kg Power 9-15VDC Mount Height 2-3m Tri-Focus Optics Three-zone optical system with Sensor Data Fusion analyses signals across the field of view for accurate catch performance and fewer false triggers. True Pet Immunity Reliably ignores pets weighing up to 4.5 kg, so cats and small dogs can roam freely without setting off the alarm. Selectable Coverage Switch between a wide 18 x 25 m pattern and a focused 8 x 10 m short range to suit any room or corridor. Stable in Any Environment Active white-light suppression, dynamic temperature compensation and draft/insect immunity keep detection consistent day and night. Technical Specifications Model / SKU Bosch ISC-PPR1-W16 Series Pro Series Sensor Type Passive Infrared (PIR), Tri-Focus optics Pet Immunity Up to 4.5 kg Coverage 18 x 25 m standard, or 8 x 10 m selectable short range Detection Radius 18 m Outputs 1x N/C alarm relay (dry), tamper relay N/C Current Draw 10-15 mA Power Supply 9-15 VDC Mount Height 2 m - 3 m (no adjustments) Housing Plastic, wall mount Ingress / Impact IP41 / IK04 Operating Temperature -29 C to 55 C Dimensions (H x W x D) 127 x 69 x 58 mm Warranty 3 Years (Australia) Downloads ISC-PPR1-W16 Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual Frequently Asked Questions What height should the ISC-PPR1-W16 be mounted at?Mount the detector on a wall between 2 m and 3 m high. There are no height adjustments required, so simply install within this range for correct pet-immune coverage. Will it ignore my pets?Yes. It provides reliable pet immunity for animals weighing up to 4.5 kg, such as cats and small dogs, while still detecting human-sized intruders. How is it wired and powered?The ISC-PPR1-W16 is a hardwired detector running on 9-15 VDC. It provides one N/C (normally closed) dry alarm output plus an N/C tamper relay for connection to your panel's zone inputs. Which alarm panels is it compatible with?It suits any conventional hardwired alarm panel, and pairs perfectly with Bosch Solution 2000, 3000 and 6000 control panels via a standard zone input. What area does it cover?Coverage is field-selectable between a wide 18 x 25 m pattern and a focused 8 x 10 m short range, with an 18 m detection radius. Can it be used outdoors?No. With an IP41 / IK04 rating it is designed for indoor use. For exterior detection choose a Bosch outdoor-rated PIR such as the OD850 series. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less

Classic Series · Hardwired · 360° Ceiling · Low Profile 360° Ceiling PIR Bosch DS936 360° Low-Profile PIR — Australian Stock & 3-Year Warranty The Bosch DS936 (BOSDS936) is a hardwired Classic Series passive infrared detector that delivers full 360° coverage from a discreet, low-profile ceiling mount. With a 7.5 m detection radius, enhanced signal processing and a sealed optical chamber, it is ideal for open-plan rooms, retail floors and corridors where a wall-mounted PIR would leave blind spots. The white housing and matching lens blend into most ceilings, while internal pointability and a built-in tamper switch make setup fast and secure. Backed by a 3-year Australian warranty. Coverage 360° x 7.5m Mount Height 2–3.6 m Output 1x N/C (dry) Power 10–15 VDC True 360° Coverage Ceiling-mounted optics sweep the entire room, eliminating the blind spots left by wall PIRs in open areas. Low-Profile Design A slim 30.5 mm-high white housing and matching lens sit discreetly against most ceilings. Reliable Detection Enhanced signal processing and a sealed detector chamber resist dust and false alarms. Easy to Install Internal pointability and a built-in tamper switch make surface or semi-flush mounting simple. Technical Specifications Model / SKU Bosch DS936 (BOSDS936) Series Classic Series Detection Pattern 360° x 7.5 m radius Mounting Ceiling (surface / semi-flush) Installation Height 2 – 3.6 m Alarm Output 1x N/C dry contact Tamper N/C Input Voltage 10 – 15 VDC Operating Temperature -29 – 49 °C Dimensions (Ø x H) 117 mm x 30.5 mm Warranty 3 Years (Australia) Downloads DS936 Datasheet Bosch PIR Detector Quick Start Guide Bosch PIR Detector User Manual Frequently Asked Questions Which alarm panels is the DS936 compatible with?It is a standard hardwired N/C detector, so it works with any Bosch Solution 2000/3000/6000 or G-Series panel and virtually any conventional alarm zone. How much area does it cover?A full 360° pattern with a 7.5 m radius (roughly 15 m diameter) when mounted at 2–3.6 m ceiling height. Is it wired or wireless?The DS936 is hardwired and powered by 10–15 VDC from the panel — no batteries required. Where should it be mounted?On the ceiling, centred in the room, at 2–3.6 m height. Internal pointability lets you fine-tune the coverage after fitting. Does it have a tamper switch?Yes — a normally-closed tamper contact triggers if the cover is removed. Is it suitable for homes with pets?The DS936 is a standard PIR without pet immunity; for pet-friendly detection choose a Bosch Pro or RADION pet-immune model. 3-Year AU Warranty Fast AU-Wide Shipping AU Tech Support

Read more less
