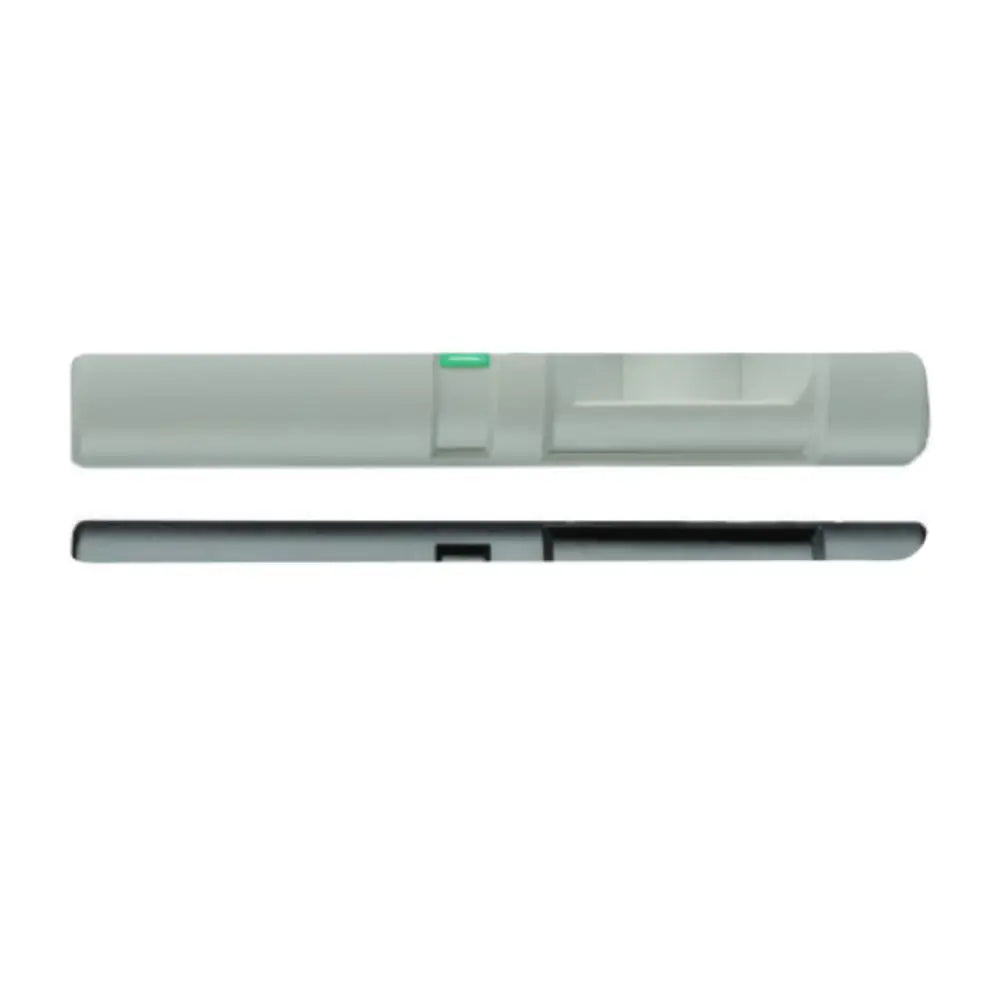

Bosch DS150i — Classic Series Request-to-Exit PIR with Timer (Grey)

Description

Classic Series · Request-to-Exit · PIR + Timer Request-to-Exit PIR

Bosch DS150i Request-to-Exit PIR — Australian Stock & 3-Year Warranty

The Bosch DS150i (BOSDS150i) is a Classic Series request-to-exit (REX) PIR designed for access-controlled doors. Mounted above a doorway, it detects a person approaching from inside and momentarily releases the electric lock so they can exit without a card or code. With an adjustable relay timer, dual SPDT outputs and selectable fail-safe / fail-secure and latching modes, it suits single or double-door installs. A wrap-around coverage pattern and internal vertical pointability make aiming simple. Backed by a 3-year Australian warranty.

Function
Request-to-Exit
Timer
Adjustable
Output
2x SPDT
Power
12/24V AC/DC

Touchless Exit

Detects people leaving and releases the door automatically — no button, card or code needed.

Adjustable Timer

Set how long the relay holds the lock released to suit door hardware and traffic.

Flexible Relay Modes

Selectable trigger mode plus fail-safe or fail-secure operation for different lock types.

Single or Double Doors

Wrap-around coverage and vertical pointability suit one or two doors, wall or ceiling mounted.

Technical Specifications
Model / SKU Bosch DS150i (BOSDS150i)
Series Classic Series
Function Request-to-Exit (REX) PIR
Detection Pattern 2.4 x 3 m (3 m radius)
Alarm Output 2x SPDT relay (NC/NO)
Timer Adjustable relay hold time
Relay Modes Selectable trigger; fail-safe / fail-secure
Mounting Wall or ceiling
Installation Height 1.5 – 4.5 m
Operating Voltage 12 / 24 V AC/DC
Dimensions (H x W x D) 38 x 159 x 38 mm
Warranty 3 Years (Australia)

Downloads

DS150i Datasheet Bosch Request-to-Exit PIR Quick Start Guide Bosch Request-to-Exit PIR User Manual

Frequently Asked Questions

What is a request-to-exit PIR?
It is a motion detector mounted above a door that automatically releases the electric lock when someone approaches to exit, so no button or card is needed to leave.
What lock types does it support?
Its dual SPDT relays and selectable fail-safe / fail-secure modes work with mag locks, strikes and most electric door hardware.
Can I adjust how long the door stays released?
Yes — the built-in timer lets you set the relay hold time to suit the door and traffic flow.
Is it wired or wireless?
Hardwired, powered by 12 or 24 V AC or DC.
Where should it be mounted?
Above the doorway on the wall or ceiling, between 1.5 m and 4.5 m, aimed at the exit approach using the vertical pointability.
Does it have a built-in sounder?
No — the DS150i is timer-only; if you need an integrated exit sounder, choose the Bosch DS160.
