Bosch DS9370 — Classic Series Hardwired 360° TriTech Ceiling PIR (14m)

Description

Classic Series · Hardwired · 360° TriTech · Ceiling 360° TriTech PIR

Bosch DS9370 360° TriTech Ceiling PIR — Australian Stock & 3-Year Warranty

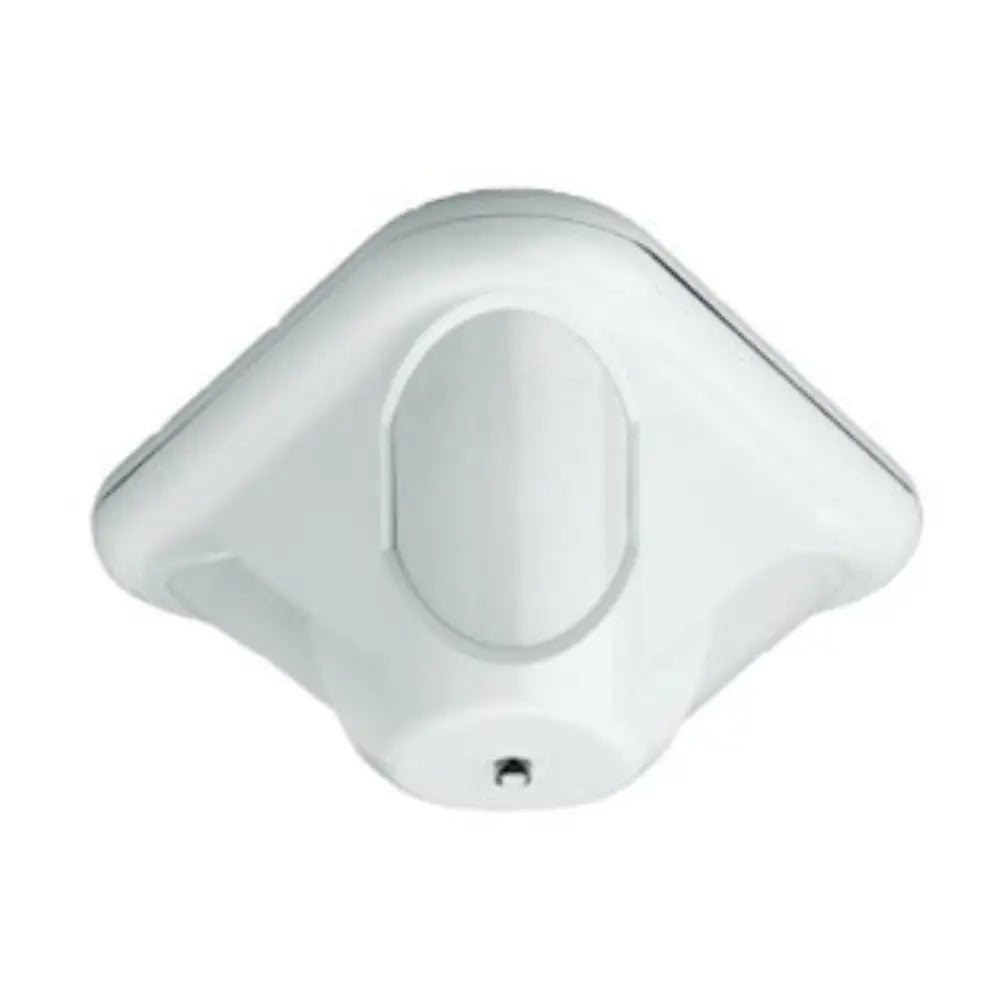

The Bosch DS9370 (BOSDS9370) is a hardwired Classic Series 360° ceiling detector that combines passive infrared with 10.525 GHz microwave (TriTech / dual technology) so an alarm is only triggered when both sensors agree. This dramatically reduces false alarms in busy commercial areas. Covering a 360° x 14 m area from the ceiling, it features fully adjustable optics, a hinged chassis and base plate for quick fitting, and a high-efficiency walk-test LED. Backed by a 3-year Australian warranty.

Coverage
360° x 14m
Technology
PIR + Microwave
Output
SPDT (NC/NO)
Power
9–15 VDC

TriTech Dual Technology

PIR and 10.525 GHz microwave must both agree before alarming, cutting false triggers in demanding sites.

Full 360° Coverage

Ceiling mounting delivers all-round detection across a 14 m diameter with no wall blind spots.

Adjustable Optics

Shape the coverage pattern precisely to the room layout for maximum integrity.

Easy Commissioning

Hinged chassis, base plate and a bright walk-test LED with light-pipe speed up install and testing.

Technical Specifications
Model / SKU Bosch DS9370 (BOSDS9370)
Series Classic Series
Technology TriTech (PIR + Microwave)
Detection Pattern 360° x 14 m
Microwave Frequency 10.525 GHz
Mounting Ceiling (up to ~5.2 m)
Installation Height 3 – 7.6 m
Alarm Output SPDT (NC/NO)
Tamper N/C
Input Voltage 9 – 15 VDC
Current Consumption 19 – 39 mA
Operating Temperature -40 – 49 °C
Warranty 3 Years (Australia)

Downloads

DS9370 Datasheet Bosch TriTech PIR Quick Start Guide Bosch TriTech PIR User Manual

Frequently Asked Questions

What does TriTech mean?
It combines PIR and 10.525 GHz microwave sensing; both must detect motion before an alarm is raised, greatly reducing false alarms.
Which panels is it compatible with?
The SPDT output works with any Bosch Solution 2000/3000/6000 or G-Series panel and standard hardwired zones.
Is it wired or wireless?
Hardwired, powered by 9–15 VDC from the alarm panel.
Where should it be mounted?
On the ceiling, ideally around 5.2 m height, within the 3–7.6 m installation range for the full 360° x 14 m pattern.
Why choose TriTech over a standard PIR?
In environments with heating, air-conditioning or moving objects, dual-technology detection is far more resistant to false alarms.
Is it pet-friendly?
The DS9370 is a commercial dual-tech detector without pet immunity; use a Bosch Pro Series or RADION pet-immune model for homes with pets.
