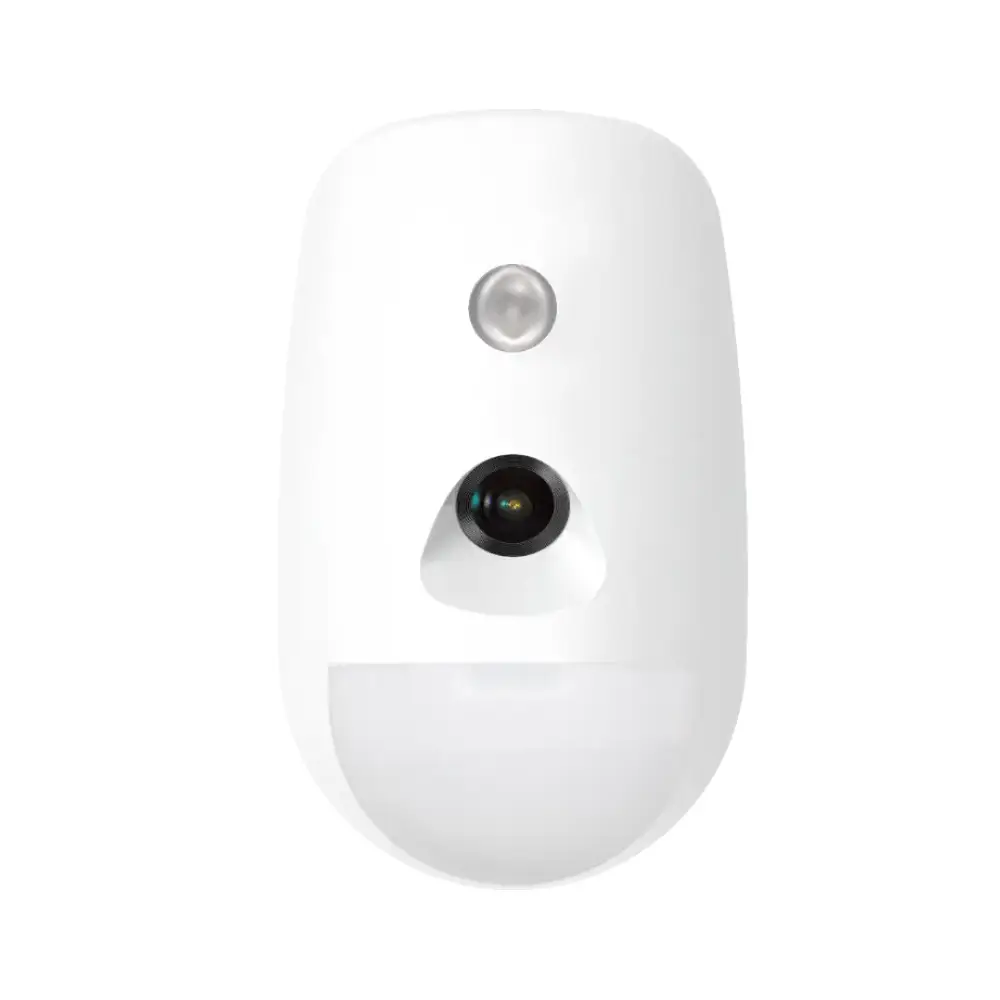

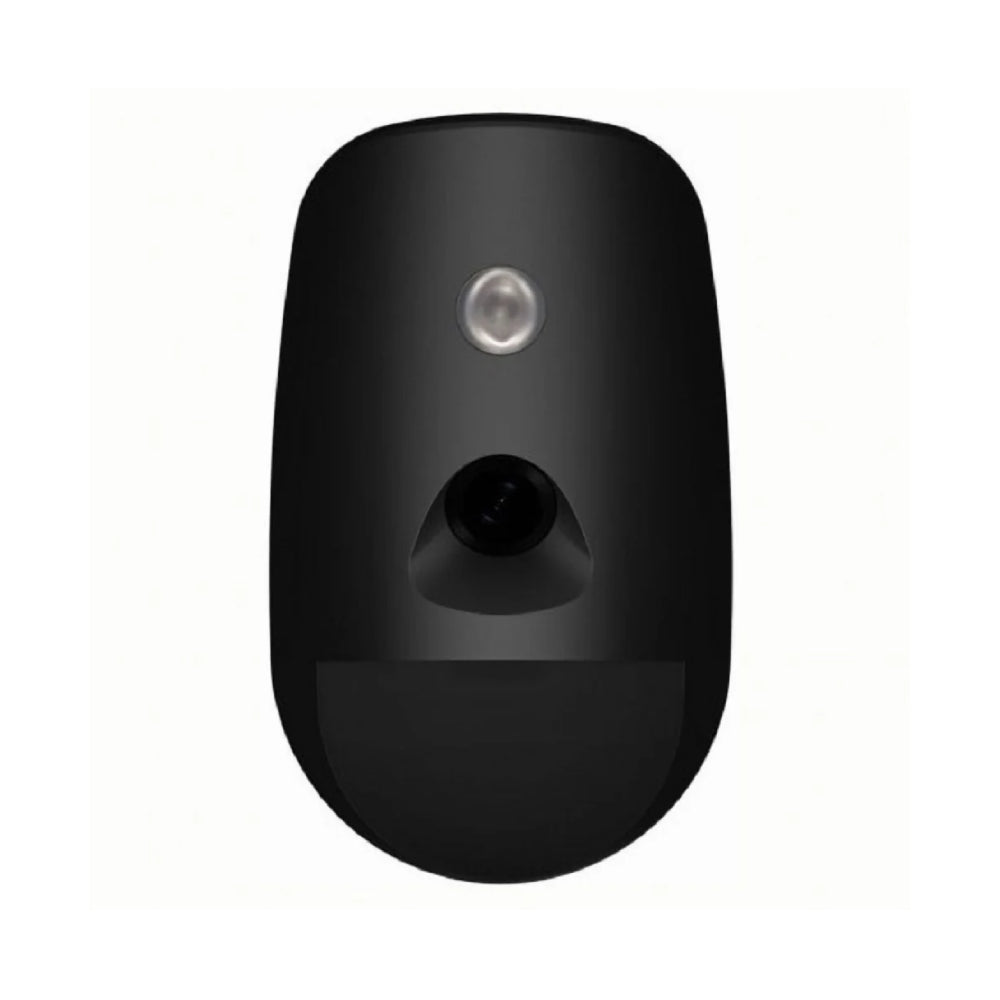

HIKVISION DS-PDPC12PF-EG2-WB(B) 12m Color Snapshot AX PRO Wireless PIR-Camera Detector

Description

HIKVISION AX PRO SERIES

Instant Visual Intrusion Verification for Commercial & Residential Security

The DS-PDPC12PF-EG2-WB(B) is a state-of-the-art wireless PIR-camera detector (PIRCAM) engineered for the Hikvision AX PRO alarm ecosystem. Designed for modern commercial premises, retail spaces, office buildings, and high-end residential interiors, this dual-function sensor eliminates false alarms by instantly capturing JPEG photo sequences upon motion detection. Featuring Smart Environmental Control (SEC) signal processing and integrated 24/7 colorful imaging, it provides immediate visual evidence direct to your smartphone or central monitoring station.

Detection Coverage
12m / 90° Wide Angle
Visual Verification
24/7 Full-Color Snapshots
Wireless Protocol
CAM-X 433MHz (800m)
Pet Immunity & Power
30kg Immunity / 6-Yr Battery

Advanced CAM-X Wireless Infrastructure & Smart Signal Optics

Engineered for secure, high-speed data transmission, the Hikvision DS-PDPC12PF-EG2-WB(B) utilizes CAM-X wireless technology backed by AES-128 encryption and frequency hopping to prevent signal jamming. Upon a intrusion trigger, the onboard optical camera captures high-resolution JPEG images (up to 640x480) and transfers them via two-way RF across distances up to 800 meters in open space. Integrated white-light fill illumination guarantees vivid visual verification even in pitch-black conditions, while Smart Environmental Control (SEC) digital processing actively filters out environmental interference, HVAC airflow, and domestic pets weighing up to 30kg.

Smart Environmental Control (SEC) & 3D Optics

Combining advanced digital signal processing with precision 3D optics, SEC technology continuously analyzes target movement and environmental conditions to eliminate false alarms caused by sunlight, thermal shifts, or small animals while ensuring instantaneous detection of actual human intrusion.

Seamless App Management & Rapid Enrollment

Deployment is simplified via the Hik-Connect and Hik-ProConnect apps. Supporting QR-code pairing, remote parameter configuration, signal strength checks, and battery health diagnostics, installers can set up and maintain whole-property security networks in minutes.

Technical Specification Matrix
Camera Model DS-PDPC12PF-EG2-WB(B)
Detection Method & Range Passive Infrared (PIR) with Video Verification | 12 meters / 90° angle
Image Resolution & Type JPEG | 640×480, 320×240, 160×120
Fill Light & Night Range White Light Fill (24/7 Color Imaging) | Up to 12m range
Pet Immunity & Target Speed Up to 30 kg | Detectable speed: 0.3 to 2.0 m/s
Wireless Frequency & Security 433 MHz CAM-X Two-Way Wireless | AES-128 Encryption (800m range)
Power Supply & Battery Life 3× CR123A Batteries (Included) | Up to 6 years operational life
Dimensions & Weight 72.2 mm × 120.5 mm × 56.7 mm | 220 g (Indoor Wall Mount)
How does video verification work with the AX PRO system?

When motion triggers the detector, the built-in camera takes a series of high-resolution images and transmits them via CAM-X wireless protocol to the AX PRO control panel. The photos are instantly sent to your Hik-Connect mobile app or central monitoring station as an animated image clip for instant validation.

Does the camera capture clear color photos in complete darkness?

Yes. The DS-PDPC12PF-EG2-WB(B) is equipped with an integrated white-light fill light that automatically activates upon detection in low-light conditions, providing full-color visual snapshot evidence up to 12 meters in total darkness.

How long do the batteries last under normal operation?

Powered by three CR123A lithium batteries, the detector achieves a standard battery lifespan of up to 6 years based on regular daily standby and occasional trigger events. Battery status can be monitored remotely via the Hik-Connect app.

Will household pets trigger false alarms?

No. Featuring intelligent pet immunity up to 30kg along with 3D optics and SEC processing, the sensor effectively ignores domestic pets moving across the floor while maintaining maximum sensitivity for human intruders.

Official HIKVISION Stock
Commercial Warranty
Aust-Wide Delivery

HIKVISION DS-PDPC12PF-EG2-WB(B) 12m Color Snapshot AX PRO Wireless PIR-Camera Detector

Product form

SKU: DS-PDPC12PF-EG2-WB

$169.00 Incl. GST
