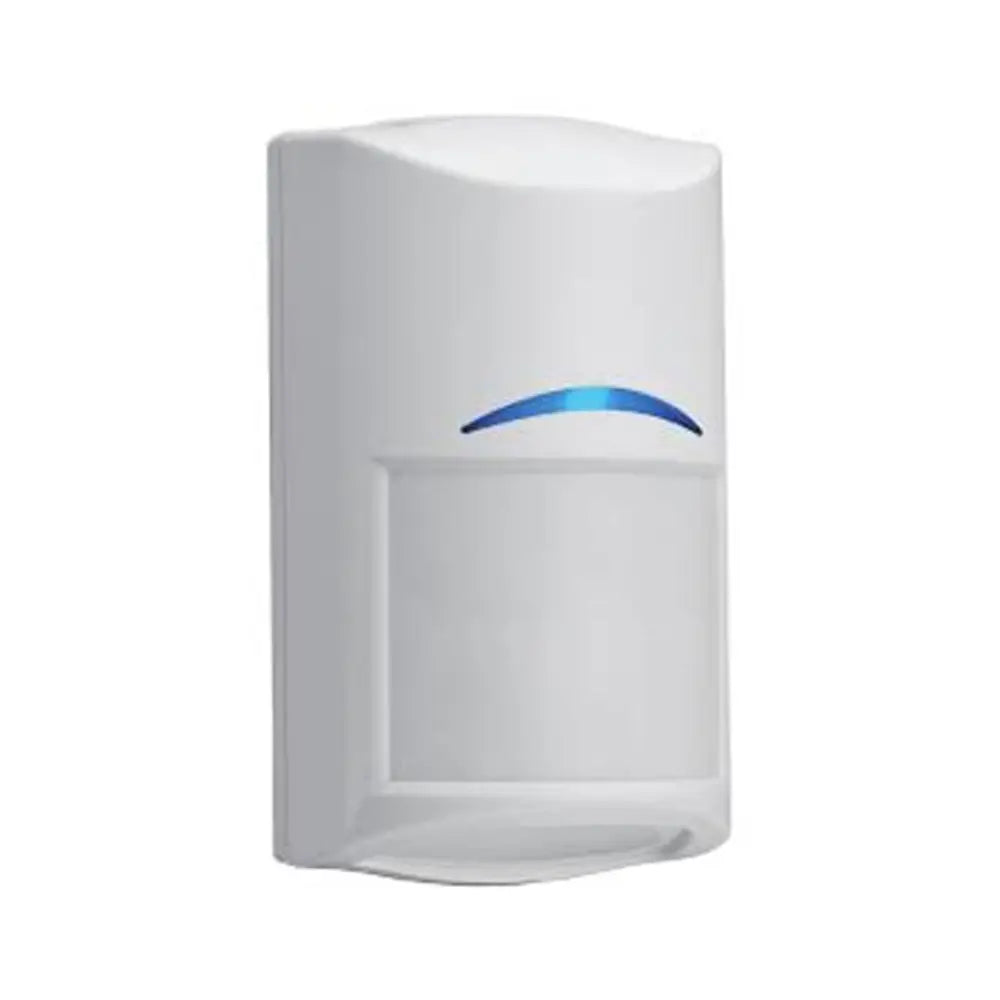

Bosch ISC-CDL1-W15G — Commercial Series TriTech+ Hardwired PIR Motion Sensor (15x15m)

Description

Commercial Series · TriTech+ · Hardwired · 15×15m TriTech+ PIR Sensor

ISC-CDL1-W15G TriTech+ PIR Sensor — Australian Stock & 3-Year Warranty

The Bosch ISC-CDL1-W15G is a Commercial Series TriTech+ motion detector that pairs passive infrared with microwave Doppler radar and precision Fresnel optics to deliver dependable catch performance and excellent false alarm immunity. Covering a 15×15m area with a single N/C output, this hardwired white detector runs on 9–15 VDC and mounts to a plastic wall bracket at 2.3–2.75m. It's the ideal choice for commercial and residential intrusion systems that need reliable dual-technology detection without anti-mask. Backed by our 3-year Australian warranty.

Coverage
15 × 15 m
Detection
TriTech+ MW+PIR
Power
9–15 VDC
Microwave
10.525 GHz

TriTech+ Dual Technology

Passive infrared combined with microwave Doppler radar demands agreement from both sensors before triggering, for strong false alarm immunity.

Precision Fresnel Optics

Engineered Fresnel lens delivers a well-defined 15×15m detection pattern with dependable catch performance across the coverage zone.

Simple Hardwired Install

Single N/C output, 9–15 VDC operation and a plastic wall mount make wiring to Bosch and conventional panels quick and straightforward.

Commercial-Grade Reliability

Built to Bosch Commercial Series standards for consistent, long-term performance in busy commercial and residential environments.

Technical Specifications
Model / SKU Bosch ISC-CDL1-W15G
Series Commercial Series
Detection Technology TriTech+ (Microwave + PIR) with Fresnel optics
Detection Area 15 × 15 m
Alarm Output 1 × N/C
Operating Voltage 9 – 15 VDC
Microwave Frequency 10.525 GHz
Mounting Plastic wall mount
Installation Height 2.3 – 2.75 m
Colour White
Warranty 3 Years (Australia)

Downloads

ISC-CDL1-W15G Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual

Frequently Asked Questions

What mounting height suits the ISC-CDL1-W15G?
Install it on a plastic wall mount at a height of 2.3 m to 2.75 m for the correct 15×15m coverage pattern.
How large an area does it cover?
It provides a 15 × 15 m detection area, ideal for large commercial rooms and open living areas.
How is it wired and powered?
It is a hardwired detector with a single N/C alarm output running on 9–15 VDC, easily connected to conventional zone inputs.
Does this model include anti-mask?
No. This is the standard TriTech+ version; if you need active anti-mask and C2DT for high-security sites, choose the ISC-CDL1-WA15G.
How is TriTech+ better than a plain PIR?
TriTech+ needs both passive infrared and microwave Doppler radar to agree before triggering, greatly reducing false alarms versus a single-technology PIR.
Which Bosch panels does it suit?
It works with Bosch Solution 2000, 3000 and 6000 intrusion panels and other conventional NC/EOL zone inputs.
