Blue Line Gen2 Performance
First Step Processing and Dynamic Temperature Compensation deliver dependable catch performance across changing indoor conditions.

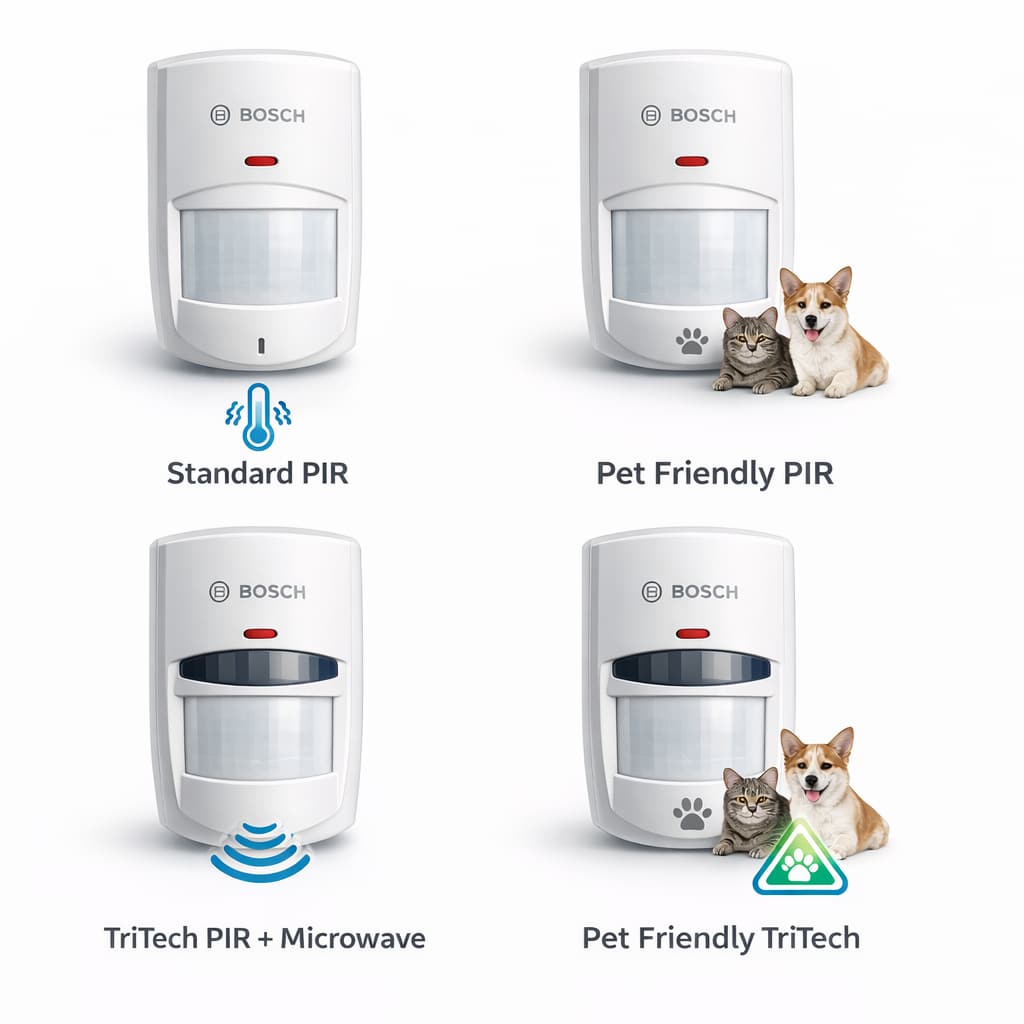

Choose PIR or TriTech
Standard PIR for cost-effective indoor rooms, or TriTech (PIR + microwave Doppler radar) for tougher spaces needing extra false-alarm immunity.
Pet-Friendly Options
Select pet-immune PIR up to 20kg or pet-immune TriTech up to 45kg, keeping detection reliable in homes with pets.
Fast, Flexible Install
Flexible 2.2m to 2.75m mounting height needs no field adjustment, with wall, corner and optional ceiling mounting.

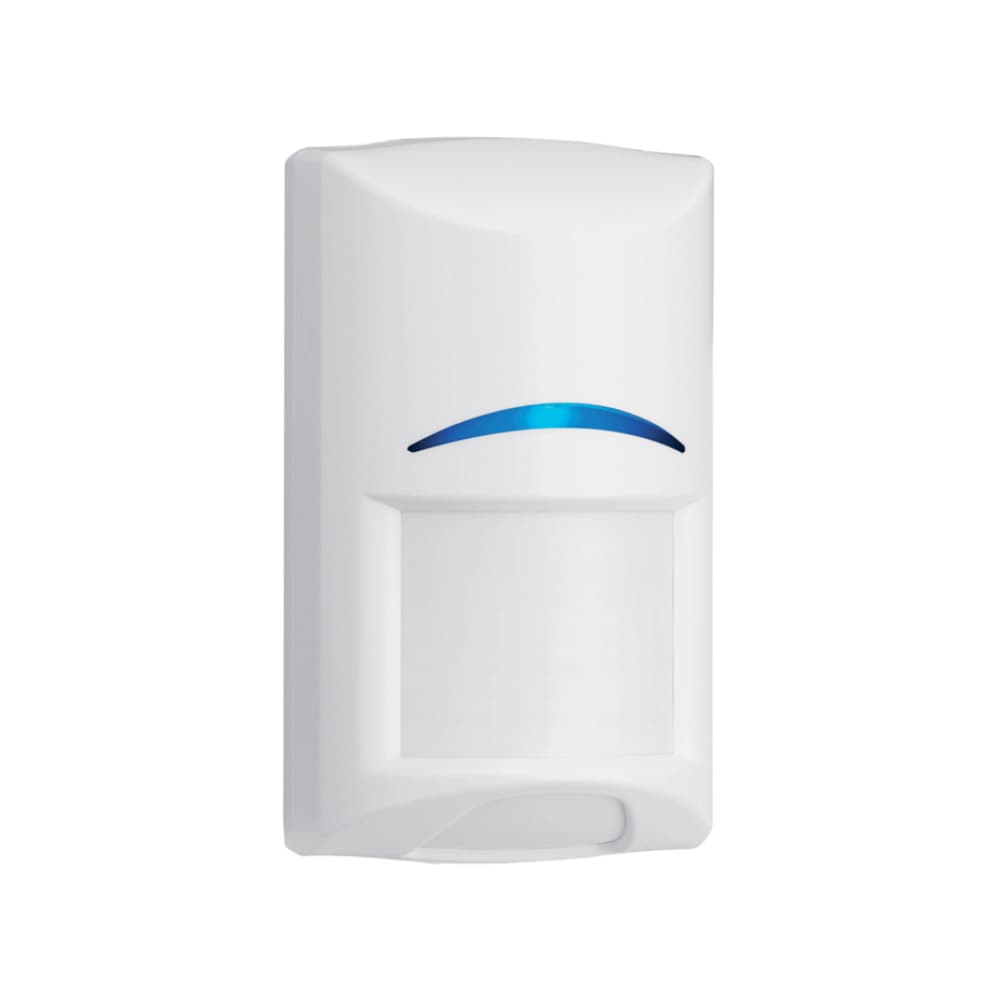

What mounting height suits the ISC-BPR2-W12?
Mount between 2.2m and 2.75m. No field adjustment is required within this range, which simplifies installation and preserves the 12m x 12m coverage pattern.
Which variant should I choose if I have pets?
Choose ISC-BPR2-WP12 for pet-immune PIR up to 20kg, or ISC-BDL2-WP12G for pet-immune TriTech up to 45kg in premium residential or commercial installs.
What voltage and wiring does it need?
It operates on 9-15 VDC and connects via a supervised N/C relay output plus an N/C tamper, wiring straight into standard hardwired alarm zone inputs.
Which Bosch panels is it compatible with?
It suits Bosch Solution 2000, Solution 3000, Solution 6000 and Vision series panels using standard wired zones.
What is the difference between PIR and TriTech?
PIR uses passive infrared only, while TriTech (ISC-BDL2 variants) adds microwave Doppler radar for higher detection confidence and better false-alarm immunity in challenging spaces.
What coverage area does it protect?
All variants provide 12m x 12m detection, ideal for standard indoor rooms, offices, shops and warehouses.
