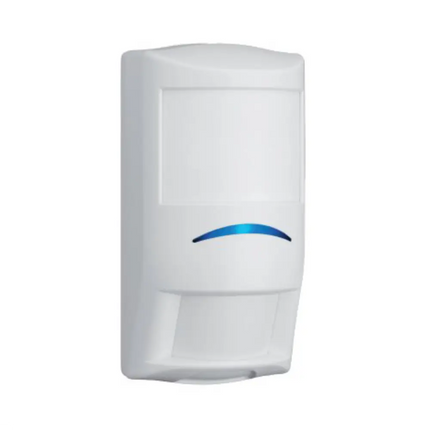

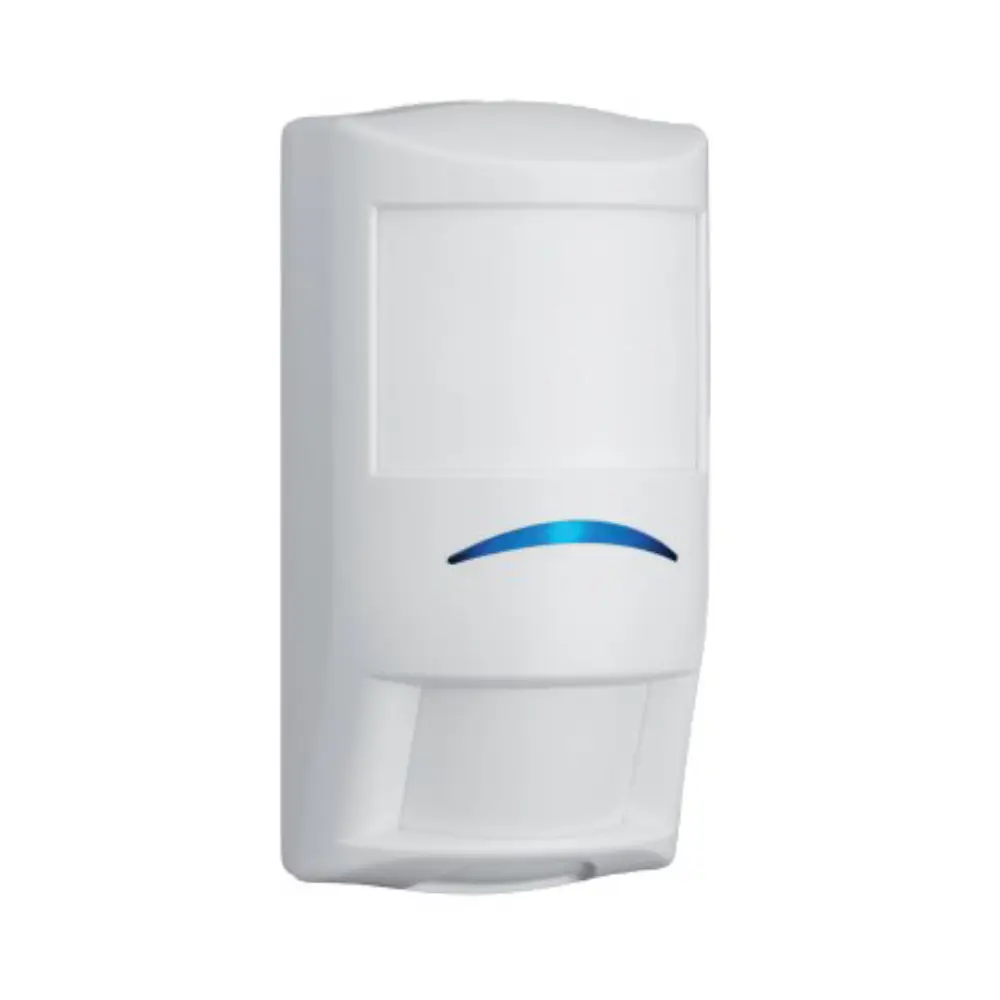

Bosch ISC-PDL1-W18G — Pro Series Hardwired Pet-Friendly TriTech PIR Motion Sensor (18m)

Description

Pro Series · TriTech MW+PIR · Pet-Friendly · Hardwired Pro TriTech PIR

ISC-PDL1-W18G Pro Series TriTech Pet-Friendly PIR — Australian Stock & 3-Year Warranty

The Bosch ISC-PDL1-W18G is a hardwired Pro Series TriTech motion detector that combines microwave (10.525 GHz) and passive infrared sensing with Tri-focus optics for exceptional false-alarm immunity. Both detection technologies must agree before an alarm is triggered, making it far more resistant to drafts, heat and stray movement than a standard PIR. It reliably ignores pets up to 4.5 kg and offers field-selectable coverage of 18 x 25 m or a focused 8 x 10 m short range. Ideal for Bosch Solution 2000, 3000 and 6000 systems, it ships with a 3-year Australian warranty.

Coverage
18 x 25m
Technology
MW + PIR
Pet Immunity
Up to 4.5kg
Power
9-15VDC

Dual-Tech Verification

Microwave (10.525 GHz) and PIR sensing must both agree before an alarm is raised, dramatically reducing false alarms in demanding environments.

Tri-Focus Optics

Three-zone optical system with Sensor Data Fusion delivers sharp, dependable catch performance across the full field of view.

True Pet Immunity

Reliably ignores pets up to 4.5 kg so cats and small dogs can move freely without triggering the alarm.

Selectable Coverage

Choose a wide 18 x 25 m pattern or a focused 8 x 10 m short range to match the protected space.

Technical Specifications
Model / SKU Bosch ISC-PDL1-W18G
Series Pro Series
Sensor Type TriTech (Microwave + PIR), Tri-Focus optics
Microwave Frequency 10.525 GHz
Pet Immunity Up to 4.5 kg
Coverage 18 x 25 m, or 8 x 10 m field selectable
Outputs 1x N/C alarm output (dry), tamper N/C
Power Supply 9-15 VDC
Mount Height 2 m - 3 m
Housing Plastic, wall mount
Ingress / Impact IP41 / IK04
Dimensions (H x W x D) 136 x 69 x 58 mm
Warranty 3 Years (Australia)

Downloads

ISC-PDL1-W18G Datasheet Bosch PIR Sensor Quick Start Guide Bosch PIR Sensor User Manual

Frequently Asked Questions

What is the difference between a PIR and a TriTech detector?
A standard PIR uses infrared only. The TriTech ISC-PDL1-W18G adds microwave sensing (10.525 GHz); both technologies must agree before an alarm triggers, giving much stronger false-alarm immunity.
Will it ignore my pets?
Yes. It offers reliable pet immunity for animals up to 4.5 kg, so cats and small dogs won't trigger false alarms while genuine intruders are still detected.
What height should it be mounted at?
Install the detector on a wall between 2 m and 3 m high for correct coverage and pet immunity.
How is it wired and powered?
It is hardwired and runs on 9-15 VDC, providing one N/C dry alarm output plus an N/C tamper contact for connection to your panel's zone inputs.
Which alarm panels is it compatible with?
It works with any conventional hardwired panel and pairs perfectly with Bosch Solution 2000, 3000 and 6000 control panels.
What area does it cover?
Coverage is field-selectable between a wide 18 x 25 m pattern and a focused 8 x 10 m short range.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
