Hikvision AX Hybrid Pro

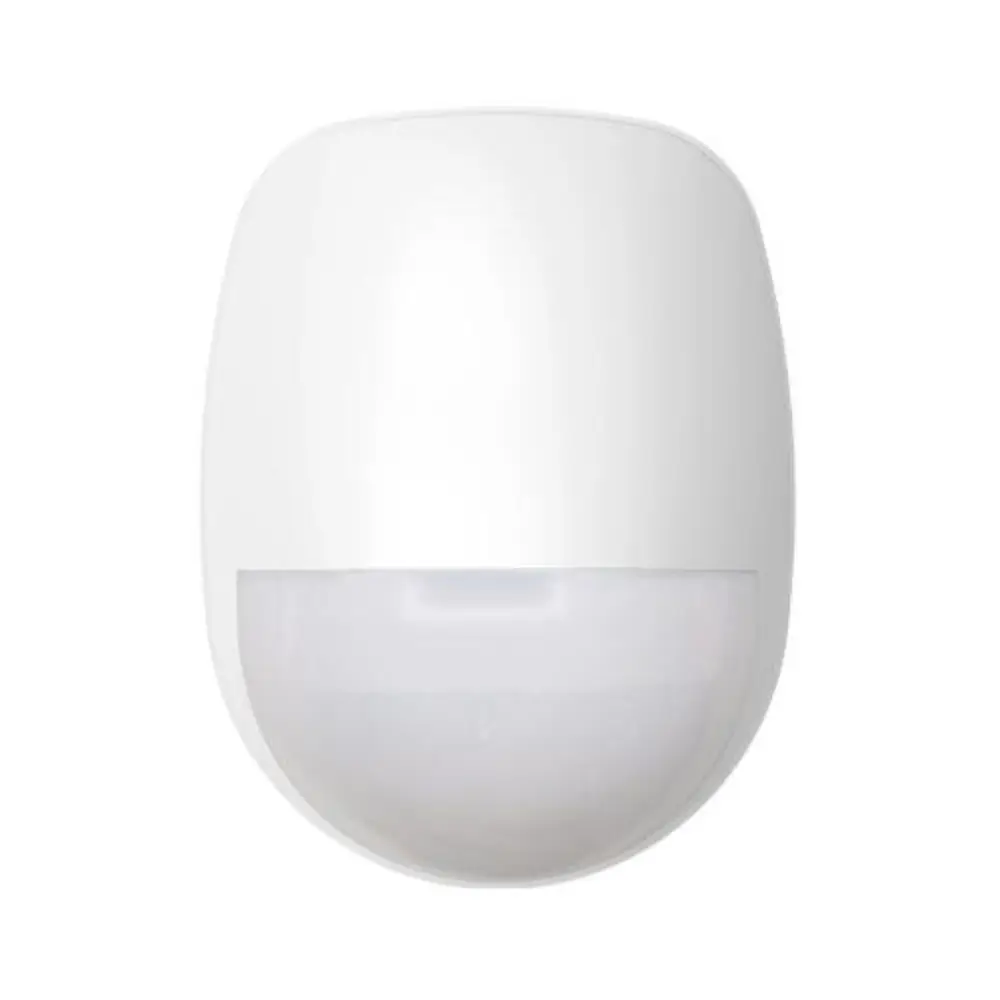

DS-PDP18-EG2 Wired PIR Detector
The Hikvision DS-PDP18-EG2 is a sleek wired indoor PIR detector for the AX Hybrid Pro intrusion system. With up to 18 metres of volumetric coverage, it suits small to large indoor rooms while its compact, unobtrusive design blends into any space.
Digital temperature compensation and automatic sensitivity keep catch performance stable as conditions change, while 3D optics and creep-zone protection close off blind spots.
18m RangeVolumetric coverage for small to large rooms
Pet ImmuneFilters out small animals to cut false alarms
Stable DetectionTemperature compensation + automatic sensitivity
Selectable EOLResistor options suit most control panels
Specifications
| Model |
DS-PDP18-EG2 |
| Detection Range |
Up to 18m volumetric |
| Optics |
3D optics with creep-zone protection |
| Sensitivity |
Automatic, digital temperature compensation |
| EOL Resistors |
Selectable (alarm + tamper) |
| Power |
9-16V, reverse-polarity protected |
| Mounting |
Wall or ceiling, 1.8m to 2.4m |
| System |
Hikvision AX Hybrid Pro (wired) |
How far does it detect?Up to 18 metres of volumetric coverage, making it suitable for both small and large indoor rooms.
Is it wired or wireless?It is a wired detector for the Hikvision AX Hybrid Pro system, with selectable EOL resistors for most control panels.
Will it false alarm in changing conditions?Digital temperature compensation and automatic sensitivity keep performance stable, and IFT technology helps prevent false trips from interference.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
The DS-PDP18-EG2 delivers wide, stable indoor motion detection for your Hikvision AX Hybrid Pro system, backed by a 3-Year Australian warranty and local support.
