Hikvision AX Hybrid Pro

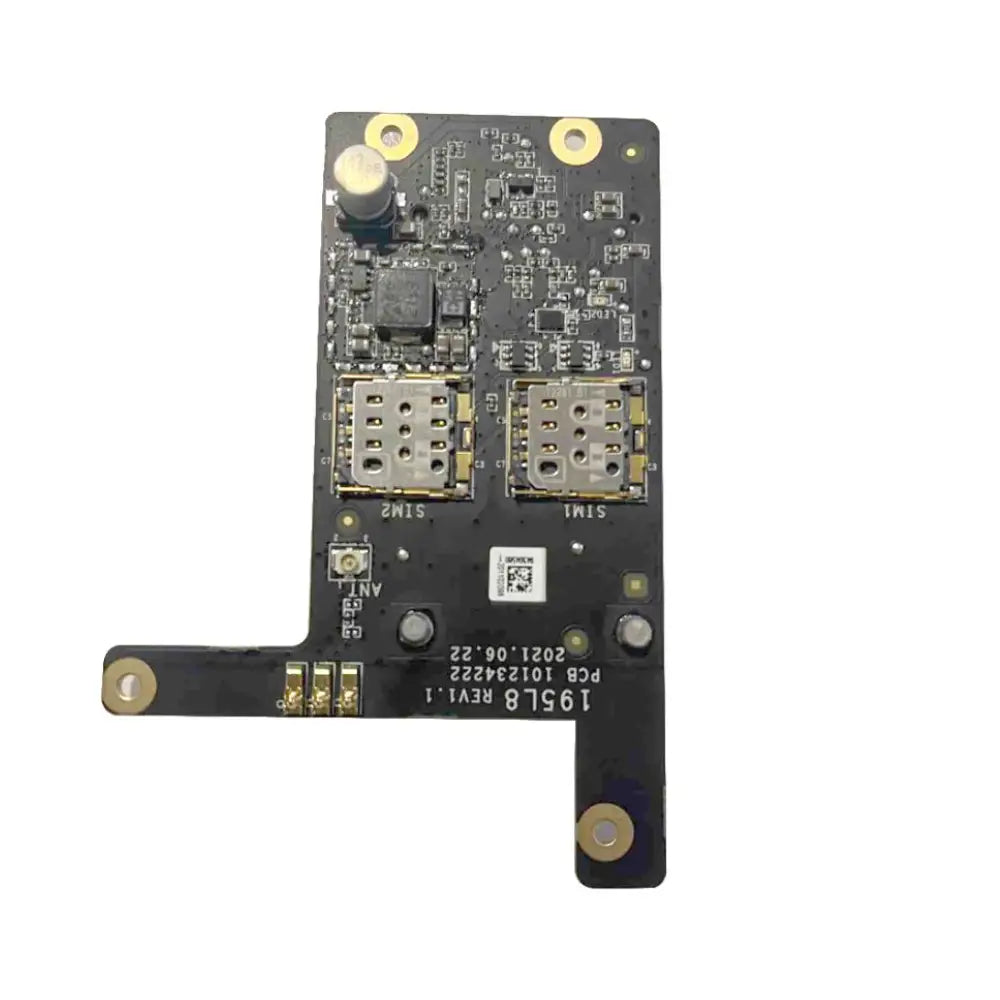

DS-PM2-S 4G/3G Communicator Module
The Hikvision DS-PM2-S is a 3G/4G cellular communicator module for the AX Hybrid Pro intrusion panel. It gives the panel a mobile-network path for alarm reporting, providing reliable connectivity where wired or broadband links are unavailable or as a backup if the primary connection drops.
Broad band support across LTE-FDD, LTE-TDD, WCDMA and GSM ensures dependable cellular coverage for the panel.
Cellular Reporting3G/4G path for alarm communication
Backup ConnectivityKeeps reporting alive if the primary link fails
Wide Band SupportLTE-FDD/TDD, WCDMA and GSM coverage
Hybrid Pro ReadyIntegrates into the AX Hybrid Pro panel
Specifications
| Model |
DS-PM2-S |
| Function |
3G/4G cellular communicator |
| LTE-TDD |
B40 |
| LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| WCDMA |
B1/B2/B5/B8 |
| GSM |
850/900/1800/1900 MHz |
| System |
Hikvision AX Hybrid Pro |
What does this module add?It gives the AX Hybrid Pro panel a 3G/4G cellular path for alarm reporting, useful where wired or broadband links are unavailable or as a backup.
Which networks does it support?LTE-FDD, LTE-TDD, WCDMA and GSM bands for broad cellular coverage.
Which panel is it for?It is designed to install inside the Hikvision AX Hybrid Pro panel.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
The DS-PM2-S keeps your Hikvision AX Hybrid Pro panel connected over cellular for reliable alarm reporting, backed by a 3-Year Australian warranty and local support.
