Hikvision AX Hybrid Pro

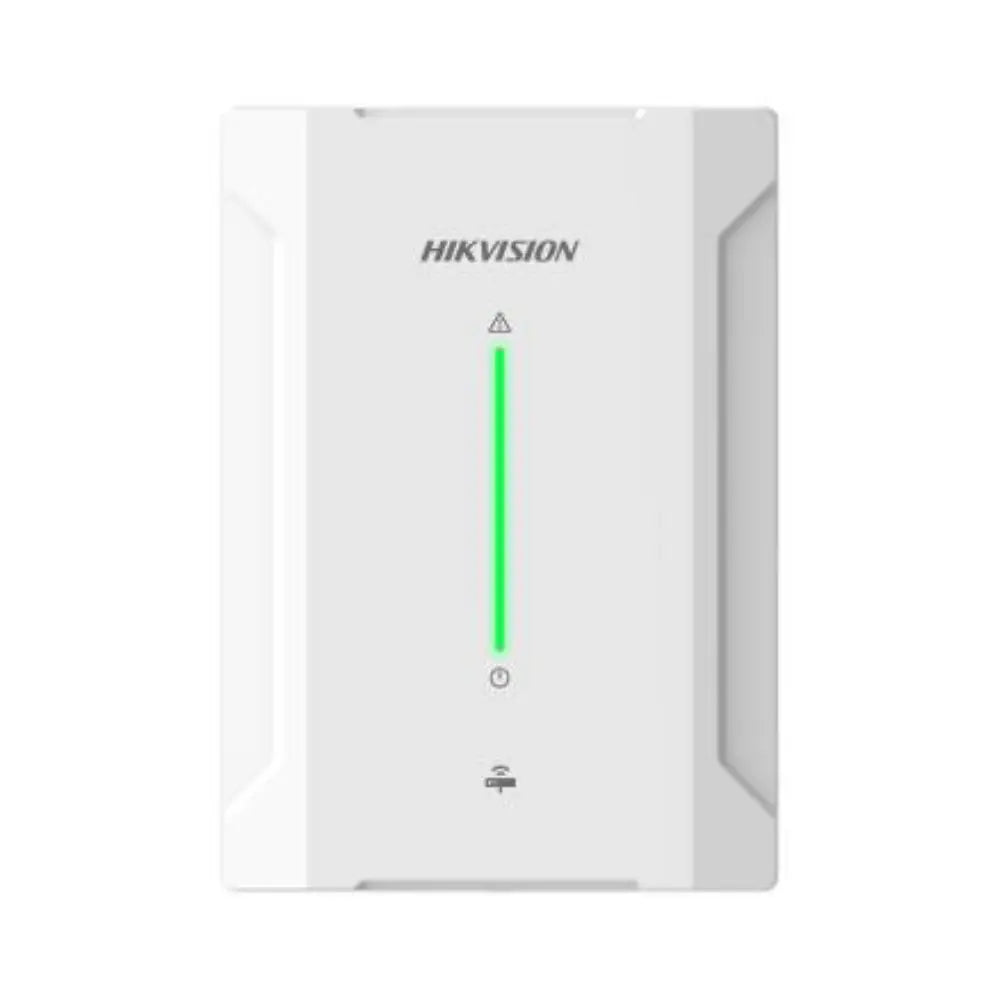

DS-PM1-RT-HWB Tri-X Wireless Receiver
The Hikvision DS-PM1-RT-HWB is a 433MHz Tri-X wireless receiver module that adds wireless capability to AX Hybrid Pro alarm panels. It connects to the panel's Speed-X bus and lets installers enrol Hikvision Tri-X wireless detectors and sounders alongside the existing wired zones.
It supports up to 32 wireless detectors, 4 indoor sounders and 8 outdoor sounders, with a long open-area range of up to 1300m and AES-128 encryption with frequency hopping for secure, stable communication. Note: it must be connected to an AX Hybrid Pro panel and does not operate standalone.
Wireless ExpansionUp to 32 detectors plus 12 sounders
1300m RangeLong open-area Tri-X transmission
Secure LinkAES-128 encryption with frequency hopping
Speed-X BusSimple connection to AX Hybrid Pro panels
Specifications
| Model |
DS-PM1-RT-HWB |
| Device Type |
433MHz Tri-X wireless receiver |
| Compatible Panel |
AX Hybrid Pro control panel |
| Wireless Range |
Up to 1300m (open area) |
| Supported Detectors |
Up to 32 |
| Wireless Sounders |
4 indoor, 8 outdoor |
| Wireless Security |
Frequency hopping, AES-128 |
| Power Supply |
9-28 VDC, 1 A |
| Dimensions |
110 × 155 × 32 mm |
What does this receiver do?It adds Tri-X wireless capability to an AX Hybrid Pro panel, letting you enrol up to 32 wireless detectors and 12 sounders alongside wired zones.
Can it work on its own?No. It must be connected to an AX Hybrid Pro control panel via the Speed-X bus.
What is the wireless range?Up to 1300m in open areas, with AES-128 encryption and frequency hopping for reliability.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
The DS-PM1-RT-HWB lets you grow your wired Hikvision AX Hybrid Pro system with wireless devices, backed by a 3-Year Australian warranty and local support.
