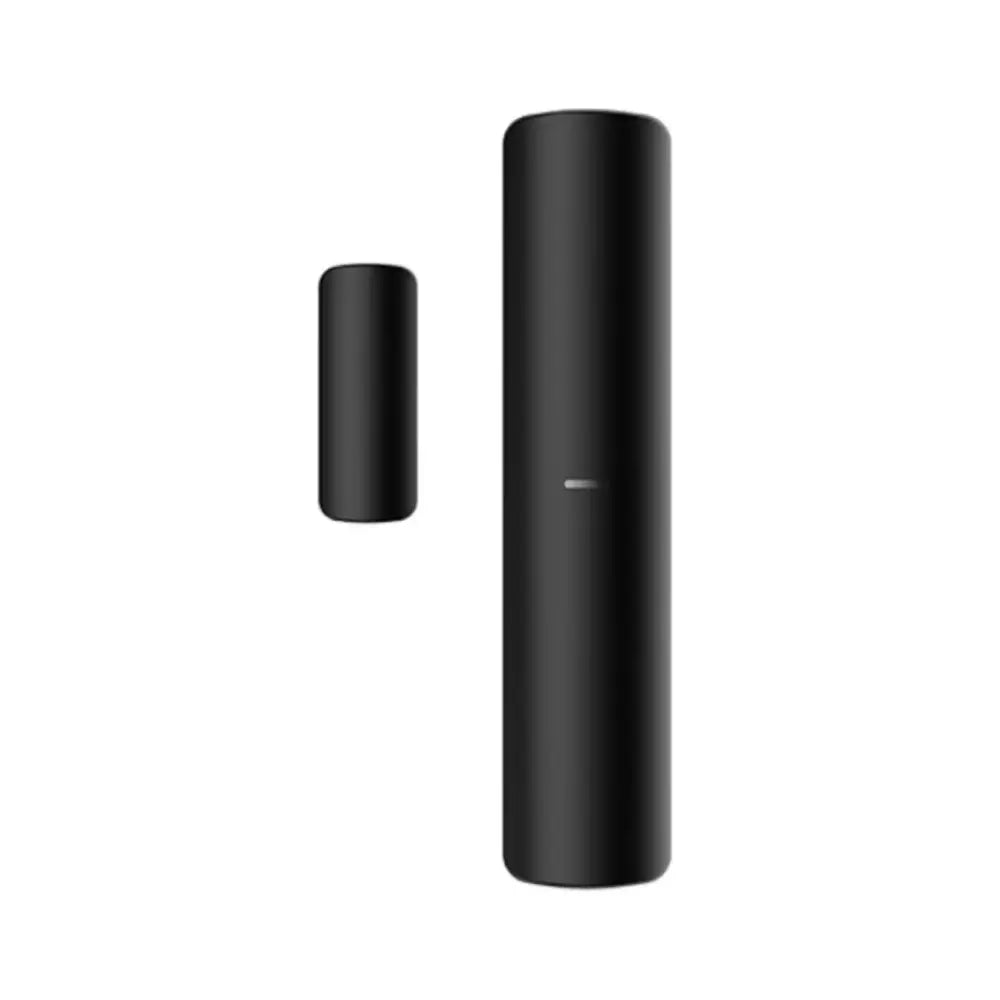

HIKVISION DS-PDMC-EG2-WB AX PRO Wireless Magnetic Contact Detector

Description

HIKVISION AX PRO SERIES

Commercial-Grade Wireless Perimeter Protection for Windows & Doors

The DS-PDMC-EG2-WB is a high-performance wireless magnetic contact detector engineered for immediate perimeter intrusion detection across commercial facilities, retail spaces, and high-density residential properties. Designed as a core component of the HIKVISION AX PRO intrusion alarm ecosystem, this surface-mounted sensor immediately detects opening gaps up to 43mm, alerting control centers at the first attempt of forced entry through doors, windows, or storage gates. Its slim profile allows discreet installation without compromising structural integrity or aesthetic standards.

Detection Method
Opening Contact / 43mm Gap
Wireless Range
Tri-X 433MHz / 1.2km RF
Power & Lifespan
CR123A / 5-Year Battery
Anti-Tamper & Security
Front/Rear Tamper & AES-128

Advanced Tri-X Two-Way Wireless Communication & Expandability

Leveraging HIKVISION's proprietary Tri-X wireless protocol with 128-bit AES encryption, the HIKVISION DS-PDMC-EG2-WB provides robust, real-time two-way communication across distances up to 1.2 km in open space. Integrated frequency hopping dynamically counters RF jamming attempts to ensure continuous transmission reliability. Beyond its primary magnetic reed switch, the detector incorporates onboard external input zones, enabling technicians to wire secondary hardwired sensors—such as roller shutter switches or glass break detectors—directly into the wireless node for comprehensive barrier monitoring.

Dual Hardware Inputs & Extension Zones

Features two onboard wire-in inputs supporting normally open, normally closed, and impulse count modes, letting security teams easily adapt the device to complex commercial entry points.

App Remote Configuration & Quick Pairing

Full support for Hik-Connect app enrollment via QR code or power-up detection allows rapid remote configuration, signal diagnostics, and battery level monitoring.

Technical Specification Matrix
Camera / Detector Model DS-PDMC-EG2-WB
Detection Performance Opening Contact (Max Gap 43mm)
Transmission Protocol Tri-X Wireless, Two-Way RF, AES-128 Encryption
Carrier Frequency & Distance 433 MHz | 1.2 km Transmission Range (Free Space)
Tamper Protection Front Cover & Rear Mounting Bracket Tamper Protection
Power Supply & Life 1x CR123A 3V Battery | Up to 5 Years Standby Life
Dimensions (Sensor / Magnet) 22.5mm × 103mm × 23.2mm / 13mm × 34.4mm × 11.4mm
Operating Temperature & Environment -10 °C to 55 °C (14 °F to 131 °F), Indoor Use
How far can the DS-PDMC-EG2-WB transmit to the AX PRO control panel?

The detector supports up to 1.2 kilometers of two-way radio frequency transmission in open space using Tri-X wireless technology.

Can I connect external hardwired sensors to this wireless detector?

Yes, the unit features onboard external input terminals that accept NO/NC contacts and impulse counts, turning wired detectors into wireless zones.

How long does the battery last and how is it replaced?

Powered by a single replaceable CR123A lithium battery, the device offers up to 5 years of operation depending on trigger frequency and environment.

Is this contact protected against physical tamper attempts?

Yes, it features dual anti-tamper switches on both the front cover and rear base to immediately signal alerts if opened or pulled off the wall.

Technical Datasheet Installation Manual
Official HIKVISION Stock
Commercial Warranty
Aust-Wide Delivery

HIKVISION DS-PDMC-EG2-WB AX PRO Wireless Magnetic Contact Detector

Product form

SKU: DS-PDMC-EG2-WB-1

$62.00  $46.50 Incl. GST
