Hikvision 10 x 6MP/8MP AcuSense AI Camera & 16-Channel 8K NVR CCTV Kit

Description

Hikvision AcuSense · 10 × 6MP or 8MP 4K · 16CH 8K NVR · 16 PoE 10 × AcuSense Kit

Hikvision 10 × 6MP / 8MP 4K AcuSense CCTV Kit with 16-Channel 8K NVR

The Hikvision 10-Camera AcuSense Kit is a ready-to-install bundle for larger Australian sites — warehouses, factories, schools, multi-tenant buildings and large retail. It pairs ten AcuSense turret cameras in your choice of 6MP (DS-2CD2366G2-IU) or 4K 8MP (DS-2CD2386G2-IU) resolution with a DS-7616NI-M2/16P 16-channel 8K NVR. AcuSense deep-learning AI classifies people and vehicles to cut false alarms, and all 16 PoE ports power each camera over a single Cat6 run — with six spare channels to grow the system later.

Cameras
10 × 6MP or 8MP 4K
Recorder
16CH 8K NVR · 16 PoE
Smart AI
AcuSense Human/Vehicle
Night Vision
Smart IR up to 30 m
Audio
Built-in Mic
Storage
Add HDD up to 32 TB

Choose 6MP or True 4K (8MP)

Pick 6MP (3072 × 2048) for sharp everyday coverage, or step up to 8MP 4K (3840 × 2160) for the headroom to digitally zoom into footage and still identify a face or number plate.

AcuSense AI — Fewer False Alarms

Deep-learning classification separates people and vehicles from animals, foliage and shadows, so only real events trigger alerts and recording.

16-Port PoE — Plug & Play

One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, no extra switch, and six spare ports for expansion.

Add Your Own Storage

Two SATA bays accept surveillance HDDs up to 32 TB total. Add a drive sized to your retention needs across ten 4K channels — we can pre-install it before shipping.

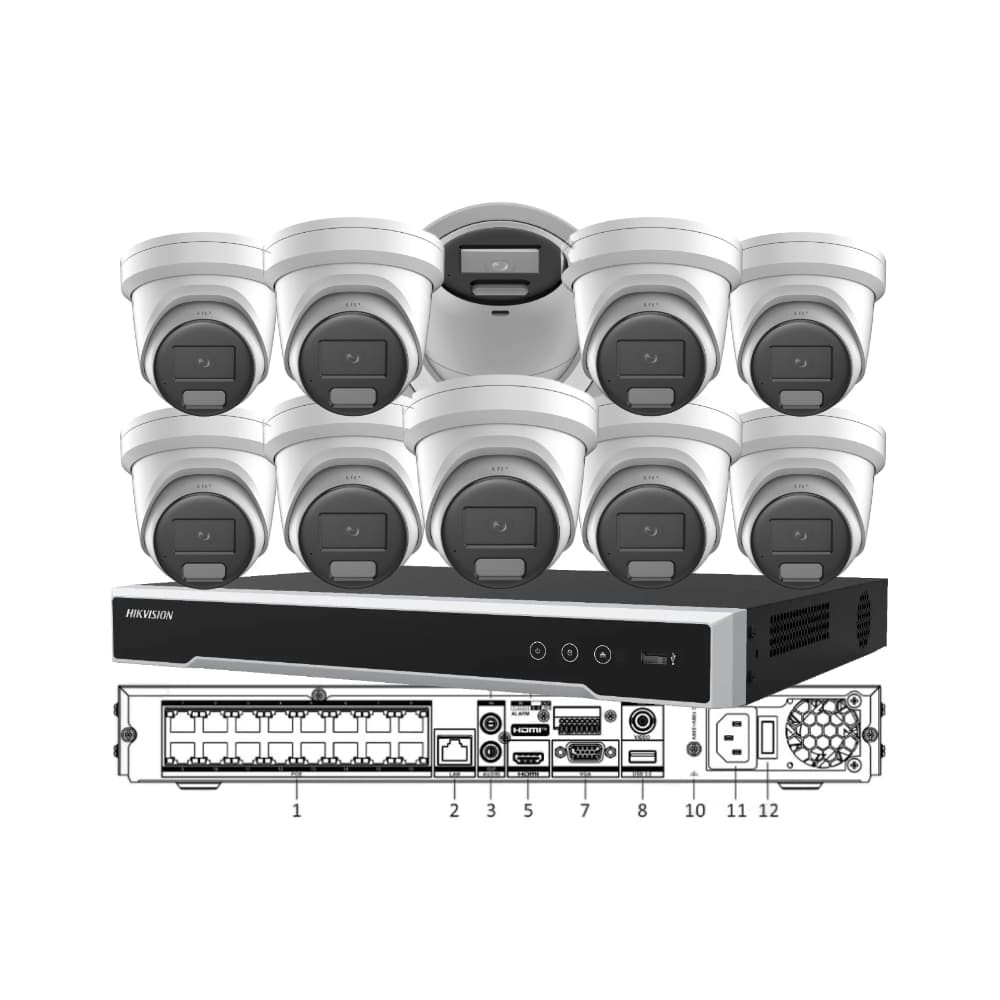

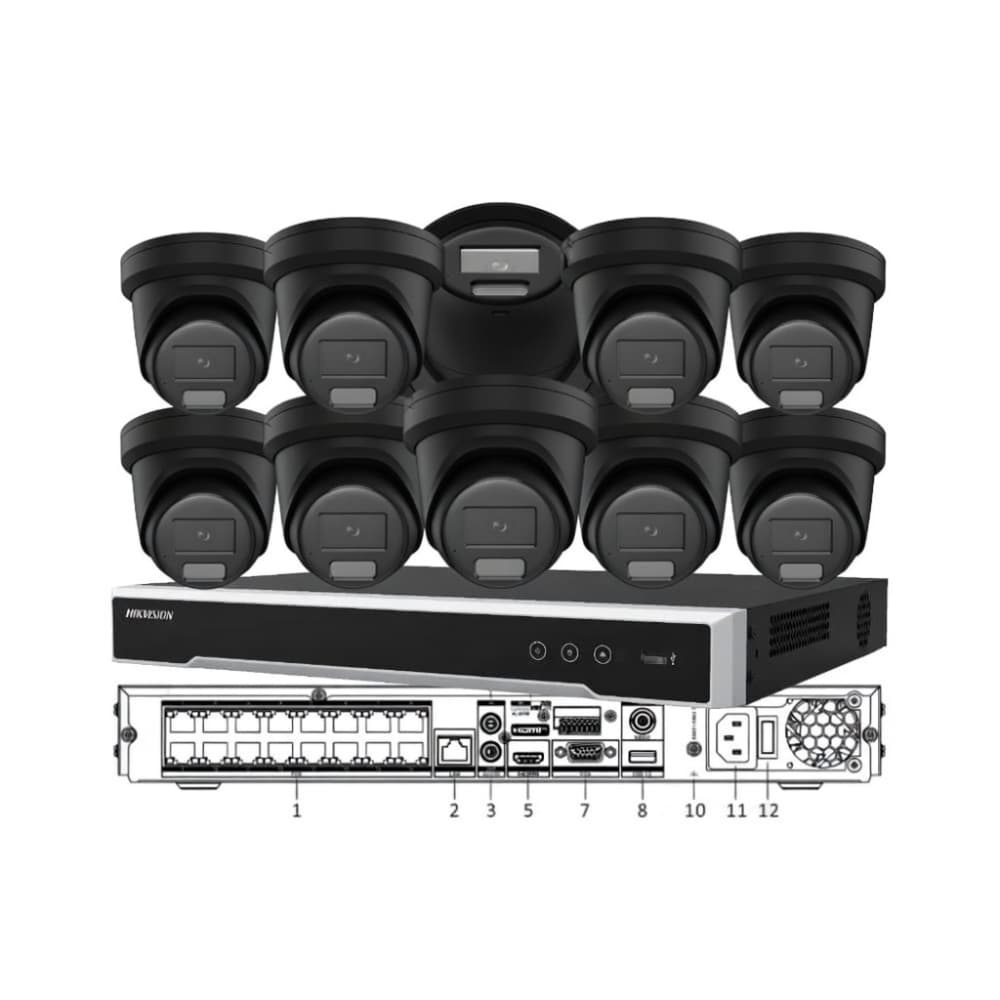

What's Included
10 × Cameras 10 × AcuSense turret (6MP or 8MP — choose your variant). 8MP = DS-2CD2386G2-IU (3840 × 2160); 6MP = DS-2CD2366G2-IU (3072 × 2048). Both: 2.8 mm wide lens, Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
1 × Recorder DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
Storage No HDD included as standard — add a surveillance-grade drive to suit your retention. Two SATA bays accept up to 32 TB total; add a drive and we can pre-install it before shipping.
Power 16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
Best For
Warehouses & factories
Loading docks, racking aisles, perimeters and offices with 4K plate and face detail.
Schools & childcare
Entries, hallways, playgrounds and car parks with privacy masking and HTTPS access.
Large retail & hospitality
Shopfloor, POS, stockroom, kitchen and back-of-house with built-in audio.
Commercial offices
Multiple floors, reception, lift lobbies, server rooms and basement parking.
Rural & multi-building
Sheds, gates, yards and driveways across separate structures on one recorder.
Industrial sites
Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
Camera Specifications — DS-2CD2386G2-IU (8MP) / DS-2CD2366G2-IU (6MP)
Camera Type AcuSense Fixed Turret (6MP or 8MP 4K)
Image Sensor 8MP: 1/1.8" CMOS · 6MP: 1/2.4" Progressive Scan CMOS
Max. Resolution 8MP · 3840 × 2160 | 6MP · 3072 × 2048
Min. Illumination Colour 0.003 lux @ F1.6 · 0 lux with IR
Lens Fixed 2.8 mm wide angle
Night Vision Smart IR up to 30 m
WDR 120 dB True WDR
AI Functions AcuSense · human & vehicle classification · perimeter protection
Audio Built-in microphone (1-way audio)
On-Board Storage microSD / SDHC / SDXC up to 256 GB
Compression H.265+ / H.265 / H.264+ / H.264
Power 12 VDC / PoE (IEEE 802.3af)
Ingress Protection IP67
Warranty (Australia) 3 years · CCTV Guru Australia
Recorder Specifications — DS-7616NI-M2/16P
Channels 16 IP channels · up to 32 MP input
Incoming Bandwidth 160 Mbps
PoE 16 × PoE ports (IEEE 802.3 af/at)
Storage 2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included
Video Output 1 × HDMI (up to 8K) + 1 × VGA · simultaneous
AI Functions AcuSense human/vehicle · perimeter · facial (with compatible cameras)
Compression H.265+ / H.265 / H.264+ / H.264
Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
Installation Notes
  • ›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
  • ›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
  • ›Storage sizing: add a surveillance HDD sized to your needs — ten 4K channels use significant bandwidth, and the dual bays support up to 32 TB total for 30+ days of retention.

Setup & Demo Videos — Hikvision

AcuSense — human & vehicle detection
AcuSense NVR — smart false-alarm filtering

Downloads & Resources

DS-2CD2386G2-IU (8MP) Datasheet DS-2CD2366G2-IU (6MP) Datasheet DS-7616NI-M2/16P NVR Datasheet Hikvision Camera Quick Start Guide
What's the difference between the 6MP and 8MP option?
6MP records at 3072 × 2048 for sharp everyday coverage; 8MP is true 4K at 3840 × 2160 with a larger 1/1.8" sensor and extra zoom headroom for faces and number plates. Choose your resolution from the variant selector.
How does AcuSense reduce false alarms?
Deep-learning AI classifies motion as human, vehicle or other, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
Does the kit come with a hard drive?
No — it's supplied as a base hardware bundle so you can size storage to your needs. The NVR's two SATA bays take up to 32 TB total; add a surveillance HDD and we can pre-install it before shipping.
How are the cameras powered?
Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
Why a 16-channel NVR for 10 cameras?
The DS-7616NI-M2/16P gives you six spare channels and PoE ports, so you can expand the system later without replacing the recorder. It also supports AcuSense, ColorVu and other Hikvision IP cameras.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Hikvision 10 x 6MP/8MP AcuSense AI Camera & 16-Channel 8K NVR CCTV Kit

Product form

SKU: GR-DS-106MA16R

$3,442.00  $3,369.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Shipped today? Order within: Jul 06, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Hikvision AcuSense · 10 × 6MP or 8MP 4K · 16CH 8K NVR · 16 PoE 10 × AcuSense Kit

    Hikvision 10 × 6MP / 8MP 4K AcuSense CCTV Kit with 16-Channel 8K NVR

    The Hikvision 10-Camera AcuSense Kit is a ready-to-install bundle for larger Australian sites — warehouses, factories, schools, multi-tenant buildings and large retail. It pairs ten AcuSense turret cameras in your choice of 6MP (DS-2CD2366G2-IU) or 4K 8MP (DS-2CD2386G2-IU) resolution with a DS-7616NI-M2/16P 16-channel 8K NVR. AcuSense deep-learning AI classifies people and vehicles to cut false alarms, and all 16 PoE ports power each camera over a single Cat6 run — with six spare channels to grow the system later.

    Cameras
    10 × 6MP or 8MP 4K
    Recorder
    16CH 8K NVR · 16 PoE
    Smart AI
    AcuSense Human/Vehicle
    Night Vision
    Smart IR up to 30 m
    Audio
    Built-in Mic
    Storage
    Add HDD up to 32 TB

    Choose 6MP or True 4K (8MP)

    Pick 6MP (3072 × 2048) for sharp everyday coverage, or step up to 8MP 4K (3840 × 2160) for the headroom to digitally zoom into footage and still identify a face or number plate.

    AcuSense AI — Fewer False Alarms

    Deep-learning classification separates people and vehicles from animals, foliage and shadows, so only real events trigger alerts and recording.

    16-Port PoE — Plug & Play

    One Cat6 cable per camera carries power and video to the NVR's 16 built-in PoE ports — no separate power supplies, no extra switch, and six spare ports for expansion.

    Add Your Own Storage

    Two SATA bays accept surveillance HDDs up to 32 TB total. Add a drive sized to your retention needs across ten 4K channels — we can pre-install it before shipping.

    What's Included
    10 × Cameras 10 × AcuSense turret (6MP or 8MP — choose your variant). 8MP = DS-2CD2386G2-IU (3840 × 2160); 6MP = DS-2CD2366G2-IU (3072 × 2048). Both: 2.8 mm wide lens, Smart IR 30 m, 120 dB WDR, built-in mic, IP67. Each ships with mounting bracket, drill template, screws & quick start guide.
    1 × Recorder DS-7616NI-M2/16P — 16-channel 8K M-Series NVR with 16 built-in PoE ports, dual SATA bays, up to 32 MP per channel, 8K HDMI output and Hik-Connect remote access.
    Storage No HDD included as standard — add a surveillance-grade drive to suit your retention. Two SATA bays accept up to 32 TB total; add a drive and we can pre-install it before shipping.
    Power 16 × PoE ports built into the NVR — one Cat6 network cable per camera carries power and data, so there are no separate power supplies. Network cabling is run on site and is not included; pre-made Cat6 patch leads are available separately.
    Mounting Brackets and templates included for eave/soffit installs. For brick or flush-wall mounting, add a Hikvision wall-mount bracket per camera; a junction box is also available for tidy cable management.
    Warranty 3-Year Australian warranty · local CCTV Guru tech support. Genuine Hikvision Australian stock.
    Best For
    Warehouses & factories
    Loading docks, racking aisles, perimeters and offices with 4K plate and face detail.
    Schools & childcare
    Entries, hallways, playgrounds and car parks with privacy masking and HTTPS access.
    Large retail & hospitality
    Shopfloor, POS, stockroom, kitchen and back-of-house with built-in audio.
    Commercial offices
    Multiple floors, reception, lift lobbies, server rooms and basement parking.
    Rural & multi-building
    Sheds, gates, yards and driveways across separate structures on one recorder.
    Industrial sites
    Wide perimeter coverage with IP67 weatherproof cameras for tough environments.
    Camera Specifications — DS-2CD2386G2-IU (8MP) / DS-2CD2366G2-IU (6MP)
    Camera Type AcuSense Fixed Turret (6MP or 8MP 4K)
    Image Sensor 8MP: 1/1.8" CMOS · 6MP: 1/2.4" Progressive Scan CMOS
    Max. Resolution 8MP · 3840 × 2160 | 6MP · 3072 × 2048
    Min. Illumination Colour 0.003 lux @ F1.6 · 0 lux with IR
    Lens Fixed 2.8 mm wide angle
    Night Vision Smart IR up to 30 m
    WDR 120 dB True WDR
    AI Functions AcuSense · human & vehicle classification · perimeter protection
    Audio Built-in microphone (1-way audio)
    On-Board Storage microSD / SDHC / SDXC up to 256 GB
    Compression H.265+ / H.265 / H.264+ / H.264
    Power 12 VDC / PoE (IEEE 802.3af)
    Ingress Protection IP67
    Warranty (Australia) 3 years · CCTV Guru Australia
    Recorder Specifications — DS-7616NI-M2/16P
    Channels 16 IP channels · up to 32 MP input
    Incoming Bandwidth 160 Mbps
    PoE 16 × PoE ports (IEEE 802.3 af/at)
    Storage 2 × SATA (up to 16 TB per bay, 32 TB total) · HDD not included
    Video Output 1 × HDMI (up to 8K) + 1 × VGA · simultaneous
    AI Functions AcuSense human/vehicle · perimeter · facial (with compatible cameras)
    Compression H.265+ / H.265 / H.264+ / H.264
    Remote / App Hik-Connect (iOS & Android) · P2P · ONVIF
    Installation Notes
    • ›Cabling: run solid-copper Cat6 from each camera back to the NVR's PoE ports for stable power and video over long distances.
    • ›Weatherproofing: even at IP67, seal outdoor RJ-45 joins with weatherproof tape or a junction box to keep out moisture and salt air.
    • ›Storage sizing: add a surveillance HDD sized to your needs — ten 4K channels use significant bandwidth, and the dual bays support up to 32 TB total for 30+ days of retention.

    Setup & Demo Videos — Hikvision

    AcuSense — human & vehicle detection
    AcuSense NVR — smart false-alarm filtering

    Downloads & Resources

    DS-2CD2386G2-IU (8MP) Datasheet DS-2CD2366G2-IU (6MP) Datasheet DS-7616NI-M2/16P NVR Datasheet Hikvision Camera Quick Start Guide
    What's the difference between the 6MP and 8MP option?
    6MP records at 3072 × 2048 for sharp everyday coverage; 8MP is true 4K at 3840 × 2160 with a larger 1/1.8" sensor and extra zoom headroom for faces and number plates. Choose your resolution from the variant selector.
    How does AcuSense reduce false alarms?
    Deep-learning AI classifies motion as human, vehicle or other, so leaves, animals and shadows don't trigger alerts — only real events reach your phone.
    Does the kit come with a hard drive?
    No — it's supplied as a base hardware bundle so you can size storage to your needs. The NVR's two SATA bays take up to 32 TB total; add a surveillance HDD and we can pre-install it before shipping.
    How are the cameras powered?
    Each camera runs on a single Cat6 cable to one of the NVR's 16 built-in PoE ports — no separate power supplies. Cat6 cabling is run on site and not included.
    Why a 16-channel NVR for 10 cameras?
    The DS-7616NI-M2/16P gives you six spare channels and PoE ports, so you can expand the system later without replacing the recorder. It also supports AcuSense, ColorVu and other Hikvision IP cameras.
    3-Year AU Warranty
    Fast AU-Wide Shipping
    AU Tech Support
