10-Camera G3 System · 6MP · 16CH PoE NVR · Live-Guard

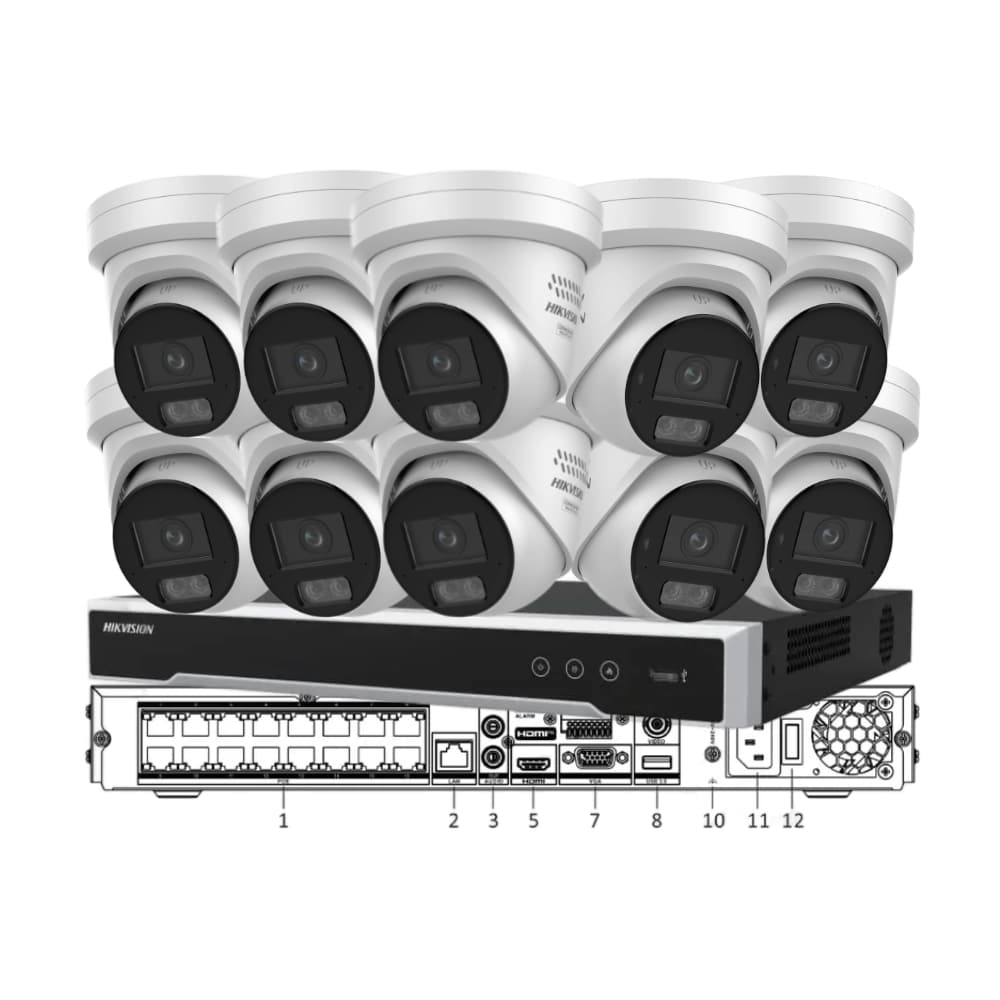

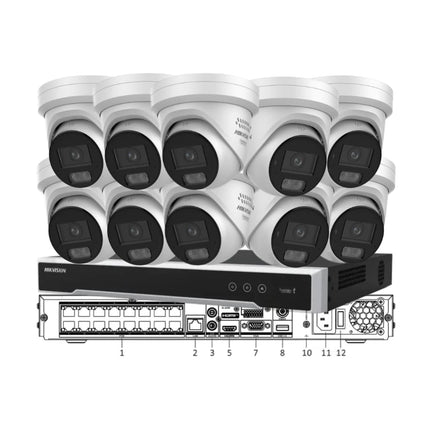

Hikvision 10-Camera 6MP ColorVu 3.0 Live-Guard CCTV Kit with 16-Channel 8K NVR
Built for larger Australian homes, retail, offices, workshops and strata sites, this complete Hikvision G3 system combines 10 × DS-2CD2367G3-LIS2UY/SL 6MP turret cameras with a DS-7616NI-M2/16P 16-channel NVR. Ten built-in PoE connections are used now, leaving six spare channels for future cameras.
Each camera combines ColorVu 3.0 low-light imaging, Smart Hybrid Light, AcuSense human and vehicle classification, a white strobe, dual microphones and a built-in speaker. Choose white or black cameras and either a recorder without a hard drive or a fitted 4TB surveillance HDD.
Cameras
10 × 6MP G3 turrets
Recorder
16 channels · 16 PoE · 8K HDMI
Night Imaging
ColorVu 3.0 · Hybrid Light · 30m
Deterrence
White strobe · audible warning
AI Alerts
Human and vehicle classification
Warranty
3-year Australian warranty
Australian Stock
Local Technical Support
Six Spare NVR Channels
Why Choose the 6MP Kit?
The 6MP model records at 3200 × 1800, giving more detail than 4MP while using less storage and network bandwidth than 8MP. It is the practical value choice when you need ten cameras covering entrances, driveways, aisles, corridors and perimeter areas. Choose the separate 8MP kit when frequent digital zooming or 4K evidence is the priority.
Colour When It Matters
The F1.0 lens and 1/1.8-inch sensor support excellent low-light colour. Smart Hybrid Light can use discreet infrared normally, then add white light when a person or vehicle is detected.
Useful Alerts, Fewer Nuisance Events
AcuSense distinguishes people and vehicles from common movement such as foliage, rain and animals, helping make notifications more useful.
Active Deterrence
On a configured event, the camera can flash its white strobe and play an audible warning. Dual microphones and a speaker support two-way audio through a compatible Hikvision system.
Room to Expand
The 16-channel recorder includes 16 PoE ports. Connect the ten supplied cameras directly and retain six channels for later additions.
Choose Your Camera Colour and Storage
Variant Guide
| White cameras |
Best for light soffits, ceilings and most residential exteriors. |

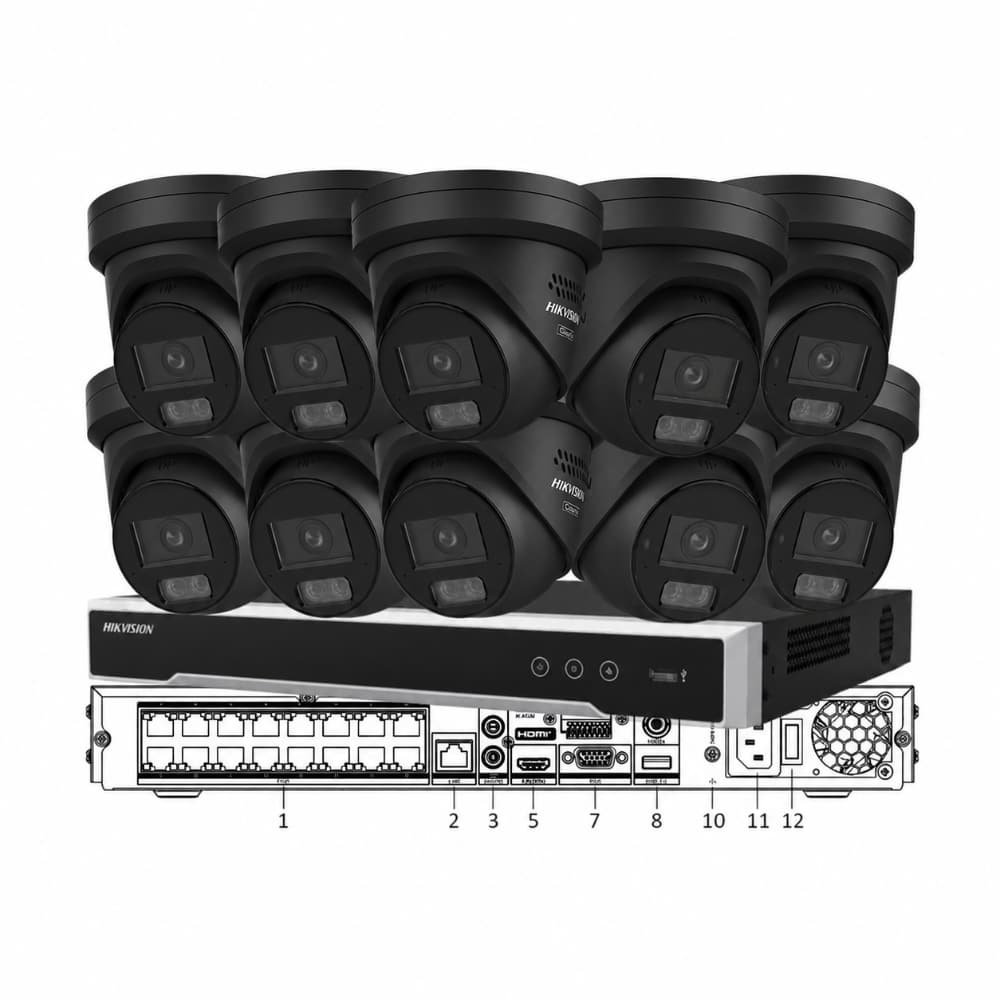

| Black cameras |
Best for dark façades, exposed beams and discreet commercial installations. |
| No HDD |
Choose this only if you already have a compatible surveillance hard drive or your installer will supply one. The recorder cannot retain footage without storage. |
| 4TB surveillance HDD |
A ready-to-record starting point. Retention varies with scene activity, frame rate, bitrate and recording schedule; ten 6MP cameras may need more capacity where long 24/7 retention is required. |
What’s Included
1 × Hikvision 16CH NVR
DS-7616NI-M2/16P with 16 built-in PoE ports and two SATA bays.
Selected Storage
No HDD, or one fitted 4TB surveillance hard drive according to the selected variant.
Not Included
Network cabling, monitor, installation, junction boxes and wall or pole brackets are not included unless stated separately.
Key Specifications
Camera and Recorder
| Camera model |
10 × DS-2CD2367G3-LIS2UY/SL, white or black, 2.8mm |
| Resolution |
6MP · 3200 × 1800 at up to 25/30 fps |
| Imaging |
1/1.8-inch CMOS · F1.0 · 0.0005 lux · 130dB WDR |
| Night illumination |
Smart Hybrid Light, infrared and white light, up to 30m |
| Analytics |
AcuSense human and vehicle classification; perimeter events |
| Audio and deterrence |
Dual microphones, built-in speaker, white strobe and audible warning |
| Camera protection |
IP67 · NEMA 4X anti-corrosion housing |
| Recorder model |
DS-7616NI-M2/16P · 16 channels · 16 PoE ports · 160Mbps incoming bandwidth |
| NVR storage |
2 SATA bays, up to 16TB per bay; selected HDD fitted where chosen |
| Remote access |
Hik-Connect app and compatible Hikvision client software |
| Warranty |
36-month Australian back-to-base warranty |
See Smart Hybrid Light in Action
This official Hikvision Australia and New Zealand overview explains how infrared, white-light and Smart modes respond to changing night-time conditions.
Frequently Asked Questions
Does this kit include a hard drive?Only the 4TB variants include a fitted surveillance HDD. Select No HDD if storage will be supplied separately.
Can I add more cameras later?Yes. The 16-channel NVR has six spare channels after the ten supplied cameras are connected.
Are the cameras 2.8mm?Yes. The kit uses the wide-angle 2.8mm version, suited to general property coverage.
Does it include cables or installation?No. Cabling, monitor, installation and mounting accessories are separate so the system can be matched to the site.
Should I choose 6MP or 8MP?Choose 6MP for excellent detail with lower storage use and better value across ten cameras. Choose 8MP if 4K resolution and post-event digital zoom are more important.
Can I view the cameras remotely?Yes. Once the recorder is connected and configured, compatible live view and playback are available through Hik-Connect.
Official NVR & Camera Setup Videos
Use these official Hikvision tutorials to complete the recorder startup wizard and connect the supplied PoE cameras. Menu names may vary slightly with firmware version.
NVR 5.0 Startup Wizard — Official Hikvision Tutorial
Add a PoE Camera to NVR 5.0 — Official Hikvision Tutorial
