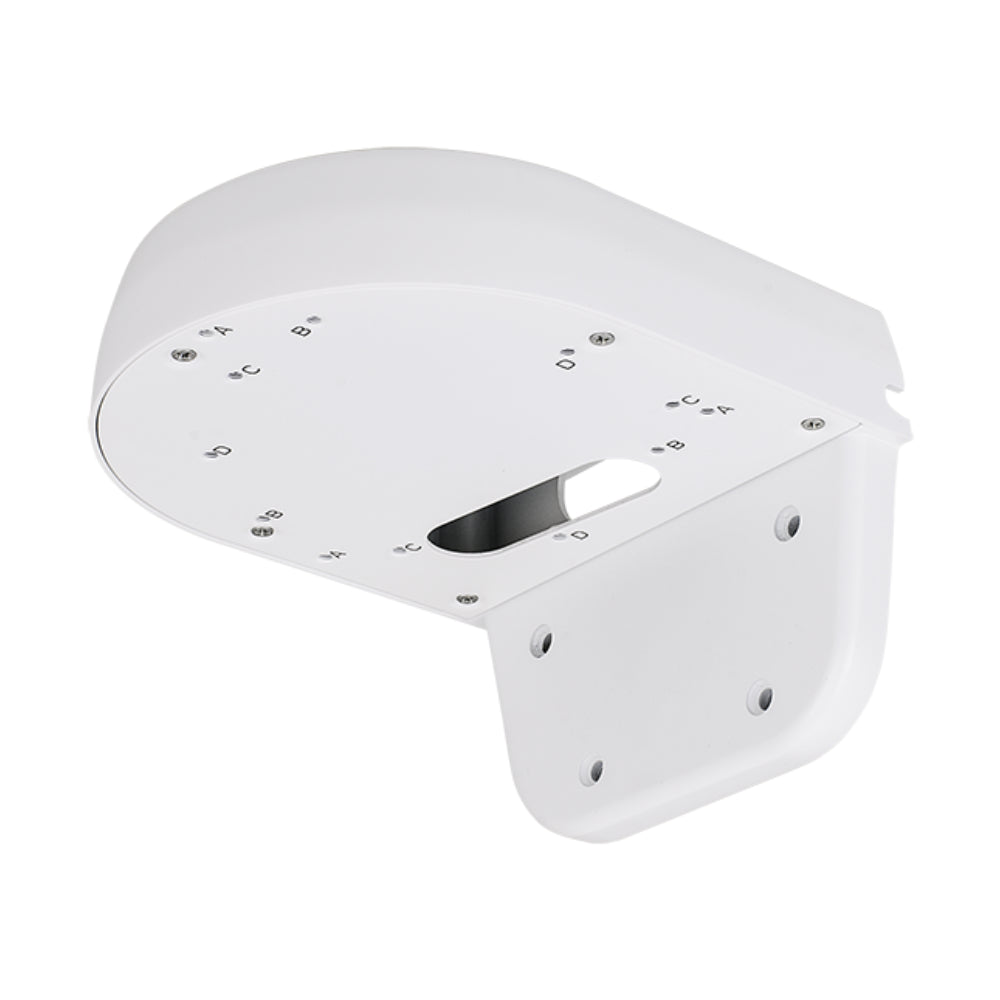

VIVOTEK AM-21A Aluminum Wall Mount L-Bracket Mount Kit

Description

VIVOTEK Mounting Kit Series

Professional Wall-Mount Infrastructure for Fixed Dome Cameras

Engineered to deliver high-stability architectural mounting, the VIVOTEK AM-21A is a heavy-duty aluminum wall mount L-bracket designed for precision surveillance deployment. Built specifically for high-density commercial, enterprise, and industrial dome camera installations, this rigid bracket positions security cameras at an optimal distance and elevation, ensuring broad field-of-view coverage while maintaining a clean, professional aesthetic in demanding physical environments.

Form Factor & Build
L-Shape / Aluminum Alloy
Dimensions & Weight
170 x 110 x 150 mm / 600g
Cable Management
Internal Feed-Through
Finish & Protection
Commercial White Coating

Rugged Structural Design & Internal Cable Integration

The VIVOTEK AM-21A wall mount bracket provides secure physical anchoring while eliminating exposed wiring vulnerabilities. Constructed from durable, high-density aluminum alloy, it safeguards critical Power-over-Ethernet (PoE) runs, audio inputs, and digital I/O leads directly through its hollow interior feed-through channel. By protecting cabling from physical tampering, environmental wear, and moisture intrusion, the bracket helps installers maintain system integrity and compliance across large-scale physical security deployments.

Vandal-Resistant Aluminum Alloy Construction

Manufactured from high-grade aluminum alloy, the AM-21A provides exceptional rigidity and impact protection. It prevents flex and vibration caused by physical stress, wind load, or structural shifts, maintaining exact lens aiming in high-traffic commercial environments.

Integrated Feed-Through Cable Pathway

Designed with internal cable routing channels, the bracket allows ethernet, power, and I/O connections to pass directly into the wall structure without exposing cabling to line-of-sight tamper risks or outdoor weathering.

Technical Specification Matrix
Camera Model AM-21A
Accessory Type Wall Mount L-Bracket Kit
Material High-Strength Aluminum Alloy
Color / Finish Commercial White
Dimensions (L x W x H) 170 x 110 x 150 mm
Net Weight 600 g
Cable Management Internal feed-through routing channel
Supported VIVOTEK Series Select FD Series Dome Cameras (e.g., FD8167A, FD8169A, FD9165-HT, FD9365-EHTV, FD9387-HTV)
Which VIVOTEK cameras are compatible with the AM-21A mount?

The AM-21A is specifically designed to accommodate a wide selection of VIVOTEK fixed dome cameras, including popular models across the FD8167A, FD8169A, FD9165-HT, FD9365-EHTV, and FD9387 series. Refer to your camera's datasheet or mounting guide to confirm hole pattern matching.

How does the internal cable routing feature work?

The L-bracket features a hollow interior channel allowing network cables, power wiring, and audio lines to route cleanly through the back of the bracket directly into the wall junction, protecting connections from weather exposure and intentional tampering.

Is the AM-21A suitable for outdoor installations?

Yes, constructed from heavy-duty aluminum alloy with a protective commercial white finish, the AM-21A is designed to resist corrosion and structural degradation in tough outdoor and indoor environments.

Are mounting screws included with the AM-21A bracket?

The bracket comes prepared with standardized mounting patterns for compatible VIVOTEK dome cameras and includes standard camera attachment hardware to streamline field installation.

Technical Datasheet Quick Start Guide
Official VIVOTEK Stock
Commercial Warranty
Aust-Wide Delivery

VIVOTEK AM-21A Aluminum Wall Mount L-Bracket Mount Kit

Product form

SKU: AM-21A

$60.00 Incl. GST
