Dahua · CCTV Camera Accessories14-Inch Camera Housing Plane Mount Bracket

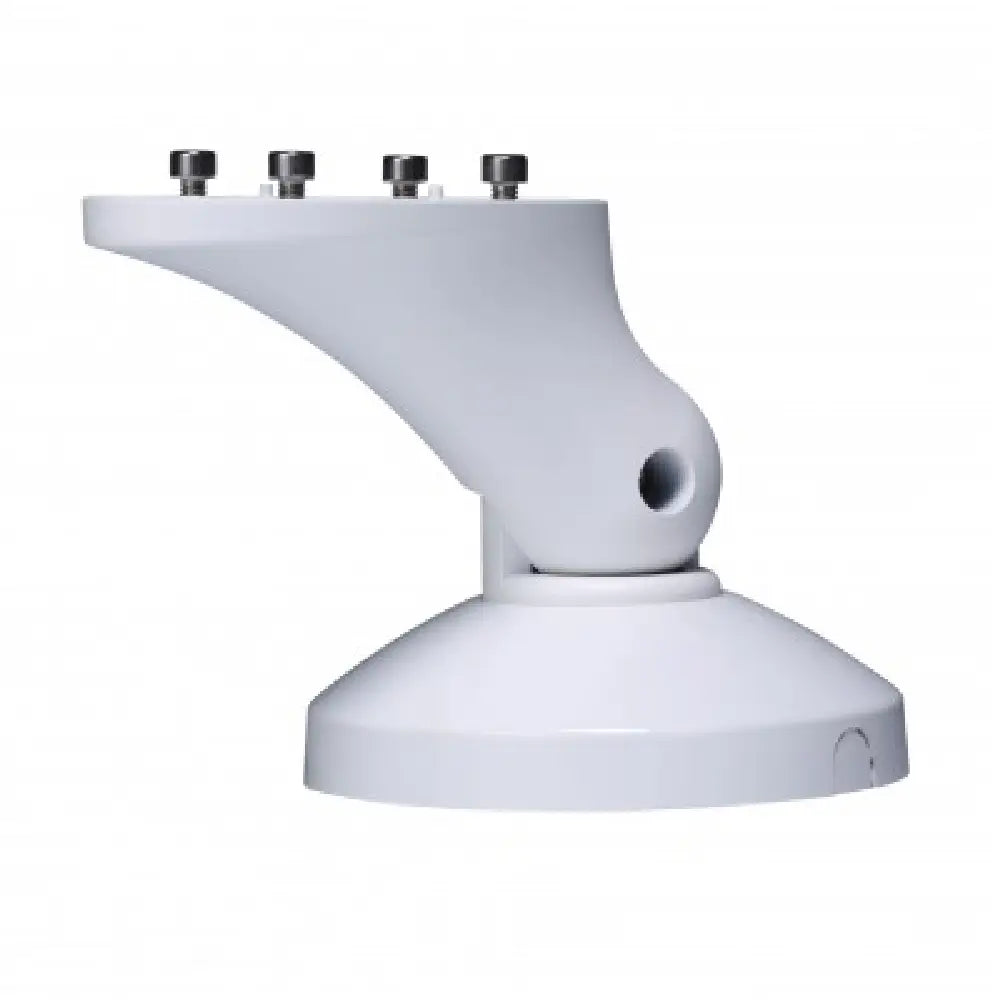

DH-PFB601W — Support a compatible 14-inch Dahua camera housing with this aluminium and PC mounting bracket. Its concealed cable route helps keep the installation tidy while providing a rated 3 kg mounting capacity.
Key features
Material
Aluminium and PC
Dimensions
Ø133.6 × 203.4 mm. Check the complete mounting arrangement against the official dimensions and installation requirements.
Applications & installation
Check the housing's specified bracket before ordering. The 14-inch reference describes the compatible housing class, not a universal camera or monitor size.
Technical Specifications
| Model |
DH-PFB601W |
| Material |
Aluminium and PC |
| Colour |
White |
| Dimensions |
Ø133.6 × 203.4 mm |
| Rated load |
3 kg |
| Net weight |
0.61 kg |
| Application |
Compatible 14-inch camera housing |
| Cable management |
Concealed line design |
| Warranty |
36 months — subject to warranty terms |
Frequently asked questions
Will this fit every Dahua camera?
No. Match the exact camera, required adapters and mounting-hole pattern to the official datasheet. A similar product name or appearance is not a compatibility guarantee.
Is the camera included?
No. This listing is for the named mounting accessory. Cameras, additional brackets, power equipment and site-specific fixings are separate unless explicitly stated.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
