Dahua · CCTV Camera AccessoriesAnti-Corrosion Camera Housing Wall Bracket

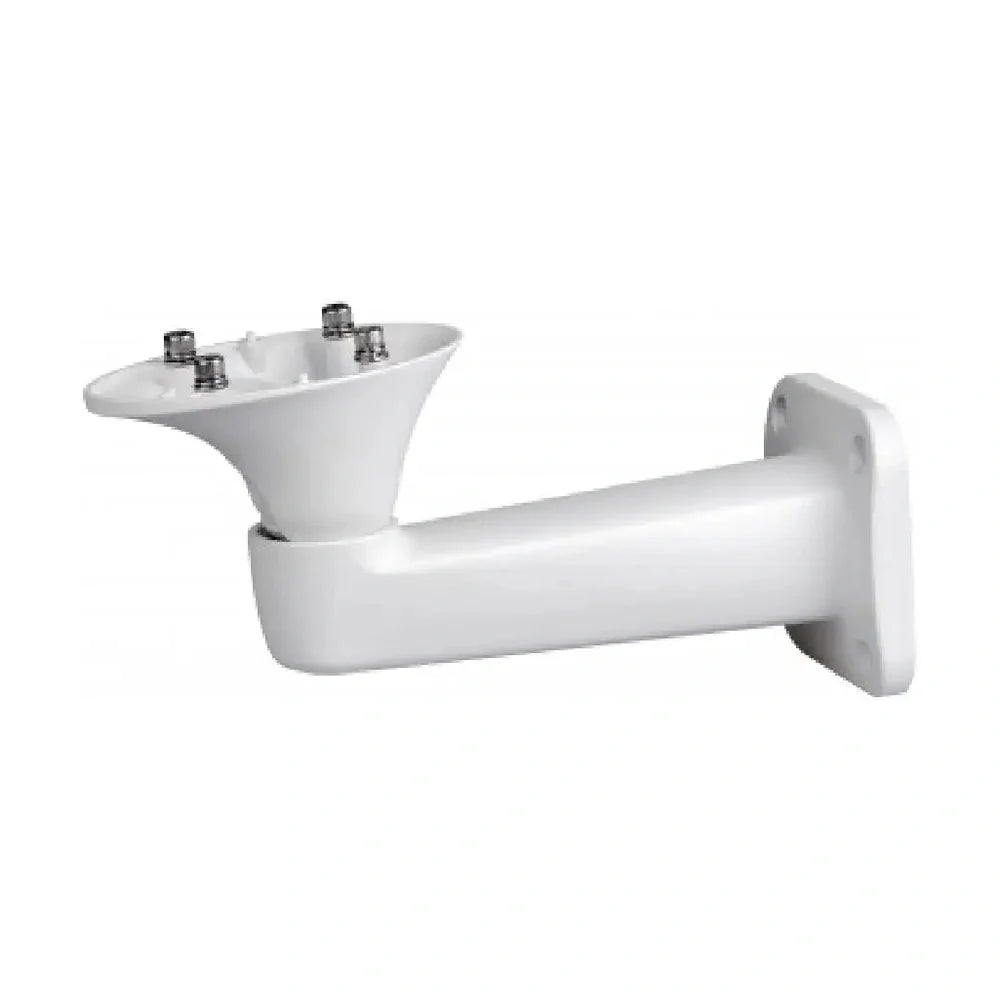

DH-PFB604WA — Wall-mount a compatible 14-inch Dahua housing using this corrosion-resistant aluminium bracket. It provides a rated 4 kg capacity and a dedicated cable entry for a planned housing and camera assembly.
Key features
Dimensions
264 × 100 × 146 mm. Check the complete mounting arrangement against the official dimensions and installation requirements.
Applications & installation
Dahua identifies the PFH610A housing family in the application information. Confirm the exact housing suffix and fixing pattern; a camera housing and camera are separate items.
Technical Specifications
| Model |
DH-PFB604WA |
| Material |
Aluminium |
| Colour |
White |
| Dimensions |
264 × 100 × 146 mm |
| Cable entry |
M20 / G½ as specified |
| Rated load |
4 kg |
| Net weight |
0.6 kg |
| Application |
Compatible 14-inch camera housing |
| Warranty |
36 months — subject to warranty terms |
Frequently asked questions
Will this fit every Dahua camera?
No. Match the exact camera, required adapters and mounting-hole pattern to the official datasheet. A similar product name or appearance is not a compatibility guarantee.
Is the camera included?
No. This listing is for the named mounting accessory. Cameras, additional brackets, power equipment and site-specific fixings are separate unless explicitly stated.
Downloads
Manufacturer documentation: the datasheet identifies the product or stated product family; general guides cover the applicable equipment type. Confirm model-specific instructions before installation.
