Description

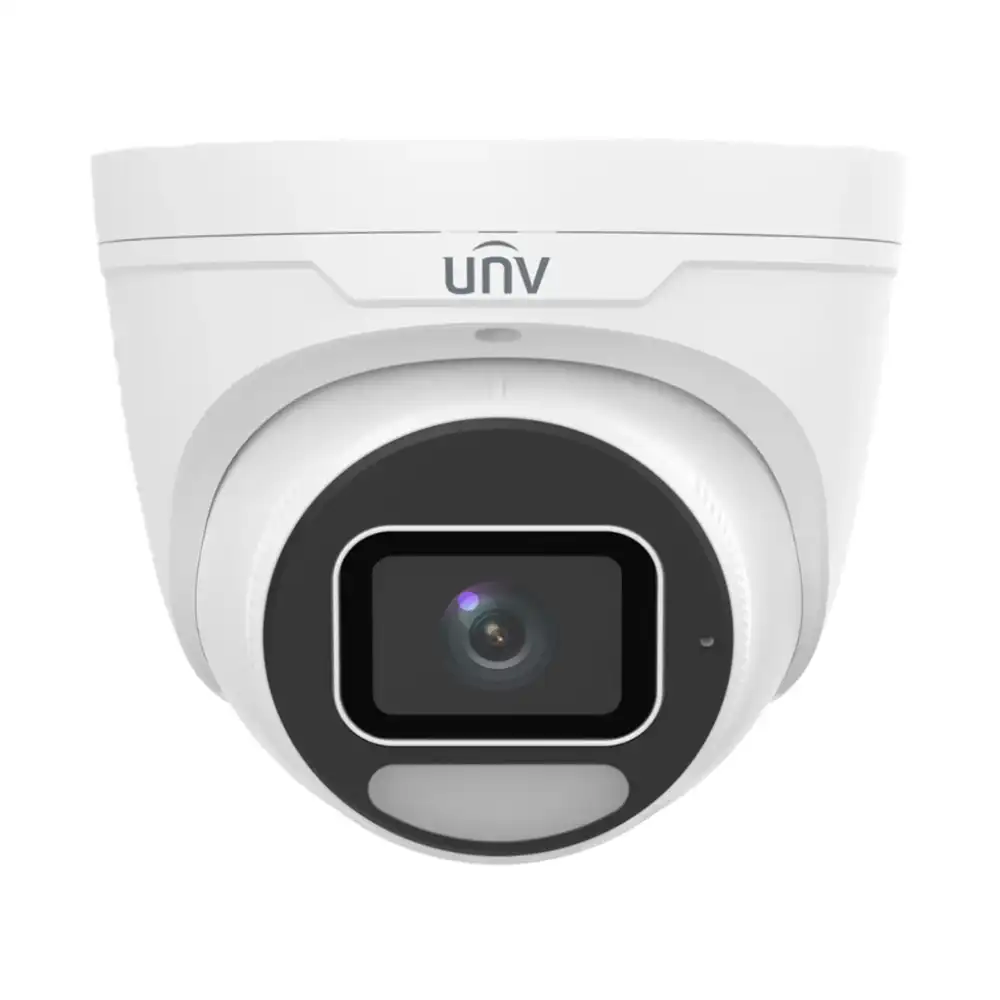

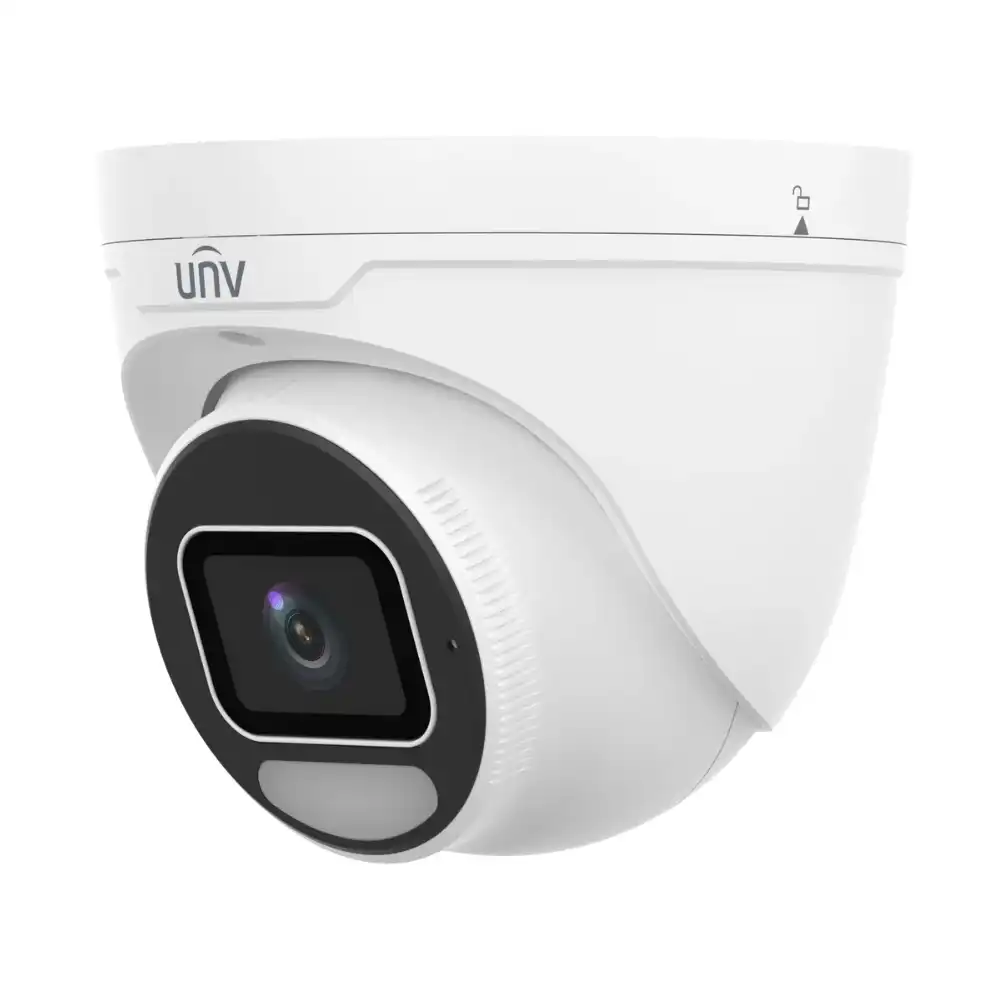

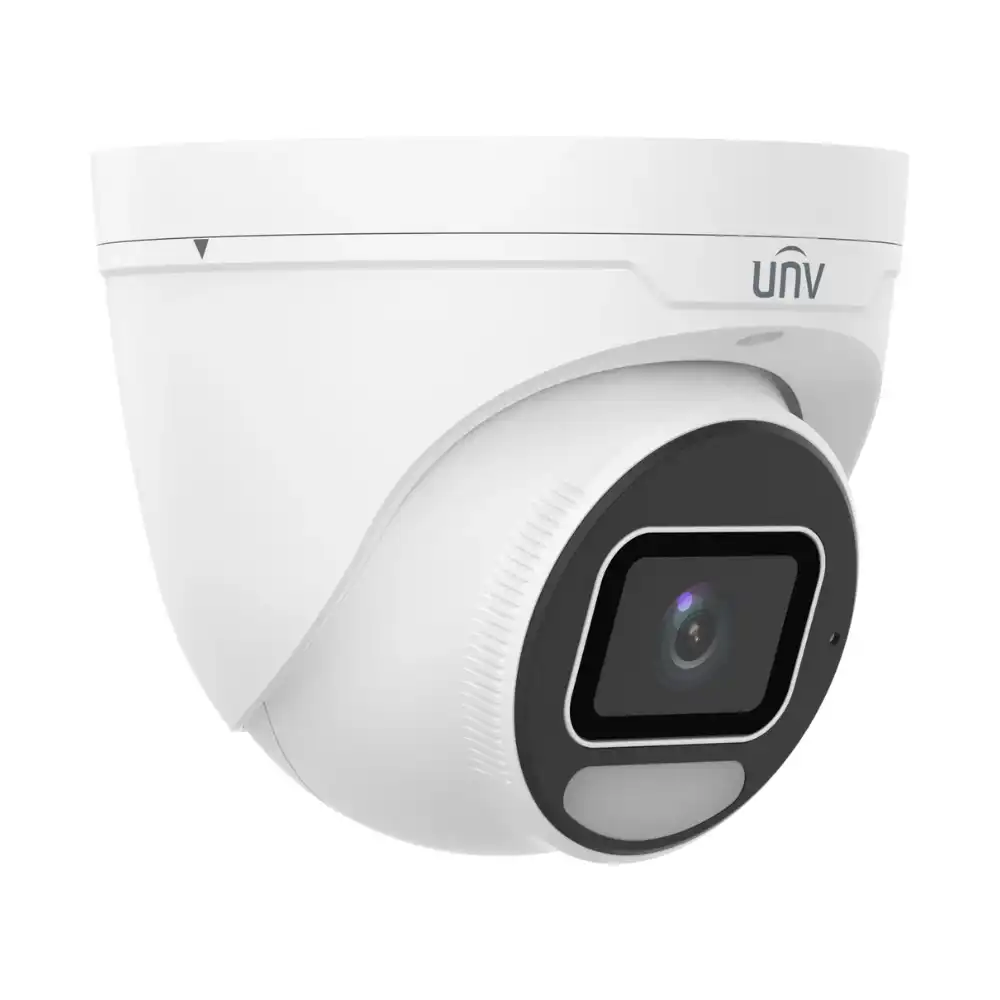

The Uniview UNV IPC3638SE-ADF28K-WP-I1 is an 8MP OwlView Plus (4K) turret IP camera built for true full-colour surveillance in ultra-low light. It combines a large 1/1.2” CMOS sensor with ColorHunter + Wise-ISPprocessing and a fixed F1.0 2.8mm lens for bright, detailed images day or night. With 130 dB true WDR, warm white light up to 30m, intelligent perimeter protection (human/vehicle filtering), people flow counting, plus IK10/IP67/NEMA 4X protection, it’s ideal for retail, offices, warehouses, car parks, and perimeter coverage.
Key Features
-
8MP (3840×2160) recording plus multiple sub-stream options
-
ColorHunter + Wise-ISP for 24-hour full-colour images
-
130 dB true WDR for harsh backlight scenes
-
2.8mm fixed lens, F1.0, wide viewing angle
-
Warm light up to 30m (white light)
- Intelligent perimeter protection: line crossing, intrusion, enter/leave area + false alarm filtering(human/vehicle/non-motor vehicle)
-
People flow counting + crowd density monitoring
-
Audio I/O 1/1, Alarm I/O 1/1, built-in mic
-
microSD up to 512GB, plus ANR/NAS support
-
IK10, IP67, NEMA 4X durability
Specifications
| Brand / Model (SKU) |
Uniview UNV / IPC3638SE-ADF28K-WP-I1 |
| Series |
OwlView Plus Eyeball (Turret) Network Camera |
| Max Resolution |
8MP (3840 × 2160) |
| Image Sensor |
1/1.2" CMOS |
| Min. Illumination |
Color: 0.0003 Lux (F1.0, AGC ON) |
| WDR |
130 dB true WDR |
| Lens |
2.8mm fixed, F1.0 (fixed iris) |
| Field of View |
H: 105.0° / V: 56.1° / D: 121.0° |
| Supplemental Light |
Warm white light, up to 30m |
| Compression |
Ultra 265 / H.265 / H.264 / MJPEG |
| Video Streams |
Triple streams |
| Smart Analytics |
Smart intrusion prevention (human/vehicle/non-motor vehicle classification), people flow counting, crowd density |
| Audio |
Built-in mic; Audio I/O 1/1; Two-way audio supported |
| Alarm I/O |
1/1 |
| Edge Storage |
microSD up to 512GB |
| Network |
1 × RJ45 10/100M Base-TX; ONVIF (S/G/T/M) |
| Protection Ratings |
IP67, IK10, NEMA 4X |
| Mount Adjustment |
Pan 0°–360° / Tilt 0°–75° / Rotate 0°–360° |
Recommended Use Cases
-
Retail & Hospitality – 24/7 full-colour evidence, excellent face and clothing detail under low light.
-
Car Parks & Perimeters – Wide 2.8mm view with warm white light (30m) for colour identification at night.
-
Offices & Warehouses – 130 dB WDR handles backlight; IK10/IP67/NEMA 4X suits harsh environments.
-
Schools & Public Spaces – People flow counting and crowd density analytics for safety and operations.
-
Residential (Premium) – Bright F1.0 lens with quiet illumination (white light) for clear night footage.
Pair With: Uniview UNV AI NVRs (Prime IQ series) to unlock advanced analytics, Smart Search, and efficient Ultra 265 storage.
More Information
IPC3638SE-ADF28K-WP-I1 Datasheet
UNV PoE Camera Quick Start Guide
UNV Network Camera User Manual
