Uniview UNV CCTV Kit: 2 × 6MP IR Cameras + 4‑Channel AI NVR (Expandable to 8 TB)

Description

Uniview UNV CCTV Kit: 2 × 6MP IR Cameras + 4‑Channel AI NVR (Expandable to 8 TB)

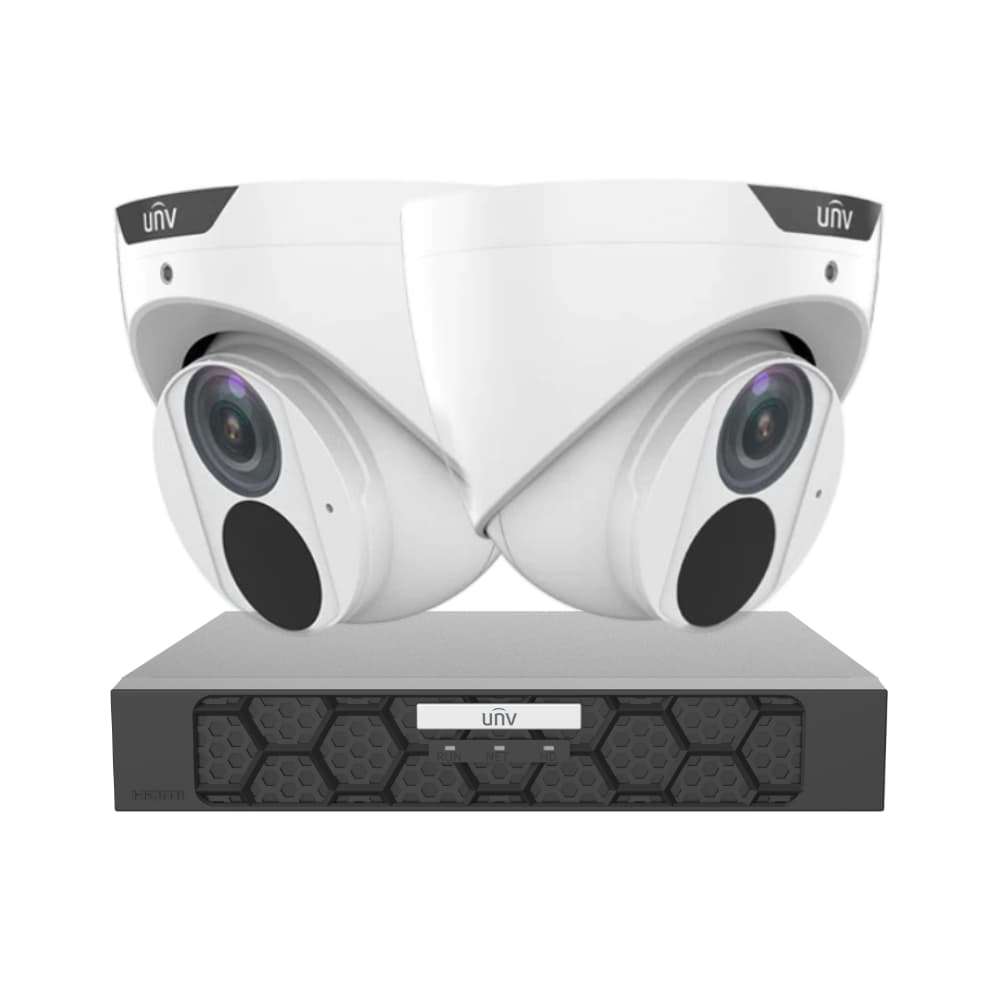

This Uniview UNV CCTV system delivers complete surveillance coverage with two high-definition 6MP IR turret cameras (IPC3616LE‑ADF28KM‑G) paired with a 4‑channel AI-enabled NVR (NVR501‑04B‑P4‑IQ). The kit supports expandable storage up to 8 TB, making it ideal for small homes or businesses seeking reliable, feature-rich security.

This UNV Security System includes:

Features

Uniview UNV IPC3616LE-ADF28KM-G 6MP Turret IP Camera

  • 6MP, 1/2.7″ CMOS sensor with 3072×2048 @25fps resolution
  • Easystar low-light performance for vivid color in poor lighting
  • 120 dB true WDR & Corridor Mode for complex lighting
  • Smart IR LEDs with 30 m range for balanced night vision
  • IP67 weatherproof housing & 3-axis mounting design
  • PoE (802.3af) and DC 12 V power options
  • Built-in microphone for audio capture
  • Supports Ultra 265, H.265, H.264, MJPEG video compression
  • Local storage via micro-SD (up to 256 GB) and NAS support
  • ONVIF S/G/T compatibility
  • Intelligent detection: motion, intrusion, line-crossing, tamper, audio
  • Operating temp: –30°C to +60°C; surge protection 4 kV

Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder, ONVIF Support

  • Channels: 4 IP video inputs
  • PoE Ports: 4 × PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
  • Video Compression: Ultra 265, H.265, H.264
  • Max Recording Resolution: Up to 16 MP
  • Video Output: 1 × HDMI (up to 4K) and 1 × VGA – simultaneous display
  • Storage: 1 × SATA HDD bay, supports up to 8 TB (some models up to 16 TB)
  • Smart Functions: Face detection, SIP, UMD, people counting (via NVR)
  • Compatibility: ONVIF Profiles S/G/T, RTSP
  • ANR Support: Yes – prevents recording loss during network outages
  • USB Ports: 1 × USB2.0 (front), 1 × USB3.0 (rear)
  • Power Consumption: ≤ 8 W (without HDD)
  • Operating Temperature: –10 °C to 50 °C
  • Certifications: CE, FCC, UL, RoHS, WEEE

Highlights

  • All-in-One Plug-and-Play Kit: Instant setup with two turret cameras and an AI-ready 4-channel NVR.
  • Expandable Recording: Add a hard drive up to 8 TB for weeks of continuous footage.
  • Exceptional Night Vision: Smart IR and Easystar tech ensure clear images 24/7.
  • Smart Analytics Built-In: Utilize intelligent detection right from the NVR without special cameras.
  • Seamless Integration: ONVIF and RTSP support ensure compatibility across CCTV systems.
  • Resilient Performance: Weatherproof hardware and ANR functionality for uninterrupted operation, even during outages.
  • Customer Requirements: Storage HDD must be purchased separately, along with RJ45 Cat6 network cables for camera/NVR connections. If installing on walls, wall mount brackets are required (no brackets needed for eaves mounting).

Technical Specification

Specification Details
Product Name Uniview UNV CCTV Kit: 2 × 6MP IR Cameras + 4-Channel AI NVR
Cameras 2 × IPC3616LE-ADF28KM-G (6MP, Easystar, Smart IR, IP67, PoE, built-in mic)
NVR NVR501-04B-P4-IQ – 4-channel AI NVR, PoE, Ultra 265, 4K HDMI, ANR
Expandable Storage Up to 8 TB (via SATA HDD)
Smart Analytics Face detection, people counting, UMD, SIP
Video Output HDMI (up to 4K) + VGA, simultaneous
Compression Ultra 265, H.265, H.264
Network Compatibility ONVIF S/G/T, RTSP
Operating Temp Cameras: –30 °C to +60 °C; NVR: –10 °C to 50 °C
Certifications Cameras: IP67; NVR: CE, FCC, UL, RoHS, WEEE
Warranty 36 months (Australian stock, express delivery)

Uniview UNV CCTV Kit: 2 × 6MP IR Cameras + 4‑Channel AI NVR (Expandable to 8 TB)

Product form

SKU: GR-UNV-26C4R

Uniview UNV CCTV Kit: 2 × 6MP IR Cameras + 4‑Channel AI NVR (Expandable to 8 TB) This Uniview UNV CCTV... Read more

$464.00  $419.00 Incl. GST
