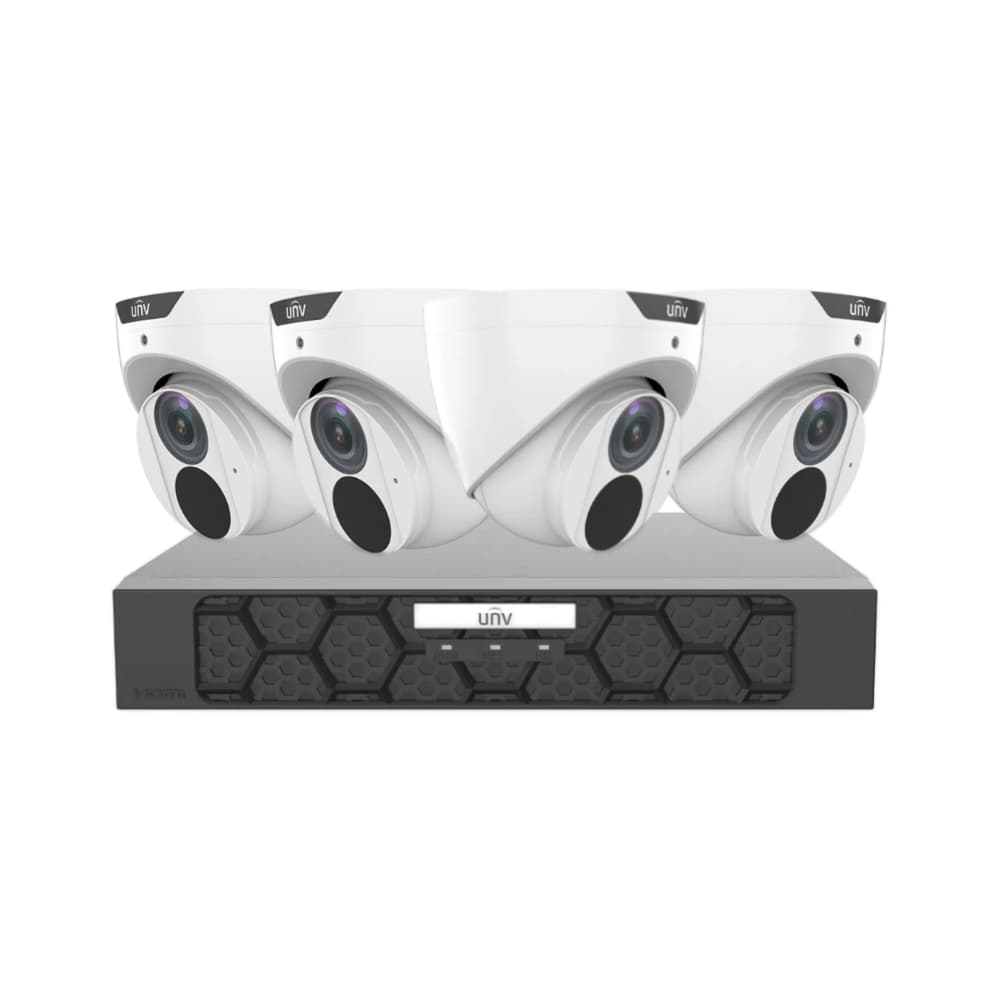

Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8‑Channel AI NVR (Expandable to 8 TB)

Description

Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8‑Channel AI NVR (Expandable to 8 TB)

The Uniview UNV CCTV Kit combines four 6MP IR turret cameras with a 4-channel AI-enabled NVR, providing sharp 3072×2048 resolution at 25fps for detailed surveillance. Advanced features like Easystar low-light technology and 120 dB true WDR ensure clear images in challenging lighting and environments. Corridor Mode enhances monitoring of narrow spaces, while smart IR LEDs deliver effective night vision. With expandable storage up to 8 TB, this system is well-suited for small homes and businesses seeking dependable, scalable security solutions.

This UNV Security System includes:

Features

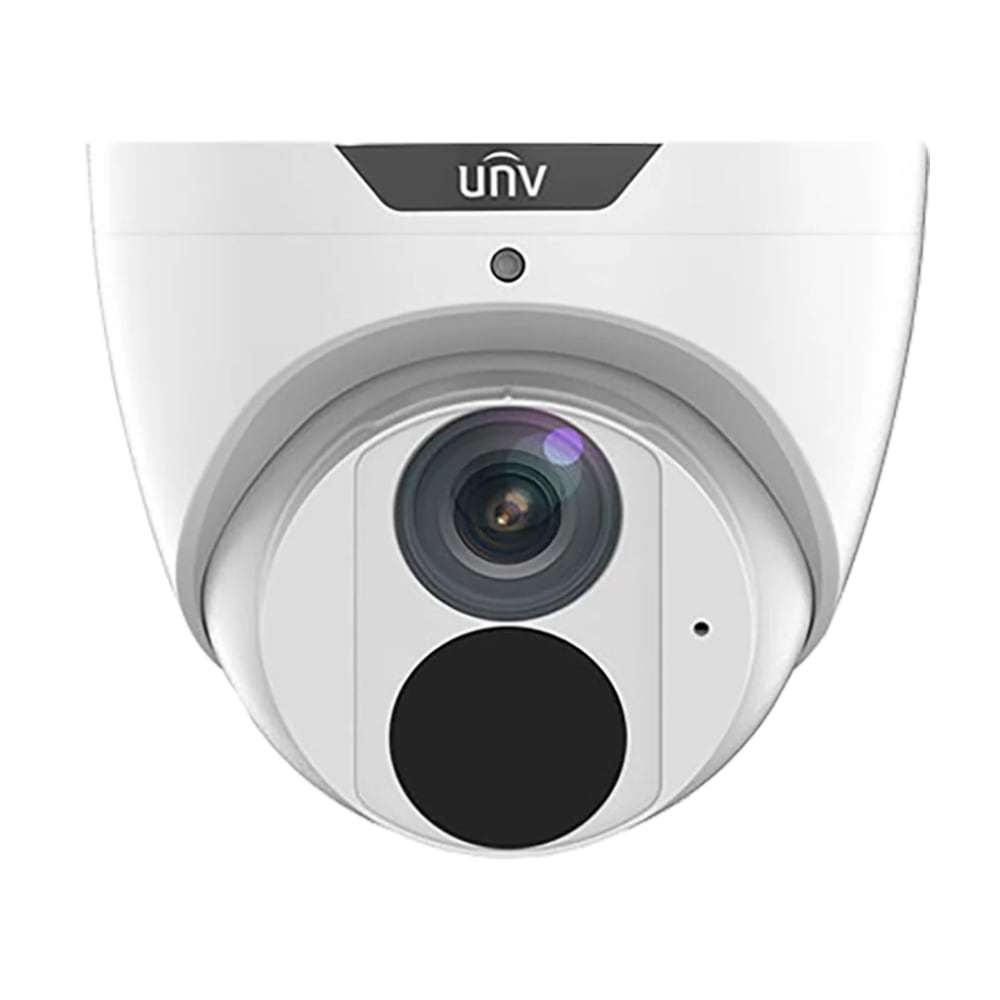

Uniview UNV IPC3616LE-ADF28KM-G 6MP Turret IP Camera

  • 6MP, 1/2.7″ CMOS sensor with 3072×2048 @25fps resolution
  • Easystar low-light performance for vivid color in poor lighting
  • 120 dB true WDR & Corridor Mode for complex lighting
  • Smart IR LEDs with 30 m range for balanced night vision
  • IP67 weatherproof housing & 3-axis mounting design
  • PoE (802.3af) and DC 12 V power options
  • Built-in microphone for audio capture
  • Supports Ultra 265, H.265, H.264, MJPEG video compression
  • Local storage via micro-SD (up to 256 GB) and NAS support
  • ONVIF S/G/T compatibility
  • Intelligent detection: motion, intrusion, line-crossing, tamper, audio
  • Operating temp: –30°C to +60°C; surge protection 4 kV

Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder, ONVIF Support

  • Channels: 4 IP video inputs
  • PoE Ports: 4 × PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
  • Video Compression: Ultra 265, H.265, H.264
  • Max Recording Resolution: Up to 16 MP
  • Video Output: 1 × HDMI (up to 4K) and 1 × VGA – simultaneous display
  • Storage: 1 × SATA HDD bay, supports up to 8 TB (some models up to 16 TB)
  • Smart Functions: Face detection, SIP, UMD, people counting (via NVR)
  • Compatibility: ONVIF Profiles S/G/T, RTSP
  • ANR Support: Yes – prevents recording loss during network outages
  • USB Ports: 1 × USB2.0 (front), 1 × USB3.0 (rear)
  • Power Consumption: ≤ 8 W (without HDD)
  • Operating Temperature: –10 °C to 50 °C
  • Certifications: CE, FCC, UL, RoHS, WEEE

Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder

  • 8 IP channels with 8× PoE (30 W/port; 75 W total)
  • 1× HDMI (up to 4K) + 1× VGA, simultaneous output
  • Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
  • NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
  • 1× SATA HDD bay (up to 16 TB); ANR for network outages
  • Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP

Highlights

  • All-in-One Plug-and-Play Kit: Instant setup with two turret cameras and an AI-ready 4 or 8-channel NVR.
  • Expandable Recording: Add a hard drive up to 8 TB for weeks of continuous footage.
  • Exceptional Night Vision: Smart IR and Easystar tech ensure clear images 24/7.
  • Smart Analytics Built-In: Utilize intelligent detection right from the NVR without special cameras.
  • Seamless Integration: ONVIF and RTSP support ensure compatibility across CCTV systems.
  • Resilient Performance: Weatherproof hardware and ANR functionality for uninterrupted operation, even during outages.
  • Customer Requirements: Storage HDD must be purchased separately, along with RJ45 Cat6 network cables for camera/NVR connections. If installing on walls, wall mount brackets are required (no brackets needed for eaves mounting).

Technical Specification

Specification Details
Product Name Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8-Channel AI NVR
Cameras 4 × IPC3616LE-ADF28KM-G (6MP, Easystar, Smart IR, IP67, PoE, built-in mic)
NVR

1 x NVR501-04B-P4-IQ or NVR501-08B-P8-IQ 4 or 8 Channel AI NVR, PoE, Ultra 265, 4K HDMI, ANR
Expandable Storage Up to 8 TB (via SATA HDD)
Smart Analytics Face detection, people counting, UMD, SIP
Video Output HDMI (up to 4K) + VGA, simultaneous
Compression Ultra 265, H.265, H.264
Network Compatibility ONVIF S/G/T, RTSP
Operating Temp Cameras: –30 °C to +60 °C; NVR: –10 °C to 50 °C
Certifications Cameras: IP67; NVR: CE, FCC, UL, RoHS, WEEE
Warranty 36 months (Australian stock, express delivery)

Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8‑Channel AI NVR (Expandable to 8 TB)

Product form

SKU: GR-UNV-46C4R

Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8‑Channel AI NVR (Expandable to 8 TB) The Uniview... Read more

$702.00  $689.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay
    • Klarna
    • Shop Pay

    » Find this item cheaper? We will beat it by 5%. Chat now!

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day money back guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support

    Description

    Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8‑Channel AI NVR (Expandable to 8 TB)

    The Uniview UNV CCTV Kit combines four 6MP IR turret cameras with a 4-channel AI-enabled NVR, providing sharp 3072×2048 resolution at 25fps for detailed surveillance. Advanced features like Easystar low-light technology and 120 dB true WDR ensure clear images in challenging lighting and environments. Corridor Mode enhances monitoring of narrow spaces, while smart IR LEDs deliver effective night vision. With expandable storage up to 8 TB, this system is well-suited for small homes and businesses seeking dependable, scalable security solutions.

    This UNV Security System includes:

    Features

    Uniview UNV IPC3616LE-ADF28KM-G 6MP Turret IP Camera

    • 6MP, 1/2.7″ CMOS sensor with 3072×2048 @25fps resolution
    • Easystar low-light performance for vivid color in poor lighting
    • 120 dB true WDR & Corridor Mode for complex lighting
    • Smart IR LEDs with 30 m range for balanced night vision
    • IP67 weatherproof housing & 3-axis mounting design
    • PoE (802.3af) and DC 12 V power options
    • Built-in microphone for audio capture
    • Supports Ultra 265, H.265, H.264, MJPEG video compression
    • Local storage via micro-SD (up to 256 GB) and NAS support
    • ONVIF S/G/T compatibility
    • Intelligent detection: motion, intrusion, line-crossing, tamper, audio
    • Operating temp: –30°C to +60°C; surge protection 4 kV

    Uniview UNV NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder, ONVIF Support

    • Channels: 4 IP video inputs
    • PoE Ports: 4 × PoE (IEEE 802.3at/af), up to 30 W per port, 50 W total
    • Video Compression: Ultra 265, H.265, H.264
    • Max Recording Resolution: Up to 16 MP
    • Video Output: 1 × HDMI (up to 4K) and 1 × VGA – simultaneous display
    • Storage: 1 × SATA HDD bay, supports up to 8 TB (some models up to 16 TB)
    • Smart Functions: Face detection, SIP, UMD, people counting (via NVR)
    • Compatibility: ONVIF Profiles S/G/T, RTSP
    • ANR Support: Yes – prevents recording loss during network outages
    • USB Ports: 1 × USB2.0 (front), 1 × USB3.0 (rear)
    • Power Consumption: ≤ 8 W (without HDD)
    • Operating Temperature: –10 °C to 50 °C
    • Certifications: CE, FCC, UL, RoHS, WEEE

    Uniview UNV NVR501-08B-P8-IQ 8-Channel PoE AI Network Video Recorder

    • 8 IP channels with 8× PoE (30 W/port; 75 W total)
    • 1× HDMI (up to 4K) + 1× VGA, simultaneous output
    • Recording up to 16 MP; Ultra 265 / H.265 / H.264 decoding
    • NVR-level analytics & rich search (face/vehicle/person, SIP/UMD)
    • 1× SATA HDD bay (up to 16 TB); ANR for network outages
    • Compact 1U chassis; low power; ONVIF Profiles S/G/T; RTSP

    Highlights

    • All-in-One Plug-and-Play Kit: Instant setup with two turret cameras and an AI-ready 4 or 8-channel NVR.
    • Expandable Recording: Add a hard drive up to 8 TB for weeks of continuous footage.
    • Exceptional Night Vision: Smart IR and Easystar tech ensure clear images 24/7.
    • Smart Analytics Built-In: Utilize intelligent detection right from the NVR without special cameras.
    • Seamless Integration: ONVIF and RTSP support ensure compatibility across CCTV systems.
    • Resilient Performance: Weatherproof hardware and ANR functionality for uninterrupted operation, even during outages.
    • Customer Requirements: Storage HDD must be purchased separately, along with RJ45 Cat6 network cables for camera/NVR connections. If installing on walls, wall mount brackets are required (no brackets needed for eaves mounting).

    Technical Specification

    Specification Details
    Product Name Uniview UNV CCTV Kit: 4 × 6MP IR Cameras + 4 or 8-Channel AI NVR
    Cameras 4 × IPC3616LE-ADF28KM-G (6MP, Easystar, Smart IR, IP67, PoE, built-in mic)
    NVR

    1 x NVR501-04B-P4-IQ or NVR501-08B-P8-IQ 4 or 8 Channel AI NVR, PoE, Ultra 265, 4K HDMI, ANR
    Expandable Storage Up to 8 TB (via SATA HDD)
    Smart Analytics Face detection, people counting, UMD, SIP
    Video Output HDMI (up to 4K) + VGA, simultaneous
    Compression Ultra 265, H.265, H.264
    Network Compatibility ONVIF S/G/T, RTSP
    Operating Temp Cameras: –30 °C to +60 °C; NVR: –10 °C to 50 °C
    Certifications Cameras: IP67; NVR: CE, FCC, UL, RoHS, WEEE
    Warranty 36 months (Australian stock, express delivery)
