Description

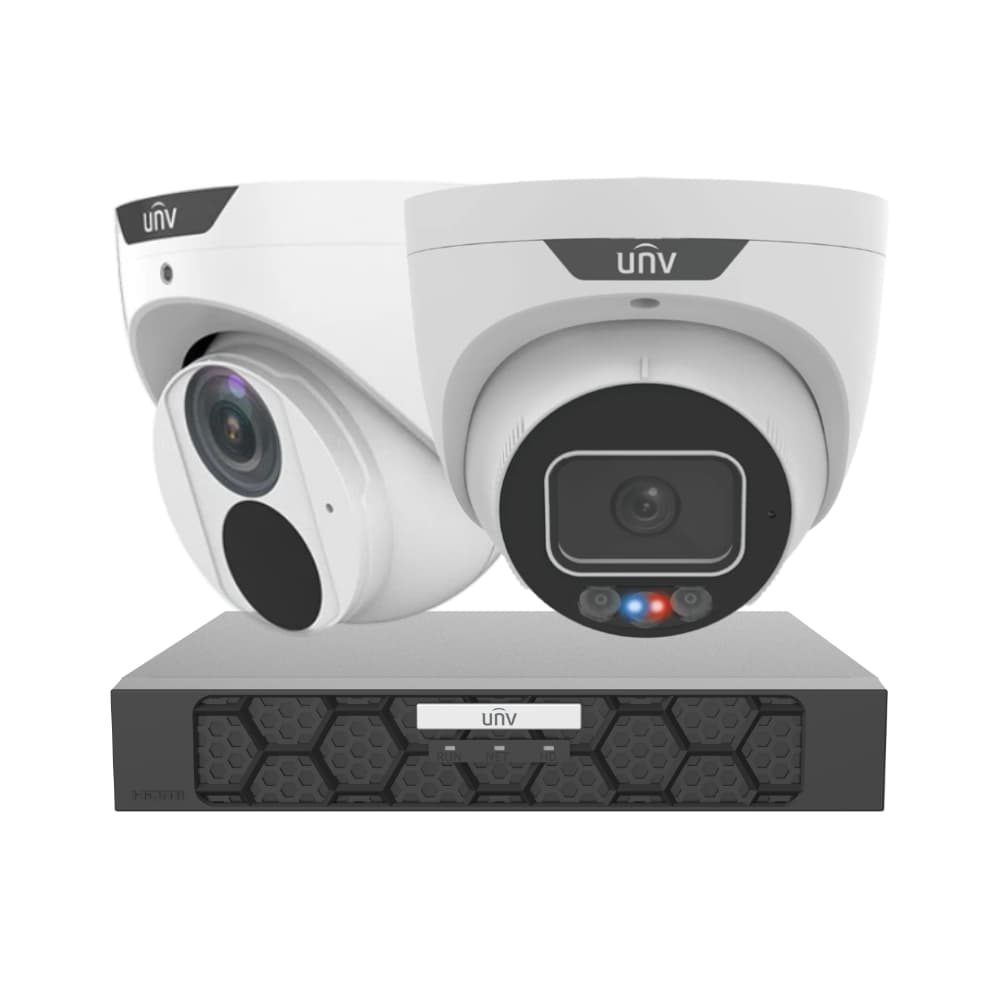

Uniview UNV CCTV Kit – 6MP ColorHunter & IR Camera + 4-Channel AI NVR
Build a smarter security system with this mixed Uniview UNV kit. You get one 6MP ColorHunter turret for vivid, full-colour night imaging, one 6MP IR fixed dome for crisp day/night coverage, and a 4-channel AI NVR for intelligent recording, remote access and easy search. PoE simplifies wiring and installation for homes, offices, and retail sites.
Highlights
-
Full-colour at night (ColorHunter) + IR night vision (dome) = best of both worlds
-
AI analytics on the NVR for smarter alerts and faster playback
-
PoE plug-and-play — one cable per camera for power and data
-
Weather-ready cameras with robust housings for dependable outdoor use
Technical Specifications
Camera 1: IPC3636SS-ADF28KMC-I1 (6MP ColorHunter Turret)
| Specification |
Details |
| SKU / Model |
IPC3636SS-ADF28KMC-I1 |
| Resolution |
6 MP (approx. 3072×2048) |
| Night Performance |
ColorHunter full-colour imaging in low light |
| Lens |
2.8 mm fixed (wide view) |
| WDR / Image |
True WDR, 3D DNR, BLC/HLC |
| Compression |
Ultra 265 / H.265 / H.264 |
| Audio |
Built-in microphone |
| Storage |
Micro-SD (model dependent) |
| Power / Network |
PoE (IEEE 802.3af), RJ45 |
| Ingress Protection |
Outdoor-ready housing |
| Form Factor |
Turret, 3-axis adjustment |
Camera 2: IPC3616LE-ADF28KM-G (6MP IR Fixed Dome)
| Specification |
Details |
| SKU / Model |
IPC3616LE-ADF28KM-G |
| Resolution |
6 MP (approx. 3072×2048) |
| Night Vision |
Smart IR night vision (typ. up to 30 m) |
| Lens |
2.8 mm fixed |
| WDR / Image |
True WDR, 3D DNR |
| Compression |
Ultra 265 / H.265 / H.264 |
| Audio |
Built-in microphone (series dependent) |
| Power / Network |
PoE (IEEE 802.3af), RJ45 |
| Ingress Protection |
IP67 weatherproof |
| Form Factor |
Fixed dome |
NVR: NVR501-04B-P4-IQ (4-Channel AI NVR with PoE)
| Specification |
Details |
| SKU / Model |
NVR501-04B-P4-IQ |
| Channels / PoE |
4 channels; 4× PoE ports |
| Video Outputs |
HDMI up to 4K + VGA (simultaneous) |
| Recording / Decoding |
Up to high-res input; Ultra 265/H.265/H.264 |
| AI / Smart |
Face / human / vehicle search, SIP, SmartSearch (series dependent) |
| Storage |
1× SATA bay, up to 16 TB (HDD sold separately) |
| Continuity |
ANR support with camera SD (where available) |
| Networking |
ONVIF S/G/T, RTSP; remote & mobile apps |
| Chassis |
Compact 1U |
What’s Included
Customer Requirements
- Surveillance-grade HDD for the NVR (e.g., 2–6 TB depending on retention)
- RJ45 Cat6 cables for each camera run
- Wall/junction brackets if wall-installing (eaves installs typically don’t require brackets)
