Prime Series | Active Deterrence | Tri-Guard

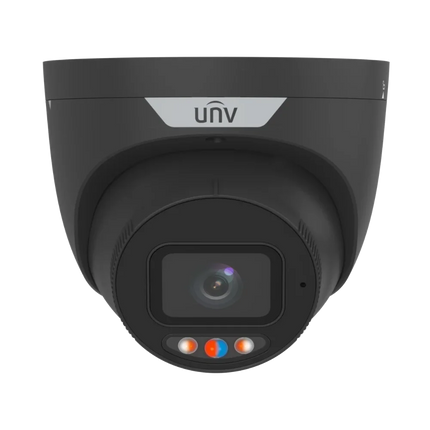

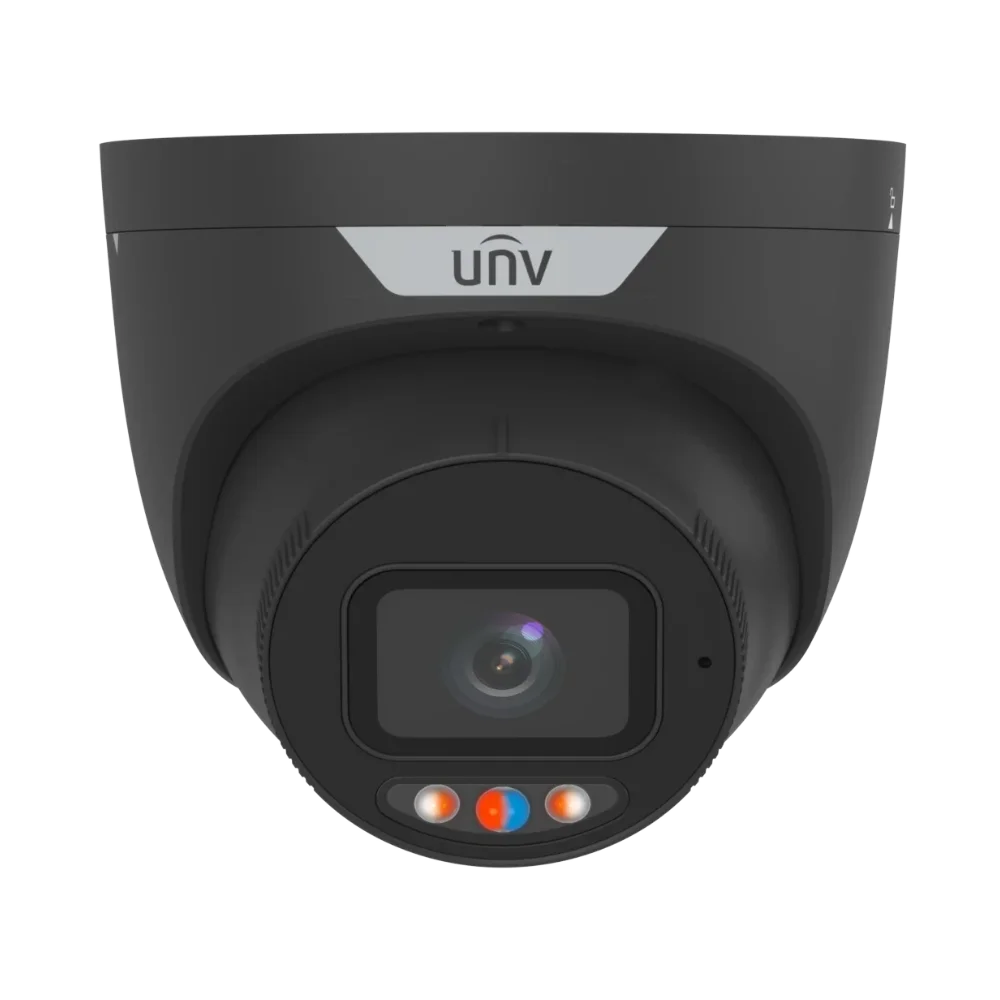

UNV 6MP Intelligent Light and Audible Warning Fixed Eyeball Camera
The UNV IPC3636SS-ADF is a professional-grade 6MP security powerhouse designed for proactive protection. Featuring Tri-Guard technology, it combines 24/7 ColorHunter imaging, Smart Intrusion Prevention (SIP), and active deterrence strobe lights to stop intruders before they enter. Fully NDAA Compliant, it is the ideal choice for high-security Australian residential and commercial applications.
Pro-Active Security Features
Deep Learning AI (SIP) Significantly reduce false alarms. The camera uses Smart Intrusion Prevention to accurately classify humans and vehicles while ignoring animals and leaves.
Active Strobe Deterrence When a perimeter is breached, the camera triggers Red and Blue warning lights and a built-in speaker to warn off trespassers instantly.
130dB True WDR Perfect for high-glare environments. True Wide Dynamic Range ensures clear footage in both bright Australian sunlight and deep shadows.
DORI Distance Guide
Identify targets with precision. The DORI distances below help you choose between the wide 2.8mm or the longer-range 4.0mm lens.
| Performance Detail |
2.8mm Lens (109°) |
4.0mm Lens (97°) |
|
Detect (Identify Movement) |
63.0m |
90.0m |
|
Observe (Clothing/Type) |
25.2m |
36.0m |
|
Recognize (Known Face) |
12.6m |
18.0m |
|
Identify (Proof/Evidence) |
6.3m |
9.0m |
Full Technical Specifications
| Sensor & Resolution |
1/2.7" 6MP CMOS (2880 x 1620) @ 30fps [cite: 75, 76] |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG [cite: 77] |
| Wide Dynamic Range |
130dB True WDR [cite: 83, 91] |
| Minimum Illumination |
0.001 Lux (F1.0, AGC ON) | 0 Lux with Light [cite: 91] |
| Intelligent SIP |
Cross Line, Intrusion, Enter Area, Leave Area Detection [cite: 78, 94] |
| Audio Features |
Two-way Audio (Built-in Mic & Speaker) [cite: 86, 94] |
| Local Storage |
Micro SD Slot, up to 256 GB [cite: 88, 99] |
| Weather Protection |
IP67 Rated Full-Metal Housing [cite: 73, 89, 101] |
| Working Temperature |
-30°C to 60°C (-22°F to 140°F) [cite: 101] |
| Power Options |
DC 12V±25% or PoE (IEEE 802.3af) [cite: 99] |
FAQs
What is Corridor Mode? The 9:16 Corridor Mode allows you to flip the image vertically, maximizing coverage for narrow hallways, fences, or side-passages.
How does Active Deterrence work? Upon detecting a human in a restricted zone, the camera flashes red/blue lights and plays a warning sound through the built-in speaker.
Imaging & Video Supports 6MP (2880 x 1620) @ 30fps. Powered by
Ultra 265 compression to save up to 75% on bandwidth and
UNV NVR storage.
Durability & Build Rated IP67 Weatherproof with a rugged full-metal housing. Operates in extreme temperatures from -30°C to 60°C.
Audio Capabilities Built-in Microphone and high-power Speaker for two-way talk via the EZView mobile app.
Storage Options Supports edge storage via MicroSD card (up to 256GB) and is fully compatible with
Uniview CCTV Kits.
