HIKVISION AX PRO SERIES
Effortless Wireless Arming and Disarming for AX PRO Alarm Systems

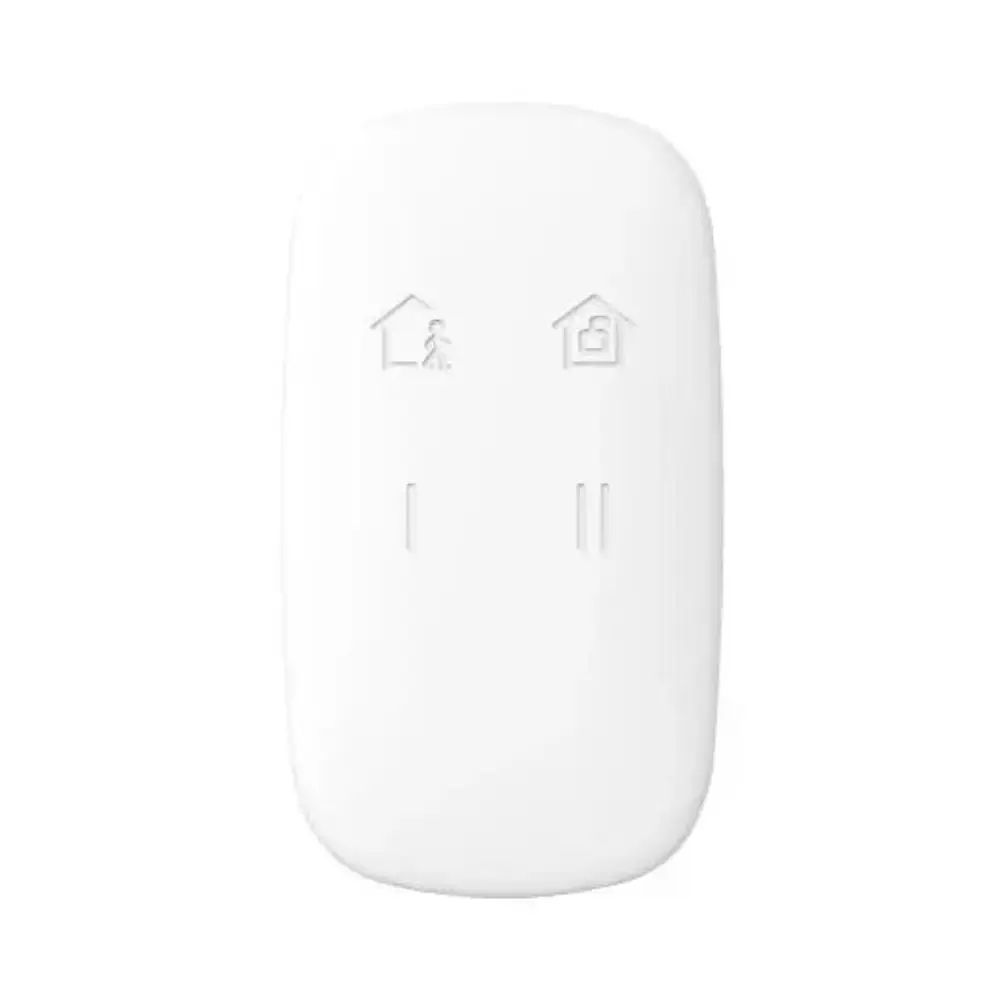

The DS-PKF1-WB is an ultra-compact, high-reliability wireless keyfob engineered for seamless integration with the Hikvision AX PRO intrusion alarm platform. Designed for commercial premises, residential spaces, and multi-tenant security operations, this keyfob gives users instantaneous one-touch control over system arming, stay-arming, disarming, and emergency panic alerts. Featuring robust 2GFSK modulation and advanced frequency hopping technology, the DS-PKF1-WB guarantees secure, anti-jamming RF communication across distances up to 500 meters in open spaces.
RF Transmission
433 MHz / 500m Range
Control Keys
4 Programmable Buttons
Security Technology
2GFSK Anti-Jamming
Power Supply
CR2032 (Up to 3-Yr Life)
Advanced Encryption and Smart App Integration
Built to complement the modern smart security ecosystem, the DS-PKF1-WB Wireless Keyfob is fully configurable via the Hik-Connect mobile application. Installers and administrators can bind keyfob buttons, execute QR-code pairing, and monitor battery voltage status remotely. The keyfob includes a built-in keyfob lock and unlock prevention mechanism to eliminate accidental pocket presses, while a multi-color LED indicator provides instant visual confirmation of command transmission and acknowledgment from the central panel.
Anti-Jamming Frequency Hopping
Utilizes 2GFSK modulation on the 433 MHz frequency spectrum with dynamic frequency hopping to resist intentional RF interference, ensuring uncompromised transmission delivery in demanding wireless environments.
Ergonomic & Portable Design

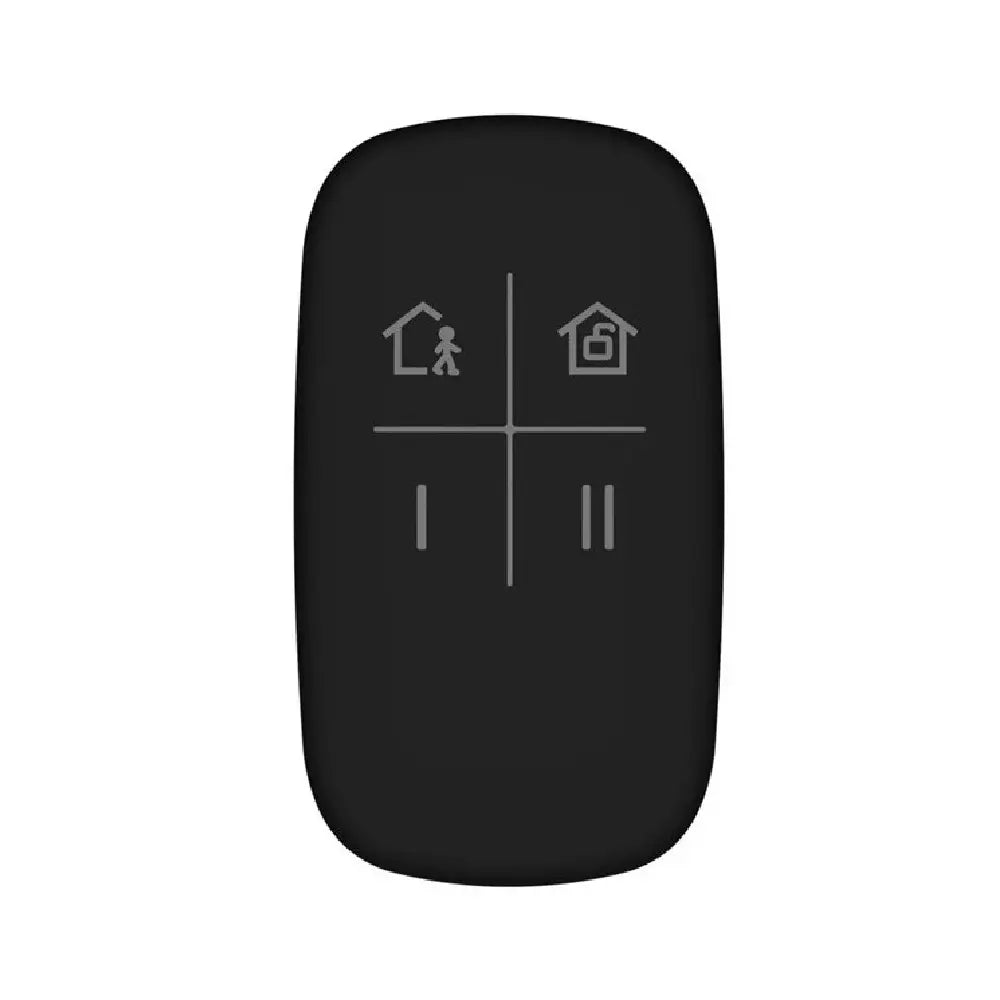

Weighing only 16 grams and housed in a durable plastic chassis with a protective rubber gasket, this lightweight remote control fits naturally on standard keyrings for swift access by staff or homeowners.
Technical Specification Matrix
| Model Number |
DS-PKF1-WB |
| RF Frequency |
433 MHz |
| RF Modulation |
2GFSK |
| RF Range |
500 m (Open Area) |
| Key Buttons |
4 Keys (Stay Arm, Away Arm, Disarm, Panic/Lock) |
| Status Indicator |
Three-Color LED |
| Battery Type |
1 x CR2032 3V Battery (Included) |
| Battery Lifespan |
Up to 3 Years (Standby) |
| Operating Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
| Dimensions (W x H x D) |
35.2 mm x 63.2 mm x 11.3 mm |
| Weight |
16 g (5.64 oz) |
How do I enroll the DS-PKF1-WB with my AX PRO control panel?
Enrollment is straightforward via the Hik-Connect App. Simply put the AX PRO hub into pairing mode, scan the QR code located on the keyfob housing or battery compartment, and press any button to confirm binding.
Can accidental button presses be prevented?
Yes. The DS-PKF1-WB features an integrated keyfob lock and unlock function that can be configured via app or key sequence to prevent unintended arming or alarm activation while in pockets or bags.
What is the typical battery lifespan and how is it replaced?
The keyfob runs on a single standard CR2032 3V lithium coin battery with an estimated standby lifespan of up to 3 years. The casing opens easily for toolless battery replacement with PCB protection.
Is this keyfob compatible with 868 MHz AX PRO panels?
No. The DS-PKF1-WB operates specifically on the 433 MHz frequency. Please check your AX PRO main control panel's operating frequency before purchasing to ensure system compatibility.
