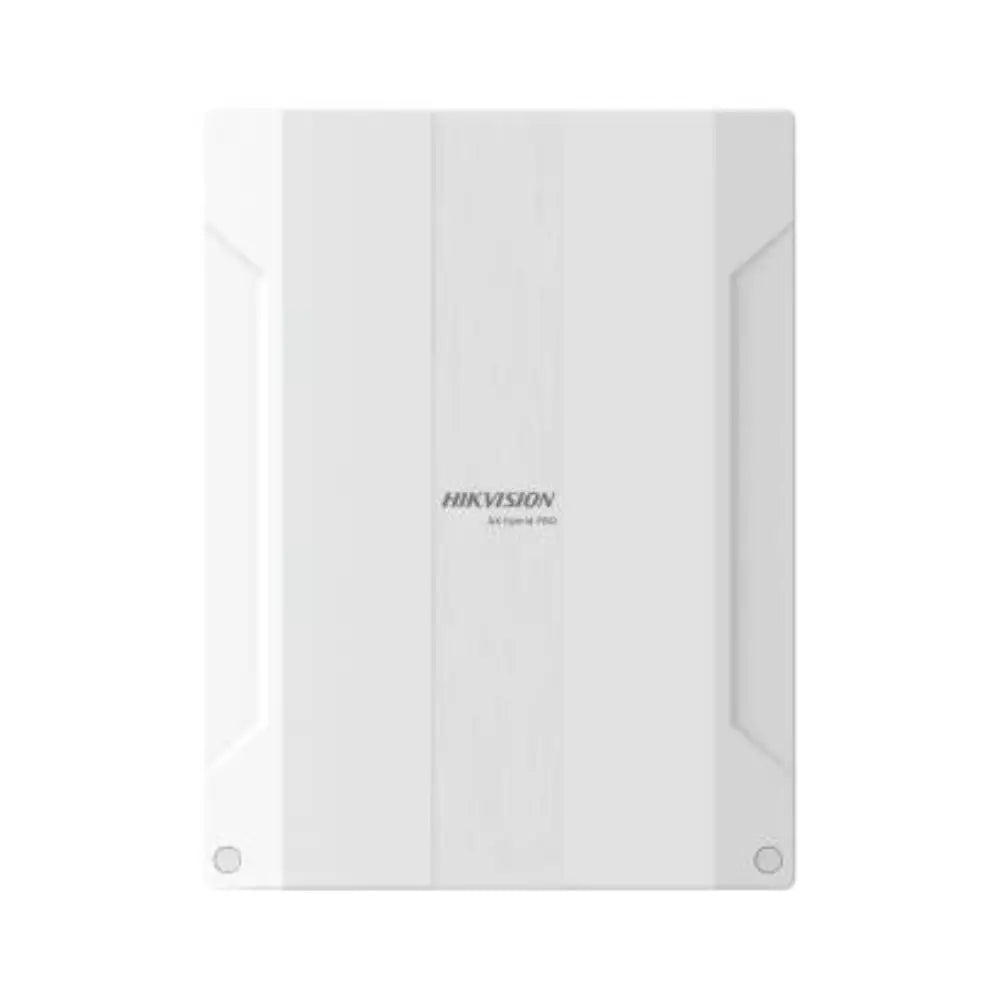

Hikvision AX Hybrid Pro
DS-PHA64-LP/NP 64-Zone Alarm Control Panel
The Hikvision DS-PHA64-LP/NP is a 64-zone AX Hybrid Pro intrusion control panel that supports both wired and wireless devices, making it a flexible heart for residential, commercial and industrial security systems. It is the first Hikvision panel to support the Speed-X bus, enabling image and video verification from PIR-CAM detectors directly through the alarm system.
Eight on-board wired zones expand to a full 64 zones across wired and wireless devices, while built-in LAN, Wi-Fi and optional GPRS/3G/4G deliver reliable dual-path alarm communication to Hik-Connect, Hik-ProConnect, Hik-Central and professional monitoring platforms.
64 Zones8 on-board, expandable wired and wireless
Speed-X BusPIR-CAM image and video verification
Dual-Path CommsLAN, Wi-Fi, PSTN and optional 3G/4G
IP Verification4-channel video with pre/post-alarm recording
Specifications
| Model |
DS-PHA64-LP/NP |
| System Type |
AX Hybrid Pro intrusion control panel |
| Total Zones |
64 (8 on-board + expandable wired/wireless) |
| Areas |
32 |
| Bus |
1 × Speed-X bus |
| IP Camera Verification |
4-channel, pre/post-alarm video clips |
| Communication |
LAN, Wi-Fi, PSTN, optional GPRS/3G/4G |
| Protocols |
ISAPI, Cloud P2P, ISUP 5.0, CSV-IP, DC-09 |
| Power |
12-15 VDC, 12V 1.5A output |
| Battery |
12V 7Ah lead-acid (not included), up to 36h backup |
| Dimensions |
261 × 199 × 86.4 mm |
How many zones does it support?Up to 64 zones — 8 wired on-board plus extensive wired and wireless expansion, across 32 areas.
What is the Speed-X bus?It is Hikvision's bus technology that enables image and video verification from PIR-CAM detectors directly through the panel.
How does it communicate?Via dual-path LAN, Wi-Fi, PSTN and optional GPRS/3G/4G to Hik-Connect, Hik-ProConnect, Hik-Central and monitoring platforms.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
The DS-PHA64-LP/NP is a future-proof hybrid control panel for serious Hikvision security installations, backed by a 3-Year Australian warranty and local support.
