Bosch IUI-SOL-TS7 — TouchOne 7" Touchscreen Codepad (White, Solution 2000/3000)

Description

7" HD Touchscreen · Multi-Touch · Solution 2000/3000 · Made in Germany7" Touch Codepad

IUI-SOL-TS7 7" Touchscreen Codepad — Australian Stock & 3-Year Warranty

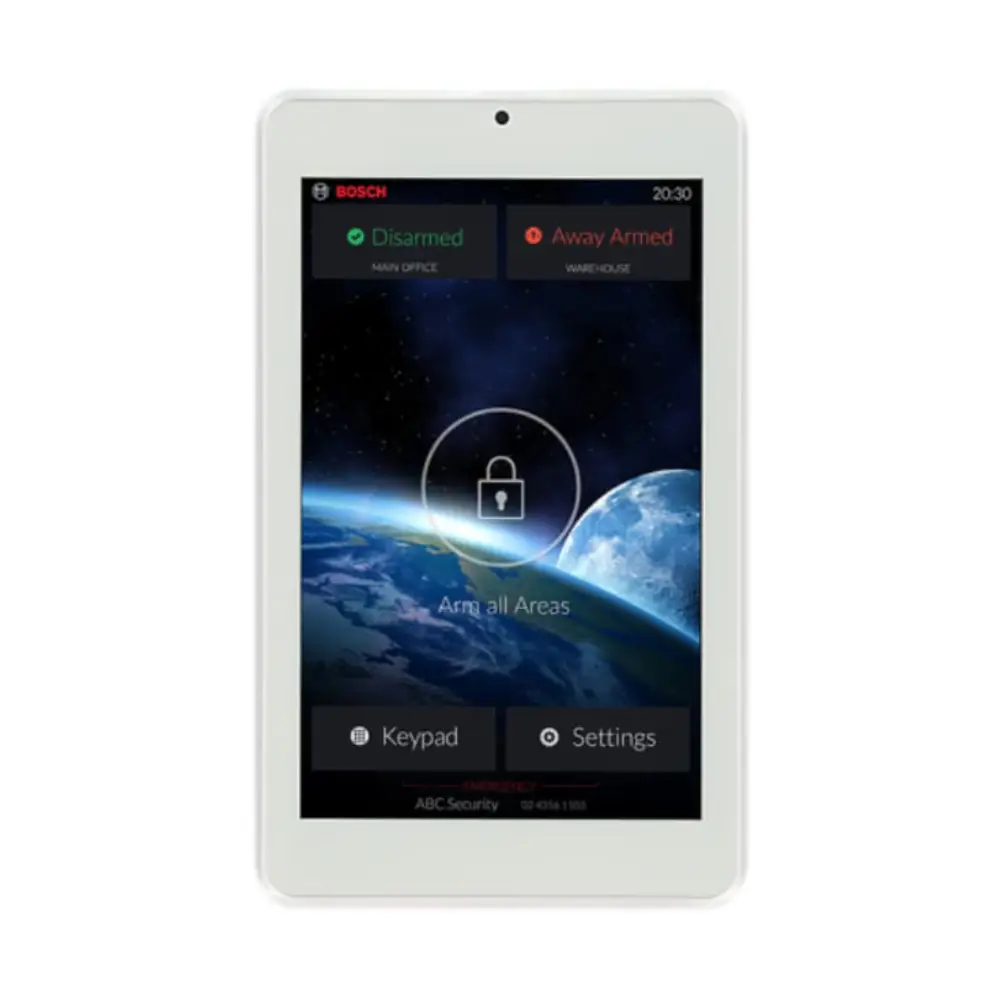

The Bosch IUI-SOL-TS7 (product no. F.01U.303.249) is the flagship user interface for the Bosch Solution 2000 and 3000 alarm panels. Its 7-inch HD WXGA display and 5-point capacitive multi-touch panel deliver a genuinely smartphone-like experience, with intuitive icons, menus and a built-in setup wizard for fast configuration. Each user can select their own language, and the adjustable LED backlight keeps the screen readable day or night. Requires panel firmware 1.0.3 or later. Backed by a 3-year Australian warranty.

Display
7" HD WXGA
Touch
5-Point Multi
Power
12 VDC SDI2
Warranty
3 Years AU

Large 7" HD Screen

A 1280 x 800 IPS display at 400 nits stays crisp and bright from any angle.

Multi-Touch Graphic UI

Intuitive icons and menus make arming, disarming and bypassing effortless.

Setup Wizard

Guided on-screen configuration speeds up installation and commissioning.

Per-User Language

Each user can select their preferred display language individually.

Technical Specifications
Model / SKU IUI-SOL-TS7 (F.01U.303.249)
Display 7" HD WXGA 1280 x 800, IPS, 400 nits
Touch Panel 5-point multi-touch capacitive, GF glass
Dimensions 192.69 x 115.69 x 13.83 mm
Operating Voltage 12 VDC (SDI2 bus)
Current Normal 400 mA / Peak 800 mA
SD Card MicroSD (SDHC) 2 GB to 32 GB
Compatibility ICP-SOL2 & ICP-SOL3, firmware 1.0.3+
Warranty 3 Years (Australia)

Downloads

IUI-SOL-TS7 DatasheetBosch TouchOne Quick Start GuideBosch TouchOne User Manual

Frequently Asked Questions

Which panels does the IUI-SOL-TS7 work with?
It works with the Bosch Solution 2000 (ICP-SOL2) and Solution 3000 (ICP-SOL3) panels running firmware version 1.0.3 or later.
What power does it need?
It runs on 12 VDC over the SDI2 bus, drawing around 400 mA normally and up to 800 mA peak.
Does it take an SD card?
Yes. It accepts a microSD (SDHC) card from 2 GB to 32 GB.
Can I set different languages?
Yes. The display language is individually selectable per user.
How do I mount it?
It surface-mounts to the wall via its plastic bracket using screws up to 6G pan-head, at 192.69 x 115.69 x 13.83 mm.
What is in the box?
The TouchOne 7" keypad and an installation manual.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support
