Solution 3000 · Hardwired · 8/16 Zone · With EnclosureSolution 3000 PanelBosch Solution 3000 Alarm Panel — Australian Stock & 3-Year Warranty

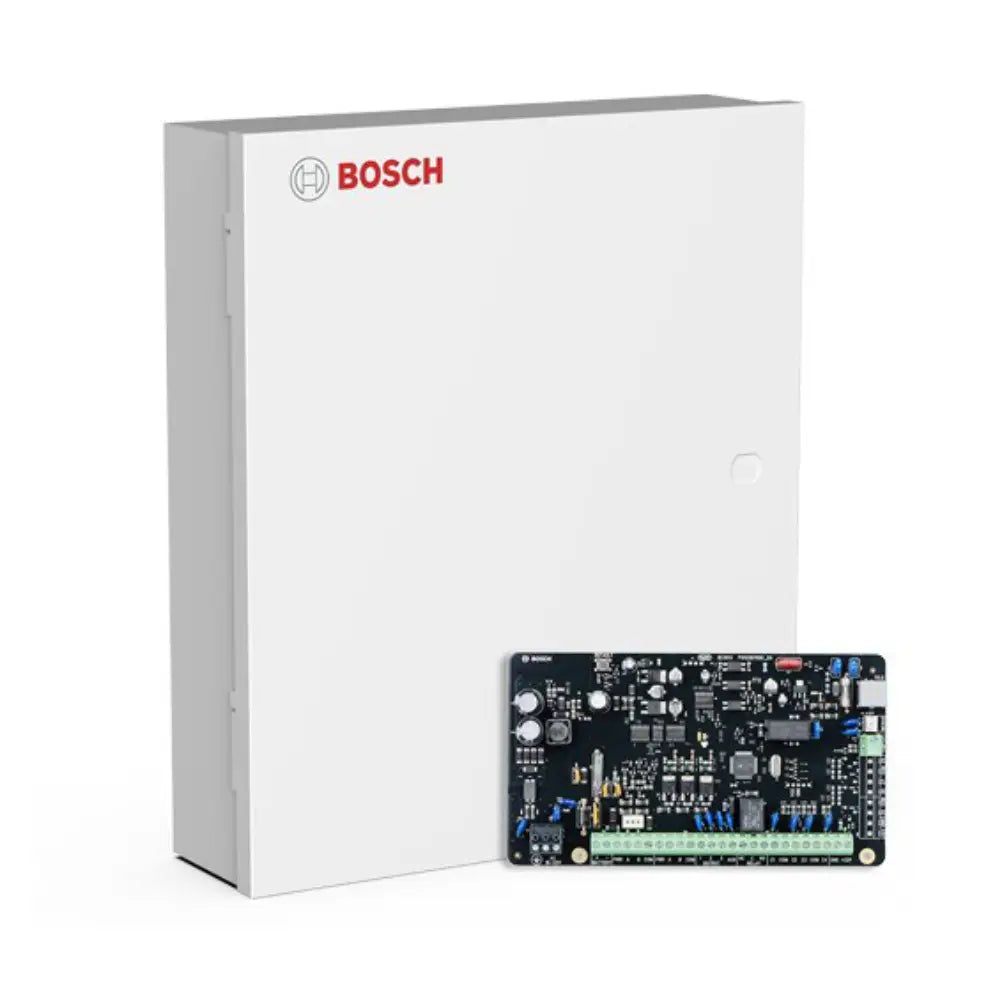

The Bosch Solution 3000 (F.01U.395.467, BOSICP-SOL3-PE) is a hardwired hybrid control panel supplied in a white metal enclosure, sized for larger Australian homes and small commercial sites. It offers 8 to 16 fully programmable zones, 2 independent areas, STAY/AWAY arming and full RADION wireless integration for up to 16 devices. With up to 4 keypads, 32 users, a built-in PSTN dialler and RSC+ app support via an IP module, it is a proven, scalable panel backed by a 3-year Australian warranty.
Hybrid Wired & Wireless
Up to 16 hardwired zones plus RADION wireless PIRs, reeds and keyfobs for flexible retrofits.
Two Independent Areas
Partition into two areas so the house and garage arm separately from any keypad.
Smartphone Control
Add a Bosch IP module for the RSC+ app — remote arm/disarm and instant push notifications.
Ready to Install
Supplied in a white metal enclosure with the PCB fitted; add keypad, sensors and battery to finish.
Technical Specifications
| Model / SKU |
F.01U.395.467 (BOSICP-SOL3-PE) |
| Series |
Bosch Solution 3000 |
| Zones |
8 / 16 split, fully programmable |
| Areas |
2 independent partitions |
| Outputs |
4 outputs |
| Users |
Up to 32 users |
| Wireless |
Up to 16 RADION devices |
| Keypads |
Up to 4 |
| Event Log |
256 events |
| Communications |
Built-in PSTN dialler; IP/app ready via module |
| Power |
18 VAC |
| Enclosure |
White metal, enclosure mount |
| Warranty |
3 Years (Australia) |
Downloads
Frequently Asked Questions
What is included?
The Solution 3000 PCB pre-mounted in a white metal enclosure. Add a keypad, sensors, siren and backup battery to complete.
Which keypads work with it?
All Solution 2000/3000 codepads — Icon (IUI-SOL-ICON), Alphanumeric (IUI-SOL-TEXT) and TouchOne touchscreen models.
Does it support wireless sensors?
Yes. The 3000 supports up to 16 Bosch RADION wireless devices with a compatible receiver for a hybrid setup.
Can I control it from my phone?
Yes. Add a Bosch B426-M IP module for the RSC+ app with remote arm/disarm and push alerts.
Is it NBN compatible?
Yes. Report over IP using an Ethernet module rather than the old phone line.
What power supply does it need?
18 VAC via a Bosch plug-pack, with a 12 V 7 Ah backup battery for mains-fail operation.
