Description

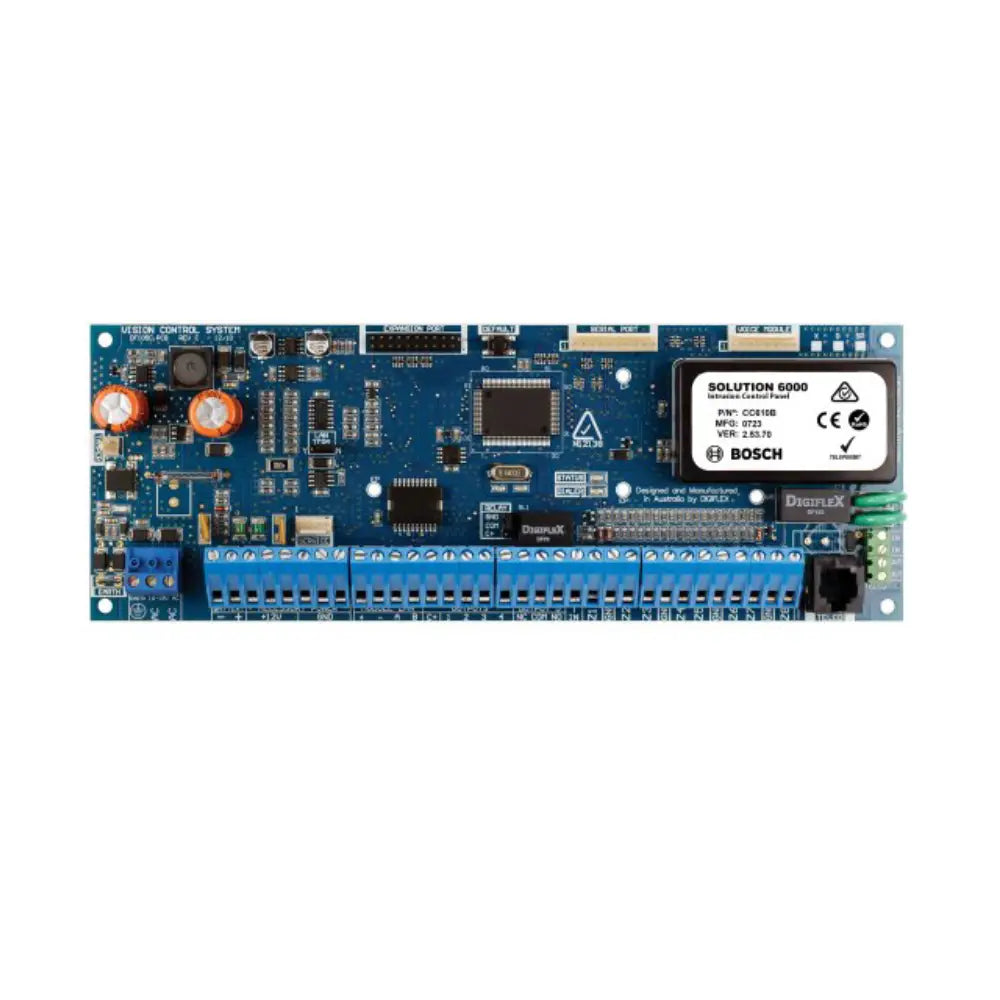

Bosch Solution 6000 Hardwired Alarm Panel/ Access Control Panel 16x Zone Expand Up to 144 Zone 5x Output Expand Up to 37 Zone 8 Areas 256 Users 16 Doors 16 Keypad 144 Wireless 1000 Events PCB Enclosure Mount Built in Dialler 16-18VAC
- Integrated access control for up to 16 doors
- MiFare Smart Card keypads, weather-proof external metal keypads, Internal & External LAN readers available
- 5 onboard outputs (expandable to 37)
- 16 onboard zones (expandable to 144 wired or wireless), partitionable to 8 areas with 990 PIN, token, keyfob and Fingerprint userss
Specification
- Module Connection (RS485 LAN): Max. total LAN length using multi strand 4 core (14020) security cable = 300m Max. total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See installation manual for complete wiring instructions.
- Communications: CID, SIA, E-mail, Voice, Domestic Dialling, GMS-SMS, Connetix IP, CSV-IP
- Telephone connection: RJ-12 Socket or 4-way terminal
- Battery capacity (Ah): 7.2 Ah
- Input Voltage: 16-18V A.C 50-60Hz - 24VA External Power Adapter or 220-240V A.C. to 18V A.C 50-60Hz - 24VA Internal Transformer (Primary Power Source)
- Operating voltage (VDC): 10.2 VDC
- Type of power supply: VAC; Battery
- Battery Type: Bosch BA 12V 7.2AH or equivalent. (Secondary Power Source).
- Battery Charger: Pulse by pulse charger. (Note: Charge voltage cannot be measured unless battery is fitted.)
- Continuous Power: 1 Amp MAX (combined power drawn from Accessory Power (+12V) LAN Power (Module LAN +) and Output Power (C+) terminals must not exceed 1 Amp.
- Alarm Power: 4 Amp (Total with primary and secondary power sources fitted)
- Operating temperature (°C): 0 °C – 55 °C
- Operating relative humidity, non-condensing (%): 5% – 85%
