Enterprise Capacity
Scales to 599 zones, 32 areas and 2000 users — built for large commercial and multi-site premises.
Intrusion + Access
Integrated access control for up to 32 doors unifies alarm and door management on one platform.
IP & Camera Ready
High-speed IP reporting plus support for up to 16 IP cameras for verified alarm events.
Deep Audit Trail
A 10,192-event log with 504 wireless points and up to 32 keypads for large, complex sites.
Does it include a power supply?

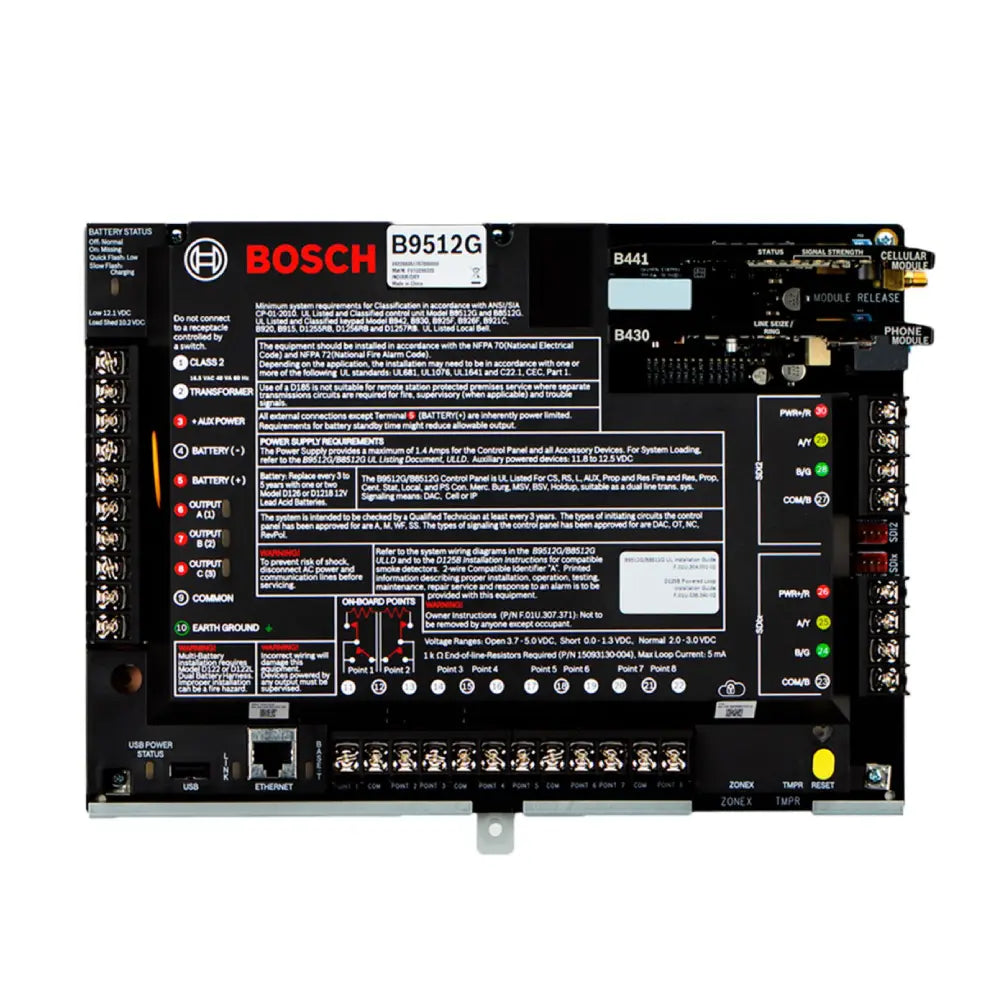

No. The B9512G requires a compatible Bosch power supply (such as the B520), which is sold separately.
How many zones and areas does it support?
8 onboard zones expandable to 599, across up to 32 independent areas.
Can it handle access control?
Yes. Integrated access control for up to 32 doors, combining intrusion and access on one panel.
Which keypads are compatible?
Bosch G-Series keypads such as the B920, B930, B942W and B915 — up to 32 across the system.
Does it support IP reporting?
Yes. Add a Bosch B426-M or B450-M module for high-speed IP/GPRS reporting and remote programming.
Is it suitable for large sites?
Yes. With 2000 users, 504 wireless points and a 10,192-event log it is built for enterprise deployments.
