5-Line ATM-Style LCD · 4 Inputs · G-Series · Made in GermanyG-Series KeypadB930 G-Series ATM-Style LCD Keypad — Australian Stock & 3-Year Warranty

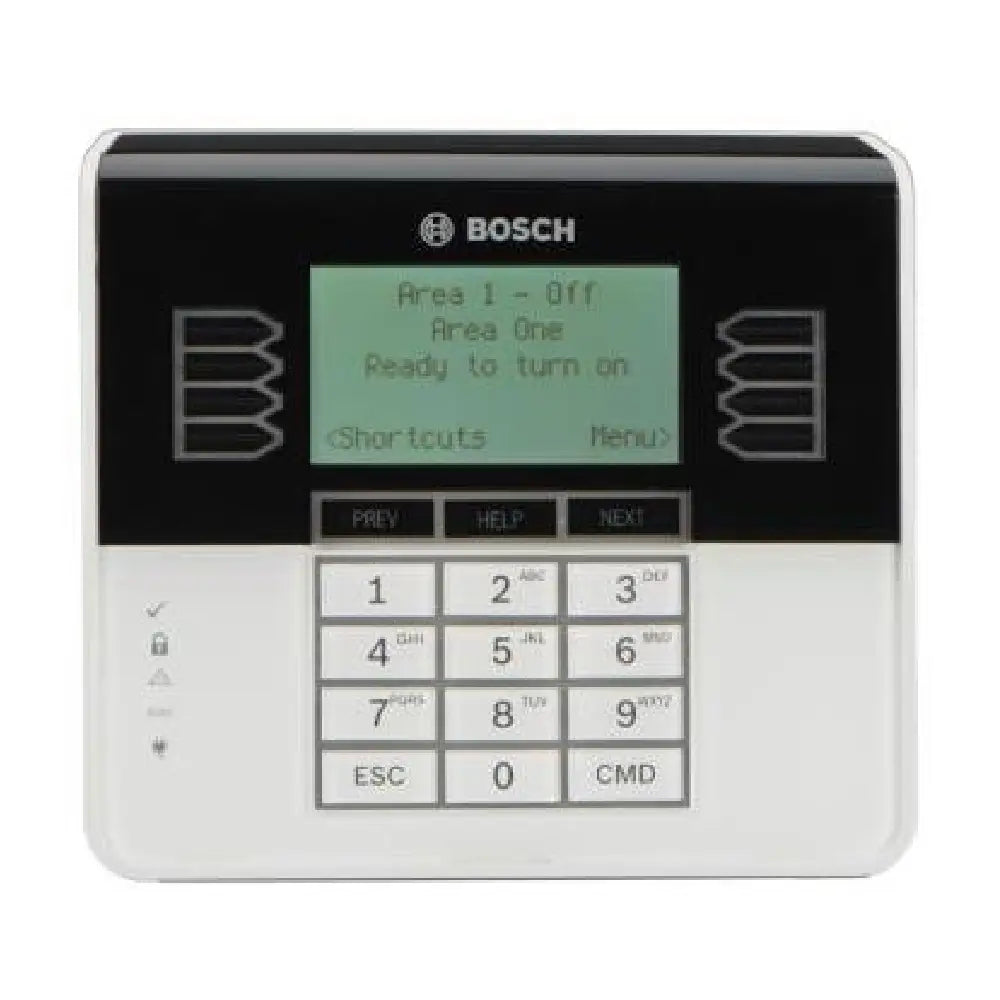

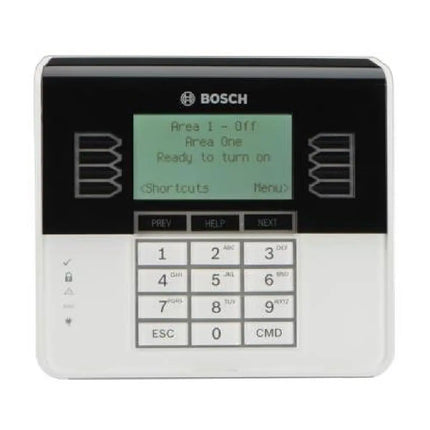

The Bosch B930 is the premium ATM-style alphanumeric keypad for the Bosch G-Series control panels such as the B9512G. Its 5-line LCD displays up to 32-character point, user and area names, while programmable keypad shortcuts and situation-sensitive on-screen help make even complex systems simple to operate. Four on-board inputs add cost-effective zone expansion, and clear arm, alarm, ready-to-arm, power and gas indicators keep status obvious. The self-locking base and built-in bubble level speed up installation. Backed by a 3-year Australian warranty.
5-Line ATM-Style Display
More on-screen information at once, showing 32-character point, user and area names.
Programmable Shortcuts
Keypad shortcuts and on-screen help make everyday operation fast and intuitive.
Built-In Expansion
Four on-board inputs provide cost-effective zone expansion at the keypad.
Fast Installation
Self-locking base, chassis and bubble level make mounting quick and level.
Technical Specifications
| Model / SKU |
B930 (BOSB930) |
| Display |
5-line ATM-style LCD, 32 characters |
| Series |
Bosch G-Series (e.g. B9512G) |
| Inputs |
4 |
| Colour |
Black |
| Current Consumption |
35 – 85 mA |
| Nominal Voltage |
12 VDC |
| Dimensions (H x W x D) |
140 x 158 x 26 mm |
| Operating Temperature |
0 – 50 °C |
| Wire Size |
22 AWG |
| Warranty |
3 Years (Australia) |
Downloads
Frequently Asked Questions
Which panels does the B930 work with?
The B930 is a G-Series keypad designed for Bosch G-Series panels such as the B9512G.
How is it different from the B920?
The B930 has a larger 5-line ATM-style display, programmable shortcuts and four on-board inputs, whereas the B920 is a standard 2-line keypad.
What are the four inputs for?
They provide cost-effective zone expansion directly at the keypad.
What power does it need?
It runs on 12 VDC and draws 35 – 85 mA.
What wire size and cable length are supported?
Bosch specifies 22 AWG with a maximum cable run of 305 m.
What are the dimensions?
140 x 158 x 26 mm (H x W x D).
