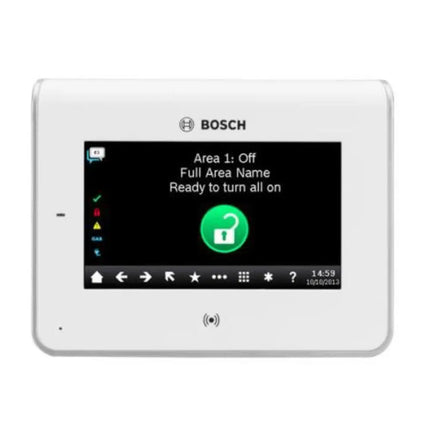

Colour Touchscreen
A 4.3-inch graphic display makes arming, disarming and navigation effortless.
Built-In Prox Reader
Use a token or card instead of a code, or combine both for dual-authentication high-security areas.
Presence Detection
The display lights automatically as a user approaches the keypad.
Onboard Expansion
Four inputs and one output provide cost-effective expansion at the keypad.
Which panels does the B942W work with?
The B942W is a G-Series keypad designed for Bosch G-Series panels such as the B9512G.
What does the built-in prox reader do?
It lets users present a token or card in place of a passcode, or use both together for dual-authentication in high-security areas.
How does the presence detector work?
It automatically lights the display when a user approaches the keypad.
What are the inputs and outputs for?
The four inputs and one output provide cost-effective zone and output expansion at the keypad.
What power and wiring does it need?
It runs on 12 VDC, draws 200 – 400 mA and uses 18 AWG wiring.
What are the dimensions?
158 x 120 x 16.5 mm (H x W x D).
