Description

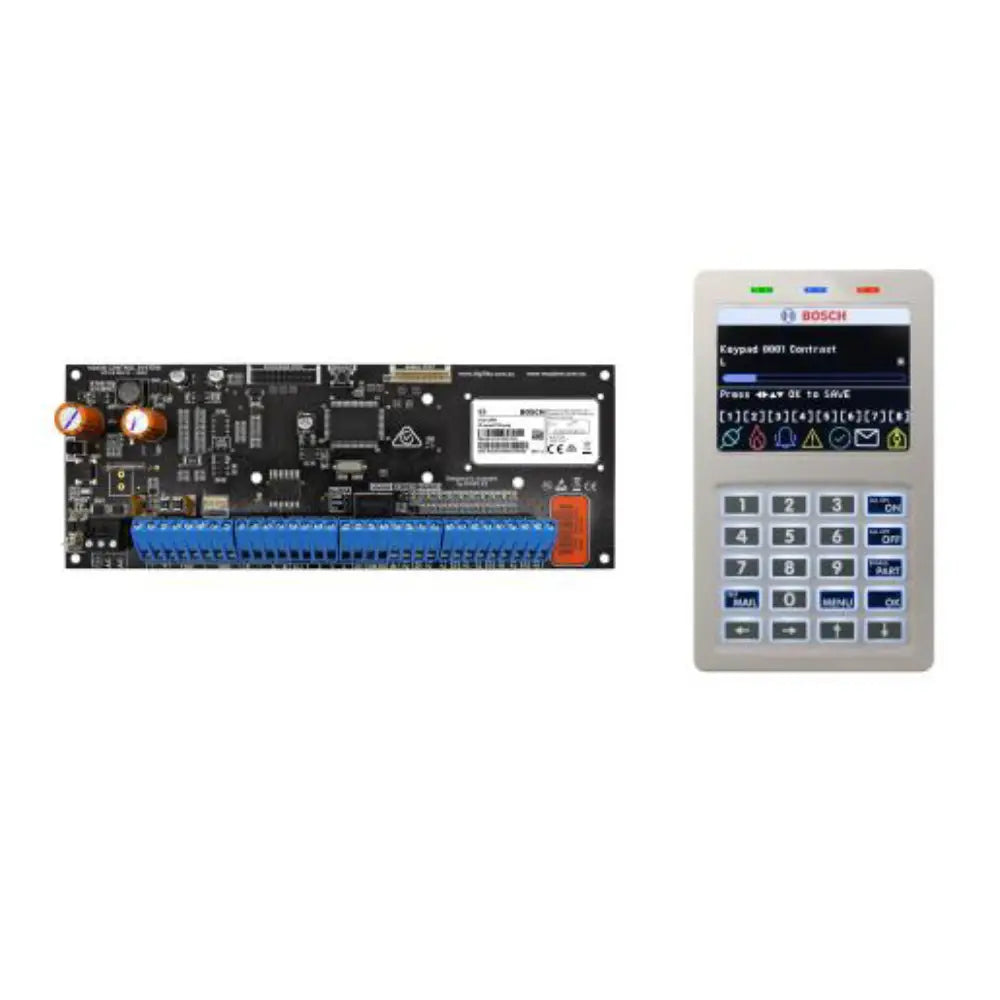

Bosch Solution 6000 Hardwired Alarm Panel PCB Board Kit With Built-in IP Module and Wi-Fi Keypad 16 X Zone Expandable to 144 Zones 5 X Outputs Expandable to 37 X Outputs 8 Areas 990 Users 16 Doors 2000 Events PCB Enclosure Mount 16-18VAC, BOSCC615GWF
- Integrated access control for up to 16 doors
- MiFare Smart Card keypads, weather-proof external metal keypads, Internal & External LAN readers available
- IP Reporting via CSV-IP, Connetix, SIA, MyAlarm
- 5 onboard outputs (expandable to 37)
- 16 onboard zones (expandable to 144 wired or wireless), partitionable to 8 areas with 990 PIN, token, keyfob and Fingerprint users
Specification
- Module Connection (RS485 LAN): Max. total LAN length using multi strand security cable = 300m Max. total LAN length using 2 pair twisted shielded data cable (Belden 8723) = 1200m. See installation manual for complete wiring instructions.
- Communications: CID, SIA, E-mail, Voice, GMS-SMS, Connetix IP, CSV-IP
- Connectivity: Proprietary RS485 LAN. Vision-X, Vision-XIP, Solution 6000 and Solution 6000-IP Panels supported
- Battery capacity (Ah): 7.2 Ah
- Input voltage (VAC): 16 VAC – 18 VAC
- Operating voltage (VDC): 10.2 VDC
- Type of power supply: VAC; Battery
- Battery Type: Bosch BA 12V 7.2AH or equivalent. (Secondary Power Source).
- Battery Charger: Pulse by pulse charger. (Note: Charge voltage cannot be measured unless battery is fitted.)
- Continuous Power: 1 Amp MAX (combined power drawn from Accessory Power (+12V) LAN Power (Module LAN +) and Output Power (C+) terminals must not exceed 1 Amp.
- Power: +12VDC, 110mA Max (LAN powered +9VDC - +16VDC)
- Operating temperature (°C): 0 °C – 55 °C
- Operating relative humidity, non-condensing (%): 5% – 85%
- Color: White
- Dimensions (H x W x D) (mm): 149 mm x 88 mm x 21.5 mm
- Wi-Fi standard: IEEE 802.11n; IEEE 802.11g; IEEE 802.11b
- Display color: Color
