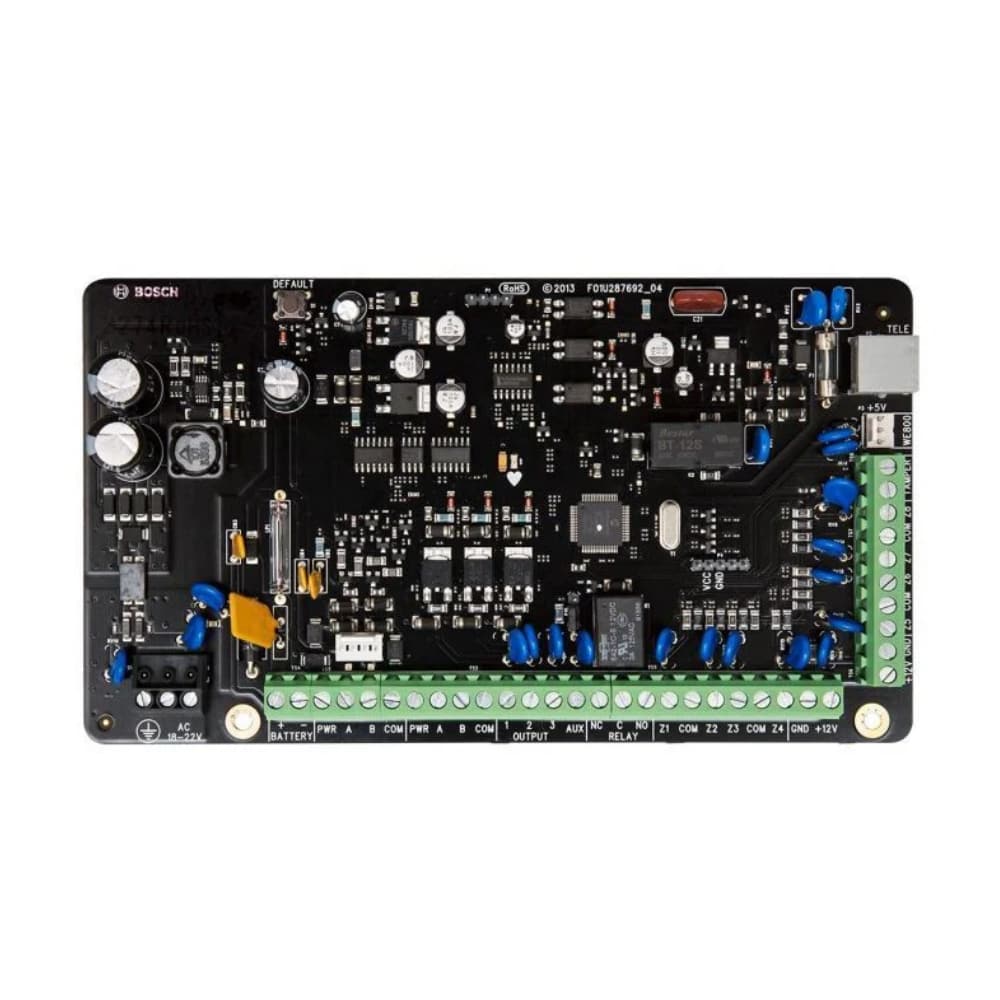

Bosch ICP-SOL3-P — Solution 3000 Control Panel PCB (16-Zone Hybrid Board)

Description

Solution 3000 · Control PCB · 16 Zone · Hybrid WirelessSolution 3000 PCB

Bosch ICP-SOL3-P Control Panel PCB — Australian Stock & 3-Year Warranty

The Bosch ICP-SOL3-P is the genuine Solution 3000 control panel PCB, supplied board-only for system repairs or custom installer builds — no enclosure, power supply or sensors included. Purpose-built for larger Australian homes and small commercial premises, it offers 16 fully programmable zones (double the Solution 2000), 2 independent partitions and full Bosch RADION wireless integration. With up to 4 keypads, 32 user codes, multiple reporting formats and RSC+ app support via a B426-M IP module, it is a versatile hybrid board backed by a 3-year Australian warranty.

Zones
16 Programmable
Areas
2 Partitions
Wireless
Full RADION
Type
PCB Only

Double the Capacity

16 fully programmable zones — twice the Solution 2000 — ideal for larger homes and small commercial sites.

Hybrid RADION Wireless

Full integration with Bosch RADION wireless PIRs, reeds and keyfobs for flexible retrofits.

Smartphone & NBN Ready

Pair with a B426-M IP module for RSC+ app control and high-speed IP reporting over your network.

Board-Only Flexibility

For repairs or custom builds — mount in a Bosch enclosure with your own PSU and battery.

Technical Specifications
Model / SKU ICP-SOL3-P
Series Bosch Solution 3000
Zones 16 fully programmable (wired or wireless)
Areas 2 independent partitions
Users / Codes 1 installer + up to 32 users
Keypads Up to 4 (Icon, Alphanumeric, Touchscreen)
Wireless Full Bosch RADION integration
Reporting CID, SIA, Email, Domestic Dialing, CSV-IP, Push
Power 18 VAC at 1.3 A; 12 VDC 6.5 Ah backup battery
Operating Temperature 0°C to +45°C
Supplied As PCB only (no enclosure/PSU/sensors)
Warranty 3 Years (Australia)

Downloads

ICP-SOL3-P DatasheetBosch Alarm Panel Quick Start GuideBosch Alarm Panel User Manual

Frequently Asked Questions

Is this the board only?
Yes. The ICP-SOL3-P is the PCB only — designed for repairs or custom builds, without an enclosure, power supply or sensors.
Is it NBN ready?
Yes. Paired with a B426-M IP module the system reports over your internet connection with app control, bypassing old phone lines.
Can I use wireless sensors?
Yes. Unlike the Solution 2000, the 3000 fully supports the Bosch RADION range of wireless transmitters for a hybrid setup.
Which keypads work with it?
All Solution 2000/3000 codepads — up to 4 Icon, Alphanumeric or Touchscreen keypads.
What power does it need?
18 VAC at 1.3 A from a Bosch plug-pack, with a 12 V 6.5 Ah backup battery for mains-fail operation.
Building a new system — what should I buy?
Choose a complete Solution 3000 kit with enclosure, battery, siren and PIR sensors for a fresh install.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Bosch ICP-SOL3-P — Solution 3000 Control Panel PCB (16-Zone Hybrid Board)

Product form

SKU: ICP-SOL3-P

$275.00  $176.99 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Solution 3000 · Control PCB · 16 Zone · Hybrid WirelessSolution 3000 PCB

    Bosch ICP-SOL3-P Control Panel PCB — Australian Stock & 3-Year Warranty

    The Bosch ICP-SOL3-P is the genuine Solution 3000 control panel PCB, supplied board-only for system repairs or custom installer builds — no enclosure, power supply or sensors included. Purpose-built for larger Australian homes and small commercial premises, it offers 16 fully programmable zones (double the Solution 2000), 2 independent partitions and full Bosch RADION wireless integration. With up to 4 keypads, 32 user codes, multiple reporting formats and RSC+ app support via a B426-M IP module, it is a versatile hybrid board backed by a 3-year Australian warranty.

    Zones
    16 Programmable
    Areas
    2 Partitions
    Wireless
    Full RADION
    Type
    PCB Only

    Double the Capacity

    16 fully programmable zones — twice the Solution 2000 — ideal for larger homes and small commercial sites.

    Hybrid RADION Wireless

    Full integration with Bosch RADION wireless PIRs, reeds and keyfobs for flexible retrofits.

    Smartphone & NBN Ready

    Pair with a B426-M IP module for RSC+ app control and high-speed IP reporting over your network.

    Board-Only Flexibility

    For repairs or custom builds — mount in a Bosch enclosure with your own PSU and battery.

    Technical Specifications
    Model / SKU ICP-SOL3-P
    Series Bosch Solution 3000
    Zones 16 fully programmable (wired or wireless)
    Areas 2 independent partitions
    Users / Codes 1 installer + up to 32 users
    Keypads Up to 4 (Icon, Alphanumeric, Touchscreen)
    Wireless Full Bosch RADION integration
    Reporting CID, SIA, Email, Domestic Dialing, CSV-IP, Push
    Power 18 VAC at 1.3 A; 12 VDC 6.5 Ah backup battery
    Operating Temperature 0°C to +45°C
    Supplied As PCB only (no enclosure/PSU/sensors)
    Warranty 3 Years (Australia)

    Downloads

    ICP-SOL3-P DatasheetBosch Alarm Panel Quick Start GuideBosch Alarm Panel User Manual

    Frequently Asked Questions

    Is this the board only?
    Yes. The ICP-SOL3-P is the PCB only — designed for repairs or custom builds, without an enclosure, power supply or sensors.
    Is it NBN ready?
    Yes. Paired with a B426-M IP module the system reports over your internet connection with app control, bypassing old phone lines.
    Can I use wireless sensors?
    Yes. Unlike the Solution 2000, the 3000 fully supports the Bosch RADION range of wireless transmitters for a hybrid setup.
    Which keypads work with it?
    All Solution 2000/3000 codepads — up to 4 Icon, Alphanumeric or Touchscreen keypads.
    What power does it need?
    18 VAC at 1.3 A from a Bosch plug-pack, with a 12 V 6.5 Ah backup battery for mains-fail operation.
    Building a new system — what should I buy?
    Choose a complete Solution 3000 kit with enclosure, battery, siren and PIR sensors for a fresh install.
