5 MP · 134° wide view · 2-lock control · PoE
A flexible main door station for modular Hikvision intercom systems

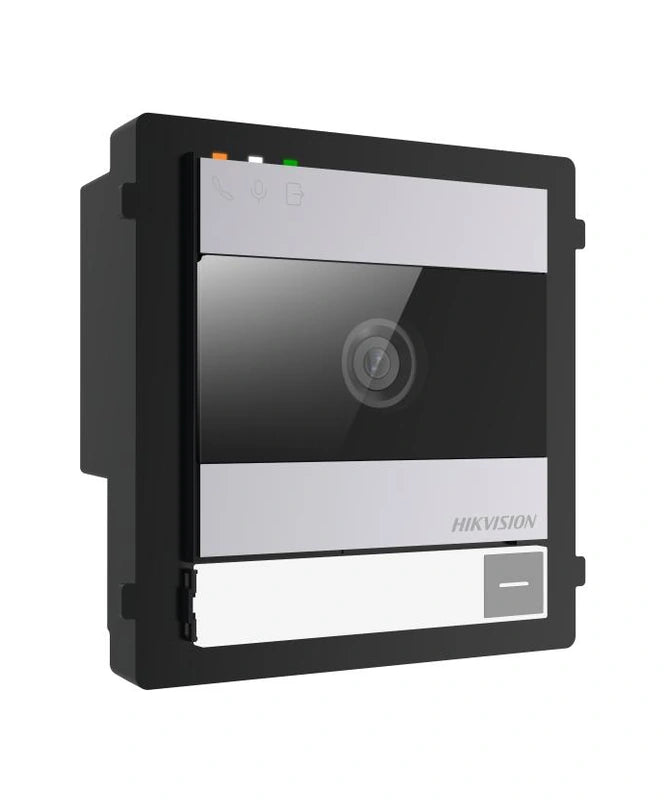

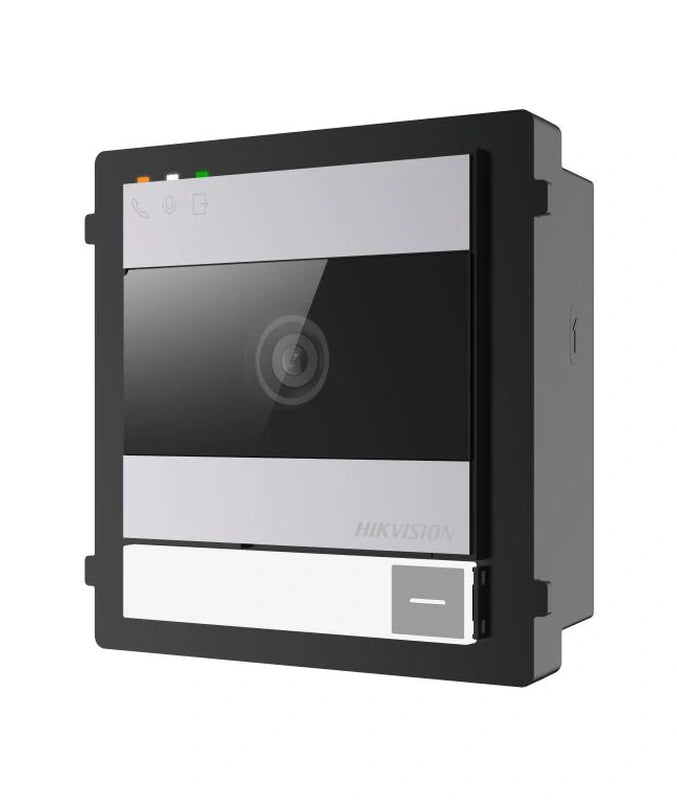

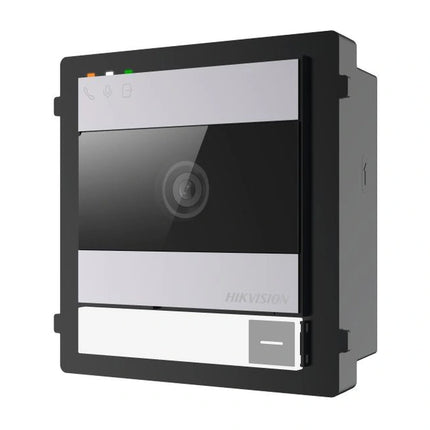

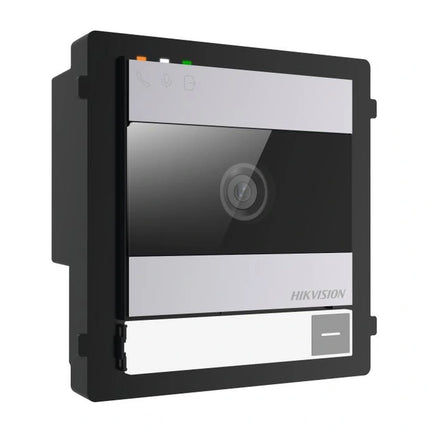

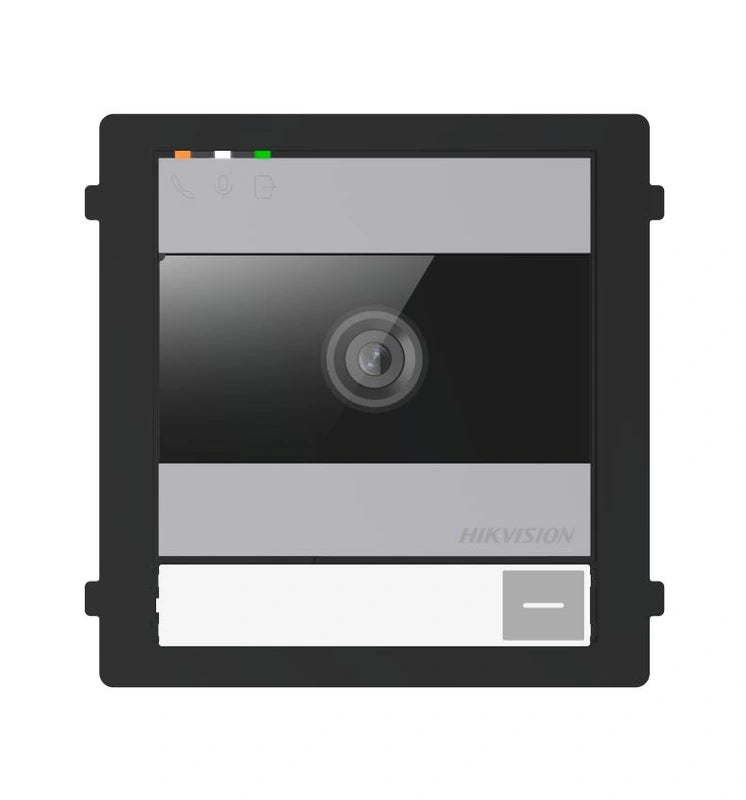

The Hikvision DS-KD8005-IME1 is the main camera and communications module for a KD8 Series IP video intercom. Its 5 MP camera, wide 134° horizontal field of view and two-way audio help visitors and entry areas appear clearly, while two relay outputs allow a correctly configured system to control up to two locks.
Use the built-in buttons for one or two call points, or combine the main unit with compatible Hikvision display, keypad, card-reader and indicator modules. It supports both surface and flush installation when paired with the correct mounting frame or enclosure.
Camera
5 MP · 3200 × 1800
Viewing angle
134° horizontal
Call buttons
Flexible 0 / 1 / 2 setup
Door control
2 lock relays
Hikvision Australia specifications
Official datasheet hosted locally
Australian product support
What you need to know before ordering
- This listing is for the DS-KD8005-IME1 main door-station module.
- A suitable Hikvision KD8 mounting frame or enclosure is required and is not included unless specifically stated in the offer.
- Additional display, keypad, card-reader and other submodules are optional and sold separately.
- The unit requires an IEEE 802.3af PoE network connection or a suitable 12 VDC, 1.5 A power supply.
- Electric locks, exit buttons, door contacts, indoor stations and installation cabling must be selected to suit the site.
Designed for clear, practical entry control
Wide 5 MP visitor view
The 3200 × 1800 camera captures a 134° horizontal and 82° vertical field of view, helping cover visitors standing close to the entrance.
Better backlit images
100 dB WDR helps balance bright outdoor backgrounds and shaded faces, while infrared supplement lighting supports low-light entry areas.
Clear two-way conversation
A built-in omnidirectional microphone and loudspeaker support two-way audio, with noise suppression and echo cancellation for clearer speech.
Control two entry points
Two lock relays and two door-contact inputs support a properly designed two-door or gate-and-door arrangement.
Flexible call-button layout
Two physical buttons can be configured for zero, one or two call buttons to suit the installation and tenant layout.
Built for exposed entrances
The aluminium module is rated IP65 and IK08, with an official operating range of -40°C to +60°C.
Installation and system fit
The DS-KD8005-IME1 can be surface mounted or flush mounted with the appropriate KD8 hardware. Its RS-485 interface connects compatible Hikvision submodules, while the RJ45 port provides 10/100 Mbps Ethernet. Remote web configuration can simplify commissioning, but lock wiring, door contacts, power and network settings should be completed by a suitably experienced installer.
Technical specifications
Camera and video
| Camera resolution |
5 MP, 3200 × 1800 |
| Field of view |
Horizontal 134°; vertical 82° |
| Wide dynamic range |
100 dB WDR |
| Low-light support |
Low illumination with infrared supplement lights |
| Video compression |
H.264, H.265 and MJPEG |
Audio and capacity
| Audio input |
1 built-in omnidirectional microphone |
| Audio output |
1 built-in loudspeaker |
| Audio processing |
Noise suppression and echo cancellation |
| User capacity |
Up to 2,000 users |
| Linked indoor station capacity |
Up to 1,000 |
| Sub door station capacity |
Up to 99 |
Interfaces and door control
| Network interface |
1 × RJ45, 10/100 Mbps self-adaptive Ethernet |
| Protocols |
TCP/IP, RTSP, RTP, SIP and ONVIF |
| Lock control |
2 relays, maximum 30 VDC / 2 A |
| Door contact inputs |
2 |
| Exit-button inputs |
2 |
| Alarm inputs |
4; configured as 2 exit buttons and 2 door contacts by default |
| Submodule connection |
1 × RS-485 |
| Tamper input |
1 |
| Physical call buttons |
2; supports flexible 0 / 1 / 2 call-button configuration |
Power, construction and environment
| Power supply |
12 VDC, 1.5 A or IEEE 802.3af standard PoE |
| Power consumption |
Up to 5 W |
| Installation |
Surface or flush mounting with compatible hardware |
| Indicators |
3 |
| Material |
Aluminium |
| Protection rating |
IP65 and IK08 |
| Operating temperature |
-40°C to +60°C |
| Application |
Outdoor |
| Weight |
260 g, without packaging |
| Maximum body dimensions |
Approximately 99.5 × 98.5 × 34.7 mm; refer to the official drawing for mounting dimensions |
Frequently asked questions
Can the DS-KD8005-IME1 be used on its own?It is the main camera and communication module, but a complete installation also needs suitable mounting hardware, network or 12 VDC power, lock hardware and system configuration. Most projects also use a compatible indoor station or management platform.
Does the mounting box come with it?No mounting frame or enclosure is included unless the offer specifically says otherwise. Choose the correct KD8 surface-mount or flush-mount hardware for the number of modules in your layout.
How many call buttons does it have?It has two physical buttons and supports flexible zero-, one- or two-call-button configuration.
Can it control two locks?Yes. Hikvision specifies two relay outputs, each rated up to 30 VDC / 2 A. The lock power and wiring arrangement must be designed to suit the connected hardware.
Can it be powered by PoE?Yes. It supports standard IEEE 802.3af PoE or 12 VDC at 1.5 A.
Is it suitable for outdoor installation?Yes. The module is rated IP65 for weather protection and IK08 for impact resistance, with an official operating range of -40°C to +60°C. Correct mounting and sealing are still essential.
Does it support surface and flush mounting?Yes. The main unit supports both installation methods when used with the corresponding Hikvision KD8 mounting frame or enclosure.
What does the camera cover?The 5 MP camera provides a 134° horizontal and 82° vertical field of view, which is designed to capture visitors at close-range entry points.
Downloads & resources
The current official Hikvision datasheet has been copied to Shopify Files for stable access.
Need help completing the intercom?
Tell us whether you need surface or flush mounting, the number of call points, indoor stations, access-control modules and locks. We can help match the KD8 modules and mounting hardware before you order.
