Stainless Steel | IP65 | Green LED | 1-Year Warranty

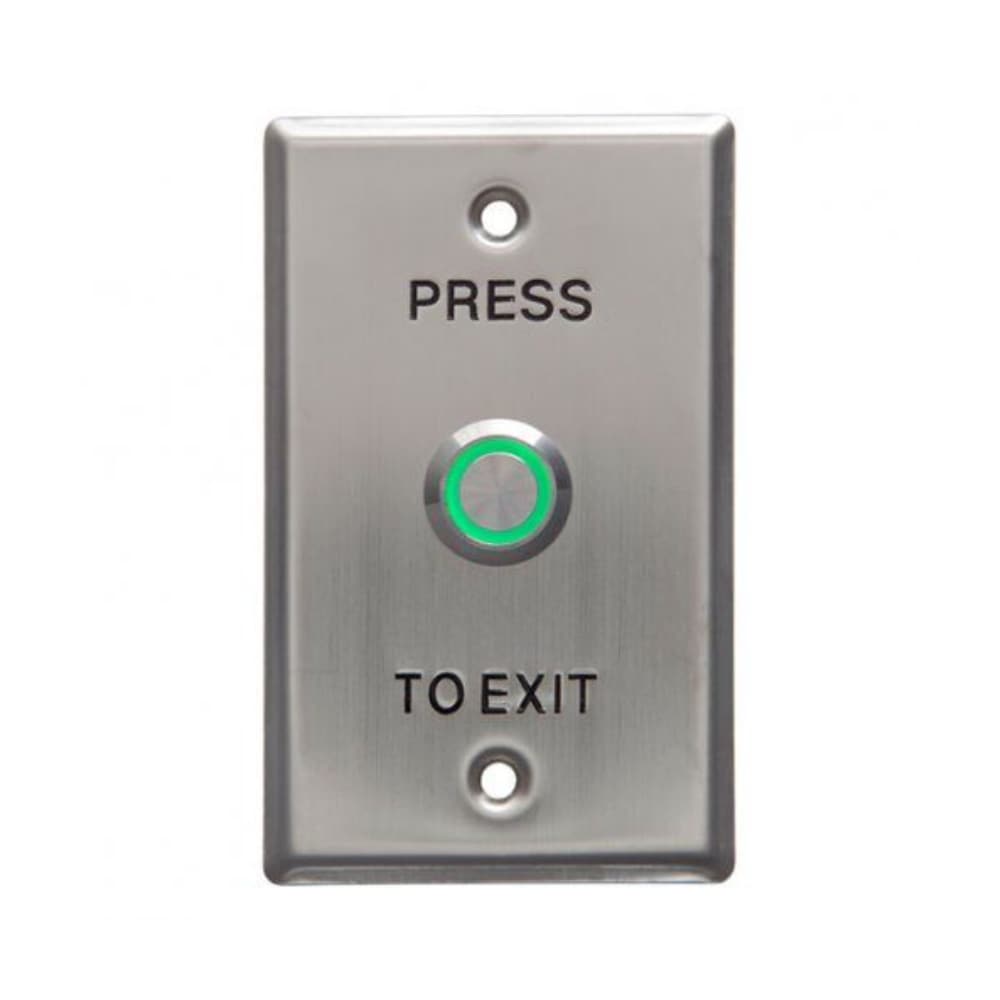

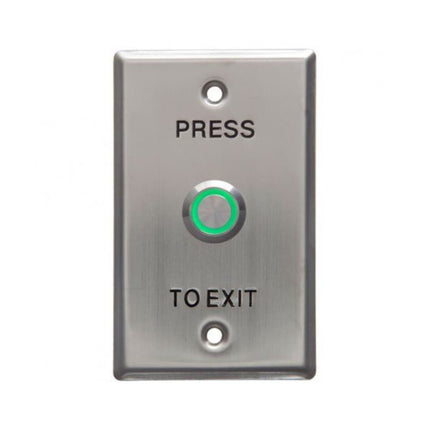

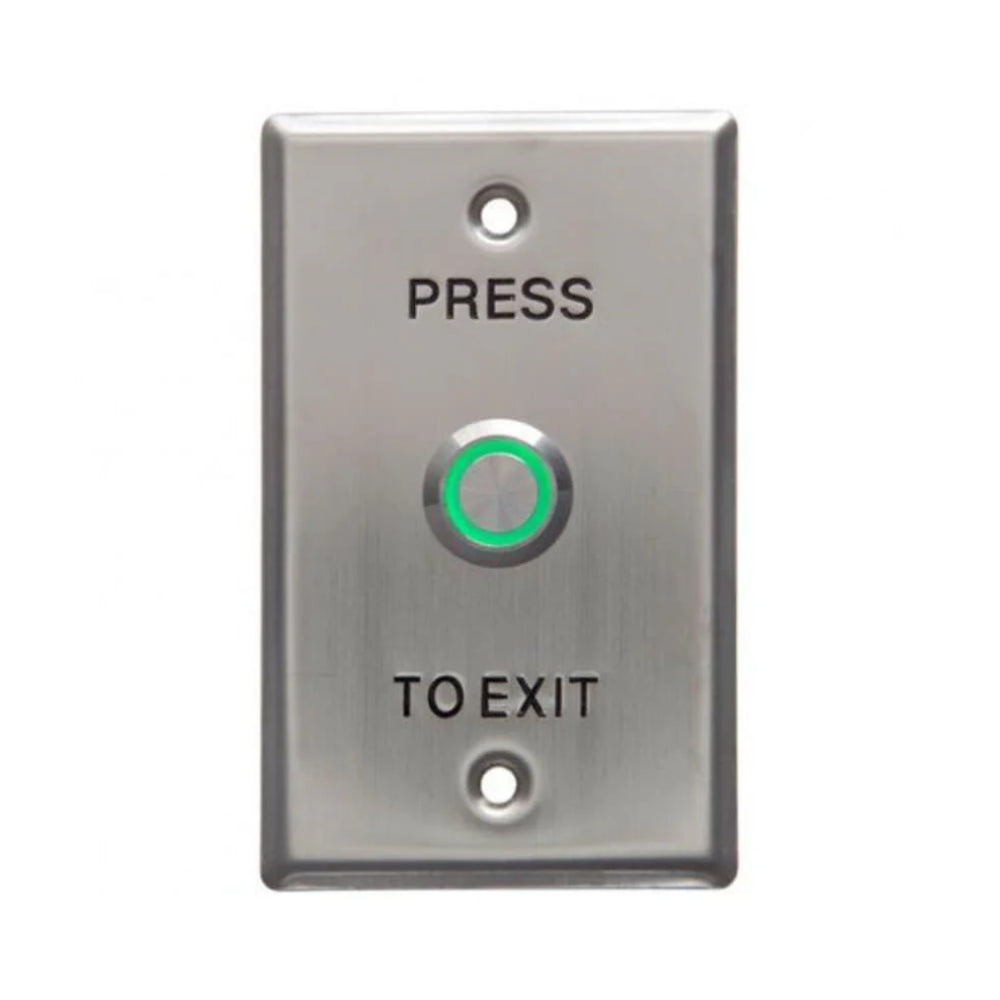

WEL1911 SECOR Press-to-Exit Button — Stainless Steel, IP65, Green LED, Flying Leads
The SECOR WEL1911 is a flush-mount stainless steel press-to-exit button engineered for Australian commercial, industrial and residential access control installations. With an IP65-rated housing, isolated NO and NC contacts, a high-visibility green illuminated LED ring, and a tested mechanical life of 1,000,000 cycles, the WEL1911 is the dependable request-to-exit (REX) device that finishes off a clean, professional door — from glass-front offices in Sydney CBD to back-of-house plant rooms in Perth and Brisbane warehouses.
Supplied with flying leads for fast termination and rated to switch up to 2 A at 12 or 24 V DC, the WEL1911 is fully compatible with any standard maglock, electric strike or access controller — including Tecom Challenger, Inner Range Integriti/Inception, Gallagher, Paxton, ICT Protege and standalone keypads such as the SECOR WKP-series.
Ingress Protection
IP65 Rated
Switching Capacity
2 A @ 12/24 V DC
Mechanical Life
1,000,000 Cycles
Plate Material
304 Stainless Steel
Built for Australian Access Control Installations
The WEL1911 is a fully isolated dry-contact exit button — meaning both the NO (Normally Open) and NC (Normally Closed) contacts are independent of the LED supply. That isolation lets installers wire the button directly into a fail-safe maglock loop, a fail-secure strike circuit, or as a request-to-exit input on any Australian access control panel without needing relays, diodes or protective interfaces.
The illuminated green LED halo stays visible day or night and gives users an obvious visual cue at the door — reducing tailgating attempts and unnecessary calls to facilities teams. Combined with a contact resistance of ≤50 mΩ and an insulation resistance over 100 MΩ, the WEL1911 delivers the kind of long-term electrical reliability you expect from a piece of door hardware that may be pressed dozens of times a day for the next decade.
Stainless Steel Flush Mount
Vandal-resistant 304-grade stainless plate. Flush mounts cleanly into wall boxes or door frames for a discreet, modern look that suits any commercial fit-out.
IP65 Weather Sealed
Dust-tight and protected against low-pressure water jets. Suitable for sheltered outdoor exits, loading docks, car-park entries and food-handling areas.
Isolated NO & NC Contacts
Both contacts are electrically isolated from the LED, allowing safe integration with fail-safe maglocks, fail-secure strikes and access controller REX inputs.
Green LED Halo
High-brightness 12–24 V LED illumination clearly marks the exit point at all times. Red and blue LED variants are available on request.
1,000,000 Cycle Mechanical Life
Heavy-duty switch mechanism rated for 50,000 electrical cycles at full load and 1 million mechanical actuations — proven longevity for high-traffic doors.
Flying Lead Termination
Pre-terminated flying leads simplify wiring and reduce installation time. No fiddly screw terminals on the back of the plate, no specialty tools required.
Compatible with Every Australian Access Control Brand
Because the WEL1911 outputs dry contact closures only, it is panel-agnostic. Wire the NO contact across the REX input of any Australian access controller, or break the NC contact in series with a maglock loop for instant manual override. Common deployments include:
Tecom Challenger / Inner Range
Wire NO across the “Request to Exit” input on the TS1061, ELM or Inception module. Door event log entries identify the exit press automatically.
Gallagher Command Centre
Connect to the REX input on any Gallagher controller (Controller 6000/7000, T-series). Configure as Monitor Exit or Free Exit per door policy.
Paxton Net2 & ICT Protege
Standard NO closure to the Exit input on Net2 plus / Protege GX/WX. Supports timed and momentary exit modes.
Standalone Maglock + Keypad
Break the NC contact in line with the maglock 12/24 V DC supply for a wire-only manual override — no controller required.
Technical Specifications
| Model |
WEL1911 (SECOR) |
| Device Type |
Press-to-exit / Request-to-exit (REX) button |
| Plate Material |
304-grade Stainless Steel, flush mount |
| LED Colour |
Green (Red and Blue variants available on request) |
| Ingress Protection |
IP65 — dust-tight, protected against water jets |
| Contact Configuration |
1 × NO and 1 × NC, fully isolated dry contacts |
| Maximum Switching Current |
2 A @ 12 or 24 V DC |
| Minimum Switching Current |
5 mA |
| Contact Resistance |
≤50 mΩ |
| Insulation Resistance |
>100 MΩ |
| Electrical Life |
50,000 cycles at rated load |
| Mechanical Life |
1,000,000 cycles |
| LED Operating Voltage |
12 V or 24 V DC |
| Termination |
Flying leads (pre-terminated) |
| Dimensions (Large Plate) |
70 mm (W) × 115 mm (H) × 32 mm (D) |
| Dimensions (Compact Plate) |
30 mm (W) × 75 mm (H) × 32 mm (D) |
| Mounting |
Flush wall-box or surface (compatible with standard AU electrical boxes) |
| Warranty |
1-Year manufacturer warranty |
| Compliance |
RoHS, CE |
| Country of Sale |
Australia only — supported by CCTV Guru |
Where to Use the WEL1911
Office & Tenancy Doors
Flush-mounted next to glass entry doors, server rooms and reception areas. Stainless steel finish blends with modern fit-outs and brushed metal door hardware.
Industrial & Warehouse
IP65 rating handles dust, splash and wash-down zones. Heavy-duty switch withstands gloved-hand operation and high-frequency traffic.
Retail & Hospitality
Discreet green LED marks staff-only exits in stockrooms, kitchens and back-of-house corridors. Tamper-resistant when correctly recessed.
Healthcare & Aged Care
Smooth stainless plate is easy to clean and disinfect. Suitable for medical-grade clean zones and infection-control corridors.
Wiring Quick Reference
Standard REX Wiring (Access Controller)
Connect the two NO flying leads across the controller’s REX / Exit input. Connect the LED+ and LED− leads to a 12 or 24 V DC source matching your installation voltage. Pressing the button momentarily closes the NO contact and grants exit on most Australian access control platforms.
Direct Maglock Override (No Controller)
Wire the NC contact in series with the 12/24 V DC supply to the maglock. Pressing the button opens the contact and de-energises the lock for the duration of the press — ideal for small-budget standalone maglock installations.
Frequently Asked Questions
Is the WEL1911 weatherproof for outdoor use?
The IP65 rating protects against dust ingress and low-pressure water jets, making it suitable for sheltered outdoor exits, covered loading docks and entry porticos. For full open-weather exposure, install under an eave or canopy for maximum service life.
What voltage does the LED need?
The integrated LED runs on either 12 V or 24 V DC — just match it to your access control or lock power supply. No external resistor required.
Will the WEL1911 work with my maglock?
Yes. The fully isolated NO/NC contacts handle up to 2 A at 12/24 V DC, which covers nearly every Australian maglock and electric strike on the market. For fail-safe maglocks, wire the NC contact in series with the lock supply; for access controllers, use the NO contact across the REX input.
Can I get this button with a red or blue LED?
Yes. The WEL1911 is also available with red or blue LED variants on request. Contact CCTV Guru if you need a colour other than the standard green.
What size wall box do I need?
The large 70 mm × 115 mm plate fits a standard single-gang Australian wall box. The compact 30 mm × 75 mm plate suits door frames, mullions and narrow architrave applications.
How long does the button last?
Tested to 50,000 electrical cycles at full rated load and 1,000,000 mechanical cycles. Even at 200 presses a day, that’s well over a decade of dependable service.
