Dahua · DHI-VTO3311Q-WP · Ultra Series · IP & Wi-Fi Villa Door Station
Ultra Series Wi-Fi Intercom
Dahua DHI-VTO3311Q-WP IP & Wi-Fi Villa Door Station

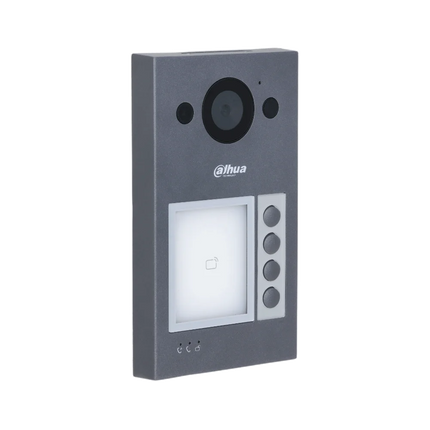

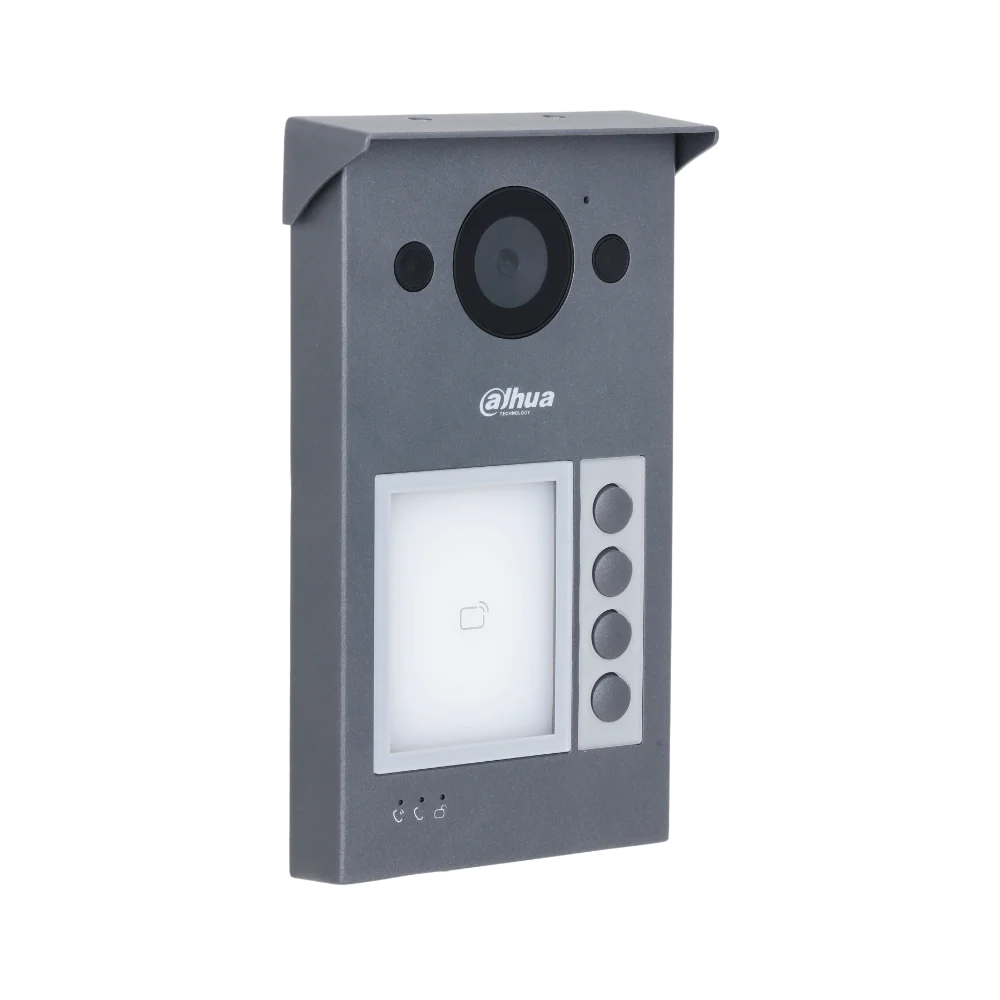

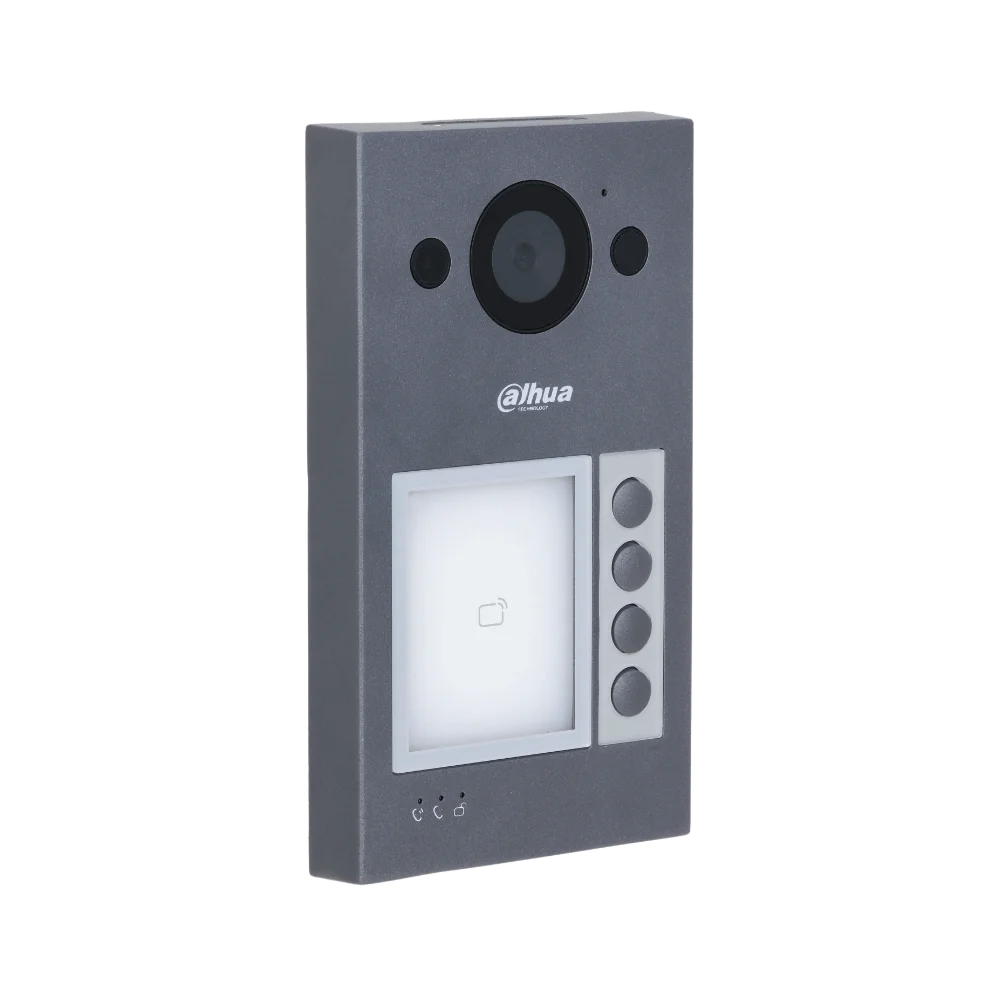

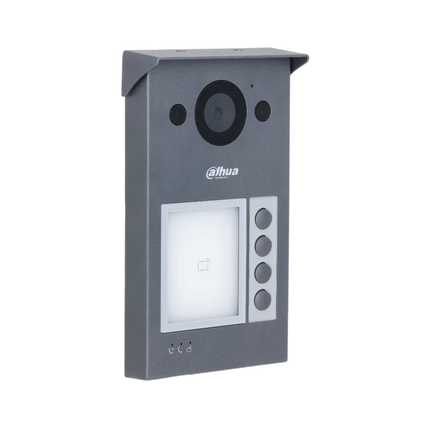

The Dahua DHI-VTO3311Q-WP is a robust, surface-mounted IP video intercom for Australian homes, villas, duplexes and small commercial entrances. Its full-metal enclosure combines a 2MP HD camera, ultra-wide 139° diagonal view, 120 dB WDR, two-way audio, IC card access and remote unlocking through a Dahua indoor monitor or the DMSS app.
Connect it by wired Ethernet with standard PoE for maximum stability, or use its built-in 2.4 GHz Wi-Fi where network cabling is difficult. IP65 weather protection, IK08 impact resistance, tamper alarm and a wide −40°C to +60°C operating range make the VTO3311Q-WP a strong choice for exposed Australian entry points.
Replacement for DHI-VTO3211D-P1-S2
Searching for the discontinued Dahua DHI-VTO3211D-P1-S2? The DHI-VTO3311Q-WP is its current replacement model, retaining the familiar 2MP video intercom, IC card access, PoE, IP65 and IK08 capabilities while adding built-in 2.4 GHz Wi-Fi. It is not automatically a drop-in swap: confirm the required call-button layout, mounting, cabling, firmware and compatibility with your existing Dahua indoor monitors before replacement.
Field of View
139° Diagonal
Network
IP / 2.4GHz Wi-Fi
Unlock
Card / App / Monitor
See More of the Entrance

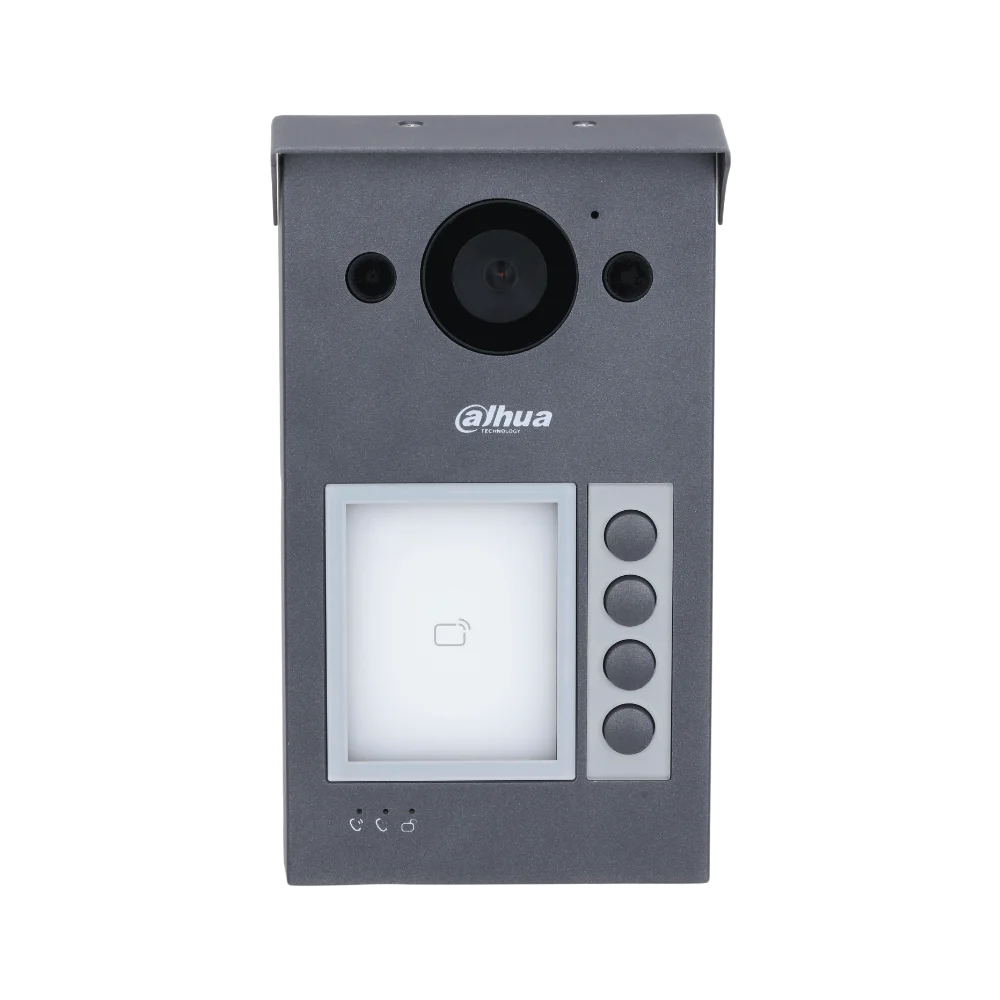

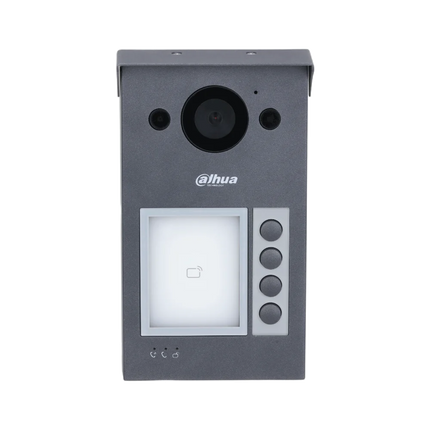

The 1/2.8-inch 2MP CMOS camera captures a 125° horizontal, 65° vertical and 139° diagonal field of view. Auto IR and an ICR day/night filter help identify visitors after dark.
Handles Harsh Backlight
True 120 dB WDR balances bright outdoor light and shaded faces, while 2D and 3D noise reduction improve image clarity in difficult entryway lighting.
Flexible Calls and Access
Answer visitors with full-duplex two-way audio and unlock by IC card, DMSS app or a paired Dahua VTH indoor monitor. The mechanical call-button arrangement is customisable for different entry requirements.
Installer-Friendly Integration

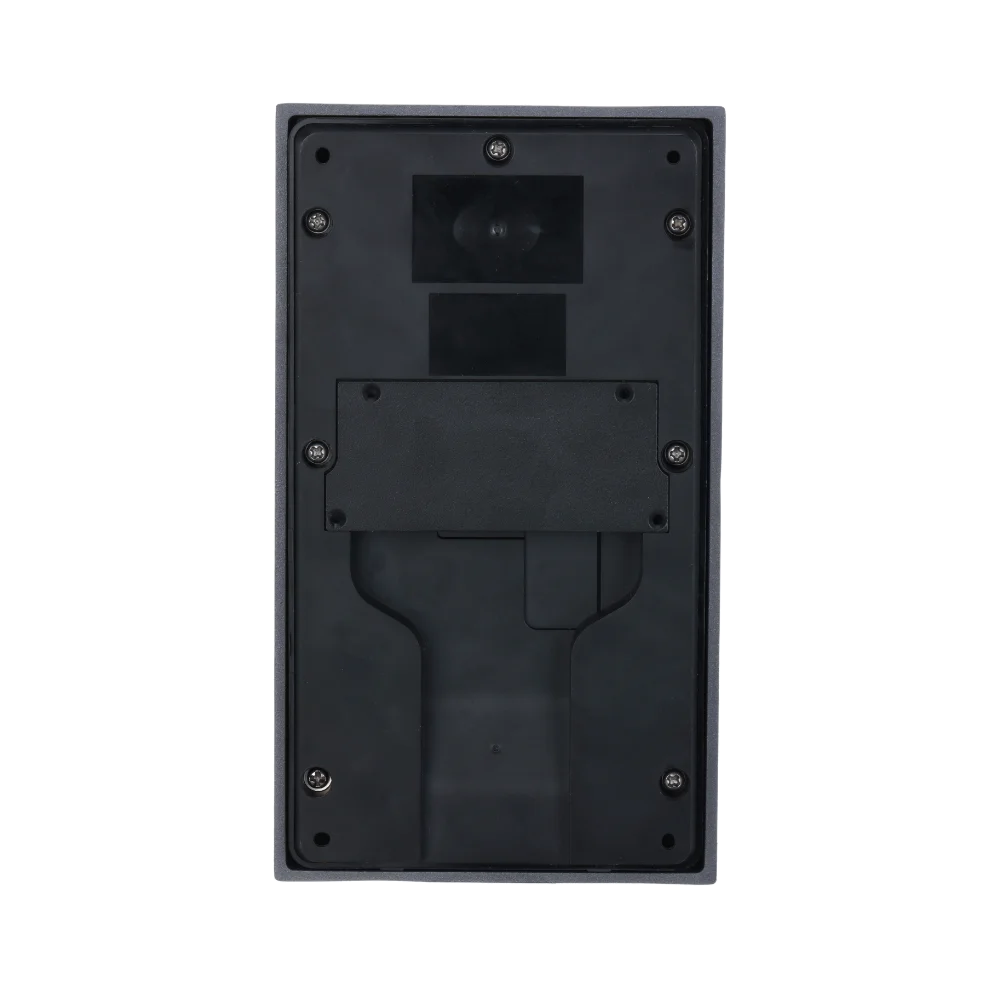

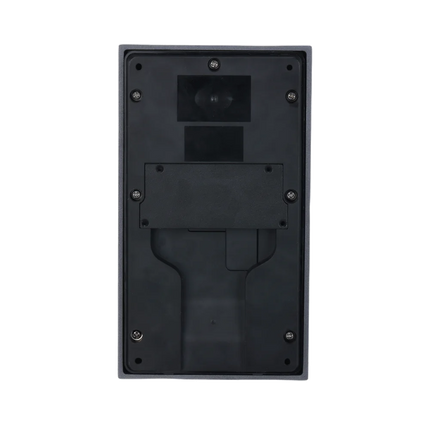

Standard PoE or 12V DC power, Ethernet, Wi-Fi, SIP, ONVIF and CGI support make the station suitable for new installations and selected Dahua IP intercom upgrades.
Key Specifications — DHI-VTO3311Q-WP
| Product Type |
Ultra Series IP and Wi-Fi villa door station |
| Replacement For |
Dahua DHI-VTO3211D-P1-S2 (discontinued) |
| Camera |
1/2.8-inch 2MP HD CMOS |
| Field of View |
Horizontal 125° · Vertical 65° · Diagonal 139° |
| Wide Dynamic Range |
120 dB WDR |
| Night Imaging |
Auto IR · ICR day/night · colour or black-and-white modes |
| Noise Reduction |
2D NR and 3D NR |
| Video Compression |
H.264 and H.265 |
| Video Resolution |
Main: up to 720p · Substream: up to 1080p |
| Frame Rate |
PAL 25 fps · NTSC 30 fps |
| Audio |
Two-way audio · built-in speaker · echo suppression · digital noise reduction |
| Audio Compression |
G.711a · G.711u · PCM |
Network, Access Control and Installation
| Unlock Methods |
IC card · DMSS app · Dahua indoor monitor |
| Card Reading Distance |
0–3.5 cm |
| Wi-Fi |
IEEE 802.11 b/g/n · 2.4 GHz |
| Ethernet |
1 × RJ45 10/100 Mbps |
| Interoperability |
ONVIF and CGI |
| Network Protocols |
RTSP · DNS · P2P · UPnP · RTP · RTMP · SIP · SSH · HTTP/HTTPS · ONVIF |
| Local Storage |
microSD up to 256 GB |
| I/O |
RS-485 · alarm input/output · power output · exit button · door status · lock control |
| Power |
Standard PoE or 12V DC, 1A |
| Power Consumption |
≤3 W standby · ≤6 W operating |
| Mounting |
Surface mount |
| Housing |
Grey aluminium alloy · full-metal design |
| Protection |
IP65 weather resistance · IK08 impact resistance · tamper alarm |
| Operating Range |
−40°C to +60°C · 10–90% RH non-condensing |
| Dimensions |
188.1 × 107.2 × 30 mm |
| Weight |
0.55 kg net · 0.81 kg gross |
| Included |
Rain cover and alarm power ribbon cable |
Choose PoE Where Possible
For Australian installations, wired Ethernet with PoE is normally the most dependable option. Wi-Fi is available when cabling is impractical, but it uses the 2.4 GHz band only and still requires local power unless PoE is used.
Plan the Complete Intercom
The door station is one part of a working system. Select a compatible Dahua VTH indoor monitor, PoE network connection and suitable electric lock hardware for your entrance and access-control requirements.
Official Dahua Product Video
Dahua VTO3311Q-WP Villa Door Station Overview
Downloads & Resources
Is this the replacement for DHI-VTO3211D-P1-S2?
Yes. The DHI-VTO3311Q-WP is the current replacement model for the discontinued DHI-VTO3211D-P1-S2. Because it is not necessarily a drop-in swap, confirm the button layout, mounting, wiring, firmware and indoor-monitor compatibility before ordering.
Does the VTO3311Q-WP work over Wi-Fi?
Yes. It supports 2.4 GHz IEEE 802.11 b/g/n Wi-Fi. For the most stable intercom connection, wired Ethernet with standard PoE is recommended where practical.
How can the door be unlocked?
Supported methods are an IC card at the station, remote unlock from the DMSS app, or unlock from a compatible Dahua indoor monitor.
Which indoor monitor should I use?
Use a compatible Dahua IP VTH indoor monitor. Relevant current monitor options are linked in the Accessories section of this product.
Is it suitable for outdoor installation in Australia?
The aluminium station is rated IP65 and IK08 and operates from −40°C to +60°C. Correct sealing, weather protection, cabling and installation remain important.
Can it record visitor snapshots or video?
Yes. Automatic snapshots and visitor video messages are supported when suitable microSD storage is installed in the door station or compatible indoor monitor, depending on the function used.
Can the call-button layout be changed?
Dahua lists a customisable number of mechanical buttons for this model. Confirm the required button layout and matching front-cover configuration before ordering.
