Professional Video Intercom · Hikvision Pro Series · Keypad + Card + App · PoE + WiFi 6

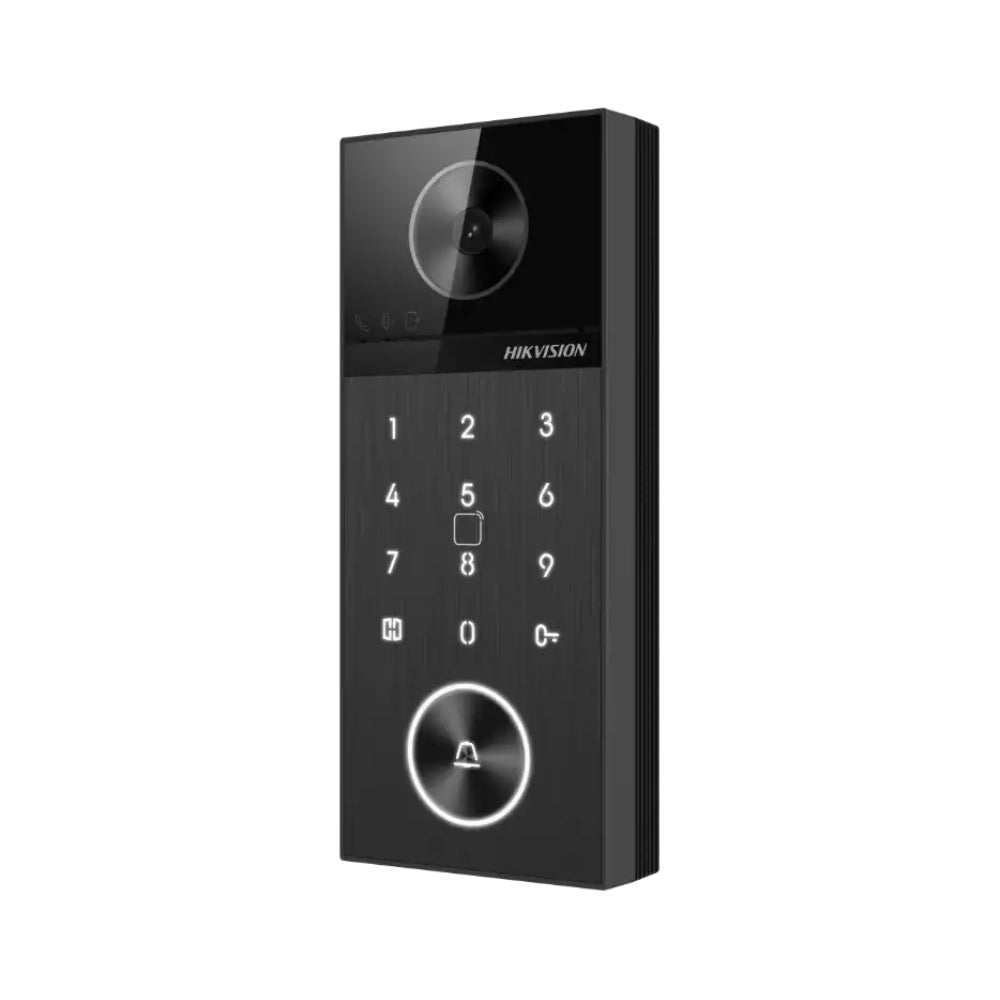

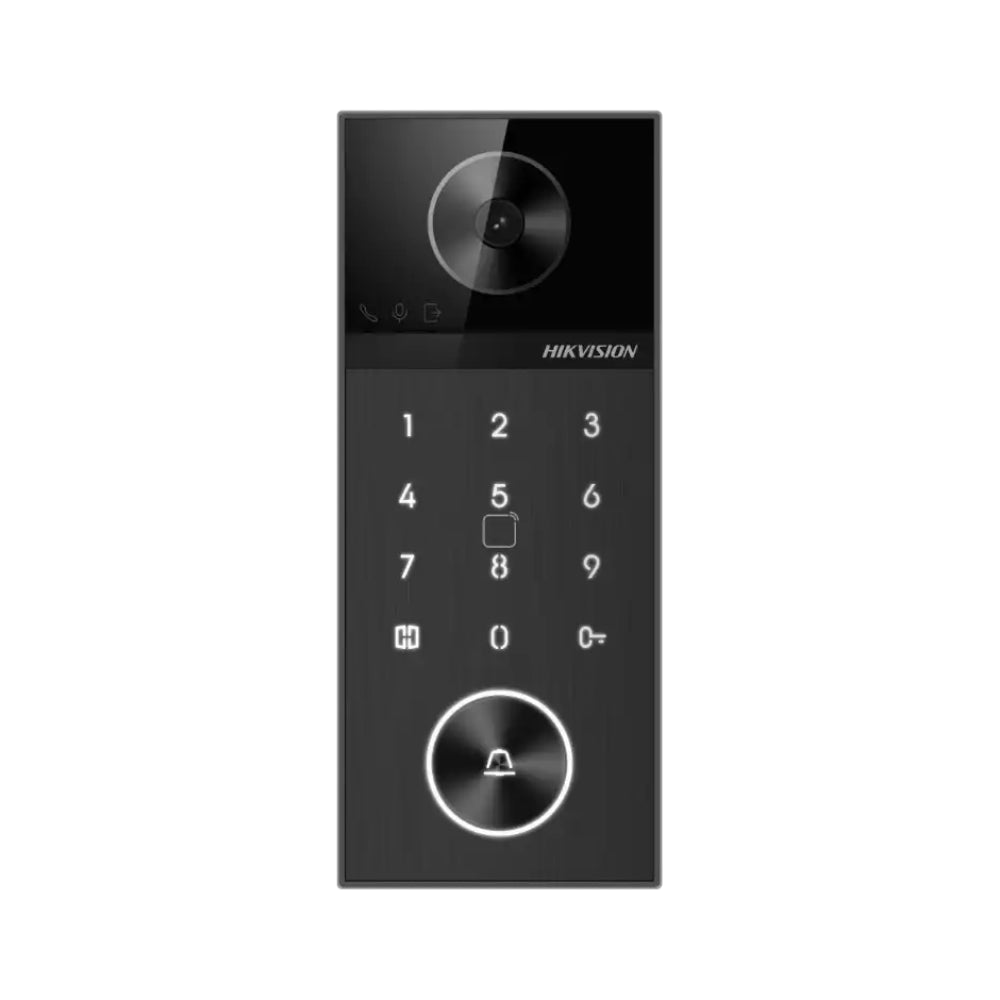

Hikvision DS-KV6124-WBE1 — 4MP Keypad Video Intercom Door Station
The Hikvision DS-KV6124-WBE1 is the complete access control door station for Australian homes, offices, Airbnb properties, and commercial sites that need more than a basic video doorbell. It combines a 4MP wide-angle camera, keypad PIN entry, RFID card reader, Bluetooth, and Hik-Connect app unlock into one sleek, weatherproof unit — powered by PoE or 12V DC, with WiFi 6 for flexible installation.
Unlike standard intercom door stations, the DS-KV6124-WBE1 supports dual lock output — control two separate doors, gates, or access points from a single device. Assign individual PIN codes per user, issue RFID cards, or let guests unlock remotely via the Hik-Connect app. No keys, no locksmith, no hassle.
Camera
4MP · 150° Wide Angle
Access
PIN / Card / App / BT
Night Vision
IR Supplement
Protocol
TCP/IP · ONVIF · RTSP
2-Year Australian Warranty
Australian Stock · Fast Dispatch
Expert Australian Tech Support
Key Features

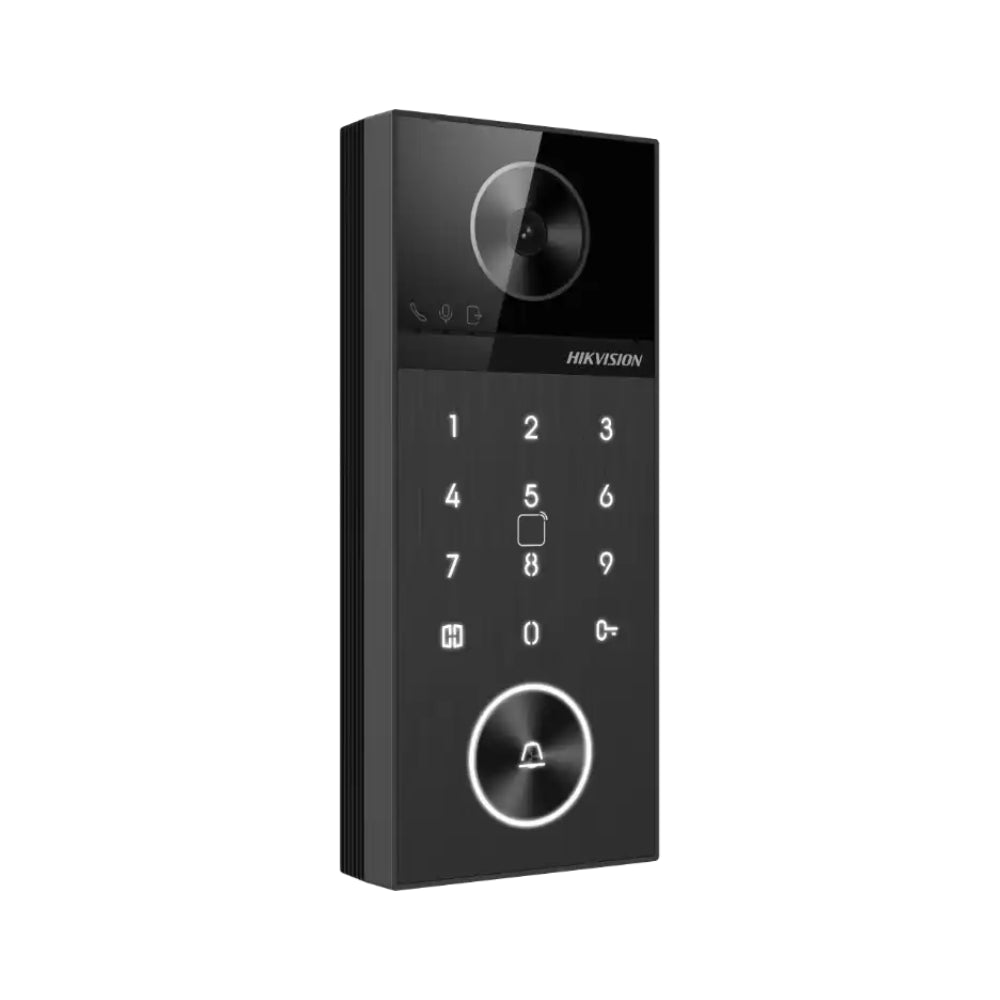

4MP Wide-Angle Camera
150° horizontal field of view captures the full entry area — faces, hands, and surroundings — in sharp 4MP detail. Built-in IR supplement ensures clear footage at night without external lighting.
Keypad PIN Access
Assign individual PIN codes to residents, staff, or guests. Ideal for Airbnb, rental properties, and offices where physical key management is impractical. Change or revoke codes instantly via the Hik-Connect app.
RFID Card Reader (13.56 MHz M1)
Issue M1 RFID cards or fobs to authorised users. Fast tap-to-unlock — no PIN required for regular users. Cards can be added or removed remotely without replacing hardware.
Bluetooth + Hik-Connect App Unlock
Unlock the door from your smartphone via Bluetooth proximity or remotely via the Hik-Connect app over the internet. Answer video calls, view live footage, and grant access from anywhere in the world.
Dual Lock Output
Control two independent locks, gates, or access points from a single door station. Perfect for properties with a front gate and front door, or a reception door and server room.
PoE + WiFi 6 Connectivity
Power and network via a single Cat6 cable (PoE IEEE 802.3at), or connect wirelessly via WiFi 6 (2.4GHz). Flexible installation for new builds and retrofits alike.
DS-KV6124-WBE1 vs DS-KV6114-WBE1 — Which Should You Choose?
Both models share the same 4MP camera and PoE + WiFi 6 platform. The key difference is the keypad — here's how to decide:
Choose DS-KV6114-WBE1 if…
You need a clean, minimal video intercom for a single-family home where all users have the Hik-Connect app or RFID cards. No PIN entry required. Simpler setup, lower cost.
Choose DS-KV6124-WBE1 if…
You need keypad PIN access for multiple users — Airbnb guests, office staff, delivery drivers, or tradespeople. The keypad makes it a true access control system, not just a video doorbell.
Offices & Commercial Sites
The DS-KV6124 is the right choice for any site where staff need PIN-based entry without issuing physical keys or RFID cards to every person.
Rental & Airbnb Properties
Assign a unique PIN per booking period. Guests check in without a key handover. Change the code between guests in seconds via the app. No locksmith, no key safe, no hassle.
Recommended For
Airbnb & Short-Stay Rentals
Issue a unique PIN per booking. Guests self-check-in without a key handover. Change codes between stays in seconds via the Hik-Connect app.
Offices & Staff Entry
Assign PIN codes and RFID cards to staff. Revoke access instantly when someone leaves. No rekeying, no lost key headaches.
Medical & Dental Clinics
Control reception and treatment-area access. Dual lock output manages the front door and a secure internal door from one unit.
Residential Homes
Replace a traditional doorbell with a full video intercom and keypad. Family members each get their own PIN — no more hiding a key under the mat.
Warehouses & Industrial Sites
Manage after-hours contractor access with time-limited PINs. Dual lock output controls the roller door and the office entry independently.
Schools & Childcare Centres
Secure entry with PIN + video verification. Staff unlock remotely via app; authorised visitors use a PIN. NDAA-compliant Hikvision hardware for government procurement.
Technical Specifications
Camera & Video
4MP resolution · 150° wide-angle lens · IR night vision supplement · H.264 video compression · RTSP stream support
Access Methods
PIN code (keypad) · RFID card (M1, 13.56 MHz) · Bluetooth · Hik-Connect app (remote) · Indoor monitor unlock
Lock & Relay Output
2 × lock relay outputs (dual lock control) · Supports electric strike, magnetic lock, and electric bolt
Power & Network
PoE (IEEE 802.3at) · 12V DC input · WiFi 6 (2.4GHz) · TCP/IP · ONVIF · RTSP
Build & Environment
IP65 weatherproof · IK07 vandal-resistant · Flush or surface mount · Operating temp: -40°C to +60°C
Compatibility
Hik-Connect platform · Compatible with Hikvision indoor monitors (DS-KH series) · ONVIF for third-party integration
More Information
Frequently Asked Questions
What is the difference between DS-KV6124 and DS-KV6114?
The DS-KV6124 includes a keypad for PIN code access, making it a full access control system. The DS-KV6114 has no keypad and suits simpler app or card-based entry.
Can I unlock the door using my phone?
Yes — the Hik-Connect app lets you answer video calls and unlock doors remotely from anywhere with an internet connection.
What unlock methods are supported?
PIN code, RFID card (M1 13.56 MHz), Bluetooth, Hik-Connect app, and indoor monitor unlock.
Do I need a PoE switch?
A PoE switch is recommended for stable power and network. You can also use the 12V DC input or WiFi 6 for wireless-only installations.
Can this control a gate and a door at the same time?
Yes — the dual lock relay output lets you independently control two access points (e.g. front gate + front door) from one unit.
Is this suitable for Airbnb or rental properties?
Yes — assign a unique PIN per guest booking and change it between stays via the app. No key handover, no locksmith.
Can I add indoor monitors?
Yes — pair with Hikvision DS-KH series indoor monitors for a full intercom system across multiple rooms or floors.
Is it weatherproof?
Yes — IP65 rated and IK07 vandal-resistant, suitable for outdoor installation in all Australian weather conditions.
Does it work over WiFi only?
Yes — WiFi 6 (2.4GHz) is supported for wireless-only installs, though wired PoE is recommended for maximum reliability.
What's the warranty?
2-year Australian warranty, supported locally by CCTV Guru's Australian technical team.
Do you ship Australia-wide?
Yes — fast dispatch to every state and territory from Australian stock.
Order the Hikvision DS-KV6124-WBE1 from CCTV Guru
CCTV Guru is an authorised Australian distributor of Hikvision access control and intercom products. Order the Hikvision DS-KV6124-WBE1 4MP Keypad Video Intercom Door Station today for fast Australia-wide dispatch, expert pre-sales advice on lock wiring and indoor monitor pairing, and full local warranty support. Contact our Australian team to build a complete intercom system with indoor monitors, PoE switches, and electric locks.
Looking for a simpler option without a keypad? View the DS-KV6114-WBE1 →
