IDIS ACCESS CONTROL LINE · PREMIUM METALLIC SILVER · NDAA & TAA COMPLIANT
Vandal-Resistant 2MP IP Video Intercom Core with 180° Panoramic Overviews

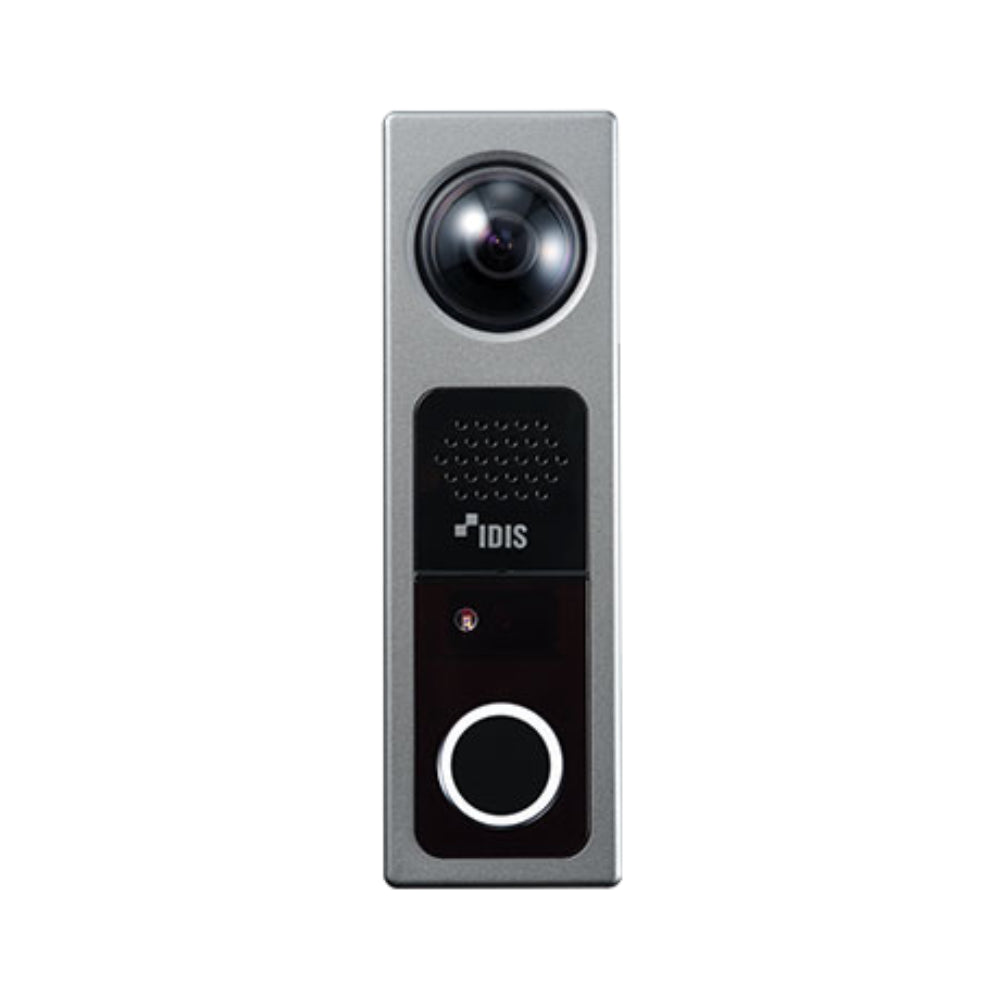

The IDIS DC-I6212WRX (Silver Edition) is an enterprise-grade, high-definition 2-megapixel network video intercom engineered to fortify physical entry gates, secure loading docks, commercial storefronts, and critical inner-sanctum access points. Merging high-fidelity access control utilities with state-of-the-art video surveillance engineering, this modern communication node replaces traditional, vulnerable doorbell units with a unified security hub. Utilizing a wide-reaching 180-degree panoramic fisheye lens pattern, the station removes blind spots completely, allowing security dispatchers or reception desks to clearly verify approaching visitors, transit couriers, and low-standing assets with zero peripheral warping or data distortion.
Lens Framework
180° Ultra-Wide Fisheye
Integration Protocol
Native SIP (VoIP) Compliant
External Finish
Premium Architecture Silver
Chassis Protection
IK10 Vandal / IP66 Shielded
Seamless VoIP Communications and Extreme Multi-Environment Durability
The core communication backbone of the IDIS DC-I6212WRX is configured around standardized SIP (Session Initiation Protocol) parameters. This allows the intercom to integrate cleanly into your company's existing IP-PBX telephony infrastructure, routing incoming visitors directly to office desktop handsets, guard houses, or mobile softphone endpoints. Built to withstand physical attacks and the elements, the device features a cast-metal faceplate rated at IK10 vandal resistance and IP66/NEMA 4X weather protection to shrug off physical impacts, salt air, freezing moisture, and high-pressure rainstorms. Internally, a True 120dB Wide Dynamic Range (WDR) processing chip instantly counteracts heavy shadows and harsh midday sun glare, delivering clean, perfectly balanced facial captures in any lighting condition.
Crystal-Clear Full-Duplex Acoustic Audio
Equipped with a powerful built-in speaker and an omnidirectional microphone array, this intercom uses advanced echo cancellation and background noise reduction algorithms. Even next to heavy traffic, loading docks, or wind tunnels, operators can maintain clear, easy communication.
Integrated Access Control Relays & Night Shielding
Fitted with onboard alarm input/output terminals, the terminal connects directly to electronic strike locks, door sensors, and magnetic releases. At night, integrated short-range infrared LEDs throw up to 5 meters of invisible infrared illumination, providing crisp, clear monochrome video in total darkness.
Technical Specification Matrix
| Intercom Model Designation |
DC-I6212WRX (Silver) |
| Image Sensor Capture |
1/2.8" Progressive Scan CMOS Array (2 Megapixel Max Native Resolution) |
| Visual Output Framing |
1920 x 1080 Full HD Streaming Performance at 30ips Real-Time Rate |
| Optical Lens Properties |
1.43mm Fixed-Focal Panoramic Fisheye Lens Structure |
| Total Angle of View Metrics |
Horizontal: 180° Coverage Matrix | Vertical: 92° Field Expansion Bound |
| Low-Light Night Vision |
Built-in High-Intensity IR LEDs with Dynamic Range Limits out to 5m (16ft) |
| Wide Dynamic Range Engine |
True 120dB Dynamic Range Shutter Exposure Compensation |
| Video Compression Footprint |
H.265, H.264, and Intelligent Codec Dynamic Bandwidth Management |
| Network VoIP Standards |
SIP 2.0 Client Linkage (Comms Matrix Compatible with Cisco, Avaya, Asterisk PBX) |
| Edge Data Retention |
Micro SD/SDHC/SDXC Card Reader Interface Slot (Supporting up to 512GB) |
| Integrated Hardware Access Relays |
1x Dry Terminal Sensor Input / 2x Solid Relay Switch Outputs Allocated Local Control |
| Chassis Armor Profile |
IK10 Mechanical Impact Armor Rating / IP66 Dust-Water Resistance Standards / NEMA 4X |
| Operational Temperature Bounds |
-30°C to +55°C Extreme Thermal Environment Execution Bounds |
| Power Feed Configurations |
PoE (IEEE 802.3af Class 3 Core Infrastructure Power) or Local 12VDC Loop |
| Physical Casing Dimensions |
110mm (W) x 160mm (H) x 43.1mm (D) Surface Frame Bounds |
| Federal Benchmark Safety |
Fully Certified NDAA Compliant Frameworks & TAA Manufacturing Protocols |
Can this intercom record directly to my existing IDIS network video recorder?
Yes. The DC-I6212WRX acts exactly like a traditional security camera within the IDIS network ecosystem. It streams full 1080p surveillance video directly to an IDIS DirectIP NVR for continuous or motion-triggered recording, while simultaneously handling two-way intercom tasks.
What mounting styles can be configured with the DC-I6212WRX?
Out of the box, the silver chassis can be mounted flat against smooth wall structures. For sleek architectural glass entries, brick facades, or high-traffic entry doors, flush-mounting kits and angled wedge adapters can be sourced separately.
How do users answer visitors from a smartphone app?
When someone presses the call button, the station forwards calls over your local network using the IDIS Mobile client app. This gives your staff full two-way audio, crystal-clear video review, and a direct button to unlock the door relay from virtually anywhere in the world.
Is a dedicated power supply required at the mounting location?
No. By utilizing standard Power over Ethernet (PoE IEEE 802.3af), both network data paths and operational power are safely pushed through a single standard Cat5e or Cat6 Ethernet cable, completely avoiding the need for high-voltage wiring at the doorway.
