IDIS ACCESSORIES · NDAA & TAA COMPLIANT
Architectural Integration for Modern Access Control

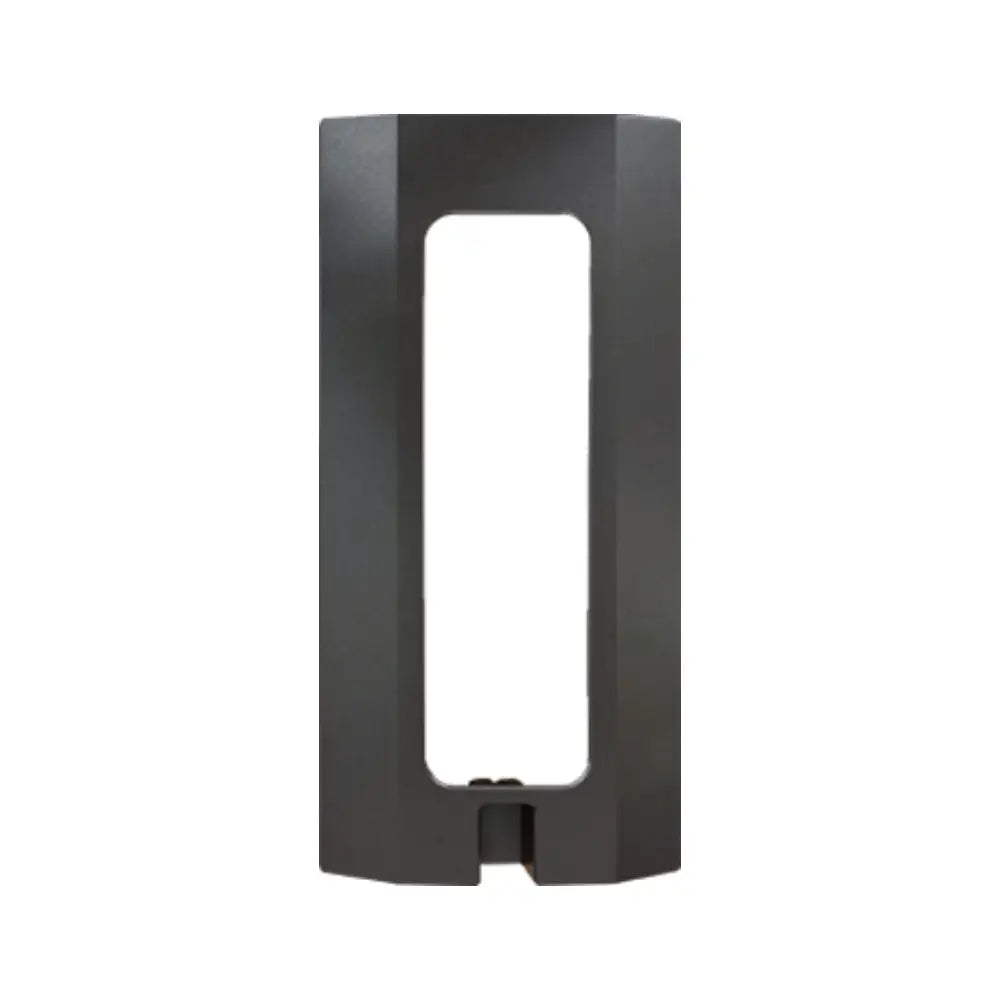

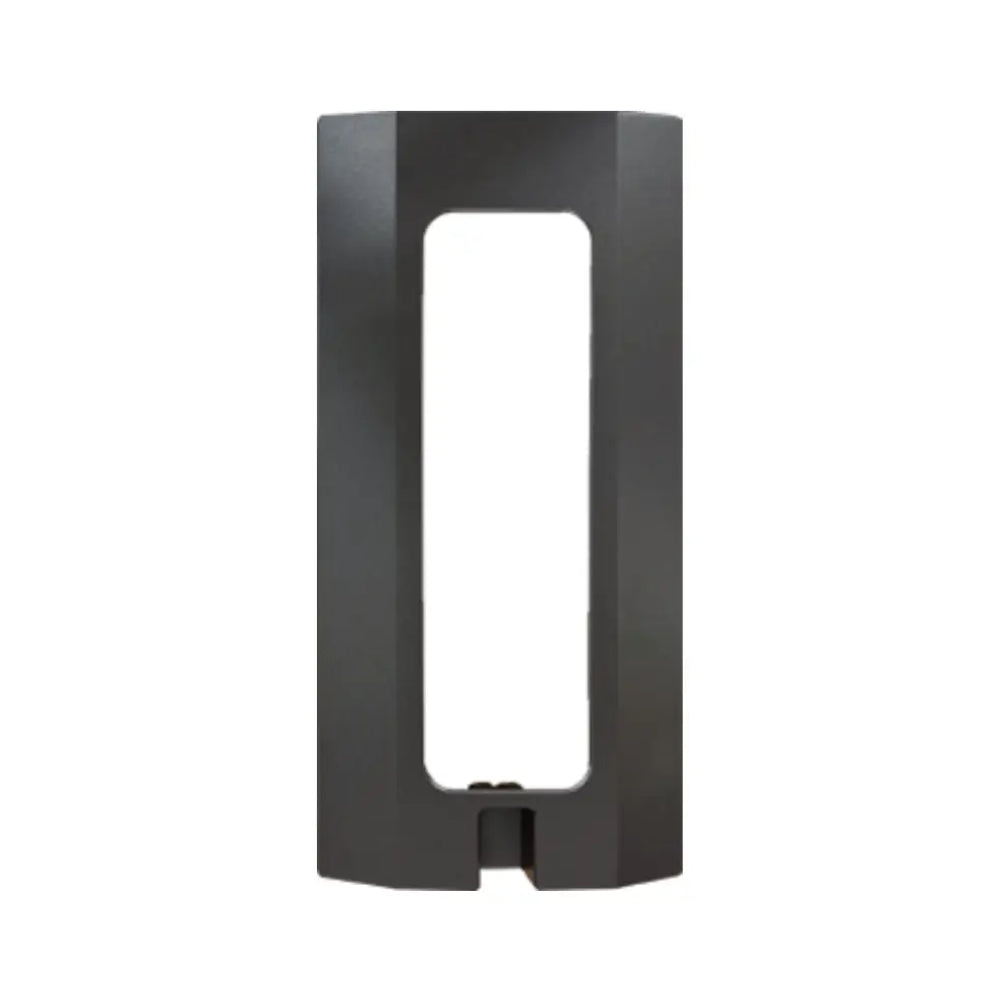

The DA-FM2100-TITANIUM is a premium flush-mount housing engineered specifically for the IDIS DC-I6212WRX IP video intercom. Designed to support clean, unobtrusive installations, this high-density housing ensures your front-door security infrastructure blends seamlessly into modern building facades, commercial lobbies, and corporate access control vestibules. By moving your hardware inside the wall profile, it minimizes structural protrusions, reducing physical footprint while simultaneously preserving architectural integrity.
Form Factor
Low-Profile Flush
Aesthetics
Titanium Finish
Compatibility
DC-I6212WRX Only
Protection
Corrosion Proof
Rugged Engineering, Seamless Assembly
Constructed using a high-grade, lightweight polymer formulation, the DA-FM2100-TITANIUM eliminates concerns about rust and physical degradation over time, even when deployed in sheltered outdoor perimeters. Its specialized structural configuration features a robust bottom-bracket installation template that completely isolates visible hardware fasteners from the front face. This hidden-mount blueprint protects your intercom assets from opportunistic tampering protocols while guaranteeing a polished, professional facade that complements high-end materials like brushed metal, structural glass, and polished concrete stone.
Hidden Bottom Bracket Mount
Utilizes a smart mounting matrix that fastens from the base up. This eliminates ugly front-facing structural screws, yielding a highly polished aesthetic and robust mechanical defense against front-panel tampering and vandalism attempts.
Architectural Titanium Aesthetic
Finished in a premium, neutral metallic titanium colorway. Designed to fulfill the meticulous aesthetic demands of corporate entrances, high-end residential towers, and modern minimalist commercial properties.
Technical Specification Matrix
Camera Model
DA-FM2100-TITANIUM
Item Classification
Intercom Accessory / Flush Mount Housing
Primary Build Material
High-Durability Industrial Plastic
Color Variant
Titanium White / Matte Metallic Titanium
Top Cover Dimensions
102 mm (W) x 215 mm (H) / (4.02" x 8.46")
Hole Cutout Dimensions
65.8 mm (W) x 178.8 mm (H) / (2.59" x 7.04")
Bracket Base Dimensions
83.3 mm (W) x 138 mm (H) / (3.28" x 5.43")
Net Structural Weight
135 grams (4.76 oz)
Target Subsystem Target
IDIS DC-I6212WRX Network Video Intercom
Is this mount compatible with other brands of IP intercoms?
No, this mount is precision-molded down to the millimeter specifically to house the IDIS DC-I6212WRX video intercom. It cannot be used with third-party security hardware.
Can this housing be installed in direct-weather outdoor environments?
The plastic composition is completely rustproof and corrosionproof; however, because it is a flush configuration, it is highly recommended for indoor walls or sheltered exterior facades to prevent excessive rainwater pooling behind the masonry line.
What tools and parts are included in the retail box package?
The box includes one titanium-colored top cover plate, one comprehensive bottom structural bracket, a tailored installation drill template, and all necessary mounting screws and stabilization washers.
Does the housing affect the wide-angle camera field of view or audio metrics?
Not at all. The front bezel sits completely flush alongside the native physical dimensions of the DC-I6212WRX intercom lens array, speaker paths, and microphone lines, ensuring uncompromised situational awareness.
