IDIS DIRECTIP SERIES · NDAA & TAA COMPLIANT
Enterprise-Grade Power & Distribution for DirectIP Surveillance

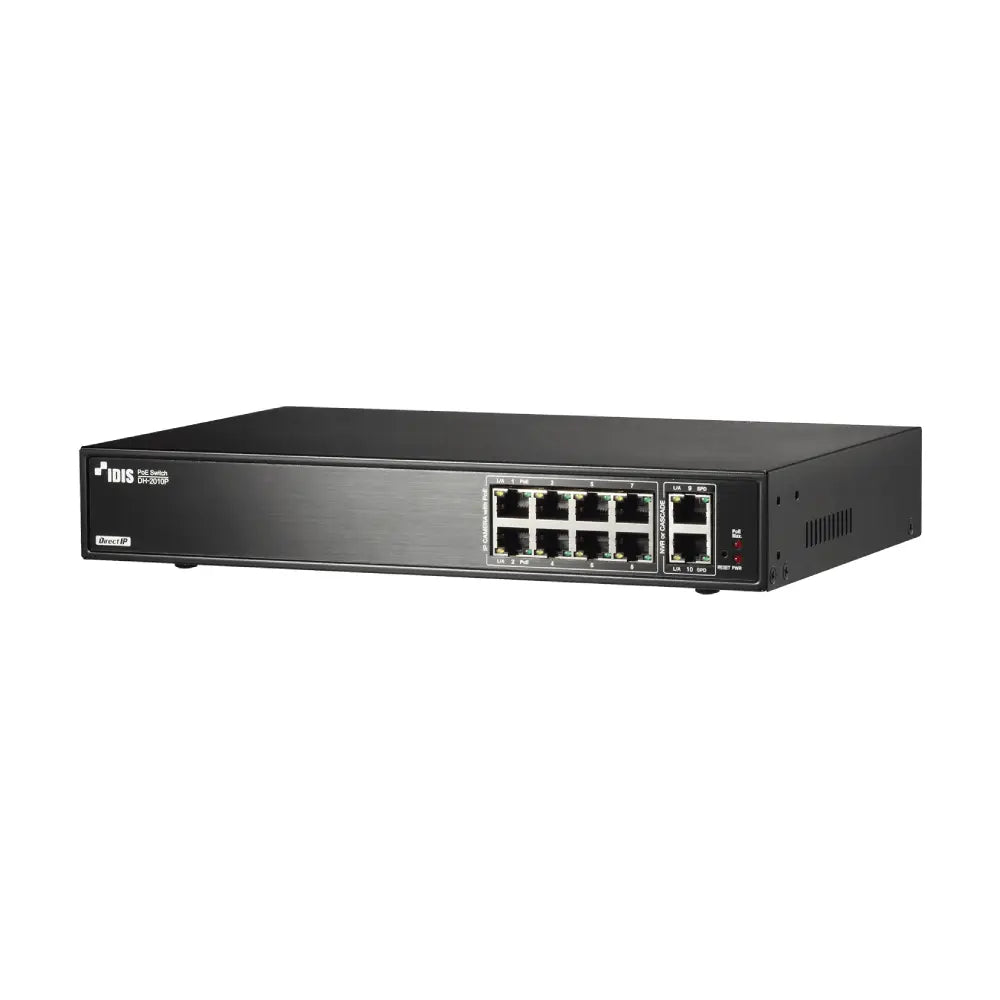

The IDIS DH-2010P is a high-performance, enterprise-grade 10-port PoE network switch engineered explicitly for high-density DirectIP surveillance ecosystems. Optimized to streamline data transmission to DirectIP NVRs, this switch eliminates complex network configurations, making it an ideal choice for commercial applications, retail sectors, and corporate branch office deployments that require zero-latency edge connectivity for mission-critical security cameras.
Port Density
10 Total Ports
Throughput
5.6Gbps Switch
Advanced DirectIP Protocol Integration & Intelligent Control
Engineered for seamless compatibility within complete security infrastructures, the IDIS DH-2010P PoE Switch delivers independent port mapping directly to your NVR, ensuring stable multi-channel streaming without frame drops. Featuring centralized power utility through embedded MIPS architecture, security operators can utilize advanced system analytics to manage and control device power configurations natively through the IDIS center interface, making remote system reboots and diagnostics completely frictionless.
High-Speed Gigabit Dual Uplinks
Equipped with 2 dedicated 10/100/1000BASE-T Gigabit RJ45 copper uplink ports, this switch creates a robust high-bandwidth highway. This ensures massive volumes of ultra-high-definition multi-camera video streams flow directly into the core network or NVR without local bottlenecks or packet latency.
Intelligent Centralized Power Allocation
Supports a versatile 70W power budget distributed across 8 Fast Ethernet service ports. Fully compliant with IEEE 802.3af and IEEE 802.3at protocols, it dynamically provisions safe power-over-ethernet delivery to either 8 standard IP edge devices or up to 2 high-draw PoE+ cameras simultaneously.
Technical Specification Matrix
| Camera Model |
DH-2010P |
| Processor & Memory |
Embedded MIPS / 256MB SDRAM / 32MB Flash |
| Switching Capacity |
5.6 Gbps Non-blocking Fabric |
| Copper Service Ports |
8 x RJ45 Connectors (10/100BASE-T with PoE) |
| Copper Uplink Ports |
2 x RJ45 Connectors (10/100/1000BASE-T) |
| PoE Standards & Budget |
IEEE 802.3af-2003 / IEEE 802.3at-2009; 70W Total Budget |
| Max PD Connections |
Up to 8 standard IEEE 802.3af devices or 2 high-power 802.3at devices |
| Dimensions (W x H x D) |
280mm x 44mm x 180mm (11.0" x 1.7" x 7.1") |
| Power Input & Consumption |
AC 100-240V, 50/60Hz, 2.0-1.0A; 90W Max Consumption |
| Regulatory Compliance |
FCC, CE, KC, UL, CB, NDAA Compliant, TAA Certified |
Is the IDIS DH-2010P plug-and-play with non-IDIS NVR systems?
While the switch functions perfectly as a standard managed PoE switch for any standard IP network, its unique optimization shines when paired with an IDIS DirectIP NVR, unlocking zero-configuration network mapping and native port controls via automated protocols.
How many PoE+ (802.3at) high-draw cameras can this device power at once?
Thanks to its robust 70W power allocation system, the switch can support up to 2 high-power PoE+ devices (up to 30W each) or up to 8 standard PoE devices (up to 15.4W each) simultaneously without overloading the internal circuit infrastructure.
Does this switch require rack mounting or can it sit on a desktop environment?
The compact form factor and optimized thermal profile allow the switch to operate silently and safely as a standalone desktop edge device, while also being adaptable to standard commercial utility rack deployments using minimal vertical footprint.
What guarantees its suitability for United States government installations?
The IDIS DH-2010P is fully certified under federal NDAA and TAA regulations, meaning it does not contain components from restricted manufacturers and meets all strict compliance metrics for corporate, government, defense, and high-security enterprise systems.
