AXIS A-SERIES · NDAA & TAA COMPLIANT
Comprehensive Entryway Security & Smart Access Control

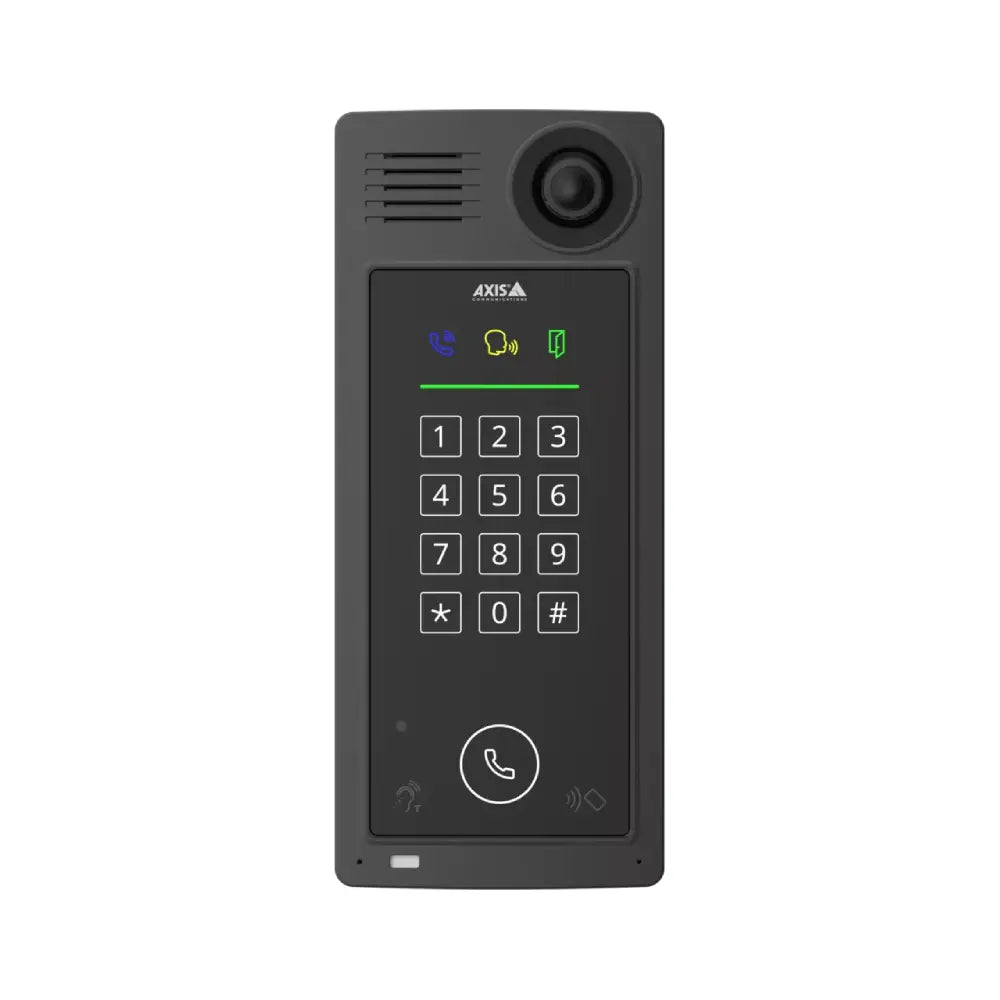

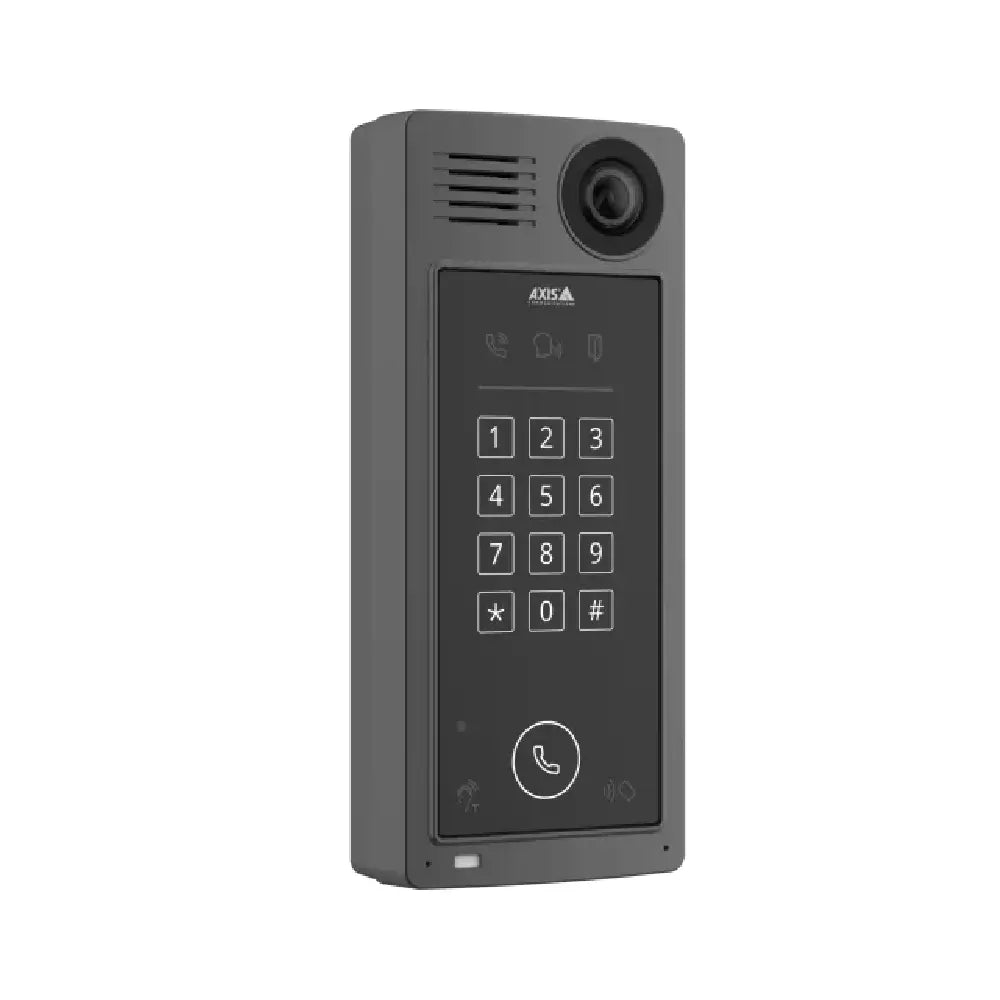

The AXIS A8207-VE Mk II Network Video Door Station is an ultra-premium, all-in-one boundary control system designed to streamline security at your facility's physical checkpoints. By combining a professional-grade 6 megapixel security camera, a smart contactless RFID reader, a physical keypad, and high-fidelity two-way audio communication, this device eliminates the need for separate entry peripherals. Engineered for high-traffic environments, commercial hubs, and restricted zones, it provides absolute situational awareness before letting personnel or visitors pass through.
Audio & Low Light
Full Duplex & WDR
Protection
IP66 & IK10 Rated
Intelligent SIP Integration and Multi-Vendor Access Compatibility
Operating beyond standard perimeter security, the AXIS A8207-VE Mk II leverages open Session Initiation Protocol (SIP) support to route video and audio feed communication directly into your business VoIP networks or video management systems (VMS). Its advanced acoustic echo cancellation, active noise reduction, and smart beamforming microphone arrays ensure flawless voice clarity even next to heavy traffic noise. Combined with an onboard multi-frequency RFID reader that natively supports MIFARE and DESFire cards, this door station easily interfaces with your existing credentials, bringing enterprise-grade authentication directly to your storefront or shipping bay.
Uncompromising Video & Analytics
Equipped with a high-performance 6 MP image sensor and digital PTZ capabilities, this device offers wide visual tracking that eliminates blind spots. Native AXIS Guard Suite analytics detect loitering, tailgating, or structural tampering instantly, triggering automated alerts to your security console before threat escalation occurs.
True Unified Access Control
Consolidating credential reading, keypad PIN code entry, and remote master-key release into a single rugged unit, the A8207-VE Mk II simplifies your wiring infrastructure. Open API and ONVIF support allow direct coupling with third-party controllers and video management software without vendor lock-in.
Technical Specification Matrix
| Camera Model |
AXIS A8207-VE Mk II |
| Video Resolution |
6 Megapixels (up to 3072 x 2048) at 25/30 fps |
| Lens & FOV |
1.55 mm lens, F2.8, 114° Horizontal, 81° Vertical field of view |
| RFID Reader |
Integrated 13.56 MHz (MIFARE Classic/Plus/DESFire, iCLASS, SEOS compatible) |
| Audio Capabilities |
Full duplex acoustic echo cancellation and active noise reduction |
| SIP Support |
Session Initiation Protocol (SIP) for seamless VoIP phone integration |
| Keypad |
Rugged physical back-lit keypad for PIN code validation |
| Environmental Ratings |
IP66 weather-rated, IK10 vandal-resistant housing (NEMA 4X rated) |
| Power Input |
Power over Ethernet (PoE) IEEE 802.3af/at or 12-24 V DC input |
Does the AXIS A8207-VE Mk II support multi-vendor RFID credentials?
Yes, the integrated smart RFID reader supports common 13.56 MHz access technologies, including MIFARE Classic, MIFARE DESFire EV1/EV2, iCLASS, and SEOS, making deployment within existing physical access systems seamless.
Can I connect this door station to my pre-existing VoIP phone system?
Absolutely. The door station natively supports Session Initiation Protocol (SIP), allowing you to route visitor calls to IP phones, mobile softphones, or network video decoders in real time.
Is the keypad vandal-proof and suitable for extreme weather installations?
Yes, the entire chassis is outdoor-rated to IP66 and certified IK10 for vandal and impact resistance. The backlit keys are designed to withstand physical abuse, rain, dust, and freezing conditions.
How is this door station powered?
The device is dual-powered. It can be powered directly via a standard network switch using Power over Ethernet (PoE IEEE 802.3af/at) or through a hardwired 12-24 V DC auxiliary power line.
