Dahua · DHI-VTO2111D-P-S3 · IP Villa Door Station · Card Unlock + PoE
Lite IP Villa Station

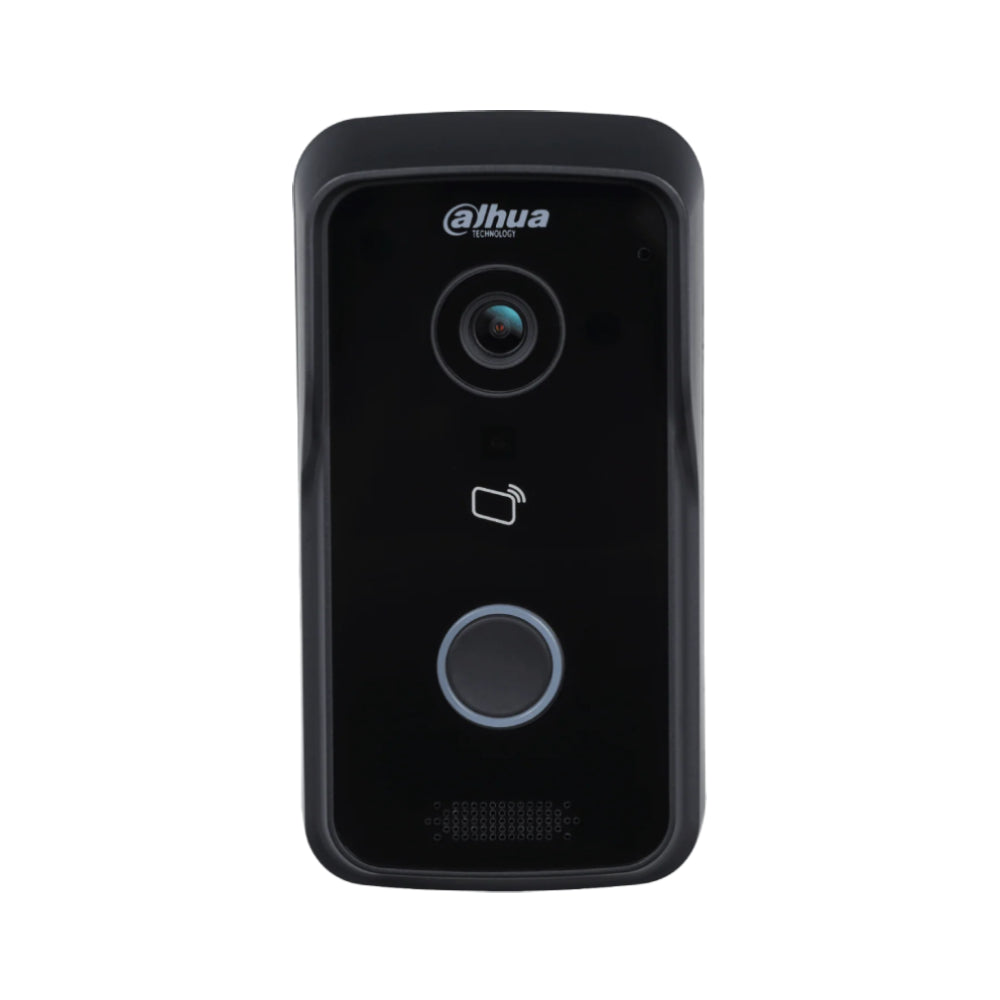

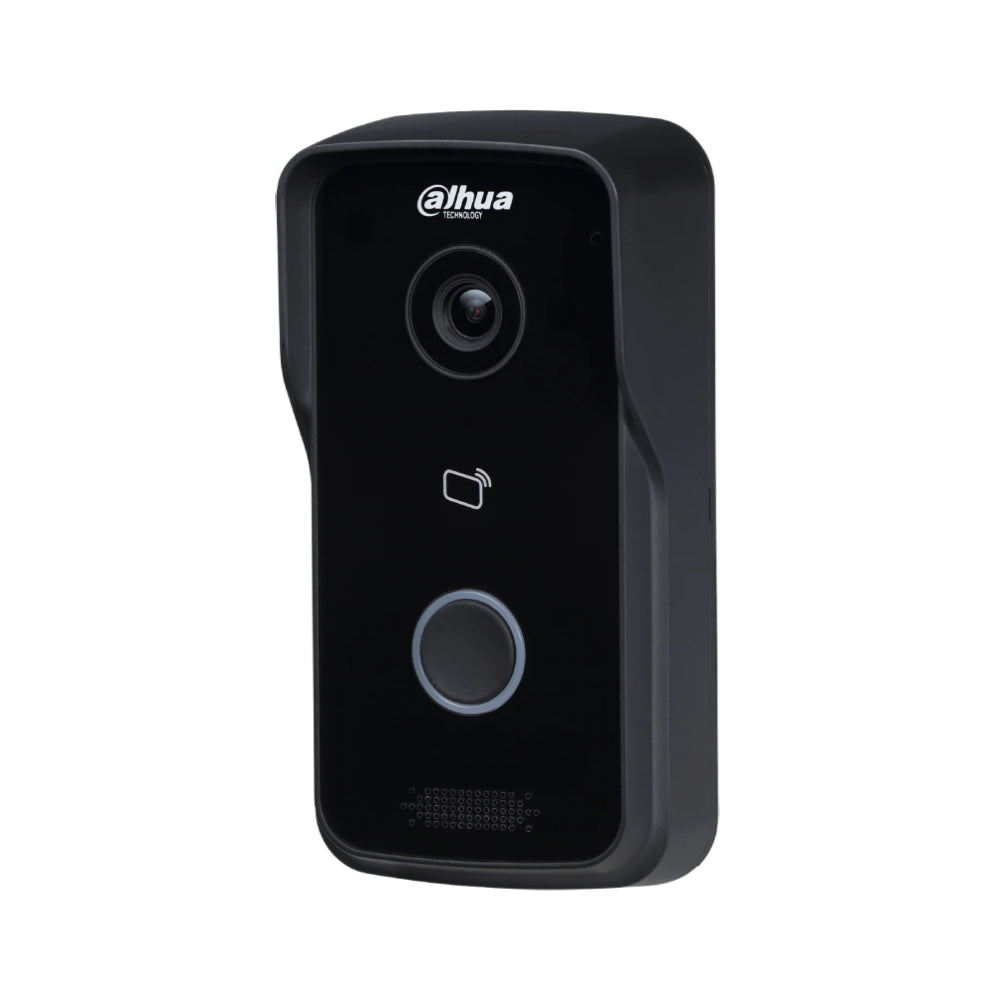

Dahua DHI-VTO2111D-P-S3 Lite Series IP Villa Door Station — HD Camera, Card Unlock & PoE
The Dahua DHI-VTO2111D-P-S3 is a compact IP villa door station from the Lite series, built for everyday home entry control. It pairs an HD camera with WDR and auto IR night vision, supports IC card, app and indoor-monitor unlock, and runs on standard PoE. Two-way voice calling, support for up to 10,000 cards and dual-lock control make it a practical front-gate solution.
Unlock
Card / App / Monitor
Clear HD Video, Day or Night
The HD camera with WDR balances bright and shadowed areas at the door, while auto IR and day/night switching keep visitors visible after dark. It is dependable imaging in tough lighting.
Card & App Access
Unlock with an IC card, from the DMSS app, or from your indoor monitor. The reader holds up to 10,000 cards, making it suitable for busy households or shared entrances.
Simple PoE Install
A single network cable carries power and data over standard PoE, so installation is fast and clean. A tamper alarm adds protection against interference at the gate.
Controls Two Locks
The station can drive two separate locks — ideal for a gate plus front door — and supports two-way voice calls and calls between door stations and the app.
Specifications — DHI-VTO2111D-P-S3
| Type |
Villa / home outdoor door station (Lite series) |
| Camera |
HD CMOS with WDR |
| Wiring |
IP / standard PoE |
| Night Vision |
Auto IR illumination, day/night switching |
| Unlock Methods |
IC card, app remote, indoor monitor |
| Card Capacity |
10,000 cards |
| Audio |
Two-way voice; door-station & app calling |
| Lock Control |
Controls two locks |
| Security |
Tamper alarm |
| App |
DMSS |
| Power |
Standard PoE |
| Ingress |
IP65 (silicone sealant required — see QSG) |
| Operating Temp |
-30°C to +60°C |
| Warranty |
3 years · CCTV Guru Australia |
Downloads & Resources
How is it powered?
The VTO2111D-P-S3 runs on standard PoE, so a single network cable carries both power and data to the station.
How do residents unlock the door?
With an IC card at the station, remotely from the DMSS app, or from a paired Dahua indoor monitor. It can control two locks.
Which indoor monitor does it pair with?
It pairs with Dahua IP indoor monitors (VTH series). Ask our team for a matching monitor to complete your intercom.
Is it weatherproof?
Yes — it is IP65 rated for outdoor use. Apply silicone sealant during installation as described in the quick start guide.
Is this NDAA compliant?
No. Dahua products are not NDAA Section 889 compliant. If you need NDAA-compliant equipment for US federal or critical-infrastructure projects, contact our team about Uniview, Hanwha or Axis options.
