2N IP FORCE · NDAA & TAA COMPLIANT
Maximum Security Door Access & Ultra-Rugged Surveillance

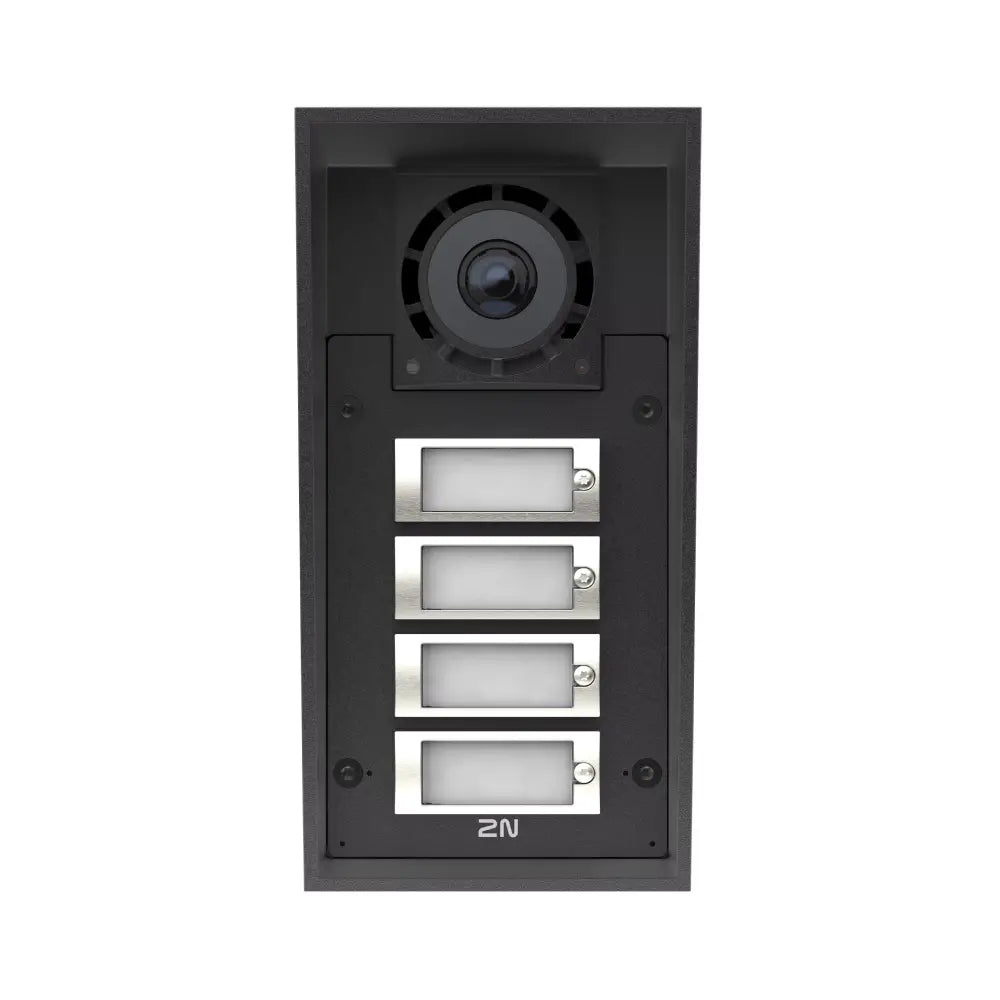

The 2N IP Force (Part Number: 01343-001 / 9151104CHW) stands as the world's toughest IP video intercom, engineered specifically for high-risk, extreme environmental conditions. Perfectly suited for commercial building entryways, industrial facilities, public infrastructure, and secure access zones, this premium door station seamlessly bridges the gap between enterprise access control and network video surveillance. Combining a bright, backlit 4-button array with a crystal-clear HD camera, it gives security teams absolute control over visitor verification even in the most intense operational settings.
Resolution
960p HD Clarity
Night Vision
Infrared Support
Protection
IP69K & IK10 Rated
Enterprise Integration, SIP Protocols, and Uncompromising Audio
Beyond its military-grade outer shell, this station acts as a powerful edge network node. Operating on the universal SIP 2.0 protocol, the AXIS 2N IP Force HD Intercom directly integrates into your existing IP telephony PBX, VMS platforms, or ONVIF-compliant CCTV ecosystems without needing expensive specialized servers. Voice communication remains impeccably clear in howling winds or roaring traffic thanks to a dual-microphone setup paired with a booming 10W speaker and an intelligent acoustic echo-cancelling (AEC) algorithm. Security operators can leverage features like picture-to-email snapshots, automated time profiles, and dual electronic lock relays to establish a comprehensive physical perimeter control system.
Uncompromising Anti-Vandal Engineering
Constructed from high-grade aluminum casting with a durable powder-coated finish, the unit boasts dual IP69K and IK10 certifications. It fully resists high-pressure hot water jets, dust ingress, and heavy blunt force impact from vandals or machinery.
Advanced Access Control & Tracking
Equipped with 4 transparent, white-backlit mechanical buttons with customizable name tag windows. Features integrated software capability for managing time-restricted access profiles, security tamper alert relays, and remote web-based setup configuration.
Technical Specification Matrix
| Camera Model |
AXIS 2N IP Force (01343-001) |
| Signalling Protocol |
SIP 2.0 (RFC - 3261) |
| Video Resolution |
Up to 1280 x 960 (HD 960p) |
| Camera Field of View |
135° Horizontal / 109° Vertical |
| Audio Output |
10W Class-D Amplifier / 94 dB Sound Pressure |
| Microphone Array |
2 Integrated Omnidirectional Microphones with AEC |
| Environmental Ratings |
IP65, IP69K Waterproof & IK10 Impact Vandalproof |
| Power Inputs |
PoE 802.3af (Class 0 - 12.95W) or 12V DC / 2A |
| Operating Temperature |
-40°C to +55°C (-40°F to 131°F) |
Does this model require a dedicated server to manage calls?
No, because it natively supports the standard SIP 2.0 protocol. It can run in peer-to-peer mode over a local area network or directly register with any third-party IP PBX or VoIP system without proprietary central management hardware.
What is the difference between IP69K and standard IP66 ratings?
IP66 only protects against heavy seas or powerful water jets. The elite IP69K rating ensures this intercom is completely hermetic against high-pressure, close-range steam and washdown procedures, ensuring absolute resilience in harsh weather or industrial bays.
Can this intercom directly trip gates or electronic locks?
Yes. The AXIS 2N IP Force includes an integrated passive switch relay and an active 12V output. This allows you to directly wire and control heavy-duty strike plates, magnetic locks, or automatic garage gate motors directly from the intercom edge switch.
Is this intercom compliant with government security procurement standards?
Absolutely. This device is fully certified as NDAA and TAA compliant, making it authorized for use in critical government infrastructure, airports, military applications, and state installations.
