Dahua DHI-VTO4202F-P-S3 2MP 2-Wire IP Modular Apartment Door Station

Description

Dahua Pro Series · 2-Wire IP

Dahua DHI-VTO4202F-P-S3 modular apartment door station

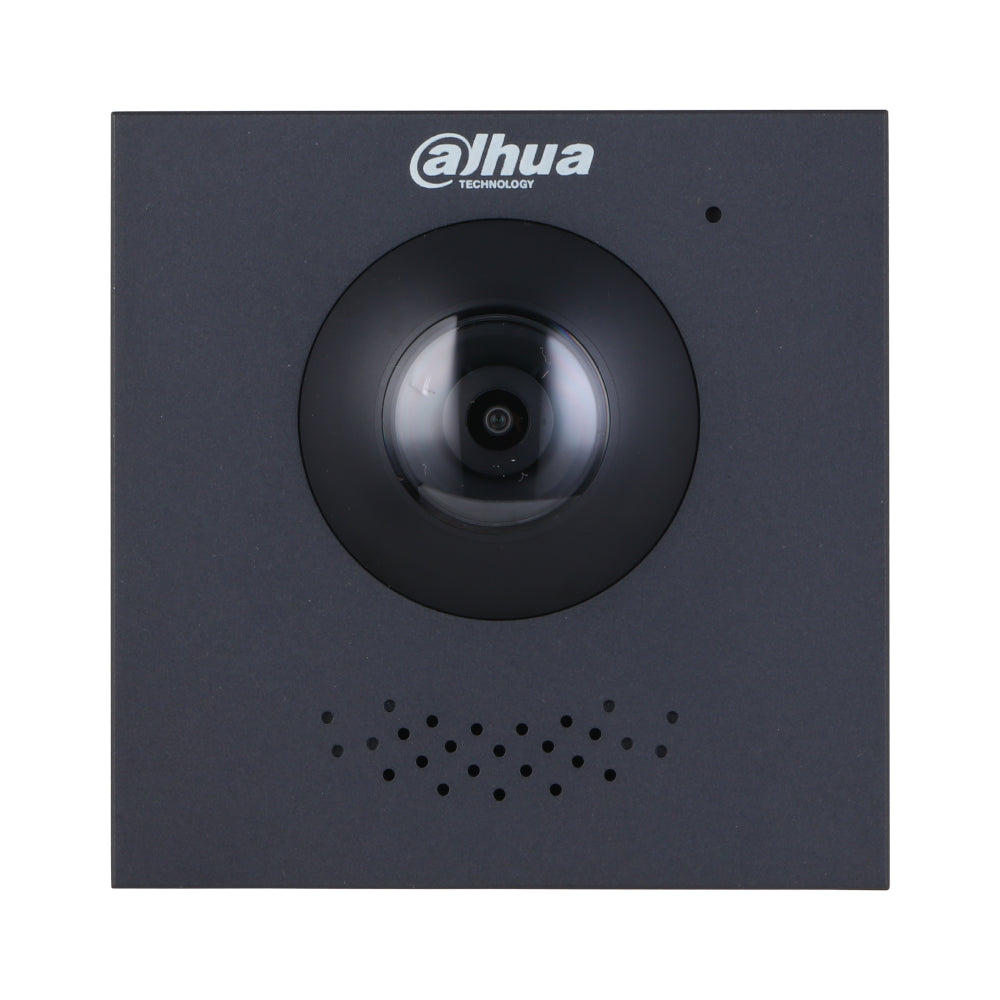

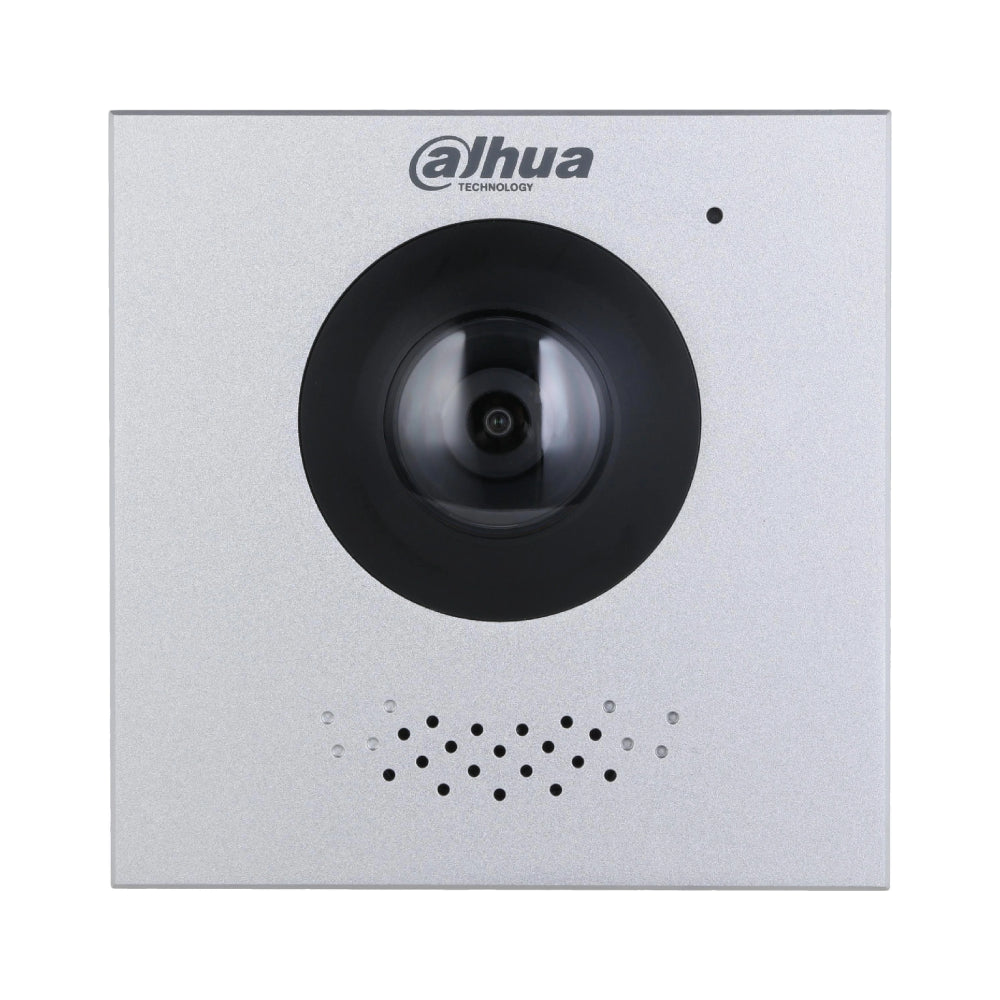

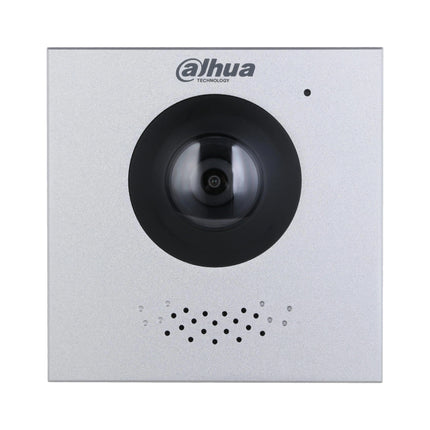

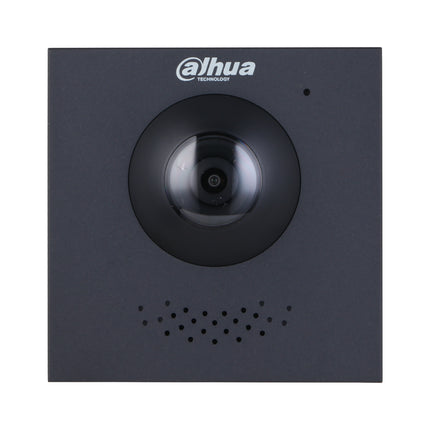

The Dahua DHI-VTO4202F-P-S3 is the camera core for a scalable Dahua 2-wire IP apartment intercom. Its 2MP 1/2.9-inch CMOS fisheye camera provides a 168.6° horizontal view, with 120 dB WDR, Auto IR and two-way audio for clear visitor verification at shared entrances. Choose the white DHI-VTO4202F-P-S3 or black DHI-VTO4202FB-P-S3 front to suit the installation.

Camera
2MP · 168.6° fisheye · 120 dB WDR
System
2-wire IP · RJ45 · SIP
Power
2-wire · 48 V DC · PoE
Protection
IP65 · IK07 · aluminium

Build the entrance around the module

This is the main camera module, not a complete intercom kit. Pair it with the required Dahua call-button or access module, a compatible Dahua 2-wire switch or PoE network, a compatible Dahua indoor monitor, and the correct surface- or flush-mount hardware for the apartment layout. It supports remote communication and unlock functions in a correctly configured Dahua system.

Upgrade-friendly 2-wire IP design

Use a compatible Dahua 2-wire switch to reuse suitable two-wire cabling, or connect through the 10/100 Mbps RJ45 port and IEEE 802.3af/at PoE. Dahua specifies a maximum 50 m power-supply distance when using its 2-wire switch.

Storage and access control

Supports a microSD card up to 256GB, card capacity for up to 3,000 users, one lock-control circuit, door-status detection, exit-button input and a 12 V DC/600 mA power output.

Technical Specifications
Models DHI-VTO4202F-P-S3 (white) / DHI-VTO4202FB-P-S3 (black)
Camera 1/2.9-inch 2MP CMOS; 168.6° H / 87.1° V / 176.7° D field of view
Video and audio H.265/H.264; 120 dB WDR; 3D NR; Auto IR; built-in speaker; two-way audio with echo suppression and digital noise reduction
Network and protocols Digital 2-wire; 1 × 10/100 Mbps RJ45; IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP and SIP
Storage and capacity microSD card support up to 256GB; card capacity up to 3,000 users
Access control Remote unlock; 1 lock-control circuit; door-status detection; exit-button input; tamper alarm; 12 V DC/600 mA output
Power Compatible Dahua 2-wire switch, 48 V DC/1 A, or IEEE 802.3af/at PoE
Mounting and protection Surface or flush mount; aluminium housing; IP65 and IK07
Outdoor environment –30°C to +60°C; 100 × 100 × 49.4 mm
Is the DHI-VTO4202F-P-S3 a complete intercom kit?

No. It is the camera module for a Dahua modular apartment intercom. Select the required call-button or access module, compatible switch or network, indoor monitor and mounting parts separately.

Can it reuse existing two-wire cabling?

Yes, when designed with a compatible Dahua 2-wire switch. Dahua specifies a maximum 50 m power-supply distance for that method; confirm the cabling and system layout with the installer.

Can it use PoE?

Yes. It supports IEEE 802.3af/at PoE. Dahua specifies an IEEE 802.3at PSE switch if the 12 V DC/600 mA output is used to power a connected load.

Does it support local recording?

Yes. The door station supports a microSD card up to 256GB. The compatible WD Purple 128GB/256GB card is available under Add Ons & Accessories.

What does IP65 protection require?

The station is rated IP65 and IK07, but Dahua specifies that the enclosure must be sealed as directed in the quick start guide. Use the correct surface or flush hardware for the selected module layout.

DHI-VTO4202F-P-S3 Datasheet (PDF) DHI-VTO4202F-P-S3 Quick Start Guide (PDF) DHI-VTO4202F-P-S3 User Manual (PDF)

Dahua DHI-VTO4202F-P-S3 2MP 2-Wire IP Modular Apartment Door Station

Product form

SKU: DHI-VTO4202F-P-S3

$239.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Dahua Pro Series · 2-Wire IP

    Dahua DHI-VTO4202F-P-S3 modular apartment door station

    The Dahua DHI-VTO4202F-P-S3 is the camera core for a scalable Dahua 2-wire IP apartment intercom. Its 2MP 1/2.9-inch CMOS fisheye camera provides a 168.6° horizontal view, with 120 dB WDR, Auto IR and two-way audio for clear visitor verification at shared entrances. Choose the white DHI-VTO4202F-P-S3 or black DHI-VTO4202FB-P-S3 front to suit the installation.

    Camera
    2MP · 168.6° fisheye · 120 dB WDR
    System
    2-wire IP · RJ45 · SIP
    Power
    2-wire · 48 V DC · PoE
    Protection
    IP65 · IK07 · aluminium

    Build the entrance around the module

    This is the main camera module, not a complete intercom kit. Pair it with the required Dahua call-button or access module, a compatible Dahua 2-wire switch or PoE network, a compatible Dahua indoor monitor, and the correct surface- or flush-mount hardware for the apartment layout. It supports remote communication and unlock functions in a correctly configured Dahua system.

    Upgrade-friendly 2-wire IP design

    Use a compatible Dahua 2-wire switch to reuse suitable two-wire cabling, or connect through the 10/100 Mbps RJ45 port and IEEE 802.3af/at PoE. Dahua specifies a maximum 50 m power-supply distance when using its 2-wire switch.

    Storage and access control

    Supports a microSD card up to 256GB, card capacity for up to 3,000 users, one lock-control circuit, door-status detection, exit-button input and a 12 V DC/600 mA power output.

    Technical Specifications
    Models DHI-VTO4202F-P-S3 (white) / DHI-VTO4202FB-P-S3 (black)
    Camera 1/2.9-inch 2MP CMOS; 168.6° H / 87.1° V / 176.7° D field of view
    Video and audio H.265/H.264; 120 dB WDR; 3D NR; Auto IR; built-in speaker; two-way audio with echo suppression and digital noise reduction
    Network and protocols Digital 2-wire; 1 × 10/100 Mbps RJ45; IPv4, RTSP, UDP, DNS, P2P, UPnP, RTP, TCP and SIP
    Storage and capacity microSD card support up to 256GB; card capacity up to 3,000 users
    Access control Remote unlock; 1 lock-control circuit; door-status detection; exit-button input; tamper alarm; 12 V DC/600 mA output
    Power Compatible Dahua 2-wire switch, 48 V DC/1 A, or IEEE 802.3af/at PoE
    Mounting and protection Surface or flush mount; aluminium housing; IP65 and IK07
    Outdoor environment –30°C to +60°C; 100 × 100 × 49.4 mm
    Is the DHI-VTO4202F-P-S3 a complete intercom kit?

    No. It is the camera module for a Dahua modular apartment intercom. Select the required call-button or access module, compatible switch or network, indoor monitor and mounting parts separately.

    Can it reuse existing two-wire cabling?

    Yes, when designed with a compatible Dahua 2-wire switch. Dahua specifies a maximum 50 m power-supply distance for that method; confirm the cabling and system layout with the installer.

    Can it use PoE?

    Yes. It supports IEEE 802.3af/at PoE. Dahua specifies an IEEE 802.3at PSE switch if the 12 V DC/600 mA output is used to power a connected load.

    Does it support local recording?

    Yes. The door station supports a microSD card up to 256GB. The compatible WD Purple 128GB/256GB card is available under Add Ons & Accessories.

    What does IP65 protection require?

    The station is rated IP65 and IK07, but Dahua specifies that the enclosure must be sealed as directed in the quick start guide. Use the correct surface or flush hardware for the selected module layout.

    DHI-VTO4202F-P-S3 Datasheet (PDF) DHI-VTO4202F-P-S3 Quick Start Guide (PDF) DHI-VTO4202F-P-S3 User Manual (PDF)
