Dahua · DHI-VTH5422HW · 7" 2-Wire IP Indoor Monitor · H.265 Two-Way2-Wire IP MonitorDahua DHI-VTH5422HW 7" 2-Wire IP / PoE Indoor Monitor

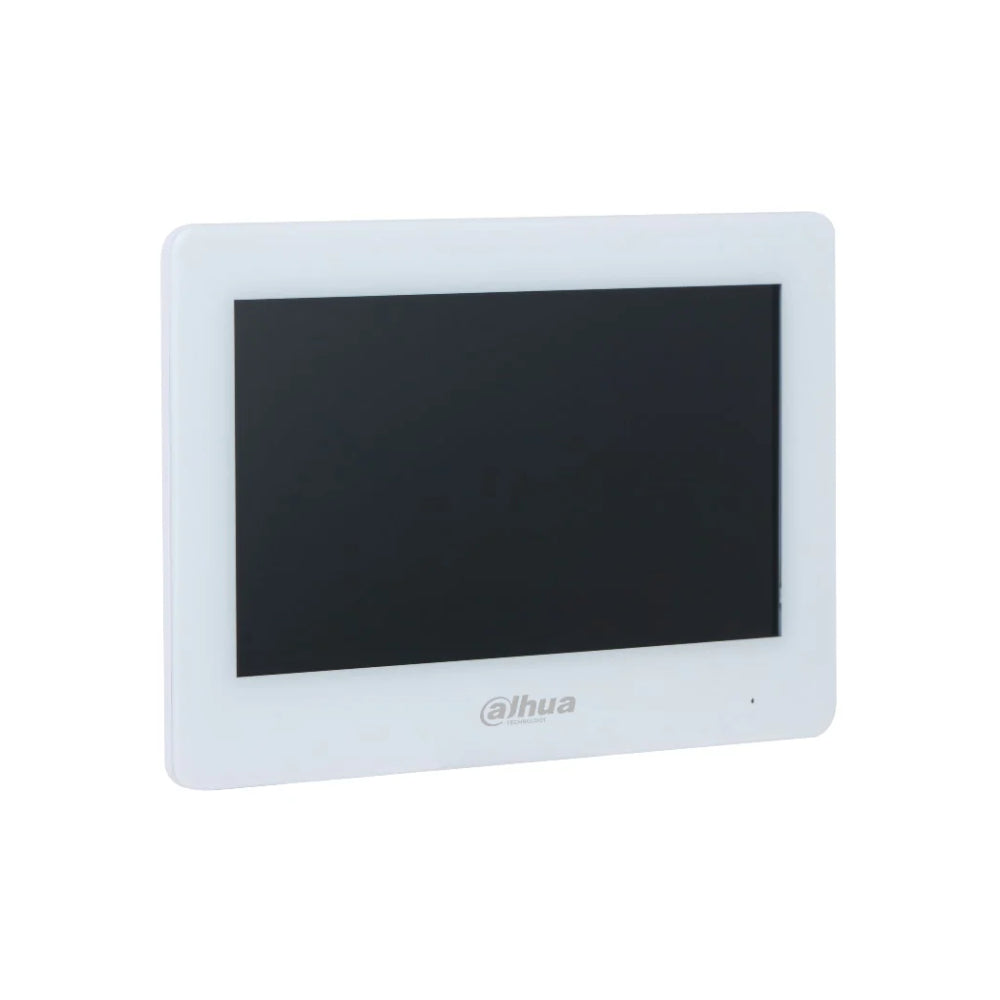

The Dahua DHI-VTH5422HW is a white 7-inch indoor monitor for Dahua digital two-wire IP systems, with an alternative Ethernet/standard PoE connection. The non-W model listed here does not include Wi-Fi. It provides a local screen for visitor calls and compatible camera viewing; use a matched door station and the correct system wiring.
Wiring: 2-Wire IP / Ethernet PoE
This exact VTH5422HW monitor supports Dahua digital two-wire IP or Ethernet with standard PoE. It is not the VTH5422HW-W Wi-Fi version and does not have built-in Wi-Fi. A compatible two-wire IP switch is needed for a two-wire installation; it is not a two-wire hybrid or four-wire analogue monitor.
Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
Two-wire IP or Ethernet
Choose the supported digital two-wire system or standard PoE network connection. This exact non-W model has no built-in Wi-Fi.
See doors and cameras
View your door stations and IP cameras directly on screen with efficient H.265/H.264 decoding for smooth, low-bandwidth live feeds.
Smart everyday living
SOS alarm, do-not-disturb scheduling, message info release and video messaging via micro SD make daily use comfortable and secure.
Layered alarm input
Six alarm inputs and one alarm output support suitable wired alarm integration; check the exact terminal ratings in the installation manual.
Technical specifications
| Wiring platform |
2-Wire IP / Ethernet PoE |
| Wiring power requirements |
Compatible Dahua two-wire IP switch or standard PoE |
| Screen |

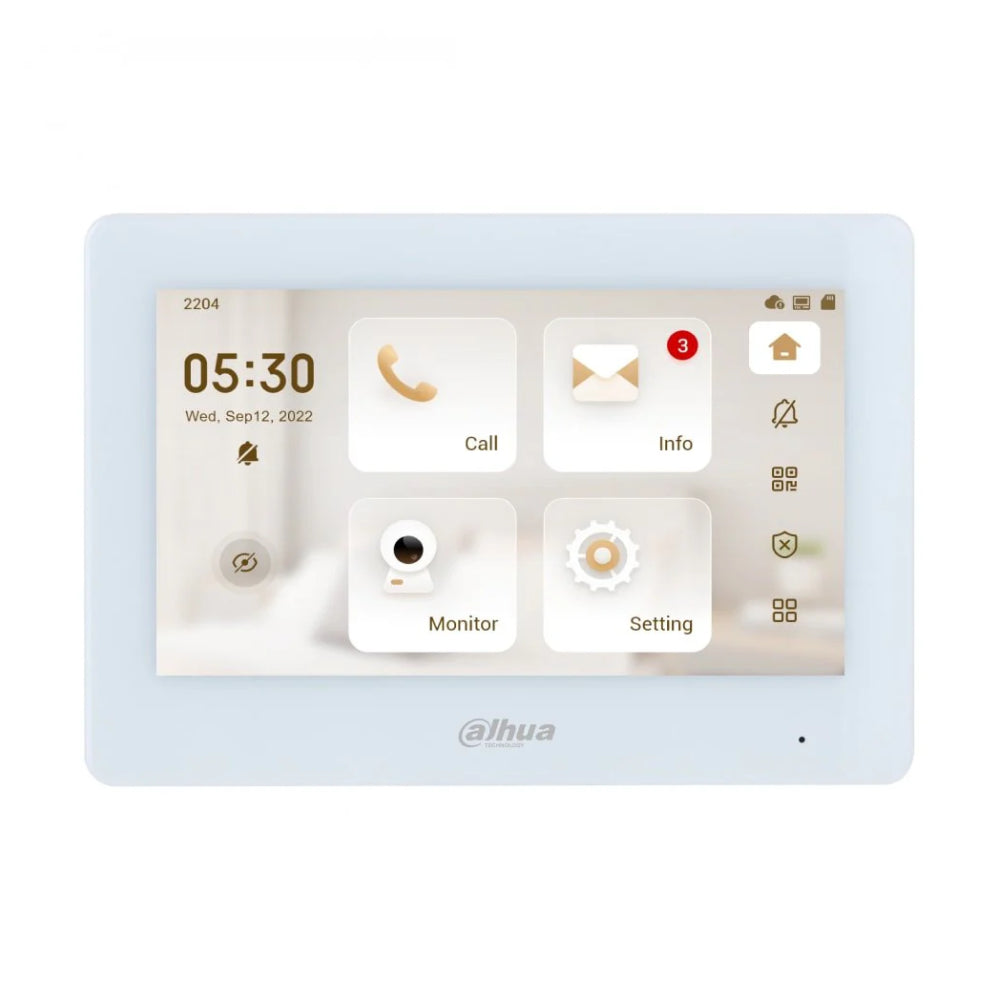

7" TFT capacitive touchscreen |
| Resolution |
1024 × 600 |
| Colour |
White (also available in black) |
| Operating System |
Embedded Linux |
| Communication |
Digital 2-wire |
| Video Decoding |
H.265 / H.264 (H.264 by default) |
| Wi-Fi |
Not supported on VTH5422HW; VTH5422HW-W is a different model |
| Audio |
Two-way with echo suppression |
| Alarm I/O |
6-channel input / 1-channel output |
| Storage |
Micro SD, up to 64 GB |
| Network |
10/100 Mbps Ethernet or 2-wire port |
| Power Supply |
Compatible Dahua two-wire IP switch or standard PoE |
| Mounting |

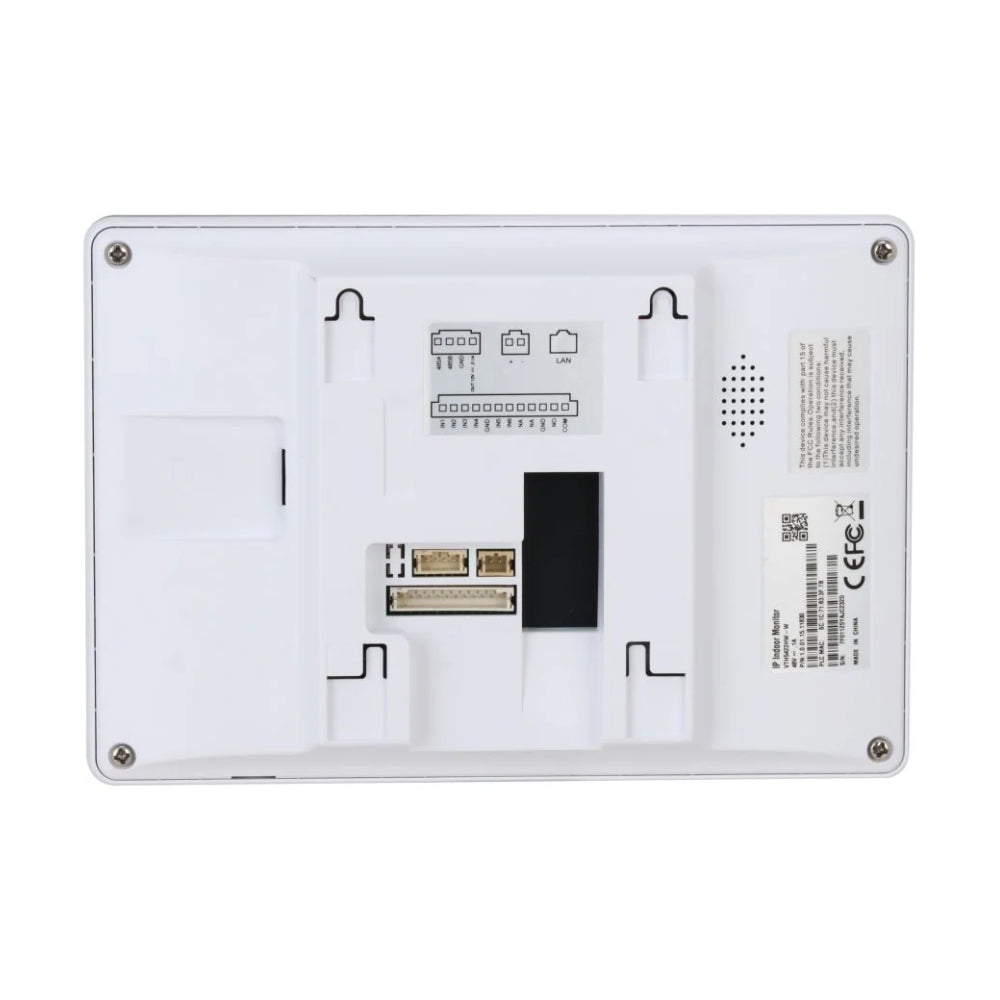

Surface mount |
| Dimensions |
189 × 130 × 26.9 mm |
| Warranty |
2 years · CCTV Guru Australia |
Downloads
Frequently asked questions
Which wiring system does this product use?This exact VTH5422HW monitor supports Dahua digital two-wire IP or Ethernet with standard PoE. It is not the VTH5422HW-W Wi-Fi version and does not have built-in Wi-Fi. A compatible two-wire IP switch is needed for a two-wire installation; it is not a two-wire hybrid or four-wire analogue monitor.
Can I reuse my existing intercom cable?Existing cable can be reused only after checking conductor size, cable condition, distance, polarity where applicable and the manufacturer’s wiring diagram. Matching the wire count alone does not establish compatibility. Locks, gate controls and their power requirements must be checked separately.
Does VTH5422HW have Wi-Fi?No. This listing is the non-W VTH5422HW. Do not confuse it with the separate VTH5422HW-W model.
