Dahua VTM52R2 Surface-Mount Box & Rain Cover — 2-Module VTO4202F Door Station

Description

Dahua Modular Intercom · Surface Mount + Rain Cover

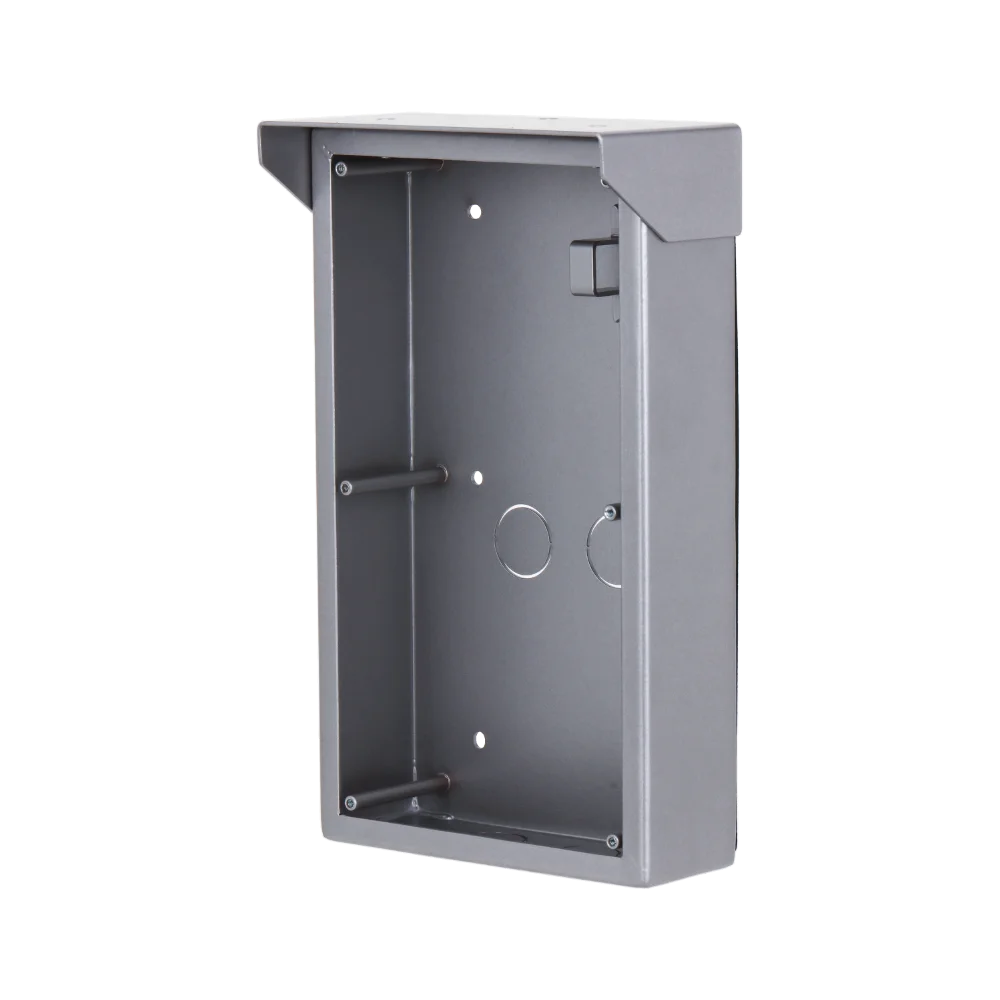

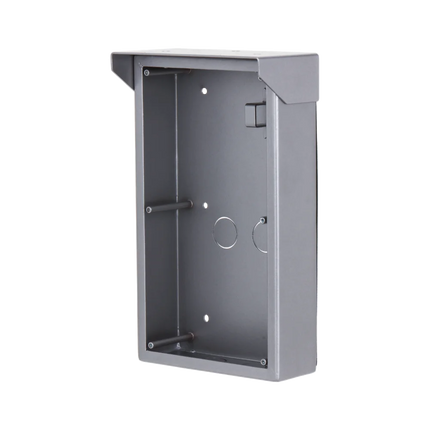

The Dahua VTM52R2 is a 2-module surface-mount box with an integrated rain cover for the Dahua VTO4202F modular door station. Its IP65-rated aluminium housing shields the modules from sun and rain, extending service life at exposed apartment and villa entrances. Pairs with the VTO4202F camera module plus one function module (button, keypad or card reader) in a two-module layout.

Capacity
2-Module Layout
Mounting
Surface + Rain Cover
Protection
IP65 Weatherproof
Build
AL 5052 Aluminium · Silver

Technical Specifications

Dahua VTM52R2
Type Surface-mount box with integrated rain cover
Capacity 2-module VTO4202F layout
Material AL 5052 aluminium
Colour Silver
Protection IP65
Dimensions 241.2 × 144.8 × 72.5 mm
Weight 0.64 kg

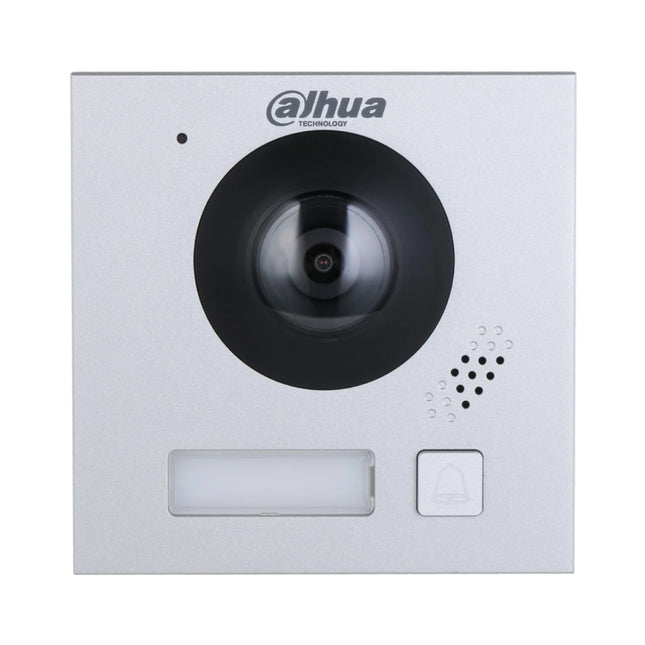

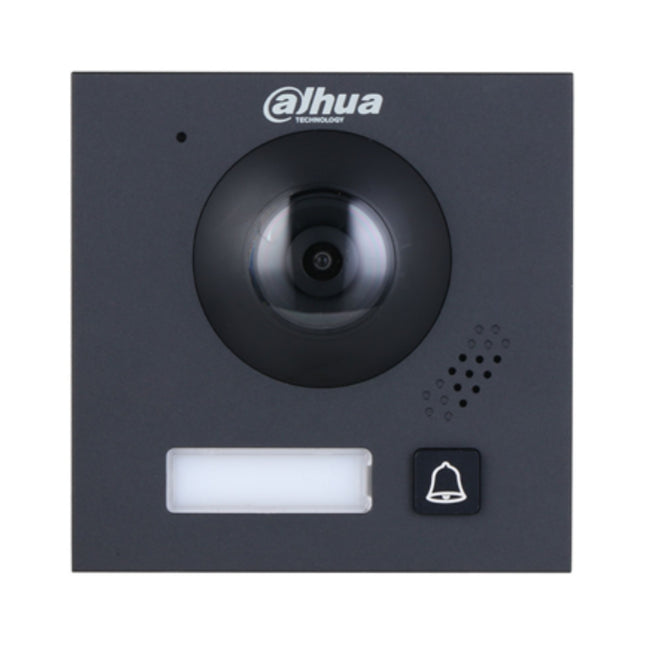

Compatibility Dahua VTO4202F / VTO4202FB modular door station

Frequently Asked Questions

What is the VTM52R2 for?
It's a surface-mount box with an integrated rain cover that houses a 2-module Dahua VTO4202F door station and protects it from sun and rain.
How many modules does it fit?

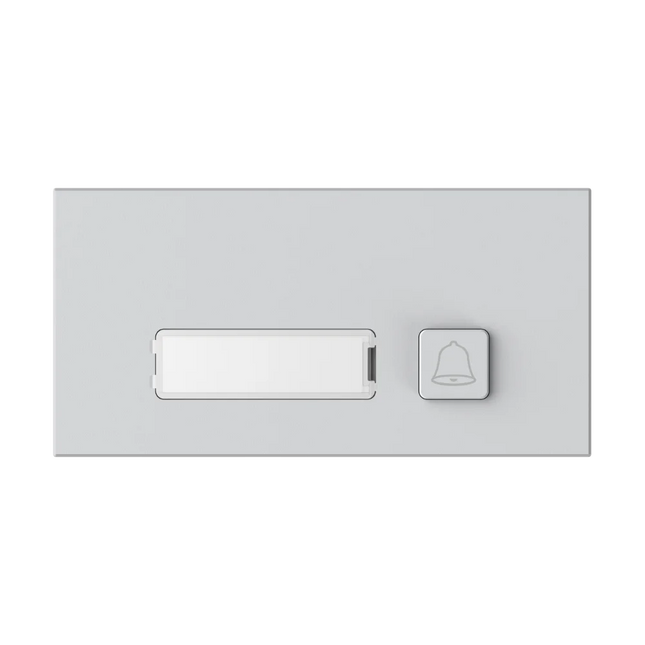

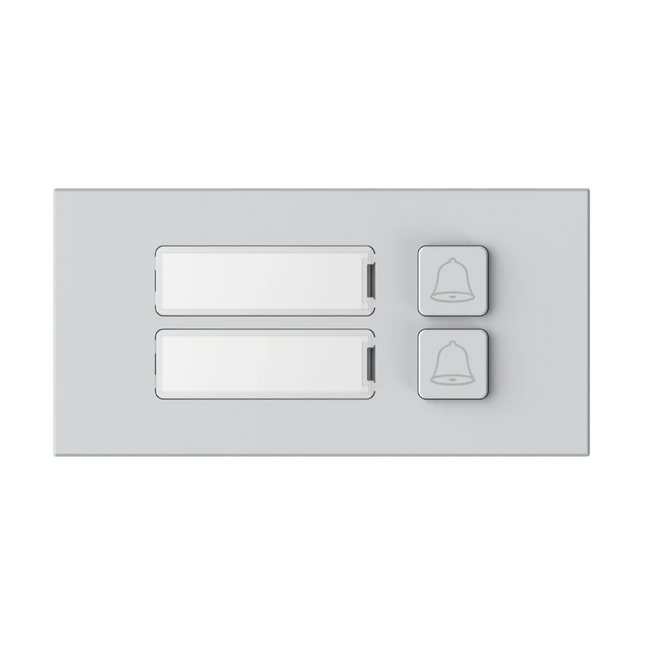

Two — for example the VTO4202F camera module plus one button, keypad or card-reader module.
Does it need an outer frame?

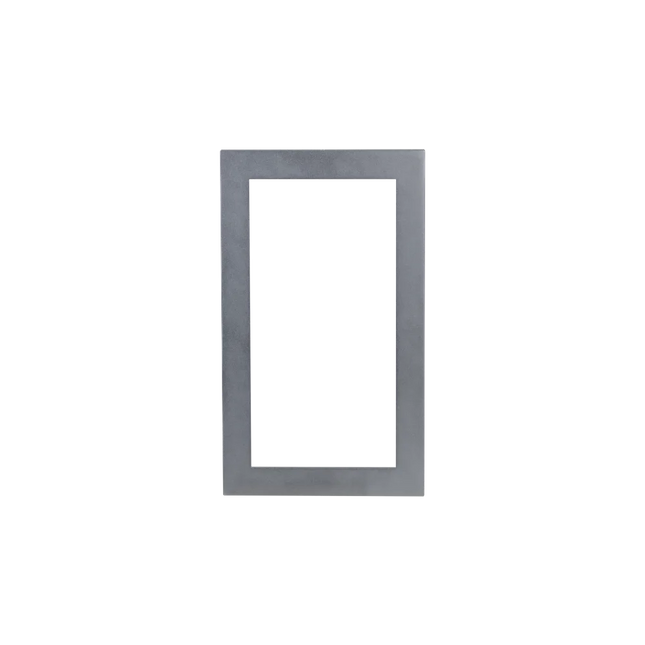

Yes. Dahua specifies the VTM125 two-module outer frame with this box; confirm the frame and module layout before installation.
Is it weatherproof?
Yes. The aluminium housing is IP65-rated for outdoor entrances when installed correctly.
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

Dahua VTM52R2 Surface-Mount Box & Rain Cover — 2-Module VTO4202F Door Station

Product form

SKU: DH-VTM52R2

$99.00 Incl. GST

    • PayPal
    • Apple Pay
    • Visa
    • Mastercard
    • American Express
    • Zip
    • Afterpay

    Add Ons & Accessories

    • Shipped today? Order within: Sep 04, 2026 14:00:00 +1000
    • Warranty: 36 months
    • 30 day Money Back Guarantee
    • Australian Stocks & Express Delivery
    • Back-to-base Warranty & Tech Support
    • FREE Shipping over $180

    Description

    Dahua Modular Intercom · Surface Mount + Rain Cover

    The Dahua VTM52R2 is a 2-module surface-mount box with an integrated rain cover for the Dahua VTO4202F modular door station. Its IP65-rated aluminium housing shields the modules from sun and rain, extending service life at exposed apartment and villa entrances. Pairs with the VTO4202F camera module plus one function module (button, keypad or card reader) in a two-module layout.

    Capacity
    2-Module Layout
    Mounting
    Surface + Rain Cover
    Protection
    IP65 Weatherproof
    Build
    AL 5052 Aluminium · Silver

    Technical Specifications

    Dahua VTM52R2
    Type Surface-mount box with integrated rain cover
    Capacity 2-module VTO4202F layout
    Material AL 5052 aluminium
    Colour Silver
    Protection IP65
    Dimensions 241.2 × 144.8 × 72.5 mm
    Weight 0.64 kg
    Compatibility Dahua VTO4202F / VTO4202FB modular door station

    Frequently Asked Questions

    What is the VTM52R2 for?
    It's a surface-mount box with an integrated rain cover that houses a 2-module Dahua VTO4202F door station and protects it from sun and rain.
    How many modules does it fit?
    Two — for example the VTO4202F camera module plus one button, keypad or card-reader module.
    Does it need an outer frame?
    Yes. Dahua specifies the VTM125 two-module outer frame with this box; confirm the frame and module layout before installation.
    Is it weatherproof?
    Yes. The aluminium housing is IP65-rated for outdoor entrances when installed correctly.
