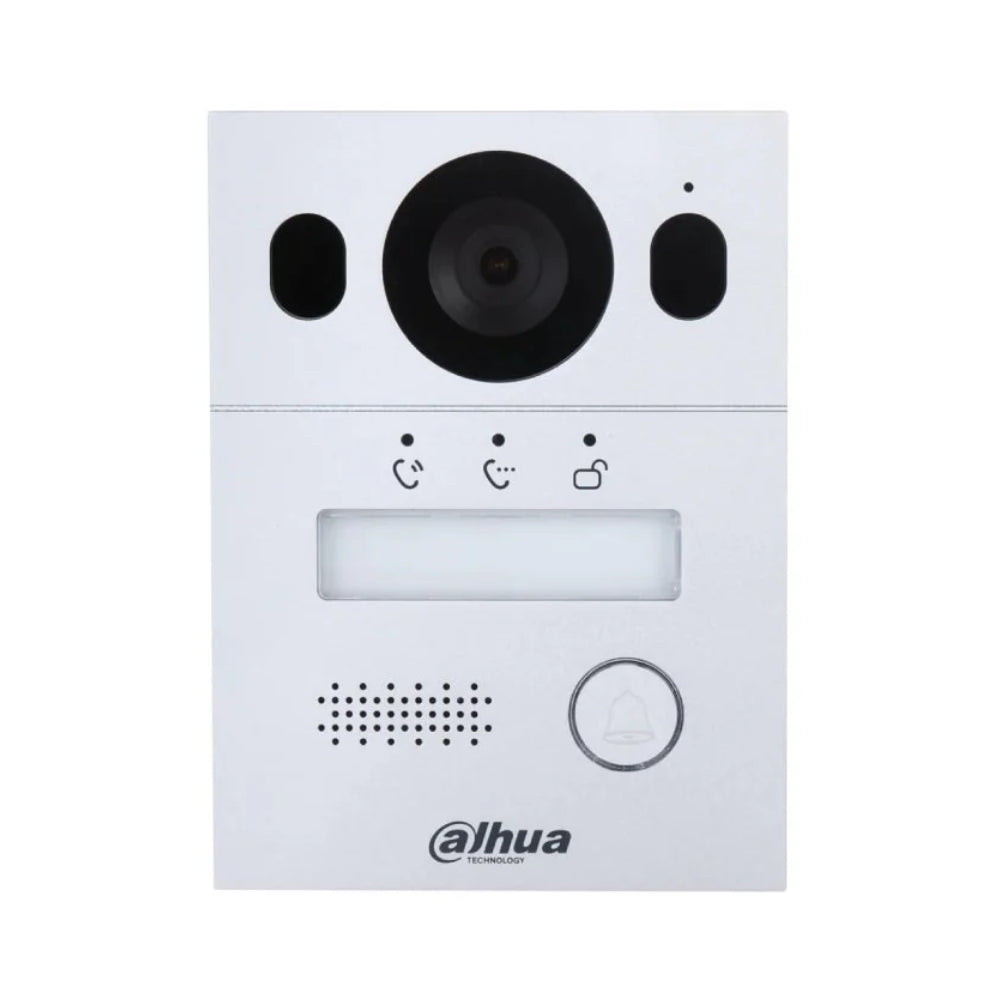

Dahua · DHI-VTO2003F · 2-Wire Hybrid Villa Door Station · Aluminium Alloy Panel
2-Wire Villa Station
Dahua DHI-VTO2003F 2-Wire Hybrid Villa Door Station — 2MP Camera, Auto IR & Video Messaging

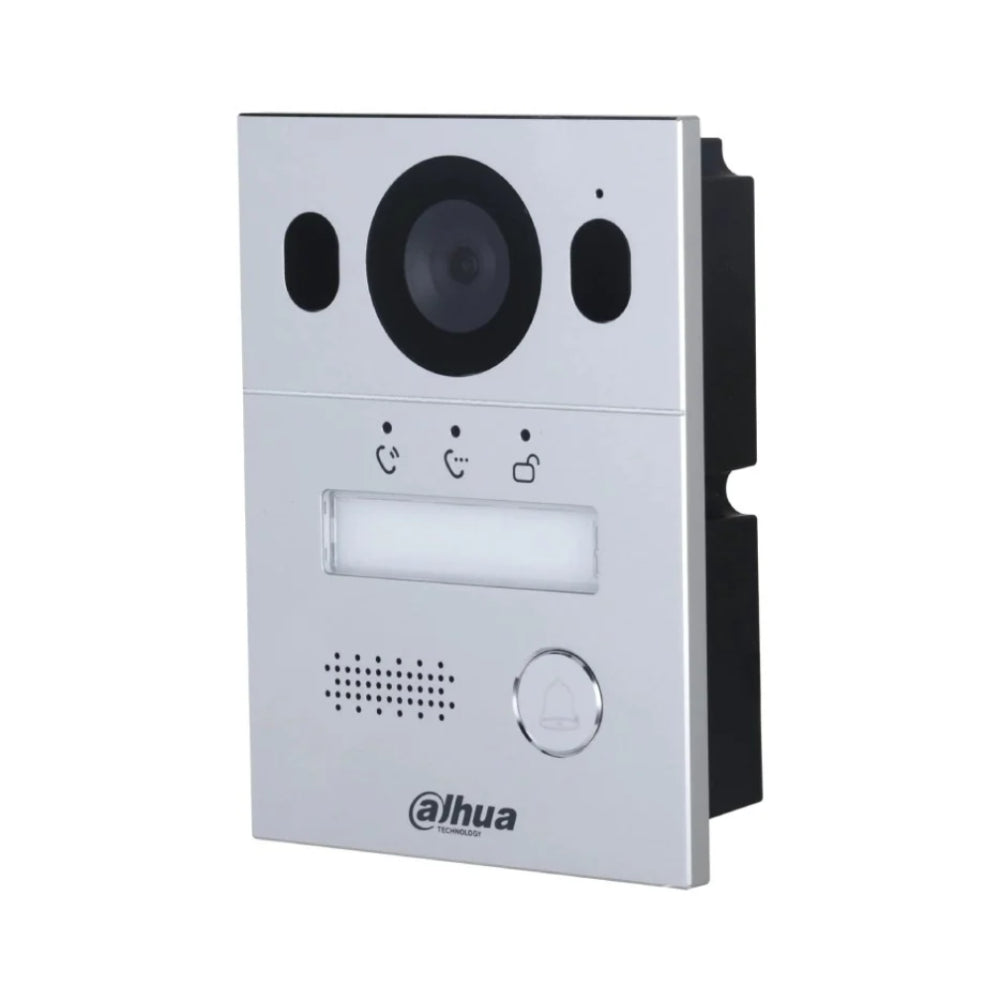

The Dahua DHI-VTO2003F is a 2-wire hybrid villa door station with a sleek aluminium alloy front panel and a clear 2MP camera. It offers half-duplex video intercom, auto IR illumination for night-time visitors, and video messaging that records unanswered calls (SD card in the indoor monitor required). With dual-lock control and IP65/IK07 ratings, it is a tidy, durable choice for homes and villas.
Simple 2-Wire Wiring
The hybrid 2-wire design keeps cabling minimal and retrofits straightforward, drawing power from a Dahua 2-wire controller. It is an easy upgrade for existing villa intercom runs.
Smart Aluminium Build

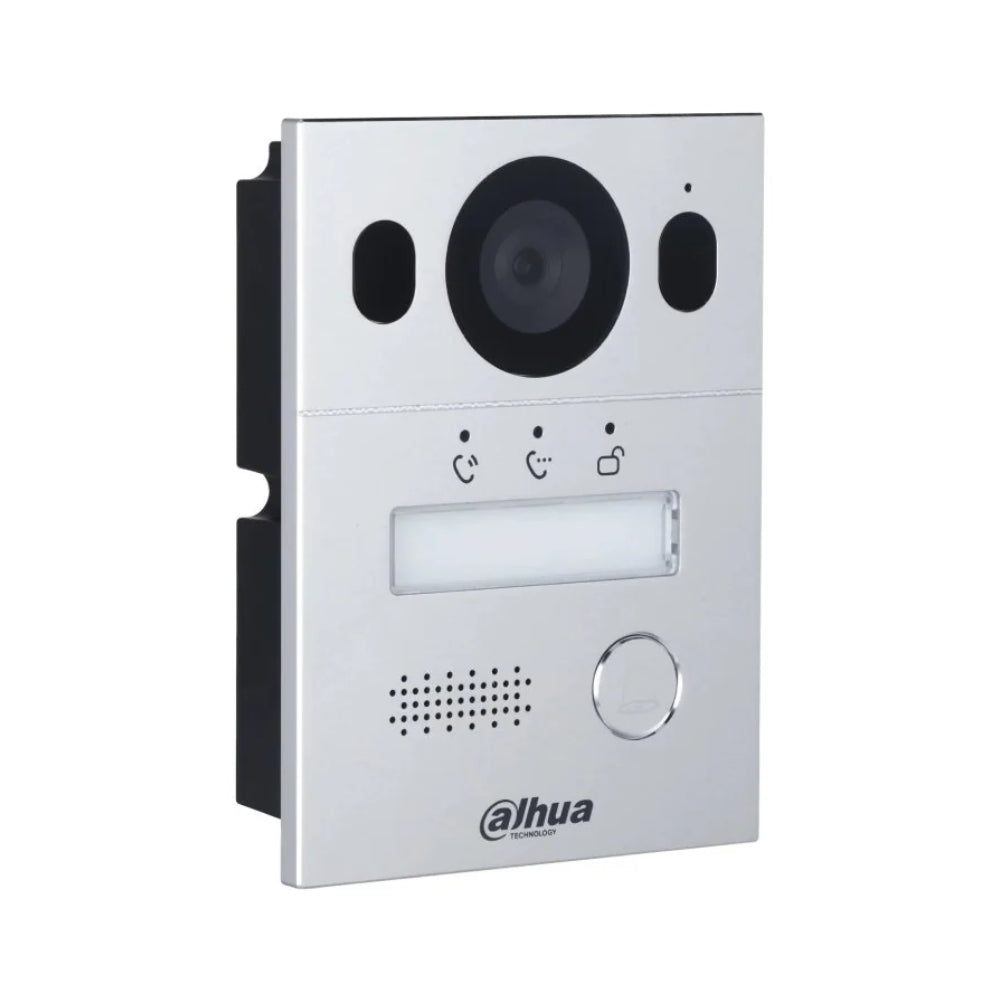

An aluminium alloy front panel with a nameplate gives a premium, weather-ready finish. IP65 and IK07 ratings protect against rain, dust and knocks at the door.
Never Miss a Visitor
Auto IR illumination keeps callers visible after dark, and video messaging records unanswered calls when an SD card is fitted in the paired indoor monitor.
Dual-Lock & Anti-Tamper

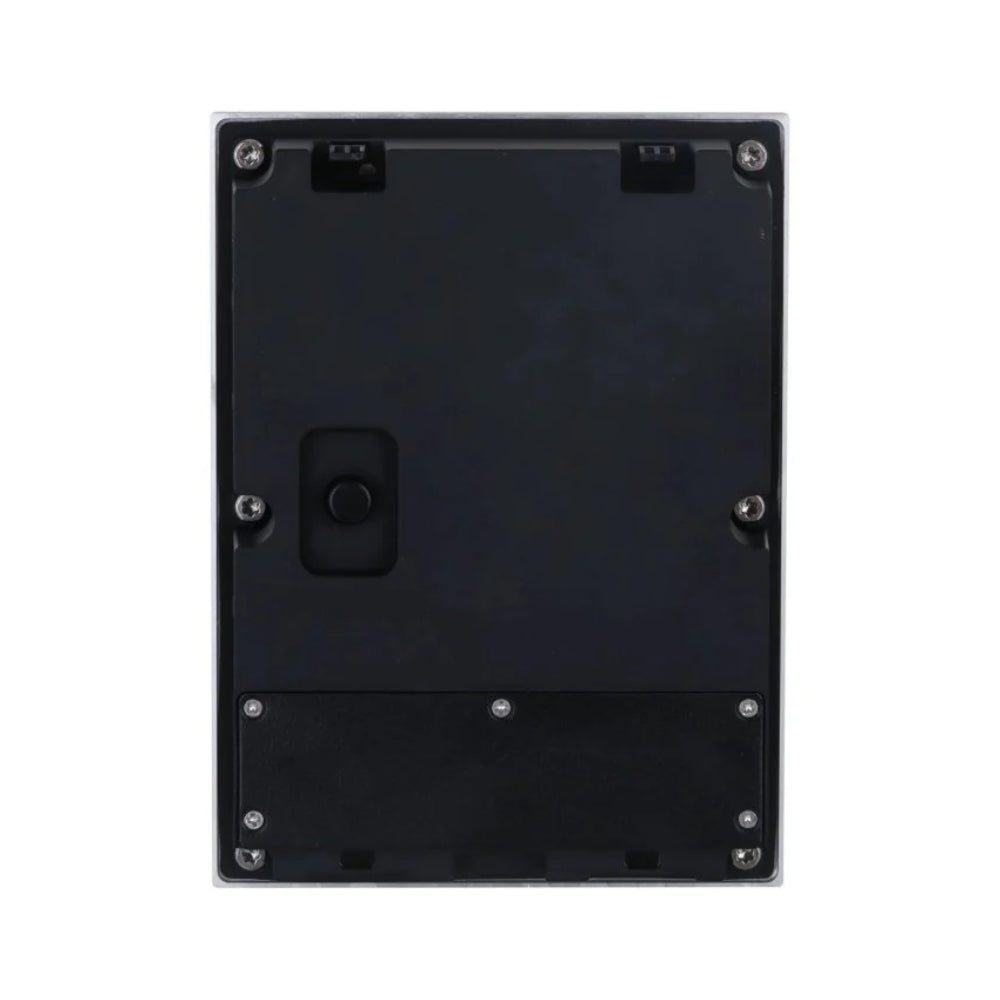

Control a local lock plus a second lock for a gate-and-door setup, with an anti-tampering alarm and DWDR for balanced exposure in mixed lighting.
Specifications — DHI-VTO2003F
| Type |
Villa / home 2-wire hybrid door station |
| Camera |
2MP with DWDR |
| Wiring |
2-Wire |
| Night Vision |
Auto IR illumination |
| Audio |
Half-duplex video intercom |
| Video Messaging |
Records unanswered calls (SD card in monitor required) |
| Lock Control |
Local lock + second lock |
| Security |
Anti-tampering alarm |
| Power |
Dahua 2-wire controller |
| Ingress / Impact |
IP65 · IK07 |
| Material / Mount |
Aluminium alloy · surface & flush mount |
| Pairs With |
Dahua 2-wire indoor monitors (VTH series) |
| Warranty |
3 years · CCTV Guru Australia |
Downloads & Resources
How is it wired?
The VTO2003F uses Dahua's 2-wire hybrid system and draws power from a Dahua 2-wire controller, keeping cabling simple for retrofits.
Does it record missed visitors?
Yes. It supports video messaging for unanswered calls, provided an SD card is installed in the paired Dahua indoor monitor.
Can it control two locks?
Yes — it supports a local lock plus a second lock, ideal for a gate and front-door combination.
Which indoor monitor does it pair with?
It pairs with Dahua 2-wire indoor monitors (VTH series). Ask our team for a matching monitor to complete the kit.
