Hikvision DS-KD9633-WBE6 Face Recognition IP Video Door Station — 10.1" Touch, Dual 2MP, IP65

Description

Hikvision · Ultra Series · Face Recognition

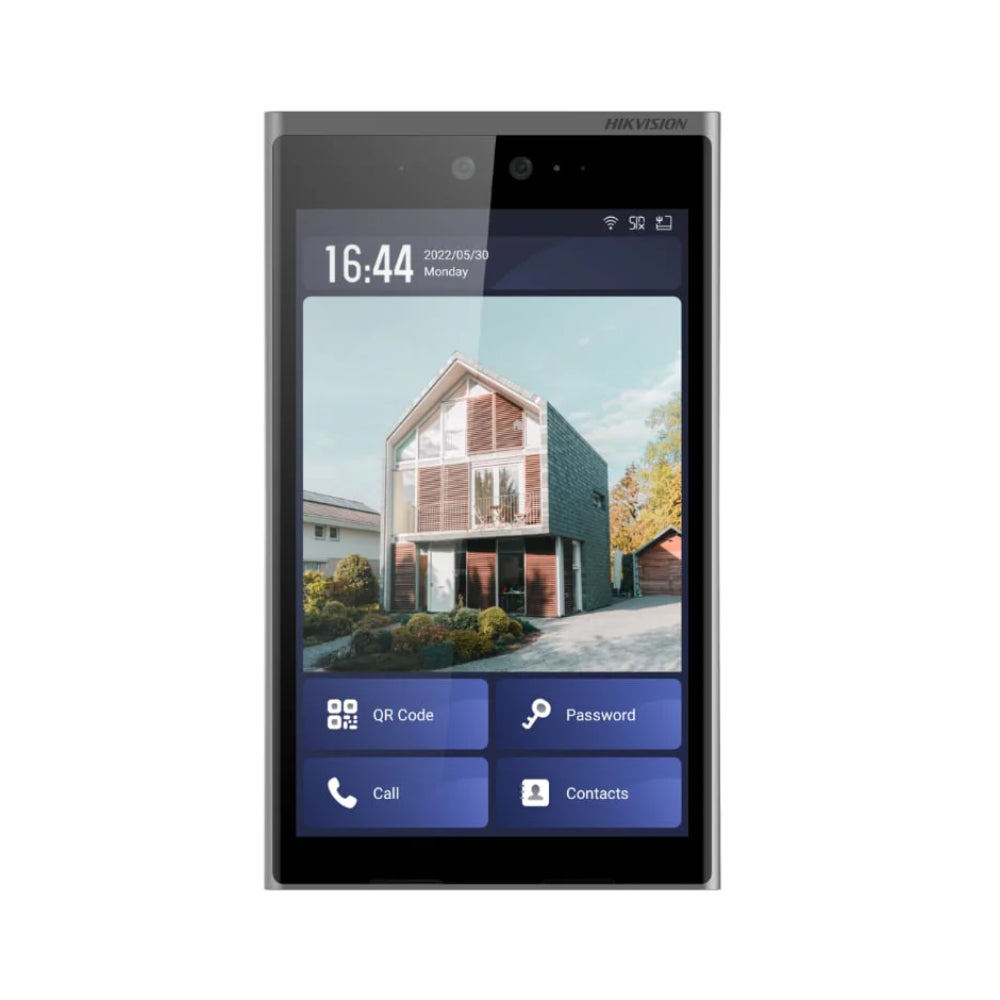

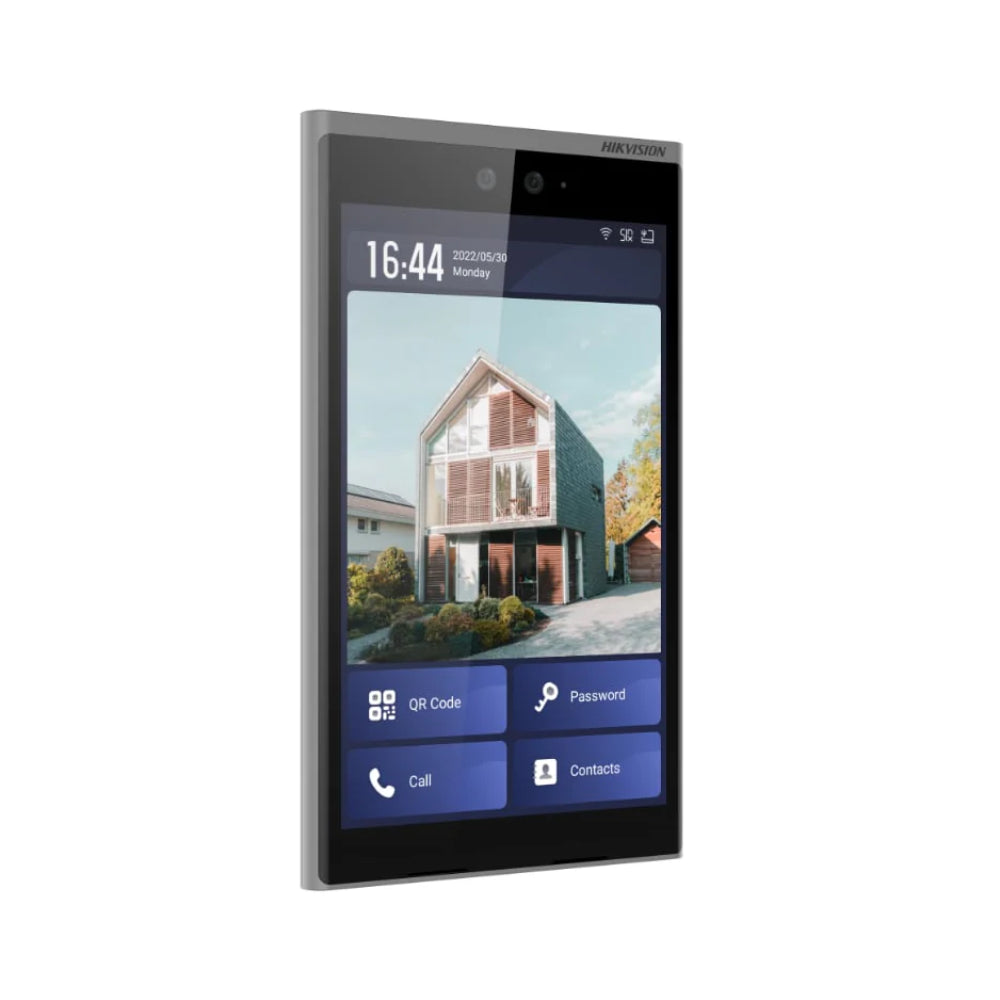

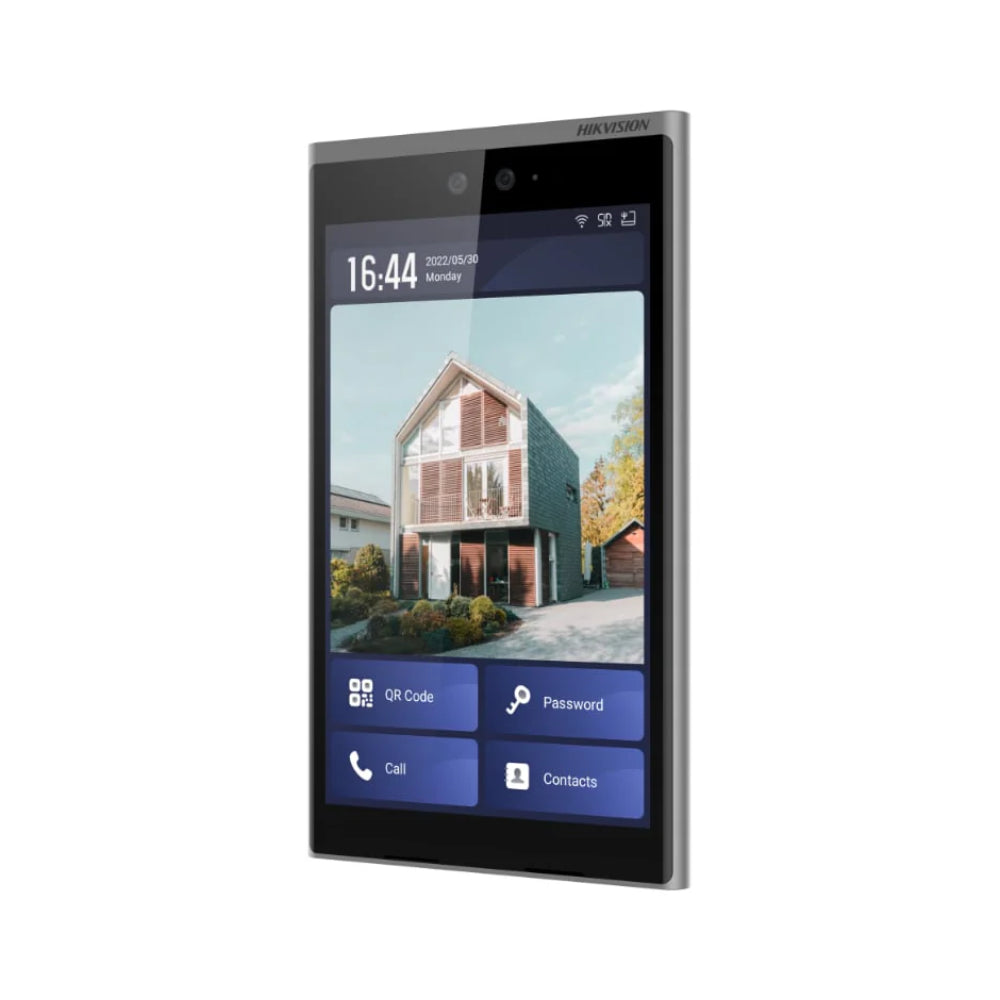

Hikvision DS-KD9633-WBE6 — Premium Face Recognition Video Door Station

The DS-KD9633-WBE6 is Hikvision's flagship Ultra Series IP video intercom door station, built around a 10.1" 2.5D curved IPS touch screen (1280×800, 410 cd/m²) running Android 7.1. Dual 2MP cameras deliver crisp 1920×1080 video across an 88°×44° field of view, with 120dB Digital WDR and IR illumination up to 3m for clear images day or night.

Authentication is fully multi-modal: face recognition (0.3–3m), fingerprint, RFID card, PIN, QR code and Bluetooth. With capacity for 10,000 faces, 20,000 users, 100,000 cards, 500 indoor stations and 16 sub-stations, it scales from a single villa to a large apartment complex. An anodised aluminium frame, IP65 weatherproofing and IK07 impact rating keep it rugged outdoors.

Display
10.1" IPS Touch
Cameras
Dual 2MP, WDR 120dB
Recognition
Face 0.3–3m
Rating
IP65 · IK07
Capacity
10,000 Faces
3-Year AU Warranty
Fast AU-Wide Shipping
AU Tech Support

What's Included

DS-KD9633-WBE6 Door Station
Face recognition outdoor station with 10.1" curved IPS touch screen.
Mounting Hardware
Surface or flush mount fixings for fast, secure installation.
Wiring Accessories
Connector kit for Gigabit Ethernet, RS-485, Wiegand and alarm I/O.
Quick Start Guide
Printed setup guide plus downloadable manuals below.

Why Choose DS-KD9633-WBE6

Touchless Entry
Fast face recognition from 0.3–3m for hands-free, secure access.
Five-Way Authentication
Face, fingerprint, card, PIN, QR code and Bluetooth in one unit.
Clear Dual-Camera Video
Two 2MP cameras with 120dB WDR and IR to 3m for sharp visitor ID.
Built for Outdoors
IP65 and IK07 anodised aluminium body across -30°C to +60°C.

Recommended For

Apartment Complexes
Supports up to 500 indoor stations and 16 sub-stations.
Premium Residences
Flagship touch-screen station for high-end homes and villas.
Commercial Entrances
Multi-credential access control for offices and managed buildings.
HikCentral Sites
Integrates with HikCentral for centralised intercom management.
Technical Specifications
Model DS-KD9633-WBE6
Display 10.1" 2.5D curved IPS touch, 1280×800, 410 cd/m²
Operating System Android 7.1, 4GB ROM / 2GB RAM
Cameras Dual 2MP (1920×1080), 88°×44° FOV
WDR / IR Digital WDR 120dB, IR up to 3m
Authentication Face, fingerprint, RFID card, PIN, QR code, Bluetooth
Face Distance 0.3–3m
Capacity 10,000 faces / 20,000 users / 100,000 cards
System Scale 500 indoor stations / 16 sub-stations
Audio Dual mics + speaker, echo/noise suppression, G.711U/A
Interfaces Gigabit Ethernet, Wiegand, RS-485, USB, alarm in/out, exit buttons
Protection IP65, IK07
Mounting Surface or flush mount
Power 12V DC, ≤18W
Operating Temp -30°C to +60°C
Dimensions / Weight 271×159.2×26.5mm, 1.265kg
Material Anodised aluminium frame
Compatibility HikCentral compatible

Downloads & Resources

DS-KD9633-WBE6 DatasheetPDF Hikvision Video Intercom Quick Start GuidePDF Hikvision Video Intercom User ManualPDF
Does the DS-KD9633-WBE6 support face recognition?
Yes — it recognises faces from 0.3–3m and stores up to 10,000 faces.
What screen does it have?
A 10.1" 2.5D curved IPS touch screen at 1280×800 and 410 cd/m².
How many ways can users unlock?
Face, fingerprint, RFID card, PIN, QR code and Bluetooth.
Is it weatherproof?
Yes — IP65 rated with IK07 impact resistance and an aluminium frame.
How is it powered?
12V DC, drawing 18W or less.
How many indoor stations does it support?
Up to 500 indoor stations and 16 sub-stations.
What cameras does it use?
Dual 2MP cameras with 120dB WDR and IR up to 3m.
Can it mount flush?
Yes — it supports both surface and flush mounting.
Does it work with HikCentral?
Yes — it is HikCentral compatible for centralised management.

Order the DS-KD9633-WBE6 today from CCTV Guru — genuine Australian stock, backed by our 3-Year AU Warranty, fast AU-wide shipping and local tech support.

Hikvision DS-KD9633-WBE6 Face Recognition IP Video Door Station — 10.1" Touch, Dual 2MP, IP65

Product form

SKU: DS-KD9633-WBE6
