Hikvision · 2MP Fisheye · Stainless
Premium Stainless-Steel Modular Door Station

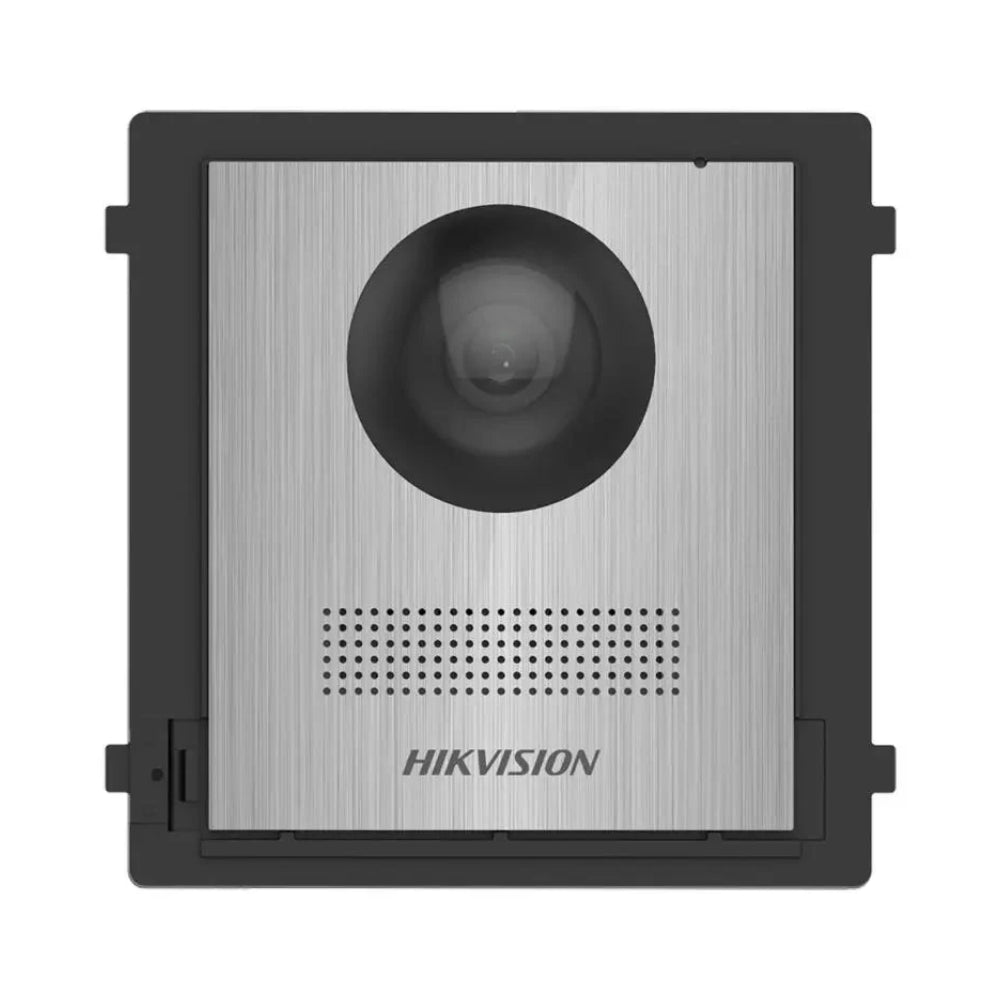

The Hikvision DS-KD8003-IME1/S is the main unit of Hikvision's Gen 2 modular door station system, finished in robust stainless steel for entries that demand a premium, hard-wearing look. As the heart of a modular setup it pairs with additional modules to build the exact intercom you need.
A 2MP HD fisheye camera with IR supplement delivers a wide, low-light view, while a single call button, two lock relays and a 4-channel alarm input cover access control and security at the door. It mounts with a bracket sold separately and runs on 12VDC or standard PoE, talking to your indoor and master stations over IP.
What's Included
DS-KD8003-IME1/S Main Unit
Stainless-steel modular door station main unit with camera and call button.
Documentation
Quick start guide for wiring and commissioning.
Mounting Bracket Required
A compatible mounting bracket is sold separately to complete the install.
Why Choose DS-KD8003-IME1/S
Premium Stainless Finish
Stainless-steel construction resists weather, wear and vandalism at the door.
Modular by Design
Acts as the main unit for a modular system you can expand with extra modules.
Two Lock Relays
Drive two locks plus a 4-channel alarm input for full door security.
Flexible Power
Run on 12VDC or standard PoE to suit your existing infrastructure.
Recommended For
Premium Entrances
Homes and businesses that want a high-end stainless door panel.
Expandable Systems
Sites planning a modular intercom with future module additions.
Two-Lock Doors
Entries needing control of two locks plus alarm inputs.
Technical Specifications
| Model |
DS-KD8003-IME1/S |
| Type |
Modular door station main unit |
| Camera |
2MP HD fisheye with IR supplement |
| Call Button |
One call button |
| Lock Relays |
2 lock relays |
| Alarm Input |
4-channel |
| Power |
12VDC or standard PoE |
| Mounting |
Bracket required (sold separately) |
| Housing |
Stainless steel |
| Protection |
IP65 |
Downloads & Resources
Is this a complete intercom?
No — it is the modular door station main unit. Add modules, an indoor or master station and a lock to complete the system.
Does it include a mounting bracket?
No — a compatible mounting bracket is required and sold separately.
What finish is it?
It has a premium stainless-steel housing for durability and looks.
How many locks can it control?
It has two lock relays plus a 4-channel alarm input.
How is it powered?
Either 12VDC or standard PoE.
What camera does it use?
A 2MP HD fisheye camera with IR supplement for a wide low-light view.
Is it weatherproof?
Yes — it carries an IP65 rating.
Does it include a warranty?
Yes — genuine Australian stock backed by our 3-Year AU Warranty.
