AXIS I-SERIES · NDAA & TAA COMPLIANT
Next-Generation Entrance Security and Communication

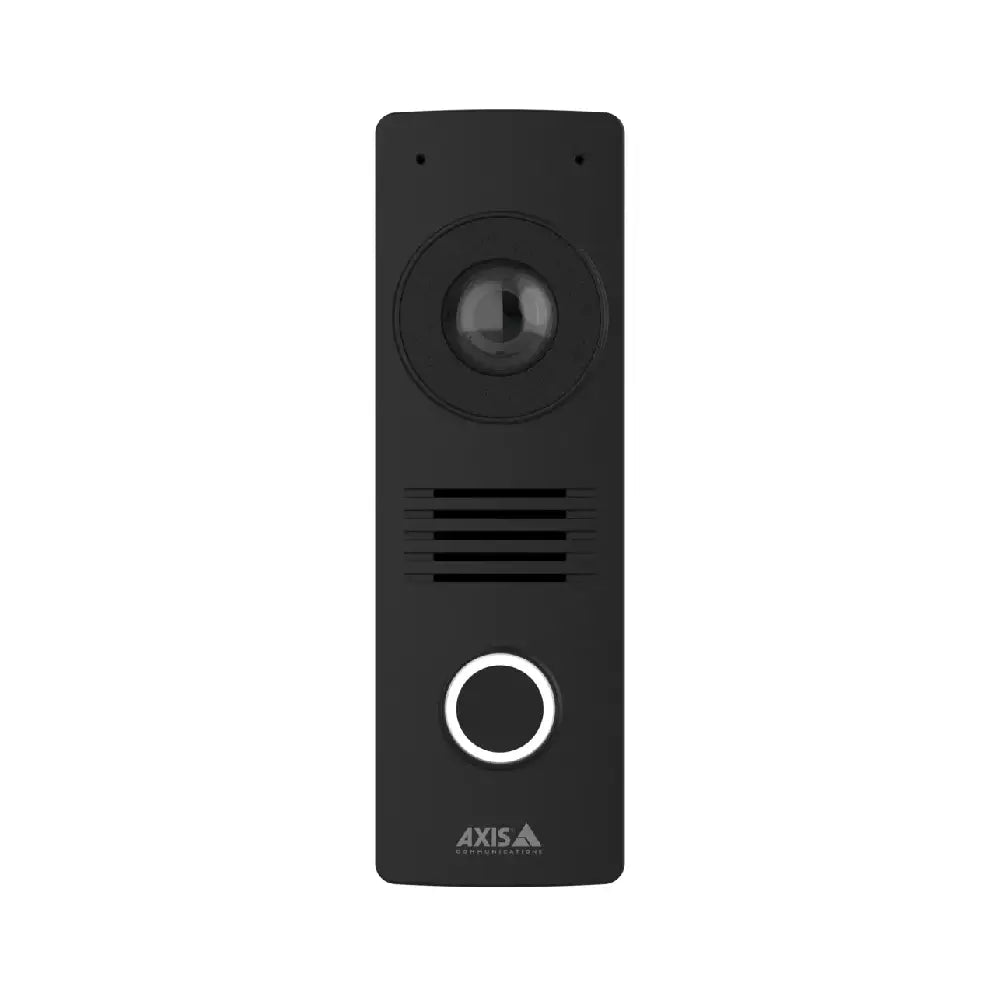

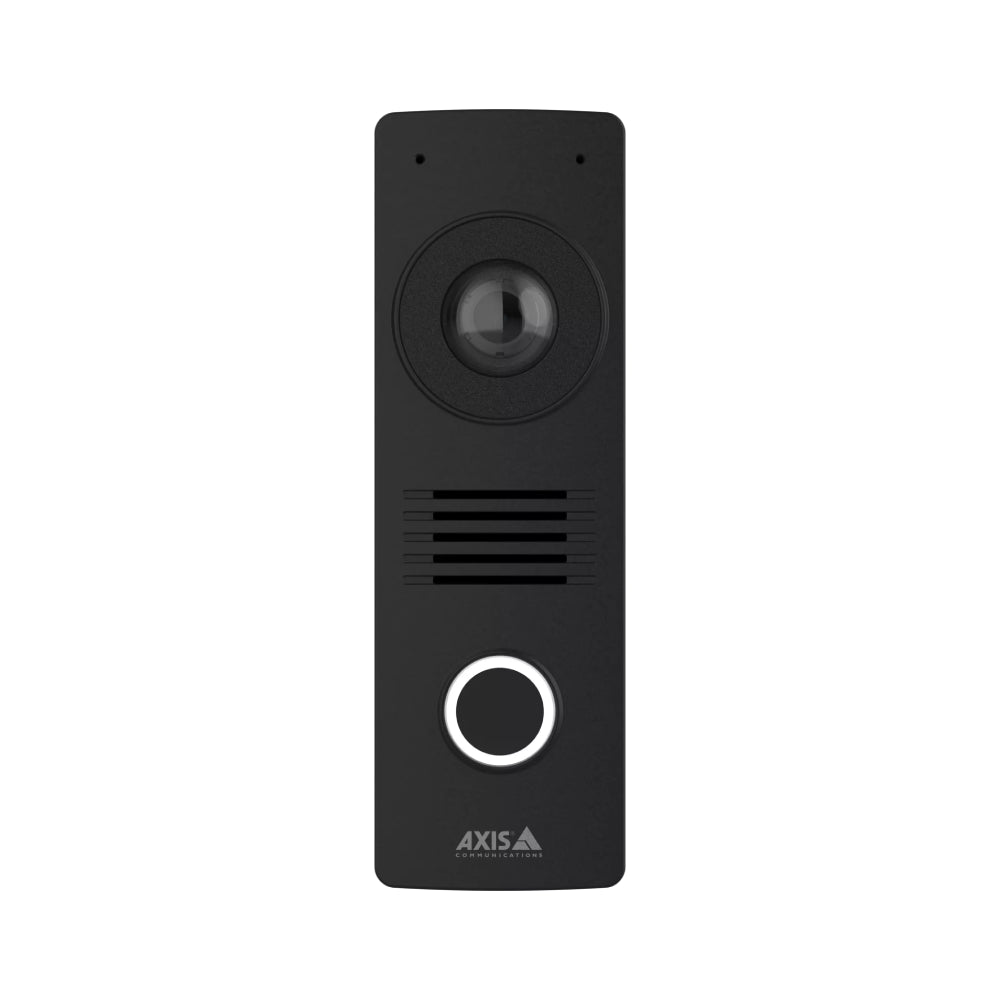

The AXIS I8116-E is a highly compact, outdoor-ready network video intercom designed to elevate access control and surveillance at key entryways. Engineered for commercial facilities, multi-tenant offices, and high-security sectors, this device combines a powerful security camera, clear two-way communication, and remote access control integration into a single, sleek unit. Its narrow form factor allows it to fit seamlessly onto standard doorframes where traditional intercoms are too bulky to install.
Two-Way Audio
Acoustic Echo Cancel
Protection
IP65 & IK07 Rated
Advanced Edge Analytics and Seamless Communication
Beyond traditional door entry capabilities, the AXIS I8116-E acts as an intelligent surveillance node. Leveraging built-in AXIS Object Analytics, it reliably detects, classifies, and tracks humans and vehicles at your perimeter, allowing you to catch security threats before a visitor even presses the call button. With native support for Session Initiation Protocol (SIP) and integration with major Video Management Software (VMS) platforms, this intercom easily links to existing IP telephone and network security infrastructure, transforming entryways into active defense points.

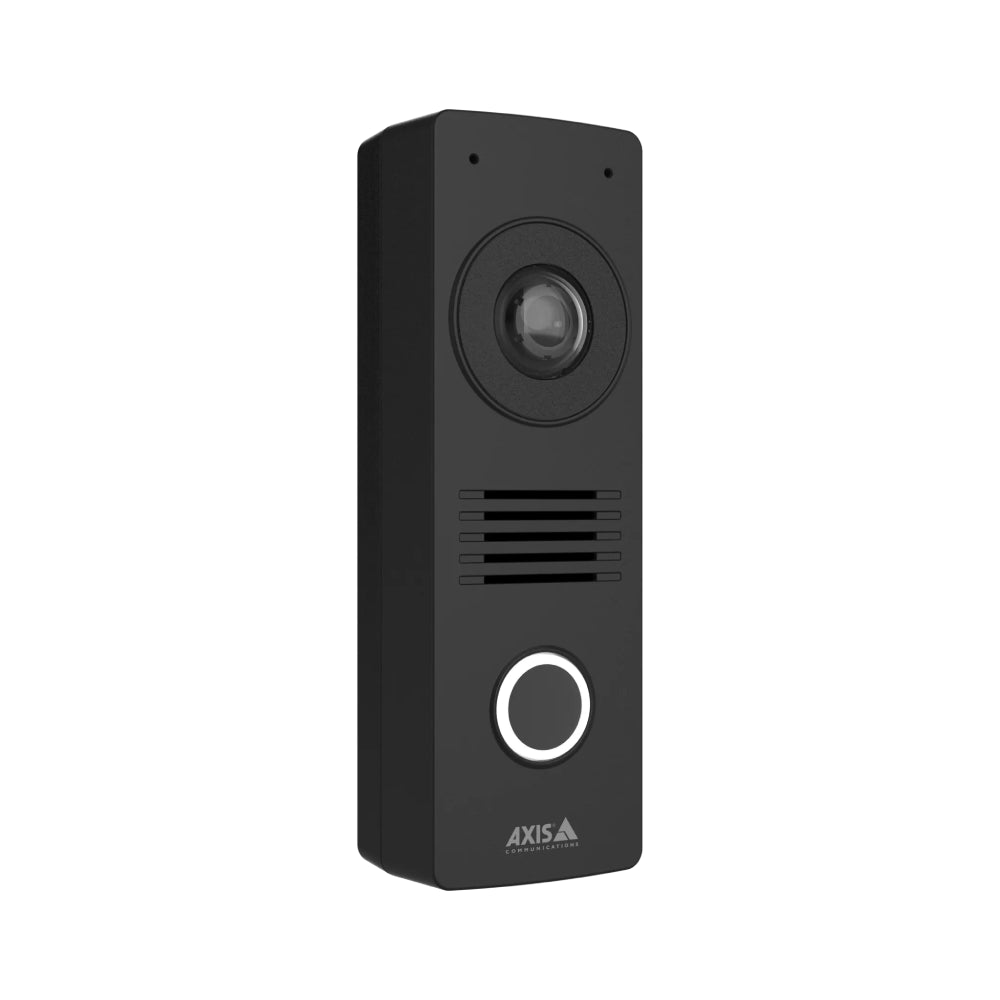

Crystal-Clear Two-Way Audio
The system features an integrated digital microphone and powerful speaker system backed by acoustic echo cancellation and noise suppression technologies. It ensures flawless, high-volume communication between visitors and security personnel, even in environments with heavy street or wind noise.

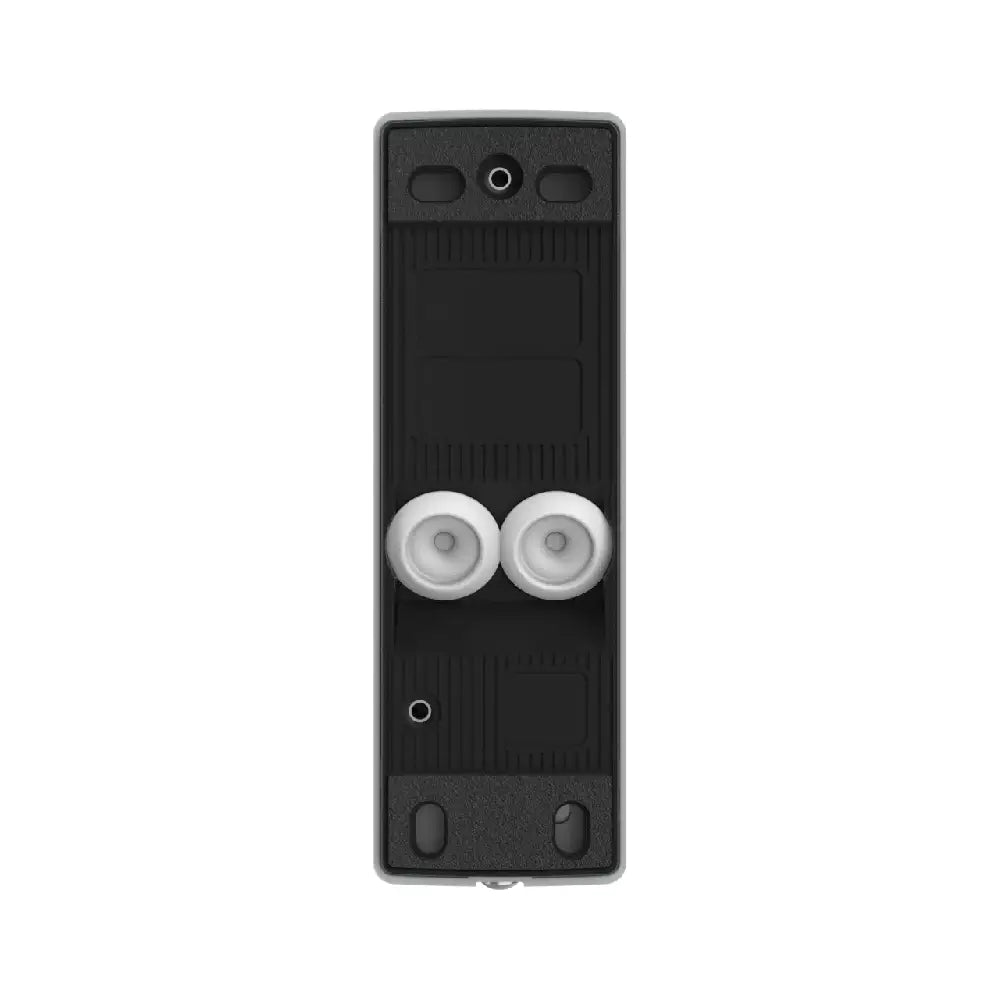

Discreet, Rugged Frame Mounting
Measuring just centimeters in width, the slim design is purpose-built to fit onto architectural mullions and doorframes. Despite its small profile, the IP65 and IK07 ratings guarantee complete protection against harsh outdoor weather, dust ingress, and physical vandalism.
Technical Specification Matrix
| Camera Model |
AXIS I8116-E |
| Resolution |
5 Megapixel (2592 x 1944) |
| Field of View |
180° Horizontal, 105° Vertical |
| Audio Features |
Full duplex two-way communication, echo cancellation, noise reduction |
| WDR Technology |
Forensic WDR for challenging lighting conditions |
| Local Storage |
MicroSD/MicroSDHC/MicroSDXC card slot for edge storage |
| Security Protocols |
Signed firmware, secure boot, Axis Edge Vault with device ID |
| Environmental Ratings |
IP65 weather protection, IK07 impact resistance |
| Power Source |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
Does the AXIS I8116-E support mobile access control?
Yes, the intercom integrates seamlessly with third-party software applications, IP phone systems, and VMS controllers, allowing guards or administrators to answer calls and remotely unlock doors directly from a smartphone or tablet.
Is this model fully NDAA and TAA compliant?
Yes. The AXIS I8116-E is fully NDAA and TAA compliant, making it eligible and secure for deployment in federal government buildings, defense installations, and high-security enterprise environments.
How does the 180° field of view benefit entrance security?
The panoramic 180-degree lens eliminates blind spots around your entrance. It allows operators to see visitors from head to toe, as well as capturing individuals standing immediately to the left or right of the intercom unit.

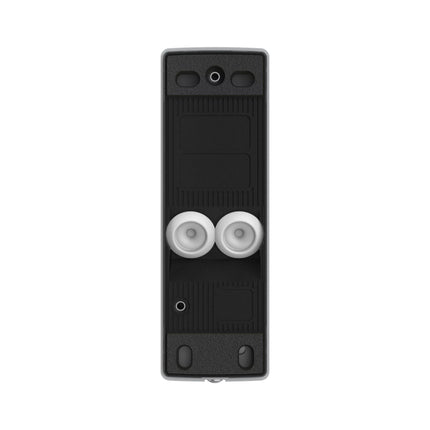

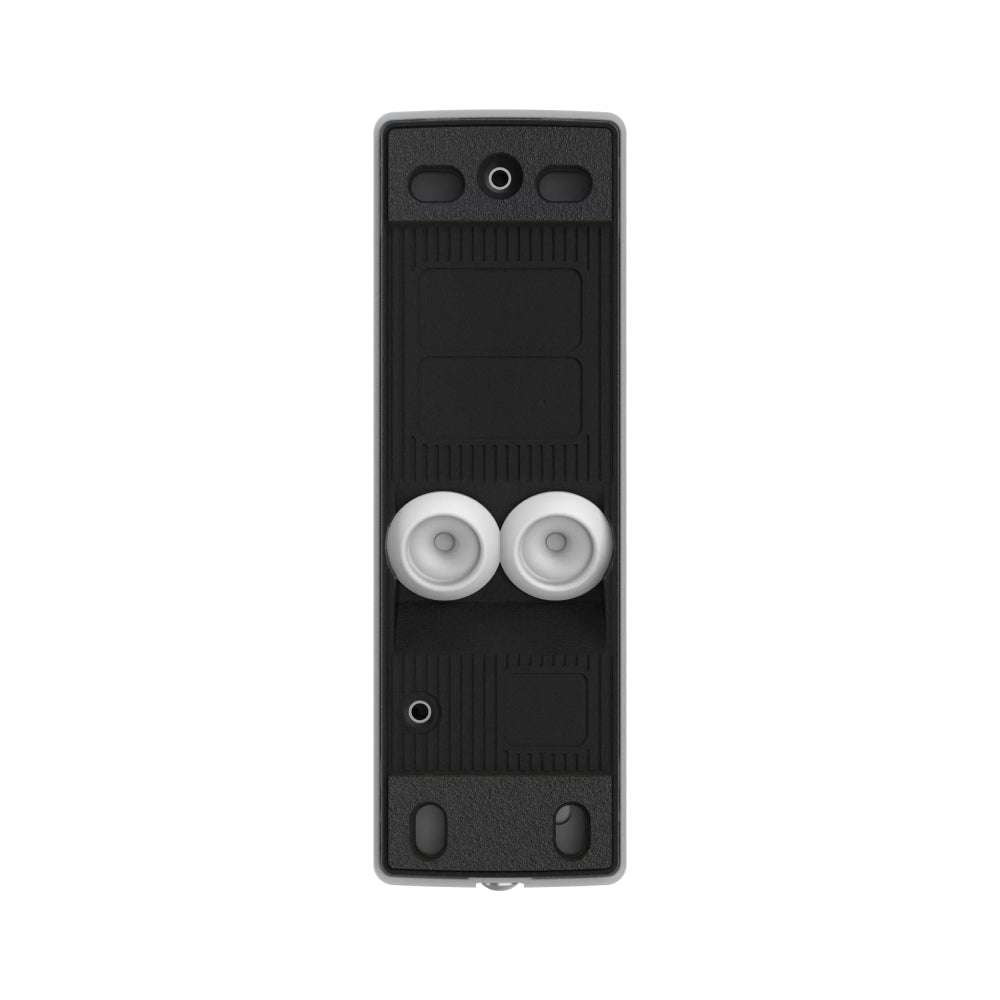

Does it require a separate power run?
No, the AXIS I8116-E is powered solely via Power over Ethernet (PoE), using a standard network cable for both high-speed data transmission and electric power supply, simplifying installation.
