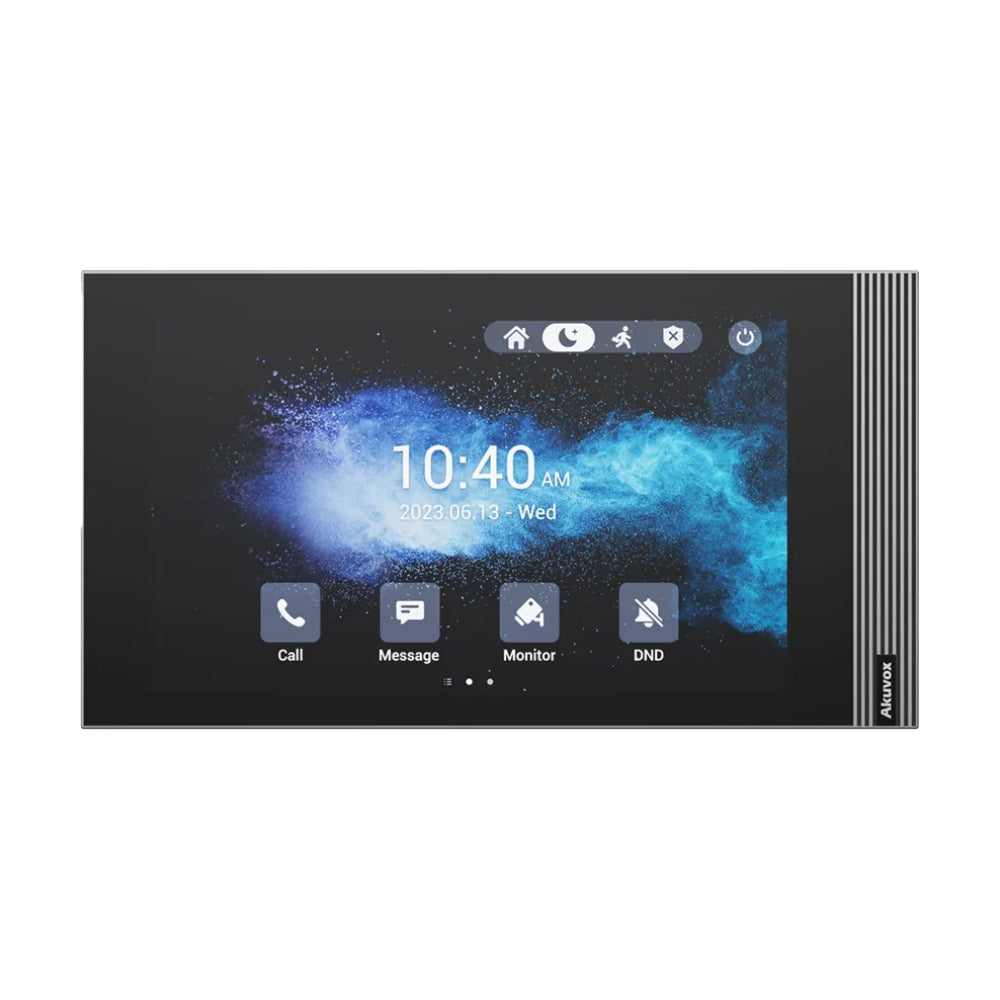

The Akuvox S562 is a premium 7-inch multifunctional communicator that brings a stylish, ultra-clear interface to your home security system. Running on a robust Linux operating system, it provides seamless audio and video communication with outdoor door phones via the SIP 2.0 protocol. Its unobtrusive, space-saving design and brilliant capacitive touch screen make it an ideal choice for modern smart homes and apartments.
Key Features
-

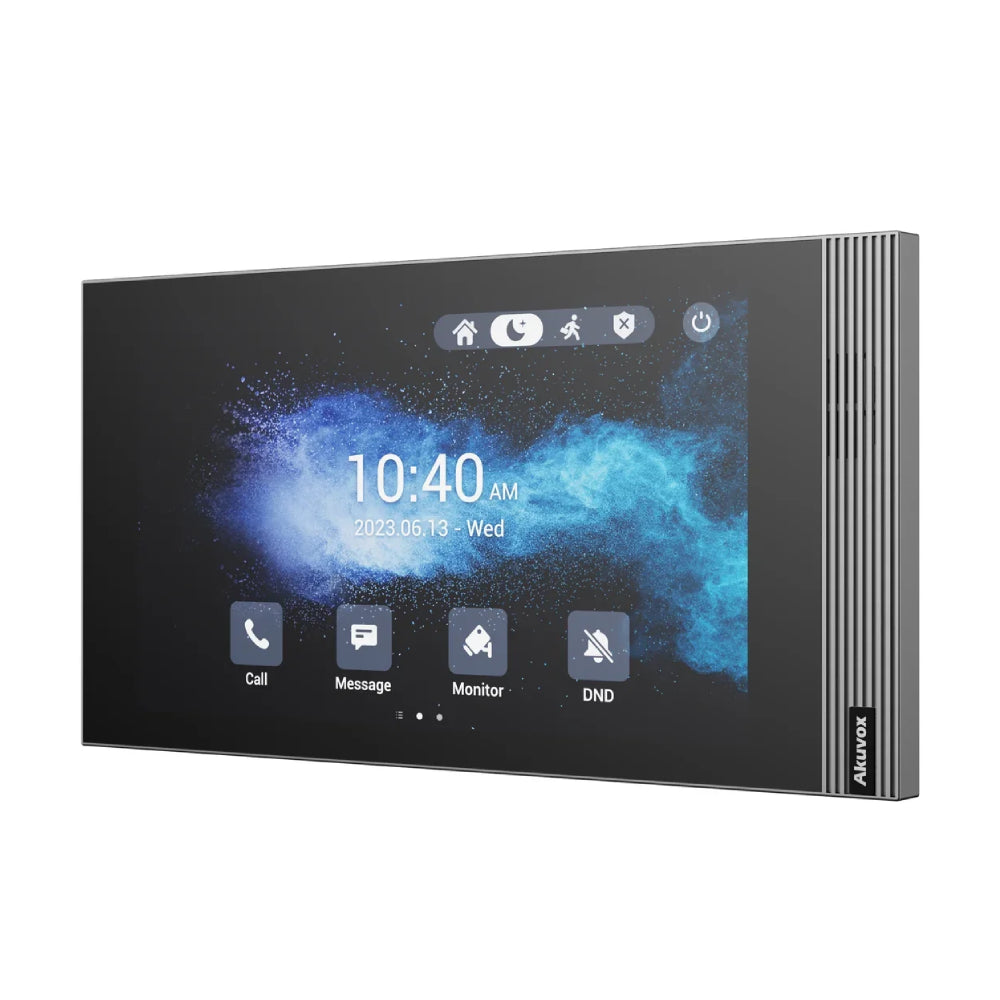

7-Inch Capacitive Touch Screen: Features a high-resolution 1024x600 display with an energy-saving mode for a responsive and eco-friendly user experience.
-
Crystal Clear Two-Way Audio: Built-in microphone and powerful 2W speaker with echo cancellation ensure seamless communication with visitors or other units in the network.
-
SIP Standard Compatibility: Fully complies with SIP standards for easy integration into any SIP-capable PBX or network environment.
-
Flexible Power Options: Can be powered via Power-over-Ethernet (PoE) for a single-cable installation or an external 12V DC source.
-
Versatile Mounting: Supports both US and European electrical wall box mounting, as well as desktop placement (with optional stand).
-
Dual Ethernet Ports: Equipped with two 10/100Mbps RJ45 ports for easy network daisy-chaining or expansion.
Technical Specifications
| Operating System |
Linux |
| Display |
7" TFT LCD (1024x600 Resolution) |
| RAM / ROM |
128MB / 128MB |
| Interfaces |
1x Relay Out, 1x Bell In, 8x I/O, 1x RS485 |
| Dimensions |
216.4 x 118.8 x 21.7 mm |
| Power Supply |
802.3af PoE or 12V DC |
More Information
For complete installation guides and system compatibility, please download the documentation below:
